83 Air Condition 1 for Mercedes-Benz 300d Mercedes-Benz
300d W189.010

Chosen model:

Chassis: 189.010
Engine: 189.980, 981
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

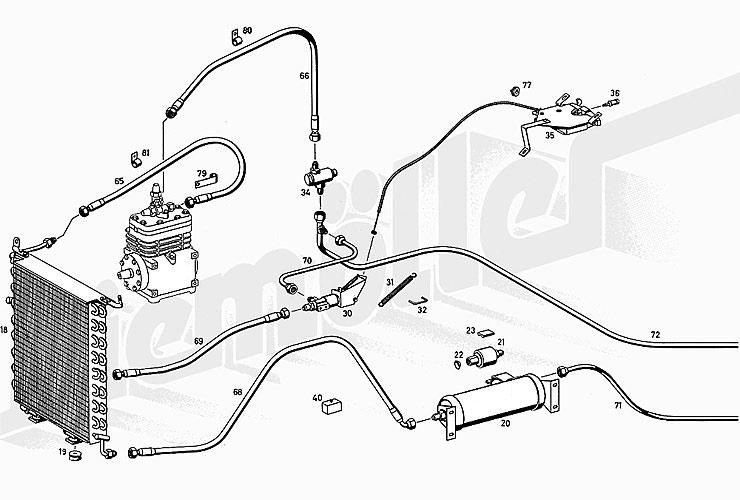

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 18		B 83 154 B 83 154	Condenser in front of cooler (BM 010) Condenser in front of cooler (BM 010) 000 835 00 70 or 0008350070		on request on request
Image number 19		B 83 155 B 83 155	Rubber Buffer Wm 010 Rubber Buffer Wm 010 001 987 04 40 or 0019870440		on request on request
Image number 20		B 83 156 B 83 156	Liquid container with filter dryer. Liquid container with filter dryer. 000 835 00 71 or 0008350071		on request on request
Image number 21		B 83 157 B 83 157	Filter drier (BM 010) Filter drier (BM 010) 000 835 01 71 or 0008350171		on request on request
Image number 22		B 83 158 B 83 158	Seal for connection of the filter dryer. Seal for connection of the filter dryer. 000 997 11 44 or 0009971144		on request on request
Image number 23		B 83 159 B 83 159	Rubber cover for filter drier 37mml Rubber cover for filter drier 37mml 000 835 00 93 or 0008350093		on request on request
Image number -		C 07 108 G 22 020	Lock washer Spring ring for carburetor cover 000 127 006 203 or 000127006203		on request €0.30
	G 22 020	Replacement: Lock washer		€0.30
Image number 30		B 83 160 B 83 160	Regulating valve on holder Fahrge.st.r Regulating valve on holder Fahrge.st.r 000 835 00 72 or 0008350072		on request on request
Image number 31		B 83 161 B 83 161	Tension spring BM 010 Tension spring BM 010 000 835 01 34 or 0008350134		on request on request
Image number 32		B 83 162 B 83 162	Joint (BM 010) Joint (BM 010) 000 835 00 32 or 0008350032		on request on request
Image number -		C 07 108 G 22 020	Lock washer Spring ring for carburetor cover 000 127 006 203 or 000127006203		on request €0.30
	G 22 020	Replacement: Lock washer		€0.30
Image number 34		B 83 163 B 83 163	Start controller right front with regulation knob Start controller right front with regulation knob 000 835 00 76 or 0008350076		on request on request
Image number 35		B 83 164 B 83 164	Control switch for refrigeration system Control switch for refrigeration system 000 835 00 73 or 0008350073		on request on request
Image number 36		B 83 165 B 83 165	Lamp socket for filament holder Lamp socket for filament holder 000 835 00 62 or 0008350062		on request on request
Image number -		C 72 239c C 72 239c	Chromed washer for doorpanel 190SL Chromed washer for doorpanel 190SL 5 N 56 d or 5N56d		€7.57 €7.57
Image number -		C 07 108 G 22 020	Lock washer Spring ring for carburetor cover 000 127 006 203 or 000127006203		on request €0.30
	G 22 020	Replacement: Lock washer		€0.30
Image number 65		B 83 181 B 83 181	Hose from condens. to compressor Hose from condens. to compressor 000 835 00 97 or 0008350097		on request on request
Image number 66		B 83 182 B 83 182	Hose from Compr.to Startr.1030mm long Hose from Compr.to Startr.1030mm long 000 835 01 97 or 0008350197		on request on request
Image number 68		B 83 184 B 83 184	Hose from condens.to liquid 1720m Hose from condens.to liquid 1720m 000 835 10 97 or 0008351097		on request on request
Image number 69		B 83 185 B 83 185	Hose from condens.to reg.vent.930mm Hose from condens.to reg.vent.930mm 000 835 11 97 or 0008351197		on request on request
Image number 70		B 83 186 B 83 186	Short circuit from Regulv.to suction 290mm Short circuit from Regulv.to suction 290mm 000 835 12 97 or 0008351297		on request on request
Image number 71		B 83 187 B 83 187	Pressure from liquid to hose 1790mm Pressure from liquid to hose 1790mm 000 835 13 97 or 0008351397		on request on request
Image number 72		B 83 188 B 83 188	Sauchl.v.Startr.z.evaporator 1480mm Sauchl.v.Startr.z.evaporator 1480mm 000 835 14 97 or 0008351497		on request on request
Image number 76		C 42 436 C 42 436	Clamp Clamp 136 995 01 35 or 1369950135		€6.50 €6.50
Image number 77		C 30 056 C 30 056	Grommet 3-18 Grommet 3-18 186 997 06 81 or 1869970681		€1.37 €1.37
Image number -		C 07 108 G 22 020	Lock washer Spring ring for carburetor cover 000 127 006 203 or 000127006203		on request €0.30
	G 22 020	Replacement: Lock washer		€0.30
Image number 79		B 83 190 B 83 190	Cable clamp for connecting hose. Cable clamp for connecting hose. 189 995 03 01 or 1899950301		on request on request
Image number 80		B 83 191 B 83 191	Fitting clamp for mudguards. Fitting clamp for mudguards. 189 995 02 01 or 1899950201		on request on request
Image number 81		B 83 192 B 83 192	Mounting clip (Wm 010) Mounting clip (Wm 010) 189 995 01 01 or 1899950101		on request on request
Image number -		C 07 097 G 47 089	Hex. nut Hexagon nut M4 DIN 934-5S or M4DIN934-5S		on request €1.00
	G 47 089	Replacement: Hex. nut		€1.00
Image number -		C 07 079 C 07 079	Spring washer for diaphragm pump Spring washer for diaphragm pump		€1.00 €1.00

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Condenser in front of cooler (BM 010)

B 83 154

Rubber Buffer Wm 010

B 83 155

Liquid container with filter dryer.

B 83 156

Filter drier (BM 010)

B 83 157

Seal for connection of the filter dryer.

B 83 158

Rubber cover for filter drier 37mml

B 83 159

Spring ring for carburetor cover

C 07 108

Replacement item available

Regulating valve on holder Fahrge.st.r

B 83 160

Tension spring BM 010

B 83 161

Joint (BM 010)

B 83 162

Spring ring for carburetor cover

C 07 108

Replacement item available

Start controller right front with regulation knob

B 83 163

Control switch for refrigeration system

B 83 164

Lamp socket for filament holder

B 83 165

Chromed washer for doorpanel 190SL

C 72 239c €7.57

Spring ring for carburetor cover

C 07 108

Replacement item available

Hose from condens. to compressor

B 83 181

Hose from Compr.to Startr.1030mm long

B 83 182

Hose from condens.to liquid 1720m

B 83 184

Hose from condens.to reg.vent.930mm

B 83 185

Short circuit from Regulv.to suction 290mm

B 83 186

Pressure from liquid to hose 1790mm

B 83 187

Sauchl.v.Startr.z.evaporator 1480mm

B 83 188

Clamp

C 42 436 €6.50

Grommet 3-18

C 30 056 €1.37

Spring ring for carburetor cover

C 07 108

Replacement item available

Cable clamp for connecting hose.

B 83 190

Fitting clamp for mudguards.

B 83 191

Mounting clip (Wm 010)

B 83 192

Hexagon nut

C 07 097

Replacement item available

Spring washer for diaphragm pump

C 07 079 €1.00

2-hole see C 30 055
3-hole see F 80 072

Grommet 3-18

C 30 056 €1.37

Condenser in front of cooler (BM 010)

B 83 154

Rubber Buffer Wm 010

B 83 155

Liquid container with filter dryer.

B 83 156

Filter drier (BM 010)

B 83 157

Seal for connection of the filter dryer.

B 83 158

Rubber cover for filter drier 37mml

B 83 159

Spring ring for carburetor cover

C 07 108

Replacement item available

Regulating valve on holder Fahrge.st.r

B 83 160

Tension spring BM 010

B 83 161

Joint (BM 010)

B 83 162

Spring ring for carburetor cover

C 07 108

Replacement item available

Start controller right front with regulation knob

B 83 163

Control switch for refrigeration system

B 83 164

Lamp socket for filament holder

B 83 165

Chromed washer for doorpanel 190SL

C 72 239c €7.57

Spring ring for carburetor cover

C 07 108

Replacement item available

Hose from condens. to compressor

B 83 181

Hose from Compr.to Startr.1030mm long

B 83 182

Hose from condens.to liquid 1720m

B 83 184

Hose from condens.to reg.vent.930mm

B 83 185

Short circuit from Regulv.to suction 290mm

B 83 186

Pressure from liquid to hose 1790mm

B 83 187

Sauchl.v.Startr.z.evaporator 1480mm

B 83 188

Clamp

C 42 436 €6.50

Spring ring for carburetor cover

C 07 108

Replacement item available

Cable clamp for connecting hose.

B 83 190

Fitting clamp for mudguards.

B 83 191

Mounting clip (Wm 010)

B 83 192

Hexagon nut

C 07 097

Replacement item available

Spring washer for diaphragm pump

C 07 079 €1.00
