25 Clutch for Mercedes-Benz 300c, w186 Mercedes-Benz
300c W186.016

Chosen model:

Chassis: 186.016
Engine: 186.920, 921
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

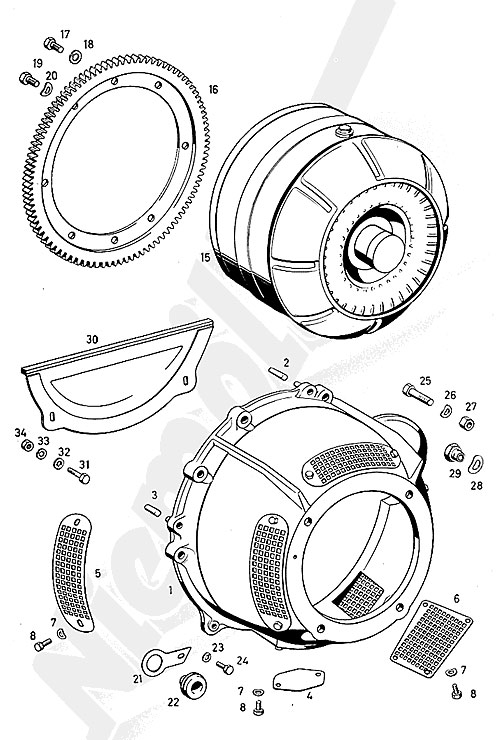

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 1		B 01 065 B 01 065	Transducer housing Transducer housing 186 250 12 05 or 1862501205		on request on request
Image number 2		B 25 035 B 25 035	Taper pin long Taper pin long 186 997 11 12 or 1869971112		on request on request
Image number 3		B 25 036 B 25 036	Taper pin short Taper pin short 186 997 12 12 or 1869971212		on request on request
Image number 4		C 25 036 C 25 036	Cover below Cover below 120 251 03 33 or 1202510333		on request on request
Image number 5		B 25 039 B 25 039	Cover plate (for air inlet) Cover plate (for air inlet) 186 251 07 10 or 1862510710		on request on request
Image number 6		B 25 040 B 25 040	Cover plate (for air inlet) Cover plate (for air inlet) 186 251 08 10 or 1862510810		on request on request
Image number 15		B 25 041 B 25 041	Torque converter Torque converter 186 250 01 02 or 1862500102		on request on request
Image number 16		B 25 043 B 25 043	Starting sprocket Starting sprocket 186 032 05 05 or 1860320505		on request on request
Image number 17		B 25 044 B 25 044	S.square drive 3/8"-24x14mm Dr.to.wall S.square drive 3/8"-24x14mm Dr.to.wall 186 990 18 01 or 1869901801		on request on request
Image number 19		B 25 044 B 25 044	S.square drive 3/8"-24x14mm Dr.to.wall S.square drive 3/8"-24x14mm Dr.to.wall 186 990 18 01 or 1869901801		on request on request
Image number 21		B 25 045 B 25 045	Holder (for speedometer shaft) Holder (for speedometer shaft) 186 542 11 40 or 1865421140		on request on request
Image number 22		C 30 078 C 30 078	Grommet 11-30 Grommet 11-30 186 997 04 81 or 1869970481		€1.25 €1.25
Image number 25		B 25 046 B 25 046	Hexagon screw 7/16-20 Hexagon screw 7/16-20 186 990 17 01 or 1869901701		on request on request
Image number 26		B 25 047 B 22 006	Spring washer Shaft washer for transducer housing 000 137 010 201 or 000137010201		on request €0.90
	B 22 006	Replacement: Spring washer		€0.90
Image number 27		B 25 048 B 25 048	Hexagon nut 7/16-20 Hexagon nut 7/16-20 186 990 02 51 or 1869900251		on request on request
Image number 29		B 25 049 B 25 049	Hexagon nut for torque converter. Hexagon nut for torque converter. 186 990 03 51 or 1869900351		on request on request
Image number 30		B 25 050 B 25 050	Cover plate (for transducer housing) Cover plate (for transducer housing) 186 250 01 30 or 1862500130		on request on request

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Transducer housing

B 01 065

Taper pin long

B 25 035

Taper pin short

B 25 036

Cover below

C 25 036

Cover plate (for air inlet)

B 25 039

Cover plate (for air inlet)

B 25 040

Torque converter

B 25 041

Starting sprocket

B 25 043

S.square drive 3/8"-24x14mm Dr.to.wall

B 25 044

S.square drive 3/8"-24x14mm Dr.to.wall

B 25 044

Holder (for speedometer shaft)

B 25 045

Grommet 11-30

C 30 078 €1.25

Hexagon screw 7/16-20

B 25 046

Shaft washer for transducer housing

B 25 047

Replacement item available

Hexagon nut 7/16-20

B 25 048

Hexagon nut for torque converter.

B 25 049

Cover plate (for transducer housing)

B 25 050

For converter housings on cylinder crankcases

Taper pin long

B 25 035

For converter housings on cylinder crankcases

Taper pin short

B 25 036

For starter ring gear on torque converter

S.square drive 3/8"-24x14mm Dr.to.wall

B 25 044

For driving plate crankshaft on torque converter

S.square drive 3/8"-24x14mm Dr.to.wall

B 25 044

For converter housings on transmissions

Hexagon screw 7/16-20

B 25 046

For converter housings on transmissions

Shaft washer for transducer housing

B 25 047

Replacement item available

For converter housings on transmissions

Hexagon nut 7/16-20

B 25 048

For converter housings on transmissions

Hexagon nut for torque converter.

B 25 049

Transducer housing

B 01 065

Cover below

C 25 036

Cover plate (for air inlet)

B 25 039

Cover plate (for air inlet)

B 25 040

Torque converter

B 25 041

Starting sprocket

B 25 043

Holder (for speedometer shaft)

B 25 045

Grommet 11-30

C 30 078 €1.25

Cover plate (for transducer housing)

B 25 050
