74 Rear Panel Door - Closing System for 200T (M 102) Mercedes-Benz w123T Estate Mercedes-Benz
200T (M 102) W123.280

Chosen model:

Chassis: 123.280
Engine: 102.920, 939
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

[{"type":"poly","coords":[360,366,352,373,359,379,385,383,405,372,416,372,417,363,378,355,372,358,369,365],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g74014-bracket","cssSelector":".product-group-5","info":"{\"ids\":\"G 74 014\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[355,388,391,397,392,418,382,416,379,407,344,397],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g74015-disk","cssSelector":".product-group-8","info":"{\"ids\":\"G 74 015\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[360,380,386,385,404,384,403,394,379,393,354,387],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g74016-carpet-pad-bracket-on-rear-cross-member","cssSelector":".product-group-11","info":"{\"ids\":\"G 74 016\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"rect","coords":[338,336,370,364],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g74017-screw","cssSelector":".product-group-14","info":"{\"ids\":\"G 74 017\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[385,284,365,294,355,287,345,264,341,240,337,227,338,215,339,199,351,197,350,182,349,173,355,159,366,152,369,143,385,141,386,164,381,181,378,202,380,219,385,238],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g74019-lock-door-lock","cssSelector":".product-group-17","info":"{\"ids\":\"G 74 019\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"rect","coords":[382,213,415,229],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g74020-clamp-door-lock-rear-wall-door","cssSelector":".product-group-20","info":"{\"ids\":\"G 74 020\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"rect","coords":[381,190,412,209],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g74021-washer-door-lock-rear-wall-door","cssSelector":".product-group-23","info":"{\"ids\":\"G 74 021\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"rect","coords":[263,260,298,289],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/f80106-clamp-vacuum-element-holder","cssSelector":".product-group-26","info":"{\"ids\":\"F 80 106\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[406,235,440,281],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g74022-switch-interior-lighting","cssSelector":".product-group-29","info":"{\"ids\":\"G 74 022\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[263,256,278,256,278,250,291,249,292,239,273,229,263,239],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/c01206b-hex-head-screw","cssSelector":".product-group-32","info":"{\"ids\":\"C 01 206b\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[345,295,379,327],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g42136-screw-stick-handbrake-on-longitudinal-member","cssSelector":".product-group-38","info":"{\"ids\":\"G 42 136\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"rect","coords":[527,300,556,333],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g74024-lock-push-lock-with-key","cssSelector":".product-group-41","info":"{\"ids\":\"G 74 024\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[506,251,492,252,479,274,522,287,535,278,537,258,535,242,521,242,521,252],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g74025-lock-push-lock-without-key","cssSelector":".product-group-44","info":"{\"ids\":\"G 74 025\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[477,251,465,238,454,238,449,246,462,255,459,266,472,267,481,259],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g74026-presser-foot","cssSelector":".product-group-47","info":"{\"ids\":\"G 74 026\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[544,257,533,286,547,290,555,277,557,256],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/d47020-sealing-ring-for-fuel-tank-bottom","cssSelector":".product-group-50","info":"{\"ids\":\"D 47 020\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[473,217,506,245],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g67098-oval-head-screw-6x12-din-7985","cssSelector":".product-group-53","info":"{\"ids\":\"G 67 098\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[230,184,222,200,220,220,227,240,236,241,258,236,273,224,281,200,278,174,272,166,265,155,255,155,250,164],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g74042-rosette-inside-bed-lock-back-wall","cssSelector":".product-group-56","info":"{\"ids\":\"G 74 042\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[200,169,195,178,196,188,201,200,213,202,218,193,227,188,227,179],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g82087-screw-bz3-5x9-5-din-7981","cssSelector":".product-group-59","info":"{\"ids\":\"G 82 087\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[158,175,156,169,147,170,143,179,146,222,159,222,169,192,188,179,191,177,180,160,166,166],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g74045-inner-handel-rear-door","cssSelector":".product-group-62","info":"{\"ids\":\"G 74 045\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"rect","coords":[157,131,189,160],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g68335-screw-holder-on-loading-floor","cssSelector":".product-group-65","info":"{\"ids\":\"G 68 335\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[311,91,302,99,322,132,323,147,319,160,302,171,302,182,310,246,306,265,300,267,300,276,314,276,322,250,317,181,335,170,338,133,348,123,346,113,330,113],"href":"https:\/\/www.niemoeller.de\/en\/w123T\/w123t\/B280\/743001\/g74046-rod-security-knob-to-lock","cssSelector":".product-group-68","info":"{\"ids\":\"G 74 046\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"}]

in stock
low stock level
currently not in stock, but available for order
no longer available

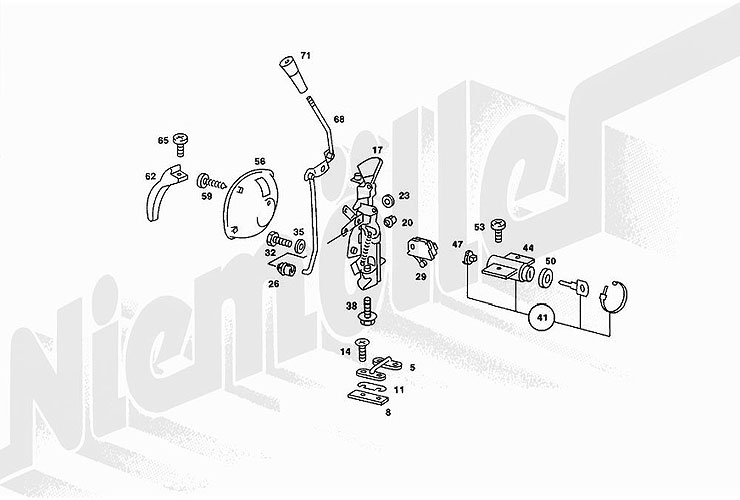

Pic.	Designation
Image number 5	G 74 014 G 74 014	Bracket Bracket 123 740 00 32 or 1237400032	on request on request
Image number 8	G 74 015 G 74 015	Disk Disk 123 743 01 11 or 1237430111	on request on request
Image number 11	G 74 016 G 74 016	Carpet pad bracket on rear cross member Carpet pad bracket on rear cross member 123 743 01 97 or 1237430197	€0.40 €0.40
Image number 14	G 74 017 G 74 017	Screw Screw 000 966 006 011 or 000966006011	on request on request
Image number 17	G 74 019 G 74 019	Lock (door lock) Lock (door lock) 123 740 10 35 or 1237401035	€112.71 €112.71
Image number 20	G 74 020 G 74 020	Clamp (door lock) Rear wall door Clamp (door lock) Rear wall door 004 988 79 78 or 0049887978	€4.77 €4.77
Image number 23	G 74 021 G 74 021	Washer (door lock) Rear wall door Washer (door lock) Rear wall door 003 990 35 40 or 0039903540	on request on request
Image number 26	F 80 106 F 80 106	Clamp, vacuum element holder Clamp, vacuum element holder 003 988 50 78 or 0039885078	€3.30 €3.30
Image number 29	G 74 022 G 74 022	Switch interior lighting Switch interior lighting 000 820 77 10 or 0008207710	€13.30 €13.30
Image number 32	C 01 206b C 01 206b	Hex. head screw Hex. head screw 304 017 006 034 or 304017006034	€2.04 €2.04
Image number 38	G 42 136 G 42 136	Screw, stick handbrake on longitudinal member Screw, stick handbrake on longitudinal member 910 105 006 023 or 910105006023	€2.21 €2.21
Image number 41	G 74 024 G 74 024	Lock (push lock) with key Lock (push lock) with key 123 740 04 35 or 1237400435	on request on request
Image number 44	G 74 025 G 74 025	Lock (push lock) without key Lock (push lock) without key 123 740 00 35 or 1237400035	€200.42 €200.42
Image number 47	G 74 026 G 74 026	Presser foot Presser foot 123 766 03 31 or 1237660331	€10.92 €10.92
Image number 50	D 47 020 D 47 020	Sealing ring for fuel tank bottom Sealing ring for fuel tank bottom 111 997 08 40 or 1119970840	€1.50 €1.50
Image number 53	G 67 098 G 67 098	Oval head screw 6x12 DIN 7985 Oval head screw 6x12 DIN 7985 000 000 001 145 or 000000001145	€0.82 €0.82
Image number 56	G 74 042 G 74 042	Rosette inside bed lock back wall. Rosette inside bed lock back wall. 123 766 03 11 or 1237660311	on request on request
Image number 59	G 82 087 G 82 087	Screw BZ3,5x9,5 DIN 7981 Screw BZ3,5x9,5 DIN 7981 007 981 003 203 or 007981003203	€0.75 €0.75
Image number 62	G 74 045 G 74 045	Inner handel, rear door Inner handel, rear door 123 766 00 43 or 1237660043	€162.18 €162.18
Image number 65	G 68 335 G 68 335	Screw Holder on loading floor Screw Holder on loading floor 007 985 005 127 or 007985005127	€1.98 €1.98
Image number 68	G 74 046 G 74 046	Rod security knob to lock Rod security knob to lock 123 740 00 92 or 1237400092	€8.97 €8.97

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Bracket

G 74 014

Disk

G 74 015

Carpet pad bracket on rear cross member

G 74 016 €0.40

Screw

G 74 017

Lock (door lock)

G 74 019 €112.71

Clamp (door lock) Rear wall door

G 74 020 €4.77

Washer (door lock) Rear wall door

G 74 021

Clamp, vacuum element holder

F 80 106 €3.30

Switch interior lighting

G 74 022 €13.30

Hex. head screw

C 01 206b €2.04

Screw, stick handbrake on longitudinal member

G 42 136 €2.21

Lock (push lock) with key

G 74 024

Lock (push lock) without key

G 74 025 €200.42

Presser foot

G 74 026 €10.92

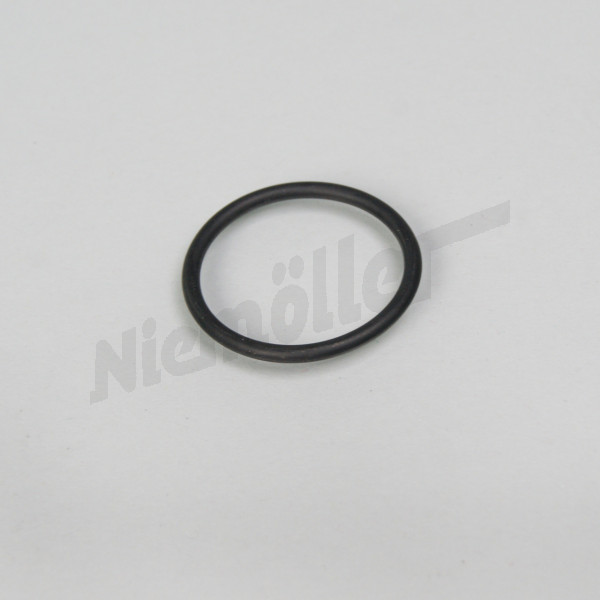

Sealing ring for fuel tank bottom

D 47 020 €1.50

Oval head screw 6x12 DIN 7985

G 67 098 €0.82

Rosette inside bed lock back wall.

G 74 042

Screw BZ3,5x9,5 DIN 7981

G 82 087 €0.75

Inner handel, rear door

G 74 045 €162.18

Screw Holder on loading floor

G 68 335 €1.98

Rod security knob to lock

G 74 046 €8.97

As of ident. no.
083 000464
086 000255
093 000180
183 000589
190 000511

Disk

G 74 015

As of ident. no.
086 006409
093 007546
183 013075
190 019713
283 001214

Lock (door lock)

G 74 019 €112.71

STATE LOCK NUMBER WHEN ORDERING

Lock (push lock) without key

G 74 025 €200.42

FROM CHASSIS NEW EQUIPMENT 9/79
083 004327 ALSO INSTALLED ON
003633, 003769, 003784, 003786, 003794, 003797, 003809.
086 003334 ALSO INSTALLED ON
002924, 002958, 002959, 002981, 003004, 003013, 003017, 003025, 003114, 003171, 003282- 003298, 003300- 003332.
093 004377 ALSO INSTALLED ON
003196, 003355, 003552, 003818, 003865, 004180, 004186- 004202, 004204, 004207- 004220, 004222- 004375.
183 007423 ALSO INSTALLED ON
006378, 006494, 006605, 006668, 006953, 007353- 007383, 007386- 007421.
190 011486 ALSO INSTALLED ON
009485, 009712, 009805, 009893, 009899, 009933, 009986, 010119, 010147, 010150, 010286, 010383, 010401, 010676,
010730, 010736, 011073, 011074, 011076- 011108, 011110- 011116, 011120- 011163, 011167- 011195, 011197- 011333,
011335- 011484.
UP TO CHASSIS NEW EQUIPMENT 9/82
093 NOT FOR AUSTRALIA,SWITZERLAND 012441 EXCEPT FOR
011307, 011965, 012200, 012221, 012439, 012440.
093 AUSTRALIA 012210 EXCEPT FOR 012054
093 SWITZERLAND 012348 EXCEPT FOR 012051
183 NOT FOR SWEDEN 024281 EXCEPT FOR
022464, 023915, 023929, 023978, 024004, 024219.
183 SWEDEN 023860
190 NOT FOR AUSTRALIA 027673 EXCEPT FOR
025832, 027447, 027488, 027490, 027649, 027650.
190 AUSTRALIA 027353
193 NOT FOR JAPAN,SWEDEN 012845 EXCEPT FOR
012504, 012527, 012560, 012606, 012618, 012671, 012843, 012844.
193 JAPAN 012692 EXCEPT FOR 012205
193 SWEDEN 012543
280 NOT FOR SWITZERLAND 006147 EXCEPT FOR
005799, 005861, 005920, 005926, 005968.
280 SWITZERLAND 10/50 005999 EXCEPT FOR 005533
12/52 006000 EXCEPT FOR 005529
283 NOT FOR SWITZERLAND 013801 EXCEPT FOR
013355, 013372, 013453, 013501, 013797, 013798, 013800.
283 SWITZERLAND 10/50 013557
12/52 014530 EXCEPT FOR 012929
NO.9051 I NO.5076 I NO.8326 I NO.8336 I NO.6086 I NO.3076 I

Rosette inside bed lock back wall.

G 74 042

As of ident. no.
083 001958
086 001565
093 001495
183 001494
190 003800

Screw BZ3,5x9,5 DIN 7981

G 82 087 €0.75

Bracket

G 74 014

Carpet pad bracket on rear cross member

G 74 016 €0.40

Screw

G 74 017

Clamp (door lock) Rear wall door

G 74 020 €4.77

Washer (door lock) Rear wall door

G 74 021

Clamp, vacuum element holder

F 80 106 €3.30

Switch interior lighting

G 74 022 €13.30

Hex. head screw

C 01 206b €2.04

Screw, stick handbrake on longitudinal member

G 42 136 €2.21

Lock (push lock) with key

G 74 024

Presser foot

G 74 026 €10.92

Sealing ring for fuel tank bottom

D 47 020 €1.50

Oval head screw 6x12 DIN 7985

G 67 098 €0.82

Inner handel, rear door

G 74 045 €162.18

Screw Holder on loading floor

G 68 335 €1.98

Rod security knob to lock

G 74 046 €8.97
