29 Pedal system With bearings for 240TD Mercedes-Benz w123 Estate Mercedes-Benz
240TD W123.183

Chosen model:

Chassis: 123.183
Engine: 616.912
Change vehicle
Change module

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

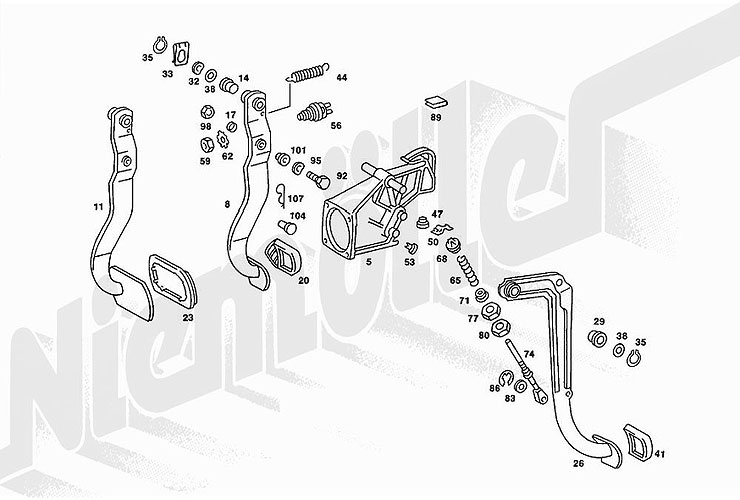

Pic.	Designation		Price/unit excl. tax.
Image number 5	G 29 001 G 29 001	Bearings Bearings 123 290 03 31 or 1232900331		on request on request
Image number 8	G 29 002 G 29 002	Pedal Pedal 123 290 10 18 or 1232901018		on request on request
Image number 11	G 29 003 G 29 003	Pedal Pedal 123 290 12 18 or 1232901218		on request on request
Image number 14	D 29 041 D 29 041	Bushing Bushing 124 292 00 50 or 1242920050		€1.59 €1.59
Image number 17	F 29 023	Bushing 126 292 00 50 or 1262920050	€2.25		Select variant	€2.25
Image number 17	G 29 004	Can 123 292 00 50 or 1232920050	on request		Select variant	on request
Image number 20	D 29 039a D 29 039a	Rubber pad for clutch / brake pedal Rubber pad for clutch / brake pedal 107 291 01 82 or 1072910182		€3.00 €3.00
Image number 23	F 29 024 F 29 024	Pedal cover Pedal cover 100 292 02 82 or 1002920282		€5.50 €5.50
Image number 26	G 29 005 G 29 005	Pedal Pedal 123 290 15 16 or 1232901516		on request on request
Image number 29	D 29 041 D 29 041	Bushing Bushing 124 292 00 50 or 1242920050		€1.59 €1.59
Image number 32	B 03 018 B 03 018	Spring washer Spring washer 000 137 008 202 or 000137008202		€0.30 €0.30
Image number 38	F 29 047 F 29 047	Washer Washer 115 291 00 76 or 1152910076		€1.64 €1.64
Image number 41	D 29 039a D 29 039a	Rubber pad for clutch / brake pedal Rubber pad for clutch / brake pedal 107 291 01 82 or 1072910182		€3.00 €3.00
Image number 44	G 29 006 G 29 006	Spring Spring 123 993 12 10 or 1239931210		€3.60 €3.60
Image number 47	G 29 007 G 29 007	Stop Stop 123 291 00 86 or 1232910086		€2.25 €2.25
Image number 50	G 29 009 G 29 009	Bracket Bracket 123 988 42 78 or 1239884278		on request on request
Image number 53	G 29 011 G 29 011	Stop Stop 123 291 02 86 or 1232910286		€1.11 €1.11
Image number 56	D 54 798 D 54 798	Brake light switch Brake light switch 000 545 35 09 or 0005453509		€28.00 €28.00
Image number 59	D 54 802 D 54 802	Nut, brake light switch on pedal system Nut, brake light switch on pedal system 000 990 92 51 or 0009909251		€43.45 €43.45
Image number 65	G 29 013 G 29 013	Spring Spring 123 993 07 01 or 1239930701		€3.94 €3.94
Image number 68	G 29 014 G 29 014	Spring plate Spring plate 123 291 04 91 or 1232910491		€3.15 €3.15
Image number 71	G 29 015 G 29 015	Spring plate Spring plate 123 291 02 91 or 1232910291		on request on request
Image number 74	G 29 016 G 29 016	Rod Rod 123 290 01 39 or 1232900139		€139.31 €139.31
Image number 89	G 29 019 G 29 019	Bearings Bearings 123 294 02 12 or 1232940212		on request on request
Image number 92	G 25 018 G 25 018	Screw Screw 000 933 008 153 or 000933008153		€3.90 €3.90
Image number 95	B 03 018 B 03 018	Spring washer Spring washer 000 137 008 202 or 000137008202		€0.30 €0.30
Image number 101	F 42 131	Bushing, braking device on brake pedal 115 291 03 50 or 1152910350	on request		Select variant	on request
Image number 101	F 42 132	Bushing, push rod Braking device / Br.st 123 292 01 50 or 1232920150	€9.18		Select variant	€9.18
Image number 104	F 42 133	Pin 126 292 00 74 or 1262920074	€3.81		Select variant	€3.81
Image number 104	F 42 134	Bolz.,Druckst. Brake unit on brake. 126 292 01 74 or 1262920174	on request		Select variant	on request
Image number 107	F 42 319 F 42 319	Bolt right hand drive Bolt right hand drive 001 434 008 058 or 001434008058		€2.13 €2.13

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Bearings

G 29 001

Pedal

G 29 002

Pedal

G 29 003

Bushing

D 29 041 €1.59

Bushing

F 29 023 €2.25

Can

G 29 004

Rubber pad for clutch / brake pedal

D 29 039a €3.00

Pedal cover

F 29 024 €5.50

Pedal

G 29 005

Bushing

D 29 041 €1.59

Spring washer

B 03 018 €0.30

Washer

F 29 047 €1.64

Rubber pad for clutch / brake pedal

D 29 039a €3.00

Spring

G 29 006 €3.60

Stop

G 29 007 €2.25

Bracket

G 29 009

Stop

G 29 011 €1.11

Brake light switch

D 54 798 €28.00

Nut, brake light switch on pedal system

D 54 802 €43.45

Spring

G 29 013 €3.94

Spring plate

G 29 014 €3.15

Spring plate

G 29 015

Rod

G 29 016 €139.31

Bearings

G 29 019

Screw

G 25 018 €3.90

Spring washer

B 03 018 €0.30

Bushing, braking device on brake pedal

F 42 131

Bushing, push rod Braking device / Br.st

F 42 132 €9.18

F 42 133 €3.81

Bolz.,Druckst. Brake unit on brake.

F 42 134

Bolt right hand drive

F 42 319 €2.13

gearshift transmission;

As of ident. no.
000         10/50,12/52 159697
            20/60,22/62 160204
003         10/50,12/52 079167
            20/60,22/62 078835
007         10/50,12/52 064070
083 004327 ALSO INSTALLED ON
003633, 003769, 003784, 003786, 003794, 003797, 003809.
086 003334 ALSO INSTALLED ON
002924, 002958, 002959, 002981, 003004, 003013, 003017, 003025, 003114, 003171, 003282- 003298, 003300- 003332.
093 004377 ALSO INSTALLED ON
003196, 003355, 003552, 003818, 003865, 004180, 004186- 004202, 004204, 004207- 004220, 004222- 004375.
102,103     10/50,12/52 149943
            20/60,22/62 149110
105                     165001
183 007423 ALSO INSTALLED ON
006378, 006494, 006605, 006668, 006953, 007353- 007383, 007386- 007421.
190 011486 ALSO INSTALLED ON
009485, 009712, 009805, 009893, 009899, 009933, 009986, 010119, 010147, 010150, 010286, 010383, 010401, 010676,
010730, 010736, 011073, 011074, 011076- 011108, 011110- 011116, 011120- 011163, 011167- 011195, 011197- 011333,
011335- 011484.

Pedal

G 29 002

automatic transmission;

Pedal

G 29 003

Bushing

F 29 023 €2.25

Up to ident. no.:
000         10/50,12/52 159696
            20/60,22/62 160203
003         10/50,12/52 079166
            20/60,22/62 078834
007         10/50,12/52 064069
083 004326 EXCEPT FOR
003633, 003769, 003784, 003786, 003794, 003797, 003809.
086 003333 EXCEPT FOR
002924, 002958, 002959, 002981, 003004, 003013, 003017, 003025, 003114, 003171, 003282- 003298, 003300- 003332.
093 004376 EXCEPT
003196, 003355, 003552, 003818, 003865, 004180, 004186- 004202, 004204, 004207- 004220, 004222- 004375.
102,103     10/50,12/52 149942
            20/60,22/62 149109
105                     165000
183 007422 EXCEPT
006378, 006494, 006605, 006668, 006953, 007353- 007383, 007386- 007421.
190 011485 EXCEPT
009485, 009712, 009805, 009893, 009899, 009933, 009986, 010119, 010147, 010150, 010286, 010383, 010401, 010676,
010730, 010736, 011073, 011074, 011076- 011108, 011110- 011116, 011120- 011163, 011167- 011195, 011197- 011333,
011335- 011484.

Can

G 29 004

gearshift transmission

Rubber pad for clutch / brake pedal

D 29 039a €3.00

automatic transmission

Pedal cover

F 29 024 €5.50

gearshift transmission

Pedal

G 29 005

gearshift transmission

Bushing

D 29 041 €1.59

gearshift transmission

Spring washer

B 03 018 €0.30

gearshift transmission

Washer

F 29 047 €1.64

gearshift transmission

Rubber pad for clutch / brake pedal

D 29 039a €3.00

gearshift transmission

Stop

G 29 007 €2.25

gearshift transmission;

As of ident. no.
000     030413
003     014075
102,103 019737
105     027523

Bracket

G 29 009

gearshift transmission

Stop

G 29 011 €1.11

gearshift transmission

Spring

G 29 013 €3.94

gearshift transmission

Spring plate

G 29 014 €3.15

gearshift transmission

Spring plate

G 29 015

gearshift transmission

Rod

G 29 016 €139.31

Screw

G 25 018 €3.90

Spring washer

B 03 018 €0.30

Bushing, braking device on brake pedal

F 42 131

FOR CONECTION OF 123 290 10 18,123 290 12 18 BRAKE PEDALS WITH 002 430 45 30, 002 430 53 30,
SEE SERVICE INFORMATION 42/58

Bushing, push rod Braking device / Br.st

F 42 132 €9.18

F 42 133 €3.81

FOR CONECTION OF 123 290 14 18,123 290 16 18 BRAKE PEDALS WITH 002 430 25 30,002 430 26 30,002 430 27 30 BRAKE BOOSTER, SEE
SERVICE INFORMATION 42/58

Bolz.,Druckst. Brake unit on brake.

F 42 134

Bolt right hand drive

F 42 319 €2.13

Bearings

G 29 001

Bushing

D 29 041 €1.59

Spring

G 29 006 €3.60

Brake light switch

D 54 798 €28.00

Nut, brake light switch on pedal system

D 54 802 €43.45

Bearings

G 29 019
