42 Brakes for 450SEL Mercedes-Benz w116.033 Mercedes-Benz
450SEL W116.033

Chosen model:

Chassis: 116.033
Engine: 117.983, 986
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

[{"type":"poly","coords":[281,247,295,255,296,266,301,285,305,304,316,318,328,330,340,335,369,331,388,327,387,335,409,335,407,321,418,315,426,303,433,287,433,261,449,257,466,247,467,232,457,229,435,227,422,227,408,209,393,203,378,197,327,211,305,223],"href":"\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/130","cssSelector":".product-group-130","info":"{\"ids\":\"D 42 513, D 42 513a, D 42 513o\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[529,181,525,207,530,229,540,239,552,243,560,233,558,217,548,179],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/d42516-filter-ring","cssSelector":".product-group-132","info":"{\"ids\":\"D 42 516\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[574,173,567,199,569,213,583,225,614,218,616,203,609,179,592,171],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/d42520-protective-cap-for-brake-booster-t52","cssSelector":".product-group-135","info":"{\"ids\":\"D 42 520\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[73,310,16,340,16,361,28,369,57,368,69,367,113,353,118,339,114,328,92,311],"href":"\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/138","cssSelector":".product-group-138","info":"{\"ids\":\"D 42 523, D 42 523a, F 42 112, D 42 523b, F 42 112a\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[128,305,130,315,140,325,151,336,216,319,222,323,236,312,226,290,217,286,208,287,195,293,186,298,169,297],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f42114-master-cylinder","cssSelector":".product-group-139","info":"{\"ids\":\"F 42 114\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[282,272,276,285,282,313,299,313,298,289,292,276,282,271,274,221,396,175,542,138,579,154,612,134,613,107,608,94,598,90,591,100,594,113,593,131,611,134,580,154,542,138,396,174,274,220],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/d42062-o-ring","cssSelector":".product-group-140","info":"{\"ids\":\"D 42 062\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[266,267,249,267,252,297,257,308,269,311,274,297,266,266,287,222,397,177,559,137,562,144,578,145,579,123,572,102,562,101,560,110,560,121,564,129,557,138,400,176,286,222],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/c46019-locking-ring-28x1-2-din472","cssSelector":".product-group-143","info":"{\"ids\":\"C 46 019\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[420,125,424,128,438,131,449,126,451,117,450,105,438,96,426,100,420,110],"href":"\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/145","cssSelector":".product-group-145","info":"{\"ids\":\"D 42 530, D 42 532, F 42 115, F 42 116\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[72,367,72,376,76,393,93,394,86,370,80,365],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/a41043-lock-washer","cssSelector":".product-group-149","info":"{\"ids\":\"A 41 043\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[55,371,40,387,40,397,58,396,71,387,70,378,68,369],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/g75029-hex-nut","cssSelector":".product-group-151","info":"{\"ids\":\"G 75 029\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"C 32 027\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[101,217,102,229,117,229,121,249,128,255,155,255,193,244,196,227,192,213,170,197,162,197,130,203],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f42119-container-teves","cssSelector":".product-group-154","info":"{\"ids\":\"F 42 119\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[20,13,11,25,5,43,4,51,5,67,16,83,81,82,87,69,89,49,87,33,69,14,42,9,29,9],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f42121-brake-fluid-reservoir","cssSelector":".product-group-155","info":"{\"ids\":\"F 42 121\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[159,165,154,171,154,185,162,187,173,186,198,179,198,172,172,163,164,161],"href":"\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/156","cssSelector":".product-group-156","info":"{\"ids\":\"F 42 123, F 42 124\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[104,155,104,165,122,165,136,169,148,169,156,163,156,152,144,148,132,148],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f42125-cap-including-gasket","cssSelector":".product-group-157","info":"{\"ids\":\"F 42 125\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[106,180,106,192,139,193,152,191,153,186,148,179],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/c42283-sealing-ring","cssSelector":".product-group-158","info":"{\"ids\":\"C 42 283\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[185,259,186,272,200,271,212,276,220,275,222,260],"href":"\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/159","cssSelector":".product-group-159","info":"{\"ids\":\"G 42 036, G 42 036\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[102,107,102,121,114,126,141,119,142,108,114,104],"href":"\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/160","cssSelector":".product-group-160","info":"{\"ids\":\"D 42 546, D 42 546, D 42 547\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[98,64,112,69,142,67,140,55,108,54],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/d42548-sealing-ring","cssSelector":".product-group-161","info":"{\"ids\":\"D 42 548\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[103,73,104,80,142,81,140,71],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/d42551-sealing-ring","cssSelector":".product-group-162","info":"{\"ids\":\"D 42 551\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[3,141,3,152,30,155,56,149,69,144,71,138,56,133,42,132],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/d42553-splash-guard","cssSelector":".product-group-165","info":"{\"ids\":\"D 42 553\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[14,109,14,120,40,125,55,125,58,118,58,106,40,104],"href":"\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/167","cssSelector":".product-group-167","info":"{\"ids\":\"F 42 129, C 42 288\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[616,157,615,169,633,168,633,203,663,221,667,217,668,173,663,167,638,153],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f29057-gasket","cssSelector":".product-group-183","info":"{\"ids\":\"F 29 057\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[670,148,669,159,680,177,689,179,690,173,686,147],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/b03018-spring-washer","cssSelector":".product-group-186","info":"{\"ids\":\"B 03 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[697,143,692,159,692,169,696,172,706,173,709,155,714,154,713,143],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/g75029-hex-nut~2","cssSelector":".product-group-188","info":"{\"ids\":\"G 75 029\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"C 32 027\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[395,187,399,195,407,197,419,200,424,193,436,187,435,179,404,177],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/g25018-screw","cssSelector":".product-group-191","info":"{\"ids\":\"G 25 018\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[474,265,476,275,492,273,503,271,507,259,501,255],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/b03018-spring-washer~2","cssSelector":".product-group-193","info":"{\"ids\":\"B 03 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[493,280,494,289,509,289,526,271,522,263,513,262,506,269,506,278],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/g75029-hex-nut~3","cssSelector":".product-group-195","info":"{\"ids\":\"G 75 029\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"C 32 027\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[422,209,441,213,459,201,459,193,433,192,426,194,422,203],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f42131-bushing-braking-device-on-brake-pedal","cssSelector":".product-group-197","info":"{\"ids\":\"F 42 131\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[494,235,503,251,520,251,520,239,515,225,502,218,497,222],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f42132-bushing-push-rod-braking-device-br-st","cssSelector":".product-group-199","info":"{\"ids\":\"F 42 132\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[184,46,185,60,190,65,208,60,266,68,270,87,286,87,274,111,258,151,232,216,238,232,248,246,270,253,272,244,274,237,262,235,250,225,250,214,276,162,294,117,305,82,300,65,291,57,192,43],"href":"\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/205","cssSelector":".product-group-205","info":"{\"ids\":\"F 42 162, F 42 163, F 42 164, F 42 168, F 42 169, F 42 171\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[159,12,159,28,166,31,209,33,233,18,230,2,210,2],"href":"\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/213","cssSelector":".product-group-213","info":"{\"ids\":\"D 42 588, F 42 176\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[234,319,246,329,254,328,266,333,268,345,259,353,225,363,226,374,201,381,201,369,164,378,161,369,141,370,142,381,148,385,143,397,144,411,154,419,161,429,174,430,176,420,172,412,162,410,154,403,158,391,200,381,226,375,254,365,265,361,274,354,278,341,275,329,263,321,252,313,238,311],"href":"\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/216","cssSelector":".product-group-216","info":"{\"ids\":\"C 42 335, C 42 339, F 42 206\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[25,329,32,322,26,313,10,289,40,265,42,273,65,271,66,261,98,266,161,290,169,296,184,296,186,290,178,280,170,281,106,255,57,249,34,255,2,277,1,301,15,321],"href":"\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/220","cssSelector":".product-group-220","info":"{\"ids\":\"F 42 206, F 42 203, C 42 339\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[131,419,148,419,158,435,157,447,151,452,136,445,131,429],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/d42709-grommet","cssSelector":".product-group-224","info":"{\"ids\":\"D 42 709\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[175,339,180,343,190,345,203,339,212,344,218,353,218,378,217,388,258,413,271,413,431,367,436,364,474,322,518,311,524,311,529,309,533,305,531,297,519,296,515,301,467,314,427,359,400,365,399,359,376,359,376,373,264,405,255,403,226,384,224,378,223,343,217,335,205,329,185,329],"href":"\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/226","cssSelector":".product-group-226","info":"{\"ids\":\"F 42 227, F 42 220\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[163,354,164,365,182,364,188,360,198,363,205,367,203,401,204,409,242,436,244,447,265,447,265,433,319,418,327,419,337,411,335,403,321,401,317,405,252,423,214,403,211,365,205,355,195,350,170,349],"href":"\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/227","cssSelector":".product-group-227","info":"{\"ids\":\"F 42 228, F 42 229\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[372,399,390,401,431,388,441,385,454,369,477,369,478,358,464,355,476,342,518,328,526,329,535,321,534,313,525,313,515,317,471,331,467,335,429,377,392,389,385,385,372,391],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f42244-brake-line","cssSelector":".product-group-229","info":"{\"ids\":\"F 42 244\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[344,397,340,404,344,423,361,423,369,406,368,395,363,391],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/c42432-coupling","cssSelector":".product-group-230","info":"{\"ids\":\"C 42 432\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[279,355,277,363,296,381,340,371,336,361,295,349],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/d42718-clamp","cssSelector":".product-group-232","info":"{\"ids\":\"D 42 718\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[290,327,289,335,295,343,314,350,331,350,330,343,317,325,310,321],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/d42272-rubber-sleeve","cssSelector":".product-group-234","info":"{\"ids\":\"D 42 272\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[263,371,242,377,242,386,251,387,256,398,261,403,268,403,274,399,273,391,269,387,267,373],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/g30028-sheet-metal-screw","cssSelector":".product-group-236","info":"{\"ids\":\"G 30 028\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[550,273,546,279,537,283,536,292,543,301,547,305,556,306,561,297,558,289,565,279,565,271],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/d42698-rear-distributor","cssSelector":".product-group-237","info":"{\"ids\":\"D 42 698\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[534,249,533,258,545,277,547,271,548,261,573,260,572,249,543,243],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/g42105-sheet-metal-screw","cssSelector":".product-group-238","info":"{\"ids\":\"G 42 105\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[547,313,541,326,545,341,544,379,549,391,568,426,556,433,557,443,584,445,596,453,624,475,636,491,645,495,651,484,641,470,622,452,594,435,558,379,556,335,560,323,555,313],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f42248-brake-line","cssSelector":".product-group-239","info":"{\"ids\":\"F 42 248\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[522,22,522,31,539,33,582,25,723,109,730,117,729,172,710,175,713,187,729,189,730,230,725,238,722,245,588,281,578,281,567,289,566,296,585,297,589,291,725,253,729,249,735,243,737,232,738,111,735,101,586,15,576,11],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f42224-brake-line","cssSelector":".product-group-243","info":"{\"ids\":\"F 42 224\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[455,421,456,435,483,438,503,434,503,429,484,421],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/d32417-clamp","cssSelector":".product-group-246","info":"{\"ids\":\"D 32 417\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[469,408,483,415,513,410,513,397,483,392,469,396],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f32293-supplement","cssSelector":".product-group-248","info":"{\"ids\":\"F 32 293\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[481,444,471,471,482,479,514,470,512,458],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/g30028-sheet-metal-screw~2","cssSelector":".product-group-249","info":"{\"ids\":\"G 30 028\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[178,433,183,439,202,445,202,465,222,465,227,487,234,495,244,495,244,483,238,469,230,453,219,439,193,423,182,421],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/d42417-brake-hose-front-450mm","cssSelector":".product-group-251","info":"{\"ids\":\"D 42 417\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[133,467,132,477,148,478,170,490,192,485,189,469,175,462],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f42259-lock","cssSelector":".product-group-253","info":"{\"ids\":\"F 42 259\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[426,62,428,69,448,77,470,75,474,69,483,43,510,39,517,35,516,23,505,21,482,30,471,38,468,49,448,49,446,57,437,53,426,51,423,55],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f42258-brake-hose-rear-300mm","cssSelector":".product-group-255","info":"{\"ids\":\"F 42 258\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[370,63,366,104,387,104,402,85,401,65,391,57],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f42259-lock~2","cssSelector":".product-group-256","info":"{\"ids\":\"F 42 259\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[288,49,298,51,302,44,304,38,306,24,340,16,353,20,353,39,370,39,372,32,398,53,405,55,414,57,419,54,420,48,409,38,401,36,346,5,338,4,305,11,297,18,288,37],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/f42202-brake-line-front-left-30cm-length","cssSelector":".product-group-257","info":"{\"ids\":\"F 42 202\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[384,422,388,450,393,451,410,447,430,435,427,424,402,415],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/a30069-mounting-clamp","cssSelector":".product-group-260","info":"{\"ids\":\"A 30 069\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[36,431,36,445,56,445,72,453,88,454,110,447,98,436,82,426],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/c47088c-mounting-clamp","cssSelector":".product-group-261","info":"{\"ids\":\"C 47 088c\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[38,409,38,421,67,421,86,417,90,407,74,399],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/c47088d-rubber-guide","cssSelector":".product-group-263","info":"{\"ids\":\"C 47 088d\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[65,463,66,474,82,473,83,486,94,490,104,483,104,473,93,456],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL\/B033\/420103\/g30028-sheet-metal-screw~3","cssSelector":".product-group-265","info":"{\"ids\":\"G 30 028\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"}]

in stock
low stock level
currently not in stock, but available for order
no longer available

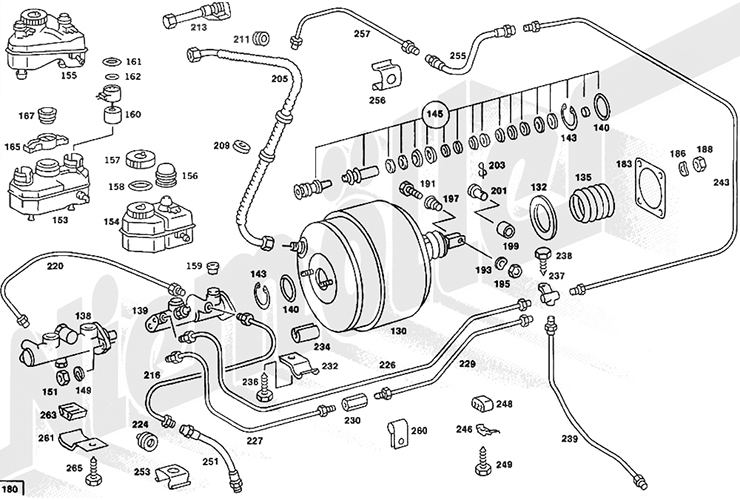

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 130		D 42 513	Brake-Booster 000 430 95 30 or 0004309530	on request		Select variant	on request
Image number 130		D 42 513a	Pipe bend 90 degrees with union nut	€11.55			€11.55
Image number 130		D 42 513o	ATE brake unit T52 - original MB part 002 430 68 30 64 or 002430683064	€1,732.43			€1,732.43
Image number 132		D 42 516 D 42 516	Filter ring Filter ring 000 435 09 12 or 0004350912		on request on request
Image number 135		D 42 520 D 42 520	Protective cap for brake booster T52 Protective cap for brake booster T52 000 431 43 87 or 0004314387		€24.50 €24.50
Image number 138		D 42 523	Master brake cylinder 002 430 28 01 or 0024302801	on request		Select variant	on request
Image number 138		D 42 523a	Master brake cylinder Fa. Bendix 003 430 22 01 or 0034302201	on request			on request
Image number 138		F 42 112	Master brake cylinder 002 430 93 01 or 0024309301	€268.00			€268.00
Image number 138		D 42 523b	Master brake cylinder repro. 002 430 28 01 or 0024302801	on request			on request
Image number 138		F 42 112a	Master brake cylinder, reproduction 002 430 93 01 or 0024309301	€78.54			€78.54
Image number 139		F 42 114 F 42 114	Master cylinder Master cylinder 003 430 60 01 or 0034306001		€137.00 €137.00
Image number 140		D 42 062 D 42 062	O-ring O-ring 004 997 32 45 or 0049973245		€4.90 €4.90
Image number 143		C 46 019 C 46 019	Locking ring 28x1,2 DIN472 Locking ring 28x1,2 DIN472 000 472 028 000 or 000472028000		€2.34 €2.34
Image number 145		D 42 530	Repair kit tandem master brake cylinder (dual circuit brake), ATE, W107, W108, W109, W111, W113, W114, W115, W116 see details 000 586 38 43 or 0005863843	€70.00		Select variant	€70.00
Image number 145		D 42 532	Repair kit tandem brake master cylinder Fa.Bendix 001 586 55 43 or 0015865543	€165.00			€165.00
Image number 145		F 42 115	Repair kit 001 586 92 43 or 0015869243	on request			on request
Image number 145		F 42 116	Repair kit 000 430 27 60 or 0004302760	on request			on request
Image number 149		A 41 043 A 41 043	Lock washer Lock washer 912 004 008 102 or 912004008102		€0.40 €0.40
Image number 151		G 75 029 C 32 027	Hex. nut M 8 Hex nut 000 934 008 013 or 000934008013		on request €0.54
	C 32 027	Replacement: Hex. nut M 8		€0.54
Image number 153		D 42 537 D 42 537	Brake fluid reservoir Brake fluid reservoir 001 431 42 02 or 0014314202		€72.45 €72.45
Image number 154		F 42 119 F 42 119	Container Teves Container Teves 001 431 11 02 or 0014311102		€249.00 €249.00
Image number 155		F 42 121 F 42 121	Brake fluid reservoir Brake fluid reservoir 001 431 26 02 or 0014312602		€315.00 €315.00
Image number 156		F 42 123	Protective cap, Teves 000 431 76 87 or 0004317687	€38.54		Select variant	€38.54
Image number 156		F 42 124	Protectiv cap 000 431 90 87 or 0004319087	€4.60		Select variant	€4.60
Image number 157		F 42 125 F 42 125	Cap, including gasket Cap, including gasket 000 431 20 33 or 0004312033		€11.21 €11.21
Image number 158		C 42 283 C 42 283	Sealing ring Sealing ring 000 997 29 40 or 0009972940		€3.22 €3.22
Image number 159		G 42 036	Bushing 000 295 00 50 or 0002950050	€2.60		Select variant	€2.60
Image number 159		G 42 036	Bushing 000 295 00 50 or 0002950050	€2.60		Select variant	€2.60
Image number 160		D 42 546	Contact insert (front supply) 001 542 63 17 or 0015426317	on request		Select variant	on request
Image number 160		D 42 546	Contact insert (front supply) 001 542 63 17 or 0015426317	on request			on request
Image number 160		D 42 547	Contact insert (rear supply) 002 542 99 17 or 0025429917	on request			on request
Image number 161		D 42 548 D 42 548	Sealing ring Sealing ring 000 431 75 60 or 0004317560		€8.52 €8.52
Image number 162		D 42 551 D 42 551	Sealing ring Sealing ring 000 431 76 60 or 0004317660		on request on request
Image number		D 42 549 D 42 549	Closing cap Closing cap 000 431 14 33 or 0004311433		€27.54 €27.54
Image number 165		D 42 553 D 42 553	Splash guard Splash guard 000 431 00 62 or 0004310062		on request on request
Image number 167		F 42 129	Riddle screen 000 431 42 34 or 0004314234	on request		Select variant	on request
Image number 167		C 42 288	Mash 000 431 43 34 or 0004314334	€6.82		Select variant	€6.82
Image number 183		F 29 057 F 29 057	Gasket Gasket 115 431 01 80 or 1154310180		€9.30 €9.30
Image number 186		B 03 018 B 03 018	Spring washer Spring washer 000 137 008 202 or 000137008202		€0.30 €0.30
Image number 188		G 75 029 C 32 027	Hex. nut M 8 Hex nut 000 934 008 013 or 000934008013		on request €0.54
	C 32 027	Replacement: Hex. nut M 8		€0.54
Image number 191		G 25 018 G 25 018	Screw Screw 000 933 008 153 or 000933008153		€4.20 €4.20
Image number 193		B 03 018 B 03 018	Spring washer Spring washer 000 137 008 202 or 000137008202		€0.30 €0.30
Image number 195		G 75 029 C 32 027	Hex. nut M 8 Hex nut 000 934 008 013 or 000934008013		on request €0.54
	C 32 027	Replacement: Hex. nut M 8		€0.54
Image number 197		F 42 131 F 42 131	Bushing, braking device on brake pedal Bushing, braking device on brake pedal 115 291 03 50 or 1152910350		on request on request
Image number 199		F 42 132 F 42 132	Bushing, push rod Braking device / Br.st Bushing, push rod Braking device / Br.st 123 292 01 50 or 1232920150		€10.14 €10.14
Image number 205		F 42 162	Line, vacuum pump to the braking device 116 430 00 29 or 1164300029	on request		Select variant	on request
Image number 205		F 42 163	Line 116 430 15 29 or 1164301529	on request			on request
Image number 205		F 42 164	Line 116 430 27 29 or 1164302729	on request			on request
Image number 205		F 42 168	Management R.L. 116 430 01 29 or 1164300129	on request			on request
Image number 205		F 42 169	Management R.L. 116 430 22 29 or 1164302229	on request			on request
Image number 205		F 42 171	Management R.L. 116 430 31 29 or 1164303129	on request			on request
Image number 213		D 42 588	Vacuum line (suction unit/extractor) 109 430 10 29 or 1094301029	on request		Select variant	on request
Image number 213		F 42 176	Line 116 430 14 29 or 1164301429	on request		Select variant	on request
Image number 216		C 42 335	Brake pipe 123 420 59 28 or 1234205928	€12.00		Select variant	€12.00
Image number 216		C 42 339	Brake pipe 123 420 58 28 or 1234205828	€9.50			€9.50
Image number 216		F 42 206	Brake line 116 420 17 28 or 1164201728	€13.00			€13.00
Image number 220		F 42 206	Brake line 116 420 17 28 or 1164201728	€13.00		Select variant	€13.00
Image number 220		F 42 203	Brake line front RHS 1509mm 115 420 11 28 or 1154201128	€16.00			€16.00
Image number 220		C 42 339	Brake pipe 123 420 58 28 or 1234205828	€9.50			€9.50
Image number 224		D 42 709 D 42 709	Grommet Grommet 001 997 14 81 or 0019971481		€5.80 €5.80
Image number 226		F 42 227	Brake line 116 420 30 28 or 1164203028	€72.10		Select variant	€72.10
Image number 226		F 42 220	Line from master cylinder to distributor 115 420 20 28 or 1154202028	€18.00		Select variant	€18.00
Image number 227		F 42 228	Brake pipe 116 420 18 28 or 1164201828	€28.50		Select variant	€28.50
Image number 227		F 42 229	Brake line 116 420 32 28 or 1164203228	€17.50		Select variant	€17.50
Image number 229		F 42 244 F 42 244	Brake line Brake line 116 420 20 28 or 1164202028		€31.00 €31.00
Image number 230		C 42 432 C 42 432	Coupling Coupling 121 429 01 34 or 1214290134		€8.98 €8.98
Image number 232		D 42 718 D 42 718	Clamp Clamp 108 995 00 20 or 1089950020		€3.46 €3.46
Image number 234		D 42 272 D 42 272	Rubber sleeve Rubber sleeve 110 428 00 81 or 1104280081		€5.91 €5.91
Image number 236		G 30 028 G 30 028	Sheet-metal screw Sheet-metal screw 007 976 005 203 or 007976005203		on request on request
Image number 237		D 42 698 D 42 698	Rear distributor Rear distributor 000 428 42 24 or 0004284224		€115.26 €115.26
Image number 238		G 42 105 G 42 105	Sheet-metal screw Sheet-metal screw 007 976 006 204 or 007976006204		on request on request
Image number 239		F 42 248 F 42 248	Brake line Brake line 115 420 03 28 or 1154200328		€10.08 €10.08
Image number 243		F 42 224 F 42 224	Brake line Brake line 115 420 13 28 or 1154201328		€13.45 €13.45
Image number 246		D 32 417 D 32 417	Clamp Clamp 110 995 00 22 or 1109950022		€2.44 €2.44
Image number 248		F 32 293 F 32 293	Supplement Supplement 116 328 06 84 or 1163280684		€6.70 €6.70
Image number 249		G 30 028 G 30 028	Sheet-metal screw Sheet-metal screw 007 976 005 203 or 007976005203		on request on request
Image number 251		D 42 417 D 42 417	Brake hose, front 450mm Brake hose, front 450mm 000 428 66 35 or 0004286635		€18.00 €18.00
Image number 253		F 42 259 F 42 259	Lock Lock 000 428 06 73 or 0004280673		€0.89 €0.89
Image number 255		F 42 258 F 42 258	Brake hose rear 300mm Brake hose rear 300mm 126 428 01 35 or 1264280135		€29.00 €29.00
Image number 256		F 42 259 F 42 259	Lock Lock 000 428 06 73 or 0004280673		€0.89 €0.89
Image number 257		F 42 202 F 42 202	Brake line front left 30cm length Brake line front left 30cm length 115 420 00 28 or 1154200028		€10.50 €10.50
Image number 260		A 30 069 A 30 069	Mounting clamp Mounting clamp 115 995 01 01 or 1159950101		on request on request
Image number 261		C 47 088c C 47 088c	Mounting clamp Mounting clamp 128 995 00 42 or 1289950042		€2.32 €2.32
Image number 263		C 47 088d C 47 088d	Rubber guide Rubber guide 111 476 00 81 or 1114760081		€6.00 €6.00
Image number 265		G 30 028 G 30 028	Sheet-metal screw Sheet-metal screw 007 976 005 203 or 007976005203		on request on request

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Brake-Booster

D 42 513

Pipe bend 90 degrees with union nut

D 42 513a €11.55

ATE brake unit T52 - original MB part

D 42 513o €1,732.43

Filter ring

D 42 516

Protective cap for brake booster T52

D 42 520 €24.50

Master brake cylinder

D 42 523

Master brake cylinder Fa. Bendix

D 42 523a

Master brake cylinder

F 42 112 €268.00

Master brake cylinder repro.

D 42 523b

Master brake cylinder, reproduction

F 42 112a €78.54

Master cylinder

F 42 114 €137.00

O-ring

D 42 062 €4.90

Locking ring 28x1,2 DIN472

C 46 019 €2.34

Repair kit tandem master brake cylinder (dual circuit brake), ATE, W107, W108, W109, W111, W113, W114, W115, W116 see details

D 42 530 €70.00

Repair kit tandem brake master cylinder Fa.Bendix

D 42 532 €165.00

Repair kit

F 42 115

Replacement item available

Repair kit

F 42 116

Replacement item available

Lock washer

A 41 043 €0.40

Hex nut

G 75 029

Replacement item available

Brake fluid reservoir

D 42 537 €72.45

Container Teves

F 42 119 €249.00

Brake fluid reservoir

F 42 121 €315.00

Protective cap, Teves

F 42 123 €38.54

Protectiv cap

F 42 124 €4.60

Cap, including gasket

F 42 125 €11.21

Sealing ring

C 42 283 €3.22

Bushing

G 42 036 €2.60

Contact insert (front supply)

D 42 546

Replacement item available

Contact insert (rear supply)

D 42 547

Sealing ring

D 42 548 €8.52

Sealing ring

D 42 551

Closing cap

D 42 549 €27.54

Splash guard

D 42 553

Riddle screen

F 42 129

Mash

C 42 288 €6.82

Gasket

F 29 057 €9.30

Spring washer

B 03 018 €0.30

Hex nut

G 75 029

Replacement item available

Screw

G 25 018 €4.20

Spring washer

B 03 018 €0.30

Hex nut

G 75 029

Replacement item available

Bushing, braking device on brake pedal

F 42 131

Bushing, push rod Braking device / Br.st

F 42 132 €10.14

Line, vacuum pump to the braking device

F 42 162

Line

F 42 163

Line

F 42 164

Management R.L.

F 42 168

Management R.L.

F 42 169

Management R.L.

F 42 171

Vacuum line (suction unit/extractor)

D 42 588

Line

F 42 176

Brake pipe

C 42 335 €12.00

Brake pipe

C 42 339 €9.50

Brake line

F 42 206 €13.00

Brake line

F 42 206 €13.00

Brake line front RHS 1509mm

F 42 203 €16.00

Brake pipe

C 42 339 €9.50

Grommet

D 42 709 €5.80

Brake line

F 42 227 €72.10

Line from master cylinder to distributor

F 42 220 €18.00

Brake pipe

F 42 228 €28.50

Brake line

F 42 229 €17.50

Brake line

F 42 244 €31.00

Coupling

C 42 432 €8.98

Clamp

D 42 718 €3.46

Rubber sleeve

D 42 272 €5.91

Sheet-metal screw

G 30 028

Rear distributor

D 42 698 €115.26

Sheet-metal screw

G 42 105

Brake line

F 42 248 €10.08

Brake line

F 42 224 €13.45

Clamp

D 32 417 €2.44

Supplement

F 32 293 €6.70

Sheet-metal screw

G 30 028

Brake hose, front 450mm

D 42 417 €18.00

Lock

F 42 259 €0.89

Brake hose rear 300mm

F 42 258 €29.00

Lock

F 42 259 €0.89

Brake line front left 30cm length

F 42 202 €10.50

Mounting clamp

A 30 069

Mounting clamp

C 47 088c €2.32

Rubber guide

C 47 088d €6.00

Sheet-metal screw

G 30 028

FROM CHASSIS:
020     10/50, 12/52 120335
020     20/60, 22/62 120384
024,025 10/50, 12/52 150723
024,025 20/60, 22/62 150857
028,029 10/50, 12/52 054426
028,029 20/60, 22/62 054431
032,033 10/50, 12/52 096456
032,033 20/60, 22/62 096482
036                  006885

Brake-Booster

D 42 513

Left-hand-drive;

UP TO CHASSIS:
020 053429, EXCEPT FOR:
053072, 053074, 053076, 053080- 053084, 053089, 053091, 053099, 053102- 053110, 053112- 053114, 053116- 053122,
053125- 053136, 053140- 053145, 053148- 053163, 053166- 053170, 053172- 053179, 053181, 053184- 053186, 053188-
053190, 053193- 053211, 053213- 053233, 053237- 053239, 053241- 053253, 053255- 053260, 053262- 053285, 053287-
053290, 053292, 053295- 053304, 053305- 053321, 053323- 053428.
024,025 052606, EXCEPT FOR:
052341, 052375, 052402, 052432, 052469, 052470, 052472- 052479, 052481- 052484, 052486- 052488, 052491, 052493,
052496- 052508, 052510- 052517, 052519, 052520, 052522- 052546, 052548- 052558, 052560- 052579, 052581- 052593,
052595- 052605.
028,029 029951, EXCEPT FOR:
029888, 029890, 029892, 029895- 029898, 029900- 029908, 029910- 029914, 029916- 029920, 029922- 029925, 029927-
029929, 029931- 029934, 029937- 029940, 029942- 029947, 029949, 029950.
032,033 043630, EXCEPT FOR:
043487, 043490, 043502, 043526, 043546, 043550, 043555, 043557, 043559- 043563, 043567, 043568, 043572- 043577,
043579- 043628.

Master brake cylinder

D 42 523

Left-hand-drive;

Master brake cylinder Fa. Bendix

D 42 523a

Right-hand-drive;

UP TO CHASSIS:
020 064631
024,025 061709
028,029 033058

Master brake cylinder

F 42 112 €268.00

Left-hand-drive;

FROM CHASSIS:
020 053430
024,025 052607
028,029 029952
032,033 043631

Master cylinder

F 42 114 €137.00

Left-hand-drive;

Suitable for:
W107:
022 up to chassis number 001211
023 up to chassis number 010576
024 up to chassis number 011205
042 up to chassis number 000988
043 up to chassis number 012083
044 up to chassis number 028344
W108:
012 from chassis number 058444
014 as of chassis number 045294
015 from chassis number 002590
016, 018, 019, 057, 058, 067, 068 all
W109:
015 as of chassis number 002131
016,018, 056, 057 all
W111:
021, 023 as of chassis number 088725
024, 025, 026, 027 all
W113:
043 from chassis number 002980
044 all
W114:
010, 011, 015, 017, 021, 022, 023, 062, 072 all
060 up to chassis number 120210
073 up to chassis number 106627
W115:
010, 015, 110, 112, 114, 115, 119
017 up to chassis number 062832
117 up to chassis number 102758
W116:
020 up to chassis number 053227
024, 025 up to chassis number 052606
028, 029 up to chassis number 029951
032, 033 up to chassis number 043630

;

Repair kit tandem master brake cylinder (dual circuit brake), ATE, W107, W108, W109, W111, W113, W114, W115, W116 see details

D 42 530 €70.00

Left-hand-drive;

Repair kit tandem brake master cylinder Fa.Bendix

D 42 532 €165.00

Left-hand-drive;

FROM CHASSIS:
020 053430
024,025 052607
028,029 029952
032,033 043631

Repair kit

F 42 115

Replacement item available

Up to chassis number:
033 043630

Brake fluid reservoir

D 42 537 €72.45

FROM CHASSIS:
033 043631 to 085508

Container Teves

F 42 119 €249.00

FROM CHASSIS:
033 085509

Brake fluid reservoir

F 42 121 €315.00

Left-hand-drive;

FROM CHASSIS:
020 053430
024,025 052607
028,029 029952
032,033 043631

Protective cap, Teves

F 42 123 €38.54

Right-hand-drive

Bushing

G 42 036 €2.60

Right-hand-drive;

Contact insert (front supply)

D 42 546

Replacement item available

UP TO CHASSIS:
020: 10/50, 12/52 019233
024,025: 10/50, 12/52 022144
028,029: 10/50, 12/52 018883
032,033: 10/50, 12/52 020175

Contact insert (rear supply)

D 42 547

Left-hand-drive;

Sealing ring

D 42 548 €8.52

Left-hand-drive;

Sealing ring

D 42 551

Left-hand-drive;

Closing cap

D 42 549 €27.54

UP TO CHASSIS:
020: 10/50, 12/52 019233
024,025: 10/50, 12/52 022144
028,029: 10/50, 12/52 018883
032,033: 10/50, 12/52 020175

Splash guard

D 42 553

UP TO CHASSIS:
020     10/50, 12/52 120334
020     20/60, 22/62 120383
024,025 10/50, 12/52 150722
024,024 20/60, 22/62 150856
028,029 10/50, 12/52 054425
028,029 20/60, 22/62 054430
032,033 10/50, 12/52 096455
032,033 020/60, 22/62 096481
036                   006884

Screw

G 25 018 €4.20

Spring washer

B 03 018 €0.30

UP TO CHASSIS:
020

Hex nut

G 75 029

Replacement item available

Bushing, braking device on brake pedal

F 42 131

FOR CONNECTION OF 107 290 02 18,107 290 04 18,116 290 01 18,116 290 03 18 BRAKE PEDALS WITH 002 430 44 30 BRAKE BOOSTER,SEE
SERVICE INFORMATION 42/58

Bushing, push rod Braking device / Br.st

F 42 132 €10.14

Left-hand-drive;

To chassis
020 064631
024,025 061709
028,029 033058

Line, vacuum pump to the braking device

F 42 162

Left-hand-drive;

FROM CHASSIS:
020 064632
024,025 061710
028,029 033059

Line

F 42 163

Left-hand-drive

Line

F 42 164

Right-hand-drive;

UP TO CHASSIS:
032 045339 EXCEPT FOR: 045060,045301,045319
033 045724

Management R.L.

F 42 168

Right-hand-drive;

From chassis:
032 045340
033 045725

Management R.L.

F 42 169

Right-hand-drive

Management R.L.

F 42 171

Left-hand-drive;

UP TO CHASSIS:
032 045339 EXCEPT FOR: 045060,045301,045319
033 045339 EXCEPT FOR: 045331

Vacuum line (suction unit/extractor)

D 42 588

Left-hand-drive;

From chassis:
032 045340
033 045340

Line

F 42 176

Left-hand-drive;

UP TO CHASSIS:
020     009578
024     010628
028     010637
032,033 007322

Brake pipe

C 42 335 €12.00

Left-hand-drive;

FROM CHASSIS:
020 053430
024,025 052607
028,029 029952
032,033 043631

Brake pipe

C 42 339 €9.50

Right-hand-drive;

UP TO CHASSIS:
020     009578
024     010628
028     010637
032,033 007322

Brake line

F 42 206 €13.00

Left-hand-drive;

FROM CHASSIS:
020 053430
024,025 052607
028,029 029952
032,033 043631

Brake line

F 42 206 €13.00

Left-hand-drive;

UP TO CHASSIS:
020     009578
024     010628
028     010637
032,033 007322

Brake line front RHS 1509mm

F 42 203 €16.00

Right-hand-drive;

UP TO CHASSIS:
020     009578
024     010628
028     010637
032,033 007322

Brake pipe

C 42 339 €9.50

Left-hand-drive;

Brake line

F 42 227 €72.10

Left-hand-drive;

FROM CHASSIS:
020 053430
024,025 052607
028,029 029952
032,033 043631

Line from master cylinder to distributor

F 42 220 €18.00

Right-hand-drive;

UP TO CHASSIS:
020     009578
024     010628
028     010637
032,033 007322

Brake pipe

F 42 228 €28.50

Right-hand-drive;

FROM CHASSIS:
020 064632
024,025 061710
028,029 033059

Brake line

F 42 229 €17.50

Right-hand-drive

Brake line

F 42 244 €31.00

Right-hand-drive

Coupling

C 42 432 €8.98

Left-hand-drive

Clamp

D 42 718 €3.46

Left-hand-drive

Rubber sleeve

D 42 272 €5.91

Left-hand-drive

Sheet-metal screw

G 30 028

RATIO 1:3.69 UP TO CHASSIS
020 006426
024 006766
RATIO 1:3.92 UP TO CHASSIS
020 007499
024 008144
RATIO 1:3.46 UP TO CHASSIS
028 007190
REAR AXLE WITH LIMITEDSLIP DIFFERENTIAL
028 007377

Brake hose rear 300mm

F 42 258 €29.00

Left-hand-drive

Mounting clamp

A 30 069

Right-hand-drive

Mounting clamp

C 47 088c €2.32

Right-hand-drive

Rubber guide

C 47 088d €6.00

Pipe bend 90 degrees with union nut

D 42 513a €11.55

ATE brake unit T52 - original MB part

D 42 513o €1,732.43

Filter ring

D 42 516

Protective cap for brake booster T52

D 42 520 €24.50

Master brake cylinder repro.

D 42 523b

Master brake cylinder, reproduction

F 42 112a €78.54

O-ring

D 42 062 €4.90

Locking ring 28x1,2 DIN472

C 46 019 €2.34

Repair kit

F 42 116

Replacement item available

Lock washer

A 41 043 €0.40

Hex nut

G 75 029

Replacement item available

Protectiv cap

F 42 124 €4.60

Cap, including gasket

F 42 125 €11.21

Sealing ring

C 42 283 €3.22

Riddle screen

F 42 129

Mash

C 42 288 €6.82

Gasket

F 29 057 €9.30

Spring washer

B 03 018 €0.30

Hex nut

G 75 029

Replacement item available

Grommet

D 42 709 €5.80

Rear distributor

D 42 698 €115.26

Sheet-metal screw

G 42 105

Brake line

F 42 248 €10.08

Brake line

F 42 224 €13.45

Clamp

D 32 417 €2.44

Supplement

F 32 293 €6.70

Sheet-metal screw

G 30 028

Brake hose, front 450mm

D 42 417 €18.00

Lock

F 42 259 €0.89

Lock

F 42 259 €0.89

Brake line front left 30cm length

F 42 202 €10.50

Sheet-metal screw

G 30 028

W107	280SL
	350SL
	350SL/C
	380SL
	380SL/C
	500SL
	500SL/C

W113	230SL
	250SL
	280SL
W121	190SL
W129	300SL
W198	300SL

W136	170S
W187	220
	220AC
	220BC

W186	300c
	300cCD
W189	300d
	300dCD
W198	300SL Coupe

W105	219
W120	180
	180a
	180b
	180D
W121	190
	190b
	190D

42 Brakes for 450SEL Mercedes-Benz w116.033 Mercedes-Benz
450SEL W116.033

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Popular variants

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Complex search queries

Pagode, Gullwing, Roadster

Sedan, Cabriolet, Coupé

Adenauer, Gullwing

Ponton, Coupe, Cabrio

Tail fin, old S-Class, Pagode

Pullman, Landaulet

Stroke 8, S-Class, Coupé

S-Class, Estate, Coupé, Sedan, T-Model

Roadster

42 Brakes for 450SEL Mercedes-Benz w116.033 Mercedes-Benz450SEL W116.033

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Popular variants

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Complex search queries

42 Brakes for 450SEL Mercedes-Benz w116.033 Mercedes-Benz
450SEL W116.033
