54 Electrical Equipment and Instruments for 280SE Mercedes-Benz w116.024 Mercedes-Benz
280SE W116.024

Chosen model:

Chassis: 116.024
Engine: 110.983, 985
Change vehicle
Change module

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

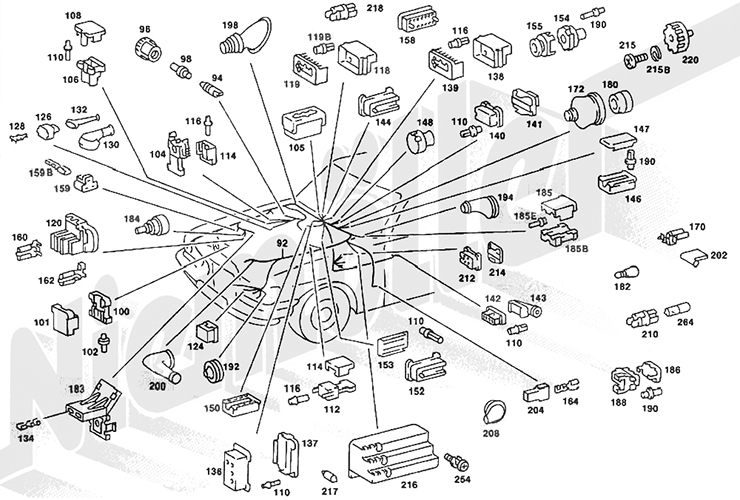

Pic.	Designation		Price/unit excl. tax.
Image number 94	D 54 352 D 54 352	Cable plug housing 1-pole Cable plug housing 1-pole 004 545 85 28 or 0045458528		€15.00 €15.00
Image number 96	F 54 243 F 54 243	Cover for 1-pole housing Cover for 1-pole housing 009 545 14 28 or 0095451428		€3.09 €3.09
Image number 98	F 54 244 F 54 244	Socket Socket 001 545 26 26 or 0015452626		€3.42 €3.42
Image number 100	F 54 754 F 54 754	Housing lower part - 2-poles Housing lower part - 2-poles 008 545 37 28 or 0085453728		€5.01 €5.01
Image number 101	F 54 691 F 54 691	Top part (cover) for receptacle housing 2-pole Top part (cover) for receptacle housing 2-pole 008 545 38 28 or 0085453828		€3.48 €3.48
Image number 102	G 54 146 G 54 146	Pin Pin 003 545 26 26 or 0035452626		€2.73 €2.73
Image number 104	F 54 301 F 54 301	Plug-in sleeve housing Brake flus. contr. load. anz. Plug-in sleeve housing Brake flus. contr. load. anz. 008 545 08 28 or 0085450828		on request on request
Image number 105	F 82 174 F 82 174	Clutch Clutch 000 821 06 26 or 0008210626		on request on request
Image number 112	F 54 301 F 54 301	Plug-in sleeve housing Brake flus. contr. load. anz. Plug-in sleeve housing Brake flus. contr. load. anz. 008 545 08 28 or 0085450828		on request on request
Image number 120	D 54 354 D 54 354	Plug housing Plug housing 005 545 02 28 or 0055450228		on request on request
Image number 124	F 54 303	Headlight connection plug 008 545 27 28 or 0085452728	€2.00		Select variant	€2.00
Image number 124	F 54 303	Headlight connection plug 008 545 27 28 or 0085452728	€2.00		Select variant	€2.00
Image number 136	F 82 233 F 82 233	Plug housing 6 poles Plug housing 6 poles 002 545 46 28 or 0025454628		€4.49 €4.49
Image number 137	F 54 299 F 54 299	Cover for plug housing Cover for plug housing 009 545 30 28 or 0095453028		€5.01 €5.01
Image number 140	G 54 331 G 54 331	Plug sleeve. Go. Plug sleeve. Go. 014 545 85 28 or 0145458528		on request on request
Image number 141	F 54 694 F 54 694	Cover Cover 009 545 21 28 or 0095452128		€7.17 €7.17
Image number 144	F 54 698 F 54 698	Socket housing, blower Socket housing, blower 005 545 12 28 or 0055451228		€5.43 €5.43
Image number 146	F 54 311 F 54 311	Plug sleeve housing hazard warning switch Plug sleeve housing hazard warning switch 005 545 58 28 or 0055455828		€2.27 €2.27
Image number 147	F 54 700 F 54 700	Top Top 009 545 98 28 or 0095459828		€2.01 €2.01
Image number 148	D 54 351 D 54 351	Coupling 8-fold Coupling 8-fold 003 545 42 28 or 0035454228		€33.80 €33.80
Image number 152	F 54 313 F 54 313	Plug sleeve housing tail lamp lead set Plug sleeve housing tail lamp lead set 002 545 36 28 or 0025453628		€8.62 €8.62
Image number 153	G 54 333 G 54 333	Lid Lid 009 545 24 28 or 0095452428		on request on request
Image number 154	F 54 706 F 54 706	Socket set Combi-Instrum.15pol. Socket set Combi-Instrum.15pol. 005 545 63 28 or 0055456328		on request on request
Image number 155	F 54 707 F 54 707	Top Top 010 545 05 28 or 0105450528		on request on request
Image number 158	G 54 334 G 54 334	Receptacles Housing Fourteen Pole Receptacles Housing Fourteen Pole 009 545 23 28 or 0095452328		€6.62 €6.62
Image number 160	D 54 380 D 54 380	Blade receptacle Blade receptacle 000 546 78 40 or 0005467840		€2.25 €2.25
Image number 162	D 54 381 D 54 381	Blade receptacle Blade receptacle 000 546 79 40 or 0005467940		€3.87 €3.87
Image number 164	D 54 377 D 54 377	Flat plug sleeve for starting device Flat plug sleeve for starting device 000 545 46 26 or 0005454626		€2.25 €2.25
Image number 170	F 54 314 F 54 314	Cable lug, charge control Low pressure hose Cable lug, charge control Low pressure hose 000 546 83 40 or 0005468340		€2.10 €2.10
Image number 172	D 54 433 D 54 433	Protection cap Protection cap 000 545 22 45 or 0005452245		€22.27 €22.27
Image number 180	D 54 434 D 54 434	Nozzle Nozzle 000 545 23 45 or 0005452345		€4.83 €4.83
Image number 182	F 54 315	Radio plug 006 545 41 28 or 0065454128	on request		Select variant	on request
Image number 182	F 54 316	Radio plug 006 545 44 28 or 0065454428	on request		Select variant	on request
Image number 186	F 54 317 F 54 317	Buzzer contact cover Buzzer contact cover 010 545 09 28 or 0105450928		€2.25 €2.25
Image number 190	G 54 191 G 54 191	Round receptacle 2.5 mm Round receptacle 2.5 mm 002 545 99 26 or 0025459926		€4.14 €4.14
Image number 192	F 54 320 F 54 320	Nozzle headlight connection Nozzle headlight connection 116 997 07 81 or 1169970781		€15.48 €15.48
Image number 194	F 54 321 F 54 321	Grommet, left end wall Grommet, left end wall 116 997 13 81 or 1169971381		on request on request
Image number 198	F 54 322	Grommet end wall right 116 997 18 81 or 1169971881	€69.22		Select variant	€69.22
Image number 198	F 54 323	Grommet end wall right 116 997 28 81 or 1169972881	€47.71		Select variant	€47.71
Image number 202	F 54 324 F 54 324	Insulating sleeve charge control low pressure Insulating sleeve charge control low pressure 000 546 04 45 or 0005460445		€1.65 €1.65
Image number 204	D 54 413	Insulating sleeve for starting device 000 546 00 45 or 0005460045	€1.58		Select variant	€1.58
Image number 204	D 54 414	Insulating sleeve for starting device 000 546 01 45 or 0005460145	€0.50		Select variant	€0.50
Image number 210	F 54 082 F 54 082	Glow monitor socket Glow monitor socket 000 545 22 19 or 0005452219		€6.39 €6.39
Image number 212	F 26 172 F 26 172	Socket Socket 000 544 54 93 or 0005445493		on request on request
Image number 214	F 26 173 F 26 173	Top Top 000 544 55 93 or 0005445593		on request on request
Image number 215	G 54 124	Oval head screw 4x8 DIN 7985 007 985 004 107 or 007985004107	€2.00		Select variant	€2.00
Image number 215	G 54 045	Screw, guide on starter terminal 50 007 985 004 123 or 007985004123	on request		Select variant	on request
Image number 215B	B 07 032 B 07 032	Lock washer Lock washer 912 004 004 102 or 912004004102		€0.72 €0.72
Image number 216	F 54 338	Fuse box 116 540 01 50 or 1165400150	€77.00		Select variant	€77.00
Image number 216	F 54 339	Fuse box 116 540 02 50 or 1165400250	on request			on request
Image number 216	F 54 340	Fuse box 116 540 03 50 or 1165400350	€86.00			€86.00
Image number 217	D 67 361	Fuse 16A 000 545 43 34 or 0005454334	€1.71		Select variant	€1.71
Image number 217	D 67 251	Fuse insert 8 Ampere 072 581 008 101 or 072581008101	on request			on request
Image number 217	G 54 127	Fuse, 25 A 001 545 75 34 or 0015457534	€2.96			€2.96
Image number 218	F 82 351 F 82 351	Bulb holder Bulb holder 000 825 00 82 or 0008250082		€3.41 €3.41
Image number 220	D 54 429 D 54 429	Head light switch Head light switch 000 545 37 04 or 0005453704		€75.46 €75.46

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Cable plug housing 1-pole

D 54 352 €15.00

Cover for 1-pole housing

F 54 243 €3.09

Socket

F 54 244 €3.42

Housing lower part - 2-poles

F 54 754 €5.01

Top part (cover) for receptacle housing 2-pole

F 54 691 €3.48

G 54 146 €2.73

Plug-in sleeve housing Brake flus. contr. load. anz.

F 54 301

Clutch

F 82 174

Plug-in sleeve housing Brake flus. contr. load. anz.

F 54 301

Plug housing

D 54 354

Headlight connection plug

F 54 303 €2.00

Plug housing 6 poles

F 82 233 €4.49

Cover for plug housing

F 54 299 €5.01

Plug sleeve. Go.

G 54 331

Cover

F 54 694 €7.17

Socket housing, blower

F 54 698 €5.43

Plug sleeve housing hazard warning switch

F 54 311 €2.27

Top

F 54 700 €2.01

Coupling 8-fold

D 54 351 €33.80

Plug sleeve housing tail lamp lead set

F 54 313 €8.62

Lid

G 54 333

Socket set Combi-Instrum.15pol.

F 54 706

Top

F 54 707

Receptacles Housing Fourteen Pole

G 54 334 €6.62

Blade receptacle

D 54 380 €2.25

Blade receptacle

D 54 381 €3.87

Flat plug sleeve for starting device

D 54 377 €2.25

Cable lug, charge control Low pressure hose

F 54 314 €2.10

Protection cap

D 54 433 €22.27

Nozzle

D 54 434 €4.83

Radio plug

F 54 315

Radio plug

F 54 316

Buzzer contact cover

F 54 317 €2.25

Round receptacle 2.5 mm

G 54 191 €4.14

Nozzle headlight connection

F 54 320 €15.48

Grommet, left end wall

F 54 321

Grommet end wall right

F 54 322 €69.22

Grommet end wall right

F 54 323 €47.71

Insulating sleeve charge control low pressure

F 54 324 €1.65

Insulating sleeve for starting device

D 54 413 €1.58

Insulating sleeve for starting device

D 54 414 €0.50

Glow monitor socket

F 54 082 €6.39

Socket

F 26 172

Top

F 26 173

Oval head screw 4x8 DIN 7985

G 54 124 €2.00

Screw, guide on starter terminal 50

G 54 045

Lock washer

B 07 032 €0.72

Fuse box

F 54 338 €77.00

Fuse box

F 54 339

Fuse box

F 54 340 €86.00

Fuse 16A

D 67 361 €1.71

Fuse insert 8 Ampere

D 67 251

Replacement item available

Fuse, 25 A

G 54 127 €2.96

Bulb holder

F 82 351 €3.41

Head light switch

D 54 429 €75.46

This requires:
1x F 54 754 lower part
2x G 54 146 sleeve

Top part (cover) for receptacle housing 2-pole

F 54 691 €3.48

As of ident. no.
028,029       033059, ALSO INSTALLED ON:
029718, 031319, 032913, 032929, 032931- 032950.
EXCEPT FOR: 033098
032           045340, ALSO INSTALLED ON: 045060,045301,045319
033     12/52 045340, ALSO INSTALLED ON: 045331
        22/62 045725

Plug-in sleeve housing Brake flus. contr. load. anz.

F 54 301

As of ident. no.
028,029: 10/50,12/52 023629, ALSO INSTALLED ON: 023563,023621,023625
032,033: 12/52 029672, ALSO INSTALLED ON: 029644,029647,029651-029669

Plug housing

D 54 354

Please order additionally:
1x cover - F 54 299
6x round plug sleeve - G 54 146
e.g.: F 82 233 + F 54 299 + G 54 146 = headlight plug Pagoda

Plug housing 6 poles

F 82 233 €4.49

Up to ident. no.:
020 053429, EXCEPT FOR:
053072, 053074, 053076, 053080- 053084, 053089, 053091, 053099, 053102- 053110, 053112- 053114, 053116- 053122,
053125- 053136, 053140- 053145, 053148- 053163, 053166- 053170, 053172- 053179, 053181, 053184- 053186, 053188-
053190, 053193- 053211, 053213- 053233, 053237- 053239, 053241- 053253, 053255- 053260, 053262- 053285, 053287-
053290, 053292, 053295- 053321, 053323- 053428.
024,025 052606, EXCEPT FOR:
052341, 052375, 052402, 052432, 052469, 052470, 052472- 052479, 052481- 052484, 052486- 052488, 052491, 052493,
052496- 052508, 052510- 052517, 052519, 052520, 052522- 052546, 052548- 052558, 052560, 052579, 052581- 052593,
052595- 052605.
028,029 029951, EXCEPT FOR:
029888, 029890, 029892, 029895- 029898, 029900- 029908, 029910- 029914, 029916- 029920, 029922- 029925, 029927-
029929, 029931- 029934, 029937- 029940, 029942- 029947, 029949, 029950.
032,033 043630, EXCEPT FOR:
043487, 043490, 043502, 043526, 043546, 043550, 043555, 043557, 043559- 043563, 043567, 043568, 043572- 043577,
043579- 043628.

Plug sleeve housing tail lamp lead set

F 54 313 €8.62

Lid

G 54 333

As of ident. no.
028,029: 10/50,12/52 023629, ALSO INSTALLED ON: 023563,023621,023625
032,033: 12/52 029672, ALSO INSTALLED ON: 029644,029647,029651-029669

Blade receptacle

D 54 380 €2.25

As of ident. no.
028,029: 10/50,12/52 023629, ALSO INSTALLED ON: 023563,023621,023625
032,033: 12/52 029672, ALSO INSTALLED ON: 029644,029647,029651-029669

Blade receptacle

D 54 381 €3.87

As of ident. no.
020 053430, ALSO INSTALLED ON:
053072, 053074, 053076, 053080- 053084, 053089, 053091, 053099, 053102- 053110, 053112- 053114, 053116- 053122,
053125- 053136, 053140- 053145, 053148- 053163, 053166- 053170, 053172- 053179, 053181, 053184- 053186, 053188-
053190, 053193- 053211, 053213- 053233, 053237- 053239, 053241- 053253, 053255- 053260, 053262- 053285, 053287-
053290, 053292, 053295- 053321, 053323- 053428.
024,025 052607, ALSO INSTALLED ON:
052341, 052375, 052402, 052432, 052469, 052470, 052472- 052479, 052481- 052484, 052486- 052488, 052491, 052493,
052496- 052508, 052510- 052517, 052519, 052520, 052522- 052546, 052548- 052558, 052560, 052579, 052581- 052593,
052595- 052605.
028,029 029952, ALSO INSTALLED ON:
029888, 029890, 029892, 029895- 029898, 029900- 029908, 029910- 029914, 029916- 029920, 029922- 029925, 029927-
029929, 029931- 029934, 029937- 029940, 029942- 029947, 029949, 029950.
032,033 043631, ALSO INSTALLED ON:
043487, 043490, 043502, 043526, 043546, 043550, 043555, 043557, 043559- 043563, 043567, 043568, 043572- 043577,
043579- 043628.

Cable lug, charge control Low pressure hose

F 54 314 €2.10

Left-hand-drive;

Grommet end wall right

F 54 322 €69.22

Left-hand-drive;

Grommet end wall right

F 54 323 €47.71

Insulating sleeve charge control low pressure

F 54 324 €1.65

As of ident. no.
028,029: 10/50,12/52 023629, ALSO INSTALLED ON: 023563,023621,023625
032,033: 12/52 029672, ALSO INSTALLED ON: 029644,029647,029651-029669

Insulating sleeve for starting device

D 54 414 €0.50

Glow monitor socket

F 54 082 €6.39

Socket

F 26 172

Top

F 26 173

Fuse box

F 54 340 €86.00

Cable plug housing 1-pole

D 54 352 €15.00

Cover for 1-pole housing

F 54 243 €3.09

Socket

F 54 244 €3.42

Housing lower part - 2-poles

F 54 754 €5.01

G 54 146 €2.73

Plug-in sleeve housing Brake flus. contr. load. anz.

F 54 301

Clutch

F 82 174

Headlight connection plug

F 54 303 €2.00

Cover for plug housing

F 54 299 €5.01

Plug sleeve. Go.

G 54 331

Cover

F 54 694 €7.17

Socket housing, blower

F 54 698 €5.43

Plug sleeve housing hazard warning switch

F 54 311 €2.27

Top

F 54 700 €2.01

Coupling 8-fold

D 54 351 €33.80

Socket set Combi-Instrum.15pol.

F 54 706

Top

F 54 707

Receptacles Housing Fourteen Pole

G 54 334 €6.62

Flat plug sleeve for starting device

D 54 377 €2.25

Protection cap

D 54 433 €22.27

Nozzle

D 54 434 €4.83

Radio plug

F 54 315

Radio plug

F 54 316

Buzzer contact cover

F 54 317 €2.25

Round receptacle 2.5 mm

G 54 191 €4.14

Nozzle headlight connection

F 54 320 €15.48

Grommet, left end wall

F 54 321

Insulating sleeve for starting device

D 54 413 €1.58

Oval head screw 4x8 DIN 7985

G 54 124 €2.00

Screw, guide on starter terminal 50

G 54 045

Lock washer

B 07 032 €0.72

Fuse box

F 54 338 €77.00

Fuse box

F 54 339

Fuse 16A

D 67 361 €1.71

Fuse insert 8 Ampere

D 67 251

Replacement item available

Fuse, 25 A

G 54 127 €2.96

Bulb holder

F 82 351 €3.41

Head light switch

D 54 429 €75.46

W107	280SL
	350SL
	350SL/C
	380SL
	380SL/C
	500SL
	500SL/C

W113	230SL
	250SL
	280SL
W121	190SL
W129	300SL
W198	300SL

W187	220
	220AC
	220BC

W186	300c
	300cCD
W189	300d
	300dCD
W198	300SL Coupe

W105	219
W120	180
	180a
	180b
	180D
W121	190
	190b
	190D

54 Electrical Equipment and Instruments for 280SE Mercedes-Benz w116.024 Mercedes-Benz
280SE W116.024

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Popular variants

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Complex search queries

Pagode, Gullwing, Roadster

Sedan, Cabriolet, Coupé

Adenauer, Gullwing

Ponton, Coupe, Cabrio

Tail fin, old S-Class, Pagode

Pullman, Landaulet

Stroke 8, S-Class, Coupé

S-Class, Estate, Coupé, Sedan, T-Model

Roadster

54 Electrical Equipment and Instruments for 280SE Mercedes-Benz w116.024 Mercedes-Benz280SE W116.024

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Popular variants

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Complex search queries

54 Electrical Equipment and Instruments for 280SE Mercedes-Benz w116.024 Mercedes-Benz
280SE W116.024
