47 Fuel System for 280SE Mercedes-Benz w116.024 Mercedes-Benz
280SE W116.024

Chosen model:

Chassis: 116.024
Engine: 110.983, 985
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

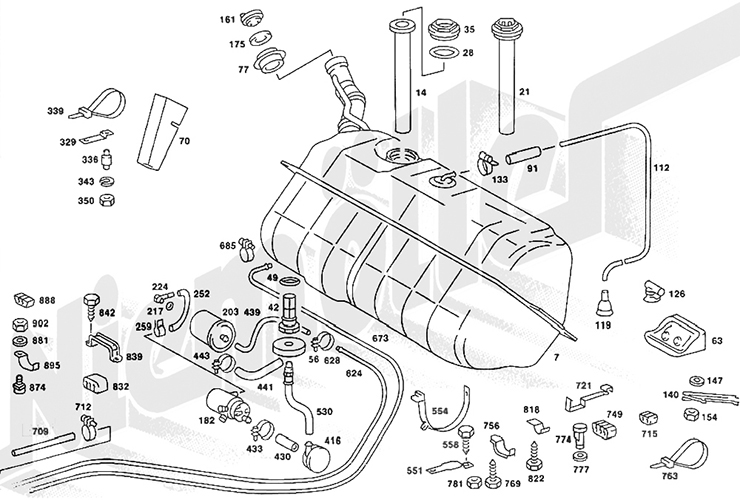

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 7		F 47 048 F 47 048	Fuel tank 96l Fuel tank 96l 116 470 02 01 or 1164700201		on request on request
Image number 14		F 47 052 F 47 052	Tank device Tank device 116 542 02 04 or 1165420204		on request on request
Image number 21		F 47 053 F 47 053	Fuel sender unit Fuel sender unit 116 542 05 04 or 1165420504		€286.13 €286.13
Image number 28		F 47 055 F 47 055	Sealing ring for fuel sender unit Sealing ring for fuel sender unit 107 997 13 45 or 1079971345		€1.50 €1.50
Image number 35		F 47 056 F 47 056	Flange Flange 116 471 01 21 or 1164710121		€60.60 €60.60
Image number 42		G 47 008 G 47 008	Fuel strainer with gasket Fuel strainer with gasket 201 470 04 06 or 2014700406		€36.33 €36.33
Image number 49		D 47 036 D 47 036	Seal ring Seal ring 022 997 06 48 or 0229970648		€3.70 €3.70
Image number 56		F 47 060 F 47 060	Gasket Gasket 107 471 09 80 or 1074710980		on request on request
Image number 63		F 47 061 F 47 061	Gasket Gasket 116 471 03 80 or 1164710380		on request on request
Image number 70		F 47 062 F 47 062	Padding Padding 116 475 00 20 or 1164750020		on request on request
Image number 77		F 47 063 F 47 063	Nozzle Nozzle 107 997 10 81 or 1079971081		€9.82 €9.82
Image number 112		F 47 067 F 47 067	Ventilation pipe 740mm Ventilation pipe 740mm 116 471 09 15 or 1164710915		on request on request
Image number 119		E 47 007 E 47 007	Boot Boot 100 471 00 81 or 1004710081		€43.26 €43.26
Image number 126		F 47 069 F 47 069	Venting Venting 123 470 01 25 or 1234700125		€16.32 €16.32
Image number 133		D 20 000a D 20 000a	Hose clamp 12 - 22 Hose clamp 12 - 22 000 000 000 665 or 000000000665		€4.50 €4.50
Image number 140		F 47 070 F 47 070	Reinforcement fuel tank console Reinforcement fuel tank console 107 471 05 22 or 1074710522		on request on request
Image number 147		D 35 367 D 33 142	Washer, rubber bearing on body-floor Washer, mounting plate / surface-mounting b. 108 990 03 40 or 1089900340		on request €7.59
	D 33 142	Replacement: Washer, rubber bearing on body-floor		€7.59
Image number 154		C 32 027 C 32 027	Hex. nut M 8 Hex. nut M 8 000 934 008 013 or 000934008013		€0.54 €0.54
Image number 161		D 47 058	Tank cap 000 471 61 30 or 0004716130	on request		Select variant	on request
Image number 161		F 47 071	Tank cap Fa. Huf 000 470 02 30 or 0004700230	on request			on request
Image number 161		D 47 060	Tank cap 123 471 00 30 or 1234710030	on request			on request
Image number 175		C 47 032	Sealing ring for gas cap 110 471 02 80 or 1104710280	€2.20		Select variant	€2.20
Image number 175		D 47 062	Sealing ring 140 471 00 79 or 1404710079	€24.54		Select variant	€24.54
Image number 182		D 47 145 D 47 145	Fuel pump D-Jetronic Fuel pump D-Jetronic 001 091 71 01 or 0010917101		€280.00 €280.00
Image number 203		D 47 134 D 47 134	Fuel filter Fuel filter 000 092 76 01 or 0000927601		€27.00 €27.00
Image number 217		A 01 024 A 01 024	Sealing ring A 14x18 Al DIN 7603 Sealing ring A 14x18 Al DIN 7603 007 603 014 100 or 007603014100		€0.35 €0.35
Image number 224		D 47 136	Adaptor 107 470 02 79 or 1074700279	€82.89		Select variant	€82.89
Image number 224		D 47 136o	Intermediate piece - Original 107 470 02 79 or 1074700279	€78.57		Select variant	€78.57
Image number 252		D 67 136 D 67 136	Fuel hose 8mm - sold per meter Fuel hose 8mm - sold per meter 114 997 18 82 or 1149971882		€8.50 €8.50
Image number 259		D 08 582 D 08 582	Hose clamp 13mm Hose clamp 13mm 001 997 69 90 or 0019976990		€3.87 €3.87
Image number 329		F 47 105 F 47 105	Holder, transport hose Holder, transport hose 107 476 01 36 or 1074760136		on request on request
Image number 336		D 47 209	Schwingmetallpuffer 114 328 05 81 or 1143280581	on request		Select variant	on request
Image number 336		D 47 209	Schwingmetallpuffer 114 328 05 81 or 1143280581	on request		Select variant	on request
Image number 339		D 46 680 D 46 680	Cable strap 160mm Cable strap 160mm 114 997 05 90 or 1149970590		€1.08 €1.08
Image number 343		G 54 589 G 54 589	Lock washer Lock washer 912 004 005 103 or 912004005103		€0.99 €0.99
Image number 350		C 88 251g C 88 251g	Hex. nut Hex. nut 000 934 005 008 or 000934005008		€0.34 €0.34
Image number 416		F 47 113	Damper container 107 470 02 16 or 1074700216	€121.00		Select variant	€121.00
Image number 416		F 47 114	Damper containers 107 470 07 16 or 1074700716	€436.87		Select variant	€436.87
Image number 433		D 47 171	Hose clamp 17mm 916 002 017 100 or 916002017100	€2.50		Select variant	€2.50
Image number 433		G 47 022	Clamp 916 033 021 100 or 916033021100	on request		Select variant	on request
Image number 439		D 67 136 D 67 136	Fuel hose 8mm - sold per meter Fuel hose 8mm - sold per meter 114 997 18 82 or 1149971882		€8.50 €8.50
Image number 441		F 32 157 D 67 136	Fuel hose 8mm - sold per meter Flexible tube 107 997 14 82 or 1079971482		on request €8.50
	D 67 136	Replacement: Fuel hose 8mm - sold per meter		€8.50
Image number 443		D 08 582 D 08 582	Hose clamp 13mm Hose clamp 13mm 001 997 69 90 or 0019976990		€3.87 €3.87
Image number 509		F 88 014 F 88 014	Screw Screw 000 990 68 36 or 0009906836		€0.74 €0.74
Image number 530		F 47 125 F 47 125	Fuel hose 11,5mm Fuel hose 11,5mm 116 470 02 75 or 1164700275		€33.85 €33.85
Image number 624		F 47 130 F 47 130	Line, flow Line, flow 116 476 02 01 or 1164760201		€115.34 €115.34
Image number 628		D 08 582 D 08 582	Hose clamp 13mm Hose clamp 13mm 001 997 69 90 or 0019976990		€3.87 €3.87
Image number 673		F 47 099 F 47 099	Fuel filter Fuel filter 001 477 59 01 or 0014775901		€27.00 €27.00
Image number 685		D 08 582 D 08 582	Hose clamp 13mm Hose clamp 13mm 001 997 69 90 or 0019976990		€3.87 €3.87
Image number 712		D 08 582 D 08 582	Hose clamp 13mm Hose clamp 13mm 001 997 69 90 or 0019976990		€3.87 €3.87
Image number 749		D 47 320	Rubber guide 110 476 00 84 or 1104760084	€4.64		Select variant	€4.64
Image number 749		D 47 320	Rubber guide 110 476 00 84 or 1104760084	€4.64		Select variant	€4.64
Image number 756		G 30 028	Sheet-metal screw 007 976 005 203 or 007976005203	on request		Select variant	on request
Image number 756		D 32 417	Clamp 110 995 00 22 or 1109950022	€2.44		Select variant	€2.44
Image number 774		C 47 085 C 47 017a	Screw with locking plate Screw with locking plate 120 420 02 27 or 1204200227		on request €5.20
	C 47 017a	Replacement: Screw with locking plate		€5.20
Image number 777		C 75 036 C 75 036	Rubber sealing ring f. trunk star Rubber sealing ring f. trunk star 000 987 01 41 or 0009870141		€0.74 €0.74
Image number 781		G 42 104 G 42 104	Nut, hydraulic unit on holder Nut, hydraulic unit on holder 000 934 006 013 or 000934006013		€14.34 €14.34
Image number 818		D 47 091 D 47 091	Clamp for cable fixing Clamp for cable fixing 109 995 00 22 or 1099950022		€2.25 €2.25
Image number 822		F 88 014 F 88 014	Screw Screw 000 990 68 36 or 0009906836		€0.74 €0.74
Image number 832		F 47 092 F 47 092	Rubber guide Rubber guide 116 476 02 84 or 1164760284		€7.00 €7.00
Image number 839		D 47 092 D 47 092	Cable clamp Cable clamp 109 995 00 15 or 1099950015		€4.40 €4.40
Image number 842		F 88 014 F 88 014	Screw Screw 000 990 68 36 or 0009906836		€0.74 €0.74
Image number 874		C 47 085 C 47 017a	Screw with locking plate Screw with locking plate 120 420 02 27 or 1204200227		on request €5.20
	C 47 017a	Replacement: Screw with locking plate		€5.20
Image number 881		C 75 036 C 75 036	Rubber sealing ring f. trunk star Rubber sealing ring f. trunk star 000 987 01 41 or 0009870141		€0.74 €0.74
Image number 888		D 42 510 D 42 510	Rubber rider Rubber rider 112 476 01 84 or 1124760184		€4.38 €4.38
Image number 895		C 47 084 A 47 050	Mounting clamp Fastening clip 180 995 00 22 or 1809950022		on request €2.10
	A 47 050	Replacement: Mounting clamp		€2.10
Image number 902		G 42 104 G 42 104	Nut, hydraulic unit on holder Nut, hydraulic unit on holder 000 934 006 013 or 000934006013		€14.34 €14.34

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Fuel tank 96l

F 47 048

Tank device

F 47 052

Fuel sender unit

F 47 053 €286.13

Sealing ring for fuel sender unit

F 47 055 €1.50

Flange

F 47 056 €60.60

Fuel strainer with gasket

G 47 008 €36.33

Seal ring

D 47 036 €3.70

Gasket

F 47 060

Gasket

F 47 061

Padding

F 47 062

Nozzle

F 47 063 €9.82

Ventilation pipe 740mm

F 47 067

Boot

E 47 007 €43.26

Venting

F 47 069 €16.32

Hose clamp 12 - 22

D 20 000a €4.50

Reinforcement fuel tank console

F 47 070

Washer, mounting plate / surface-mounting b.

D 35 367

Replacement item available

Hex. nut M 8

C 32 027 €0.54

Tank cap

D 47 058

Tank cap Fa. Huf

F 47 071

Tank cap

D 47 060

Sealing ring for gas cap

C 47 032 €2.20

Sealing ring

D 47 062 €24.54

Fuel pump D-Jetronic

D 47 145 €280.00

Fuel filter

D 47 134 €27.00

Sealing ring A 14x18 Al DIN 7603

A 01 024 €0.35

Adaptor

D 47 136 €82.89

Intermediate piece - Original

D 47 136o €78.57

Fuel hose 8mm - sold per meter

D 67 136 €8.50

Hose clamp 13mm

D 08 582 €3.87

Holder, transport hose

F 47 105

Schwingmetallpuffer

D 47 209

Replacement item available

Cable strap 160mm

D 46 680 €1.08

Lock washer

G 54 589 €0.99

Hex. nut

C 88 251g €0.34

Damper container

F 47 113 €121.00

Damper containers

F 47 114 €436.87

Hose clamp 17mm

D 47 171 €2.50

Clamp

G 47 022

Replacement item available

Fuel hose 8mm - sold per meter

D 67 136 €8.50

Flexible tube

F 32 157

Replacement item available

Hose clamp 13mm

D 08 582 €3.87

Screw

F 88 014 €0.74

Fuel hose 11,5mm

F 47 125 €33.85

Line, flow

F 47 130 €115.34

Hose clamp 13mm

D 08 582 €3.87

Fuel filter

F 47 099 €27.00

Hose clamp 13mm

D 08 582 €3.87

Hose clamp 13mm

D 08 582 €3.87

Rubber guide

D 47 320 €4.64

Sheet-metal screw

G 30 028

Clamp

D 32 417 €2.44

Screw with locking plate

C 47 085

Replacement item available

Rubber sealing ring f. trunk star

C 75 036 €0.74

Nut, hydraulic unit on holder

G 42 104 €14.34

Clamp for cable fixing

D 47 091 €2.25

Screw

F 88 014 €0.74

Rubber guide

F 47 092 €7.00

Cable clamp

D 47 092 €4.40

Screw

F 88 014 €0.74

Screw with locking plate

C 47 085

Replacement item available

Rubber sealing ring f. trunk star

C 75 036 €0.74

Rubber rider

D 42 510 €4.38

Fastening clip

C 47 084

Replacement item available

Nut, hydraulic unit on holder

G 42 104 €14.34

FROM CHASSIS:
020 072231
024,025 068646
028,029 035707
032,033 054893
036 001305

Fuel tank 96l

F 47 048

UP TO CHASSIS:
020 072230
024,025 068645
028,029 035706
028,029 035706
036 001304

Tank device

F 47 052

FROM CHASSIS:
020 072231
024,025 068646
028,029 035707
032,033 054893
036 001305

Fuel sender unit

F 47 053 €286.13

UP TO CHASSIS:
020 072230
024,025 068645
028,029 035706
028,029 035706
036 001304

Flange

F 47 056 €60.60

FROM CHASSIS:
020 101166
024,025 113152
028,029 045936
032,033 079753
036 004031

Ventilation pipe 740mm

F 47 067

UP TO CHASSIS:
020 101165
024,025 113151
028,029 045935
032,033 079752
036 004030

Boot

E 47 007 €43.26

FROM CHASSIS:
020 101166
024,025 113152
028,029 045936
032,033 079753
036 004031

Venting

F 47 069 €16.32

UP TO CHASSIS:
020 033512
024,025 036681
028,029 024603
032,033 033119

Sealing ring for gas cap

C 47 032 €2.20

FROM CHASSIS:
020 033513
024,025 03
028,029 024604
032,033 033120

Sealing ring

D 47 062 €24.54

108.057 as of chassis no:
0 00042

;
