54 Battery, Starting Cable 2 for 200/8 Mercedes-Benz w115 Mercedes-Benz
200/8 W115.015

Chosen model:
Step 5:
Select spare part
.product-group-38 .product-group-40 .product-group-53 .product-group-70 .product-group-71 .product-group-72 .product-group-73 .product-group-74 .product-group-75 .product-group-76 .product-group-78 .product-group-79 .product-group-80 .product-group-90 .product-group-91 .product-group-92 .product-group-93 .product-group-94 .product-group-112 .product-group-114 .product-group-122 Panel
  • in stock
  • low stock level
  • currently not in stock, but available for order
  • no longer available
Pic. Niemöller
part-no.
Designation   Price/unit excl. tax.
Image number 38
D 54 431 D 54 431 Rotary knob, for rotary-pull light switch Rotary knob, for rotary-pull light switch
115 540 04 83 or 1155400483
on request on request
Image number 40
D 30 159 D 30 159 Escutcheon Escutcheon
110 545 02 72 or 1105450272
€10.75 €10.75
Image number 53
F 54 110 F 54 110 Idle cut-off valve switch Idle cut-off valve switch
000 545 61 32 or 0005456132
€143.51 €143.51
Image number 0 G 54 079 G 54 079 Screw,Conductor a.Conductor connector Screw,Conductor a.Conductor connector
007 985 004 125 or 007985004125
on request on request
Image number 0 G 30 101 G 47 089 Hex. nut Hex nut
000 934 004 004 or 000934004004
on request €1.00
G 47 089 Replacement: Hex. nut €1.00
Image number 0 G 72 144 B 07 032 Lock washer Spring washer
000 127 004 203 or 000127004203
on request €0.78
B 07 032 Replacement: Lock washer €0.78
Image number 0 G 30 101 G 47 089 Hex. nut Hex nut
000 934 004 004 or 000934004004
on request €1.00
G 47 089 Replacement: Hex. nut €1.00
Image number 0 D 07 343 D 09 270 Cable strap Punched tape loop
000 997 24 90 or 0009972490
on request €0.40
D 09 270 Replacement: Cable strap €0.40
Image number 0 C 54 053 C 54 053 Clip Clip
000 988 34 78 or 0009883478
€1.50 €1.50
Image number 0 D 46 680 D 46 680 Cable strap 160mm Cable strap 160mm
114 997 05 90 or 1149970590
€1.08 €1.08
Image number 70
F 54 139 Tachometers
006 542 98 06 or 0065429806
on request on request

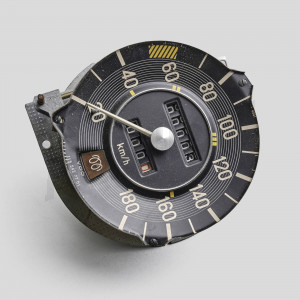

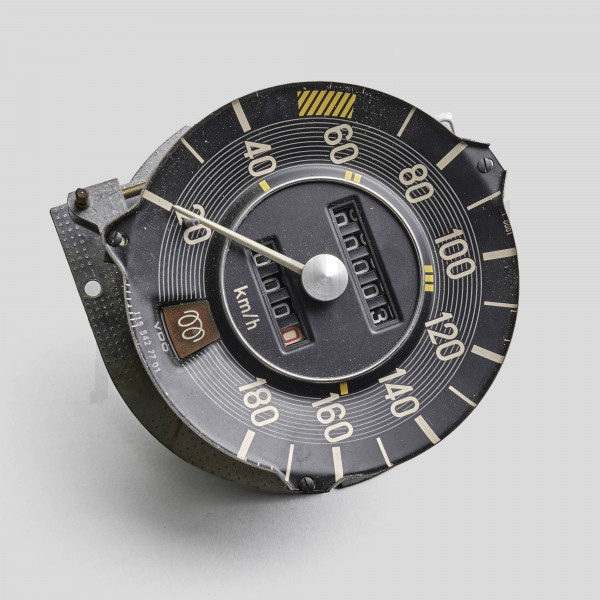

Image number 70
F 54 138 Tachometers
006 542 41 06 or 0065424106
€450.00 €450.00
Image number 71
F 54 144 F 54 144 Circuit board Circuit board
000 542 14 78 or 0005421478
on request on request
Image number 72
F 54 146 F 54 146 Oil manometer Oil manometer
001 542 74 02 or 0015427402
€114.14 €114.14
Image number 73
F 54 147 F 54 147 Remote thermometer (C-display) Remote thermometer (C-display)
003 542 05 05 or 0035420505
on request on request
Image number 74
D 54 714 D 54 714 Fuel gauge Fuel gauge
001 542 04 03 or 0015420403
€174.27 €174.27
Image number 75
F 54 149 Gear indicator apparatus
114 270 00 52 or 1142700052
€457.72 €457.72
Image number 75
F 54 150 Gear indicator right hand drive
114 270 01 52 or 1142700152
on request on request
Image number 76
D 54 684 D 54 684 Potentiometer Potentiometer
000 542 15 25 or 0005421525
on request on request
Image number 0 D 54 749 D 54 749 Time clock, replica installation depth 55mm Time clock, replica installation depth 55mm
000 542 04 11 or 0005420411
€305.00 €305.00
Image number 78
D 54 752 D 54 752 Dial panel Dial panel
000 542 05 58 or 0005420558
on request on request
Image number 79
F 54 151 F 54 151 Gasket Gasket
000 542 04 80 or 0005420480
on request on request
Image number 80
D 54 757 G 54 482 Lamp socket Socket
000 545 13 19 or 0005451319
on request €15.04
G 54 482 Replacement: Lamp socket €15.04
Image number 0 D 54 758 D 54 758 Bulb 12V 3W Bulb 12V 3W
072 601 012 240 or 072601012240
€2.00 €2.00
Image number 90
F 54 153 Pipe Oil pressure gauge
115 540 01 59 or 1155400159
on request on request
Image number 90
F 54 155 Pipe Oil pressure gauge R.L.
115 540 05 59 or 1155400559
on request on request
Image number 91
D 54 393 D 54 393 Grommet Grommet
008 997 17 81 or 0089971781
€2.56 €2.56
Image number 92
F 54 162 Speedometer cable
115 542 02 07 or 1155420207
€35.59 €35.59
Image number 92
F 54 165 Flexible shaft NF
115 542 03 07 or 1155420307
€36.00 €36.00
Image number 92
F 54 168 Flexible shaft R.L. 1860 mm
114 542 03 07 or 1145420307
on request on request
Image number 93
D 29 180 D 29 180 Grommet Grommet
110 997 14 81 or 1109971481
€2.37 €2.37
Image number 0 G 54 526 G 54 526 Screw,Flexible shaft on gearbox Screw,Flexible shaft on gearbox
000 933 006 194 or 000933006194
on request on request
Image number 0 G 54 688 G 42 085 Spring washer Spring washer holder on battery frame
000 137 006 200 or 000137006200
on request €0.30
G 42 085 Replacement: Spring washer €0.30
Image number 94
F 54 173 F 54 173 Holder (Tachowel.Mantelro. Holder (Tachowel.Mantelro.
107 542 03 40 or 1075420340
on request on request
Image number 0 D 54 404 D 54 404 Mounting bracket for wire trunk light Mounting bracket for wire trunk light
002 988 43 78 or 0029884378
€0.50 €0.50
Image number 0 D 15 225 D 15 225 Cable strap Cable strap
000 997 96 90 or 0009979690
on request on request
Image number 112
F 54 178 F 54 178 Holder (for connection starting lock) Holder (for connection starting lock)
115 540 02 73 or 1155400273
on request on request
Image number 114
D 15 078 Regulator
001 154 68 06 or 0011546806
€330.00 €330.00
Image number 114
D 15 078a Regulator - Aftermarket
001 154 51 06 or 0011545106
€25.50 €25.50
Image number 0 G 26 005 G 26 005 Hex. head screw Hex. head screw
304 017 006 018 or 304017006018
€2.55 €2.55
Image number 0 C 07 108 G 22 020 Lock washer Spring ring for carburetor cover
000 127 006 203 or 000127006203
on request €0.30
G 22 020 Replacement: Lock washer €0.30
Image number 122
F 54 193 Holder for plug connection
114 545 01 40 or 1145450140
on request on request
Image number 122
F 54 194 Holder R.L. f. plug connection
114 545 02 40 or 1145450240
on request on request
Image number 0 G 30 032 G 30 032 Sheet metal screw 4,8x13 Sheet metal screw 4,8x13
007 976 004 205 or 007976004205
€2.43 €2.43
Please note that the product names may be an automatic translation for which no guarantee can be given.
