35 Rear Axle for 280C Mercedes-Benz w114 Coupé Mercedes-Benz
280C W114.073

Chosen model:

Chassis: 114.073
Engine: 110.921
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

[{"type":"poly","coords":[53,240,29,225,49,186,78,203],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35160-sealing-ring-shaft-45x65x10","cssSelector":".product-group-33","info":"{\"ids\":\"F 35 160\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[425,197,636,220,664,236,733,216,735,266,654,314,552,304,470,318,452,299,502,266,466,249,424,239,416,211],"href":"\/en\/w114C\/w114c\/B073\/14\/37","cssSelector":".product-group-37","info":"{\"ids\":\"F 35 182, F 35 184\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[708,182,693,199,703,207,717,193],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/d35286-cylindrical-pin","cssSelector":".product-group-41","info":"{\"ids\":\"D 35 286\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[606,147,635,166,657,131,638,98],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35098-tapered-roller-bearings-crown-wheel-bearing","cssSelector":".product-group-42","info":"{\"ids\":\"F 35 098\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[597,90,584,116,594,139,613,127,628,100],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35211-tapered-roller-bearings","cssSelector":".product-group-45","info":"{\"ids\":\"F 35 211\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[594,83,576,123,556,111,570,78],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35212-thrust-washer-left","cssSelector":".product-group-46","info":"{\"ids\":\"F 35 212\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[648,96,665,92,674,125,654,127],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35213-sealing-ring-outside","cssSelector":".product-group-47","info":"{\"ids\":\"F 35 213\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[554,55,534,98,506,80,526,44],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35214-sealing-ring-for-wheel-bearing-inside","cssSelector":".product-group-48","info":"{\"ids\":\"F 35 214\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[568,72,552,111,533,99,550,63],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35215-distance-bush","cssSelector":".product-group-49","info":"{\"ids\":\"F 35 215\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[517,40,498,75,479,66,494,32],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35216-slotted-nut","cssSelector":".product-group-50","info":"{\"ids\":\"F 35 216\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[622,17,626,80,678,84,686,13],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35217a-repair-kit-rear-wheel-bearings","cssSelector":".product-group-51","info":"{\"ids\":\"F 35 217a\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[448,346,446,382,492,398,489,369],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35217-bushing-kit-rear-cross-member-1-side","cssSelector":".product-group-52","info":"{\"ids\":\"F 35 217\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[10,244,8,306,45,418,180,478,278,392,95,273],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35232-repair-kit-for-inner-sleeve-axle-shaft-with-star-joint","cssSelector":".product-group-59","info":"{\"ids\":\"F 35 232\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[136,153,117,203,266,281,287,233,259,149],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35233-repair-kit-for-outer-sleeve-axle-shaft-with-star-joint","cssSelector":".product-group-60","info":"{\"ids\":\"F 35 233\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[30,173,16,204,1,197,10,165],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35162-snap-ring","cssSelector":".product-group-62","info":"{\"ids\":\"F 35 162\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[50,188,31,221,18,211,33,176],"href":"\/en\/w114C\/w114c\/B073\/14\/64","cssSelector":".product-group-64","info":"{\"ids\":\"F 35 241, F 35 242, F 35 243, F 35 244, F 35 245, F 35 246\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[423,383,464,401,466,429,416,435],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35279-repair-kit-rear-axle-mounting","cssSelector":".product-group-81","info":"{\"ids\":\"F 35 279\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[391,391,314,432,273,411,356,376,384,377,404,390],"href":"\/en\/w114C\/w114c\/B073\/14\/82","cssSelector":".product-group-82","info":"{\"ids\":\"F 35 282, F 35 284\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[355,419,351,475,366,481,381,453,365,423],"href":"https:\/\/www.niemoeller.de\/en\/w114C\/w114c\/B073\/14\/f35286-tensioning-screw-frame-floor-front","cssSelector":".product-group-84","info":"{\"ids\":\"F 35 286\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"}]

in stock
low stock level
currently not in stock, but available for order
no longer available

Pic.	Designation		Price/unit excl. tax.
Image number 33	F 35 160 F 35 160	Sealing ring, shaft 45x65x10 Sealing ring, shaft 45x65x10 002 997 67 47 or 0029976747		€7.65 €7.65
Image number 0	F 68 329 F 68 329	Rubber buffer, flap tank filler neck Rubber buffer, flap tank filler neck 115 987 08 40 or 1159870840		€1.19 €1.19
Image number 0	F 35 178 F 35 178	Handlebar left with wheel bearing cover plate Handlebar left with wheel bearing cover plate 115 350 56 05 or 1153505605		on request on request
Image number 0	F 35 180 F 35 180	Handlebar right with wheel bearing cover plate Handlebar right with wheel bearing cover plate 115 350 57 05 or 1153505705		on request on request
Image number 37	F 35 182	Angle link left with rubber bearing 115 350 68 05 or 1153506805	on request		Select variant	on request
Image number 37	F 35 184	Angle link right with rubber bearing 115 350 69 05 or 1153506905	on request		Select variant	on request
Image number 0	F 83 252 F 83 252	Grommet Grommet 115 997 06 81 or 1159970681		€3.00 €3.00
Image number 0	F 35 208 F 35 208	Right flange Right flange 115 350 31 46 or 1153503146		on request on request
Image number 41	D 35 286 D 35 286	Cylindrical pin Cylindrical pin 115 991 05 60 or 1159910560		on request on request
Image number 0	F 35 210 F 35 210	Washer Washer 115 357 03 75 or 1153570375		on request on request
Image number 42	F 35 098 F 35 098	Tapered roller bearings, crown wheel bearing Tapered roller bearings, crown wheel bearing 000 980 37 02 or 0009803702		€75.31 €75.31
Image number 45	F 35 211 F 35 211	Tapered roller bearings Tapered roller bearings 000 980 20 02 or 0009802002		€38.91 €38.91
Image number 46	F 35 212 F 35 212	Thrust washer left Thrust washer left 115 357 08 62 or 1153570862		€30.18 €30.18
Image number 47	F 35 213 F 35 213	Sealing ring outside Sealing ring outside 005 997 16 46 or 0059971646		€13.00 €13.00
Image number 48	F 35 214 F 35 214	Sealing ring for wheel bearing inside Sealing ring for wheel bearing inside 005 997 78 46 or 0059977846		€4.20 €4.20
Image number 49	F 35 215 F 35 215	Distance bush Distance bush 115 353 01 42 or 1153530142		€6.20 €6.20
Image number 50	F 35 216 F 35 216	Slotted nut Slotted nut 115 357 00 26 or 1153570026		€9.39 €9.39
Image number 51	F 35 217a F 35 217a	Repair kit rear wheel bearings Repair kit rear wheel bearings 123 350 00 68 or 1233500068		€35.00 €35.00
Image number 52	F 35 217 F 35 217	Bushing kit rear cross member ( 1 side ) Bushing kit rear cross member ( 1 side ) 115 586 02 35 or 1155860235		€24.00 €24.00
Image number 0	G 35 030 G 35 030	Screw Screw 000 960 016 164 or 000960016164		€14.61 €14.61
Image number 0	G 35 031 G 35 031	Hex nut Hex nut 000 936 016 012 or 000936016012		on request on request
Image number 0	G 35 032 G 35 032	Spring washer Spring washer 912 004 016 101 or 912004016101		€1.41 €1.41
Image number 0	F 35 220 F 35 220	Rear axle shaft left/right Rear axle shaft left/right 107 350 07 10 or 1073500710		€2,727.98 €2,727.98
Image number 59	F 35 232 F 35 232	Repair kit for inner sleeve, axle shaft with star joint Repair kit for inner sleeve, axle shaft with star joint 115 350 11 37 or 1153501137		€48.00 €48.00
Image number 60	F 35 233 F 35 233	Repair kit for outer sleeve, axle shaft with star joint Repair kit for outer sleeve, axle shaft with star joint 115 350 12 37 or 1153501237		€18.50 €18.50
Image number 62	F 35 162 F 35 162	Snap ring Snap ring 115 994 03 34 or 1159940334		€2.25 €2.25
Image number 64	F 35 241	Spacer washer n.a. 3.40mm 115 357 54 52 or 1153575452	on request		Select variant	on request
Image number 64	F 35 242	Spacer washer n.a. 3.30mm 115 357 56 52 or 1153575652	on request			on request
Image number 64	F 35 243	Spacer washer n.a. 3.20mm 115 357 58 52 or 1153575852	on request			on request
Image number 64	F 35 244	Spacer washer as needed 3.10mm 115 357 60 52 or 1153576052	on request			on request
Image number 64	F 35 245	Spacer washer n.a. 3.00mm 115 357 62 52 or 1153576252	on request			on request
Image number 64	F 35 246	Spacer washer n.a. 2.90mm 115 357 64 52 or 1153576452	on request			on request

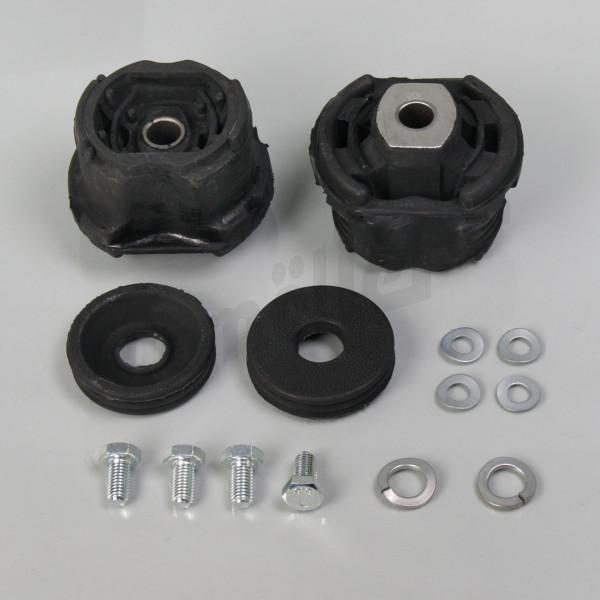

Image number 81	F 35 279 F 35 279	Repair kit rear axle mounting Repair kit rear axle mounting 115 586 03 35 or 1155860335		€79.00 €79.00
Image number 82	F 35 282	Support blade left 115 352 12 25 or 1153521225	€56.19		Select variant	€56.19
Image number 82	F 35 284	Support blade right 115 352 13 25 or 1153521325	€55.84		Select variant	€55.84
Image number 84	F 35 286 F 35 286	Tensioning screw, frame - floor front Tensioning screw, frame - floor front 115 352 00 69 or 1153520069		€44.30 €44.30

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Sealing ring, shaft 45x65x10

F 35 160 €7.65

Rubber buffer, flap tank filler neck

F 68 329 €1.19

Handlebar left with wheel bearing cover plate

F 35 178

Handlebar right with wheel bearing cover plate

F 35 180

Angle link left with rubber bearing

F 35 182

Angle link right with rubber bearing

F 35 184

Grommet

F 83 252 €3.00

Right flange

F 35 208

Cylindrical pin

D 35 286

Washer

F 35 210

Tapered roller bearings, crown wheel bearing

F 35 098 €75.31

Tapered roller bearings

F 35 211 €38.91

Thrust washer left

F 35 212 €30.18

Sealing ring outside

F 35 213 €13.00

Sealing ring for wheel bearing inside

F 35 214 €4.20

Distance bush

F 35 215 €6.20

Slotted nut

F 35 216 €9.39

Repair kit rear wheel bearings

F 35 217a €35.00

Bushing kit rear cross member ( 1 side )

F 35 217 €24.00

Screw

G 35 030 €14.61

Hex nut

G 35 031

Spring washer

G 35 032 €1.41

Rear axle shaft left/right

F 35 220 €2,727.98

Repair kit for inner sleeve, axle shaft with star joint

F 35 232 €48.00

Repair kit for outer sleeve, axle shaft with star joint

F 35 233 €18.50

Snap ring

F 35 162 €2.25

Spacer washer n.a. 3.40mm

F 35 241

Spacer washer n.a. 3.30mm

F 35 242

Spacer washer n.a. 3.20mm

F 35 243

Spacer washer as needed 3.10mm

F 35 244

Spacer washer n.a. 3.00mm

F 35 245

Spacer washer n.a. 2.90mm

F 35 246

Repair kit rear axle mounting

F 35 279 €79.00

Support blade left

F 35 282 €56.19

Support blade right

F 35 284 €55.84

Tensioning screw, frame - floor front

F 35 286 €44.30

On model 021, from chassis 002912
on model 022, from chassis005675
on models 023/072/073, from production start

Rubber buffer, flap tank filler neck

F 68 329 €1.19

On model 021, from chassis 006776
on model 022, from chassis 017035
on models 023/072/073, from production start

Right flange

F 35 208

Sealing ring, shaft 45x65x10

F 35 160 €7.65

Handlebar left with wheel bearing cover plate

F 35 178

Handlebar right with wheel bearing cover plate

F 35 180

Angle link left with rubber bearing

F 35 182

Angle link right with rubber bearing

F 35 184

Grommet

F 83 252 €3.00

Cylindrical pin

D 35 286

Washer

F 35 210

Tapered roller bearings, crown wheel bearing

F 35 098 €75.31

Tapered roller bearings

F 35 211 €38.91

Thrust washer left

F 35 212 €30.18

Sealing ring outside

F 35 213 €13.00

Sealing ring for wheel bearing inside

F 35 214 €4.20

Distance bush

F 35 215 €6.20

Slotted nut

F 35 216 €9.39

Repair kit rear wheel bearings

F 35 217a €35.00

Bushing kit rear cross member ( 1 side )

F 35 217 €24.00

Screw

G 35 030 €14.61

Hex nut

G 35 031

Spring washer

G 35 032 €1.41

Rear axle shaft left/right

F 35 220 €2,727.98

Repair kit for inner sleeve, axle shaft with star joint

F 35 232 €48.00

Repair kit for outer sleeve, axle shaft with star joint

F 35 233 €18.50

Snap ring

F 35 162 €2.25

Spacer washer n.a. 3.40mm

F 35 241

Spacer washer n.a. 3.30mm

F 35 242

Spacer washer n.a. 3.20mm

F 35 243

Spacer washer as needed 3.10mm

F 35 244

Spacer washer n.a. 3.00mm

F 35 245

Spacer washer n.a. 2.90mm

F 35 246

Repair kit rear axle mounting

F 35 279 €79.00

Support blade left

F 35 282 €56.19

Support blade right

F 35 284 €55.84

Tensioning screw, frame - floor front

F 35 286 €44.30
