7 Carburetor for 220Sb Mercedes-Benz w111 Mercedes-Benz
220Sb W111.012

Chosen model:

Chassis: 111.012
Engine: 180.941
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

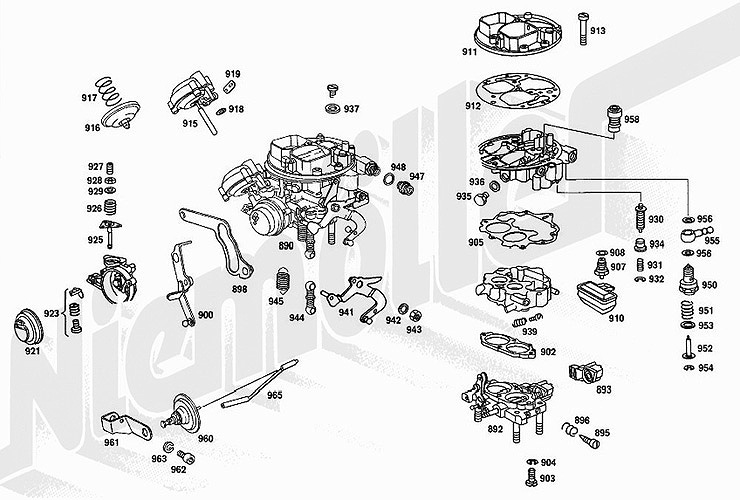

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 892		D 07 237 D 07 237	Throttle part Throttle part 000 071 21 06 or 0000712106		on request on request
Image number 893		D 07 385 D 07 385	Idle switch for carburetor in front Idle switch for carburetor in front 000 545 32 04 or 0005453204		€148.00 €148.00
Image number 895		D 07 058 D 07 058	Idle mixture adjusting screw Idle mixture adjusting screw 000 071 85 71 or 0000718571		€14.82 €14.82
Image number 896		C 07 022 C 07 022	Pressure spring (f. idling adjust. screw Pressure spring (f. idling adjust. screw 000 071 12 16 or 0000711216		€4.35 €4.35
Image number 898		D 07 238 D 07 238	Slider lever on throttle valve part W111.012, 220SB Slider lever on throttle valve part W111.012, 220SB 000 070 14 21 or 0000701421		€65.00 €65.00
Image number 900		D 07 239 D 07 239	Throttle lever Throttle lever 000 070 15 21 or 0000701521		€65.00 €65.00
Image number 902		D 07 240 D 07 240	Insulate flange Insulate flange 000 071 37 80 or 0000713780		on request on request
Image number 905		D 07 241 D 07 241	Seal for float housing Seal for float housing 000 071 38 80 or 0000713880		on request on request
Image number 907		C 07 103 C 07 103	Float needle valve 2mm Float needle valve 2mm 000 071 12 44 or 0000711244		€20.48 €20.48
Image number 908		A 09 017 A 09 017	Sealing ring A 12x16 Cu - DIN 7603 Sealing ring A 12x16 Cu - DIN 7603 000 997 81 40 or 0009978140		€0.60 €0.60
Image number 910		D 07 081 D 07 081	Float 8,5g Float 8,5g 000 071 13 43 or 0000711343		€54.00 €54.00
Image number 911		D 07 242 D 07 242	Carburetor covers Carburetor covers 000 071 29 04 or 0000712904		on request on request
Image number 912		D 07 243 D 07 243	Gasket for carburetor cover Gasket for carburetor cover 180 or 180		€7.35 €7.35
Image number 913		D 07 244 D 07 244	Screw for carburetor cover Screw for carburetor cover 000 071 82 71 or 0000718271		€1.60 €1.60
Image number 915		D 07 245 D 07 245	Vacuum actuator Vacuum actuator 000 070 04 53 or 0000700453		on request on request
Image number 916		D 07 246 D 07 246	Diaphragm Diaphragm 000 070 34 52 or 0000703452		€56.50 €56.50
Image number 917		D 07 247 D 07 247	Diaphragm spring Diaphragm spring 000 071 29 16 or 0000712916		€6.55 €6.55
Image number 918		D 07 248 D 07 248	O-ring in the lower part O-ring in the lower part 004 997 94 45 or 0049979445		€3.70 €3.70
Image number 919		D 07 249 D 07 249	Gasket for vacuum box Gasket for vacuum box 000 071 40 80 or 0000714080		€0.80 €0.80
Image number 921		D 07 250 D 07 250	Starter cover Starter cover 000 071 12 28 or 0000711228		on request on request
Image number 923		D 07 304 D 07 304	Stop levers Stop levers 000 070 28 21 or 0000702821		€19.50 €19.50
Image number 925		C 07 286 C 07 286	Diaphragm pump cpl. no. 841 Diaphragm pump cpl. no. 841 180 or 180		on request on request
Image number 926		D 07 253 D 07 253	Compressing spring Compressing spring 000 071 30 16 or 0000713016		€4.10 €4.10
Image number 927		C 07 406 C 07 406	Throttle opening stop screw Throttle opening stop screw 000 071 75 71 or 0000717571		on request on request
Image number 928		C 07 314 C 07 314	Hex. nut f. stop screw Hex. nut f. stop screw 000 071 13 72 or 0000711372		on request on request
Image number 929		C 07 626 C 07 626	Sealing ring 5x8x1 Sealing ring 5x8x1 007 603 005 100 or 007603005100		€1.40 €1.40
Image number 930		D 07 255 D 07 255	External air valve External air valve 000 070 15 46 or 0000701546		€106.74 €106.74
Image number 931		D 07 256 D 07 256	Compressing spring Compressing spring 000 071 27 16 or 0000712716		€4.14 €4.14
Image number 932		D 07 257 D 07 257	Locking washer Locking washer 000 071 02 73 or 0000710273		€2.25 €2.25
Image number 934		D 07 258 D 07 258	Bushing for aeration valve Bushing for aeration valve 000 072 01 53 or 0000720153		€33.64 €33.64
Image number 935		D 07 259 D 07 259	Thrust bolt Thrust bolt 000 071 83 71 or 0000718371		€4.10 €4.10
Image number 936		C 07 039 C 07 039	Seal ring f. main nozzle holder Seal ring f. main nozzle holder 000 071 35 60 or 0000713560		€1.70 €1.70
Image number 939		D 07 260 D 07 260	Pressure spring for idle speed adjustment screw Pressure spring for idle speed adjustment screw 000 071 28 16 or 0000712816		on request on request
Image number 941		D 07 335 D 07 335	Repair kit operating lever Repair kit operating lever 000 586 85 07 or 0005868507		€268.00 €268.00
Image number 942		C 07 025 C 07 025	Washer Washer 000 071 00 62 or 0000710062		on request on request
Image number 944		D 07 262 D 07 262	Rod Rod 000 070 14 76 or 0000701476		€39.50 €39.50
Image number 945		D 07 263 D 07 263	Return spring Return spring 000 071 19 15 or 0000711915		on request on request
Image number 947		C 07 105 D 08 028	Fitting Screw neck 007 627 006 003 or 007627006003		on request €9.00
	D 08 028	Replacement: Fitting		€9.00
Image number 950		D 07 018 D 07 018	Fuel return valve Fuel return valve 000 070 11 46 or 0000701146		€99.00 €99.00
Image number 951		D 07 020 D 07 020	Diaphragm spring Diaphragm spring 000 071 25 16 or 0000712516		€5.90 €5.90
Image number 952		D 07 021 D 07 021	Diaphragm Diaphragm 000 075 11 07 or 0000751107		€28.00 €28.00
Image number 953		D 07 022 D 14 226a	Sealing ring D 16x20 DIN 7603 AL Sealing ring 16x20 001 997 36 40 or 0019973640		on request €0.80
	D 14 226a	Replacement: Sealing ring D 16x20 DIN 7603 AL		€0.80
Image number 954		D 07 264 D 07 264	Retaining ring Retaining ring 006 799 002 302 or 006799002302		€0.68 €0.68
Image number 955		D 07 023 D 07 023	Banjo fitting Banjo fitting 000 990 19 88 or 0009901988		€8.61 €8.61
Image number 958		D 07 265 D 07 265	Pump piston for carburator Pump piston for carburator 000 071 08 18 or 0000710818		on request on request
Image number 960		D 07 266 D 07 266	Closing damper Closing damper 000 070 03 67 or 0000700367		on request on request
Image number 961		D 07 267 D 07 267	Holder for closing damper Holder for closing damper 000 072 02 40 or 0000720240		on request on request
Image number 962		G 42 084 G 42 084	Screw Screw 000 912 006 002 or 000912006002		on request on request
Image number 963		G 22 020 G 22 020	Lock washer Lock washer 912 004 006 102 or 912004006102		€0.30 €0.30
Image number 965		D 07 268 D 07 268	Pipe complete Pipe complete 000 071 04 90 or 0000710490		on request on request
Image number 890		D 07 271	Gasket set for carburettor Zenith 35/40 INAT 180 or 180	€34.50		Select variant	€34.50
Image number 890		D 07 404	Small repair kit 180 or 180	€356.86		Select variant	€356.86

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Throttle part

D 07 237

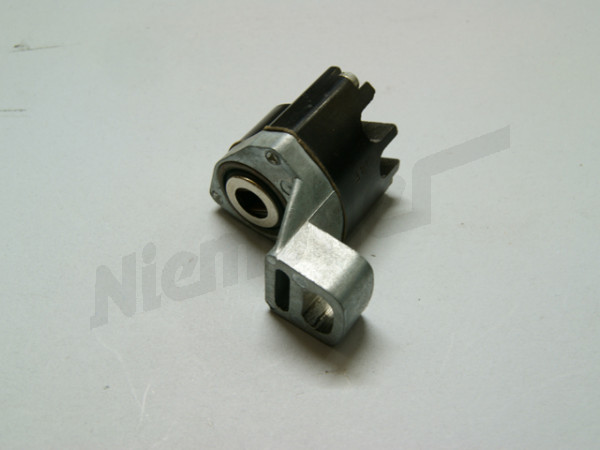

Idle switch for carburetor in front

D 07 385 €148.00

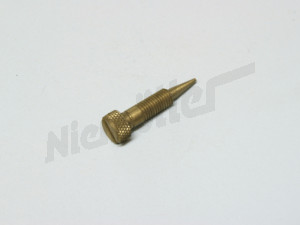

Idle mixture adjusting screw

D 07 058 €14.82

Pressure spring (f. idling adjust. screw

C 07 022 €4.35

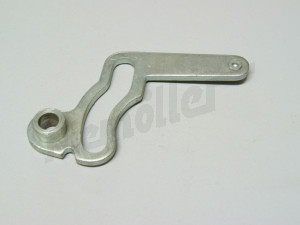

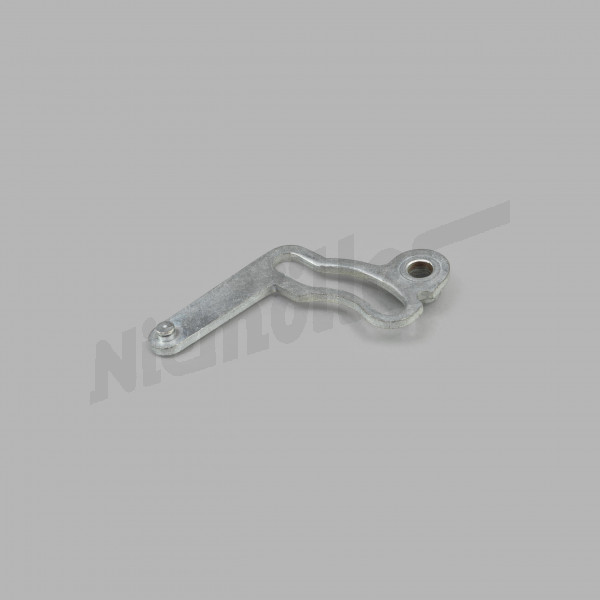

Slider lever on throttle valve part W111.012, 220SB

D 07 238 €65.00

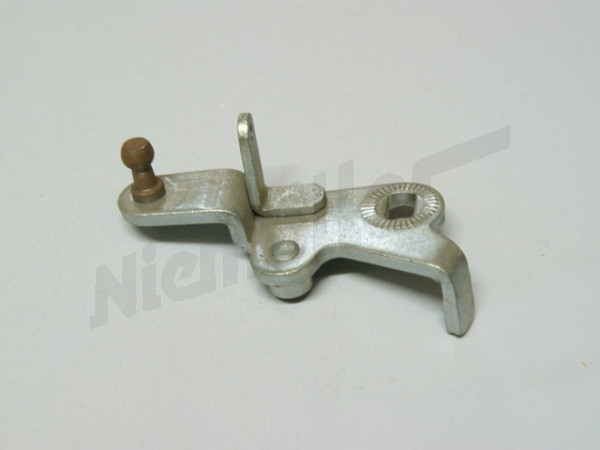

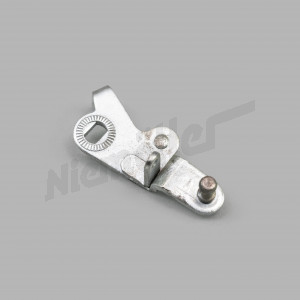

Throttle lever

D 07 239 €65.00

Insulate flange

D 07 240

Seal for float housing

D 07 241

Float needle valve 2mm

C 07 103 €20.48

Sealing ring A 12x16 Cu - DIN 7603

A 09 017 €0.60

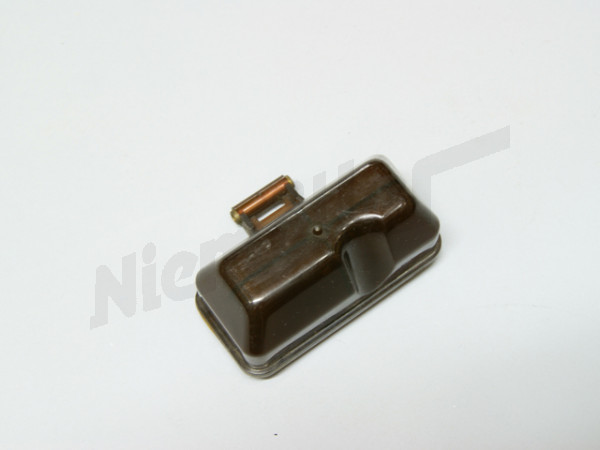

Float 8,5g

D 07 081 €54.00

Carburetor covers

D 07 242

Gasket for carburetor cover

D 07 243 €7.35

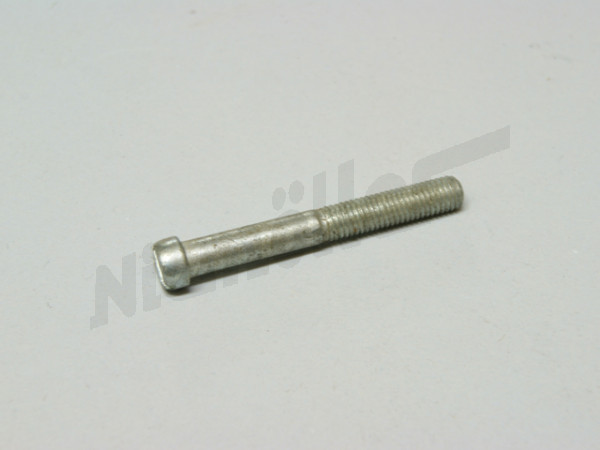

Screw for carburetor cover

D 07 244 €1.60

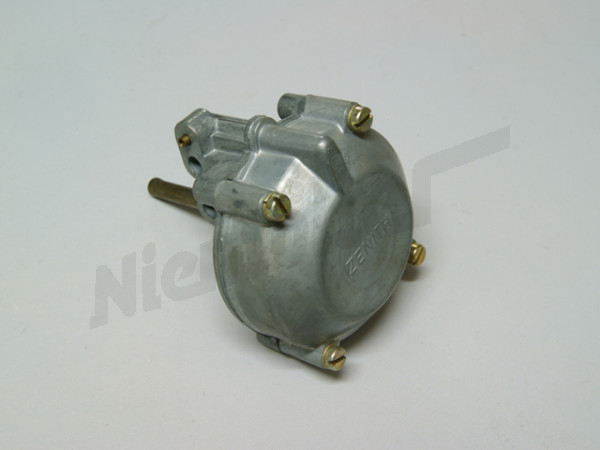

Vacuum actuator

D 07 245

Diaphragm

D 07 246 €56.50

Diaphragm spring

D 07 247 €6.55

O-ring in the lower part

D 07 248 €3.70

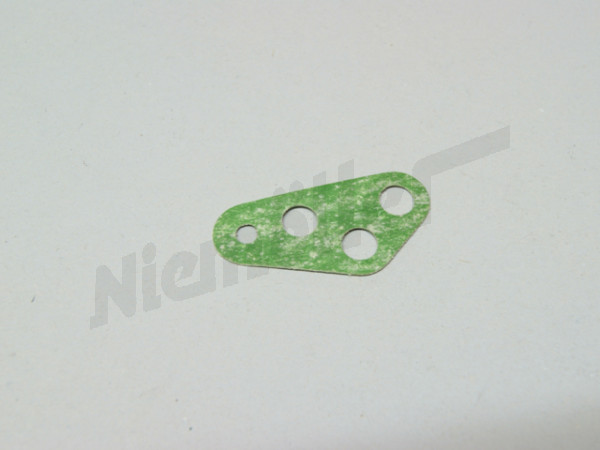

Gasket for vacuum box

D 07 249 €0.80

Starter cover

D 07 250

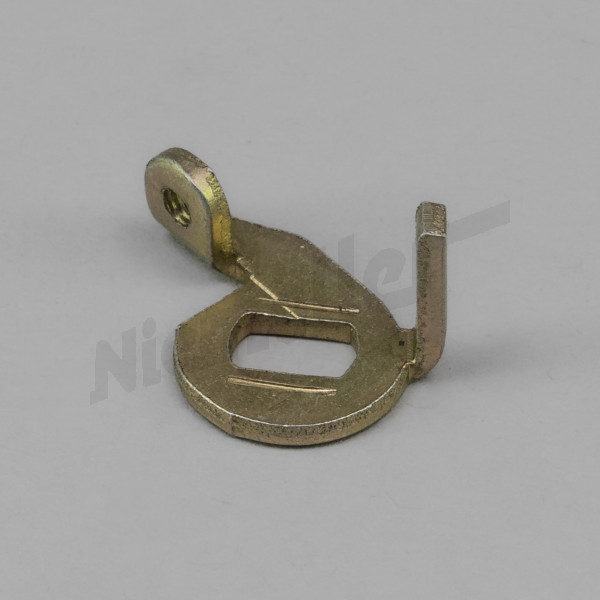

Stop levers

D 07 304 €19.50

Diaphragm pump cpl. no. 841

C 07 286

Compressing spring

D 07 253 €4.10

Throttle opening stop screw

C 07 406

Hex. nut f. stop screw

C 07 314

Sealing ring 5x8x1

C 07 626 €1.40

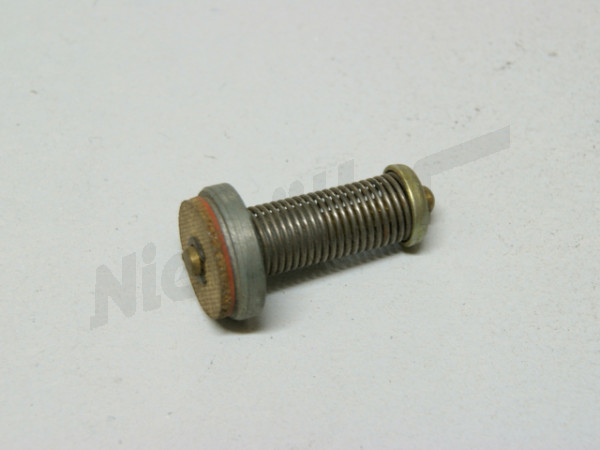

External air valve

D 07 255 €106.74

Compressing spring

D 07 256 €4.14

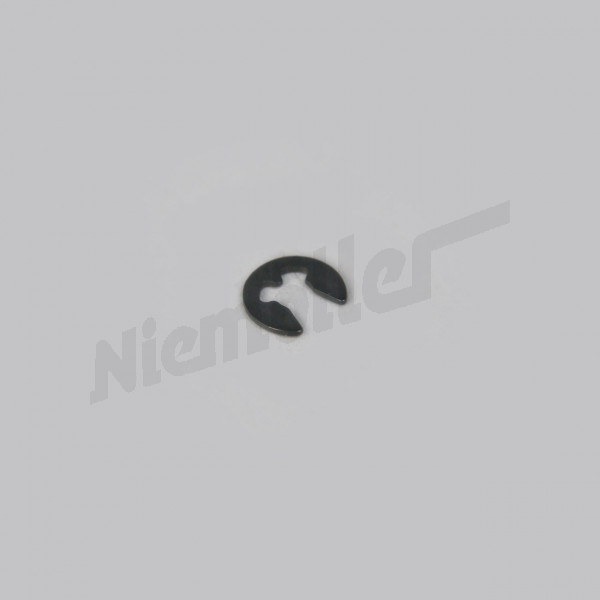

Locking washer

D 07 257 €2.25

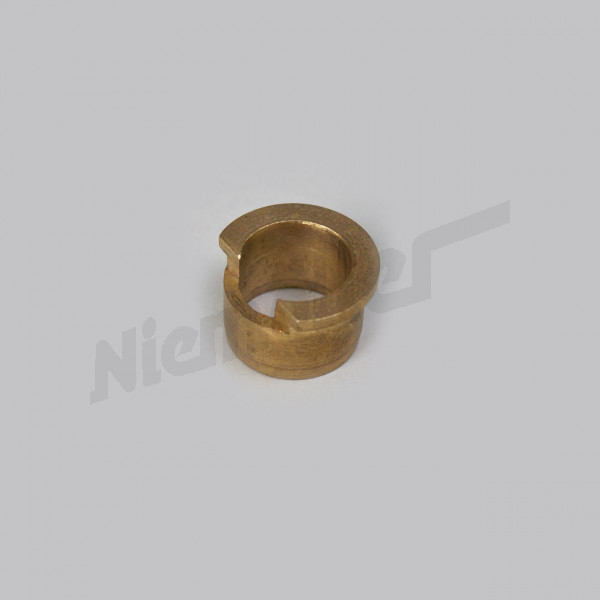

Bushing for aeration valve

D 07 258 €33.64

Thrust bolt

D 07 259 €4.10

Seal ring f. main nozzle holder

C 07 039 €1.70

Pressure spring for idle speed adjustment screw

D 07 260

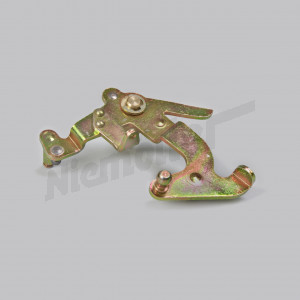

Repair kit operating lever

D 07 335 €268.00

Washer

C 07 025

Rod

D 07 262 €39.50

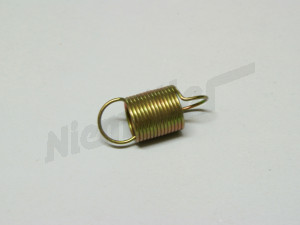

Return spring

D 07 263

Screw neck

C 07 105

Replacement item available

Fuel return valve

D 07 018 €99.00

Diaphragm spring

D 07 020 €5.90

Diaphragm

D 07 021 €28.00

Sealing ring 16x20

D 07 022

Replacement item available

Retaining ring

D 07 264 €0.68

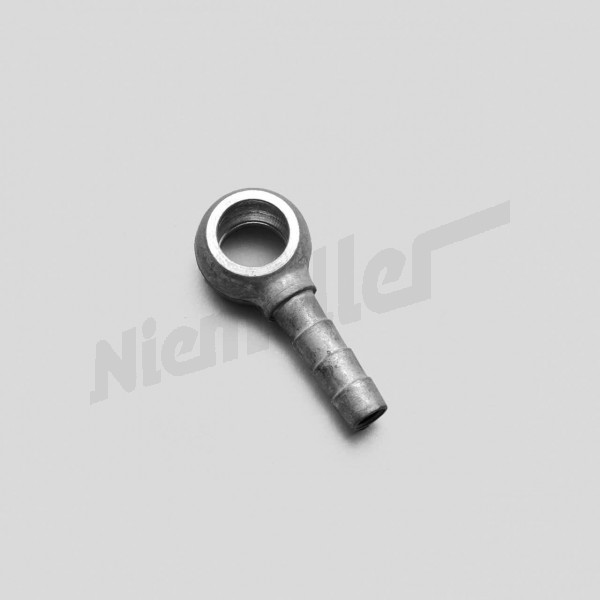

Banjo fitting

D 07 023 €8.61

Pump piston for carburator

D 07 265

Closing damper

D 07 266

Holder for closing damper

D 07 267

Screw

G 42 084

Lock washer

G 22 020 €0.30

Pipe complete

D 07 268

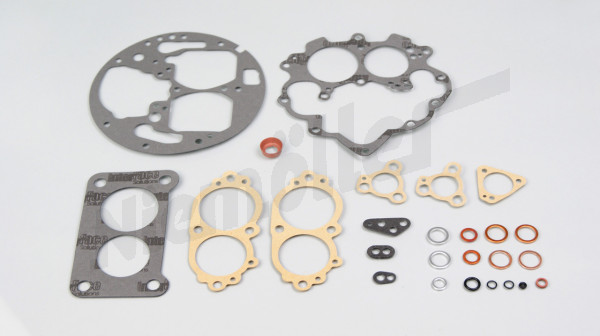

Gasket set for carburettor Zenith 35/40 INAT

D 07 271 €34.50

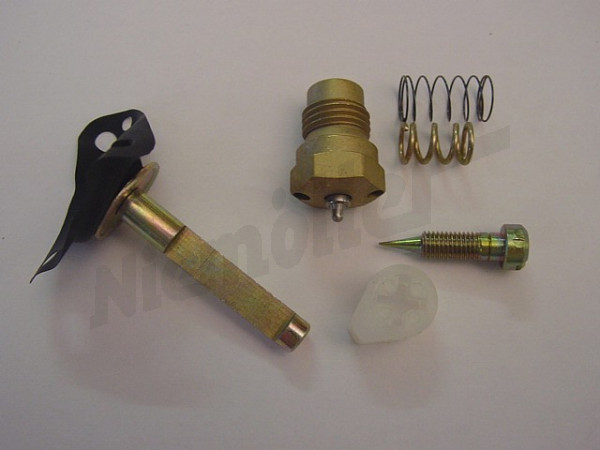

Small repair kit

D 07 404 €356.86

As of engine
941 10/20 099654 ALSO INSTALLED ON

Throttle part

D 07 237

As of engine
941 10/20 099654 ALSO INSTALLED ON

Idle switch for carburetor in front

D 07 385 €148.00

As of engine
941 10/20 099654 ALSO INSTALLED ON

Idle mixture adjusting screw

D 07 058 €14.82

As of engine
941 10/20 099654 ALSO INSTALLED ON

Pressure spring (f. idling adjust. screw

C 07 022 €4.35

As of engine
941 10/20 099654 ALSO INSTALLED ON

Slider lever on throttle valve part W111.012, 220SB

D 07 238 €65.00

As of engine
941 10/20 099654 ALSO INSTALLED ON

Throttle lever

D 07 239 €65.00

As of engine
941 10/20 099654 ALSO INSTALLED ON

Insulate flange

D 07 240

As of engine
941 10/20 099654 ALSO INSTALLED ON

Seal for float housing

D 07 241

As of engine
941 10/20 099654 ALSO INSTALLED ON

Float needle valve 2mm

C 07 103 €20.48

As of engine
941 10/20 099654 ALSO INSTALLED ON

Sealing ring A 12x16 Cu - DIN 7603

A 09 017 €0.60

As of engine
941 10/20 099654 ALSO INSTALLED ON

Float 8,5g

D 07 081 €54.00

As of engine
941 10/20 099654 ALSO INSTALLED ON

Carburetor covers

D 07 242

From Motor:
941 10/20 099654 also installed in 096942, 097296, 098533, 098781, 098782, 098802, 098824, 098883, 098980, 099638.
941 12/22 005229 also installed in 004745, 004746, 004804, 005161-005181

Gasket for carburetor cover

D 07 243 €7.35

As of engine
941 10/20 099654 ALSO INSTALLED ON

Screw for carburetor cover

D 07 244 €1.60

As of engine
941 10/20 099654 ALSO INSTALLED ON

Vacuum actuator

D 07 245

As of engine
941 10/20 099654 ALSO INSTALLED ON

Diaphragm

D 07 246 €56.50

As of engine
941 10/20 099654 ALSO INSTALLED ON

Diaphragm spring

D 07 247 €6.55

As of engine
941 10/20 099654 ALSO INSTALLED ON

O-ring in the lower part

D 07 248 €3.70

As of engine
941 10/20 099654 ALSO INSTALLED ON

Gasket for vacuum box

D 07 249 €0.80

As of engine
941 10/20 099654 ALSO INSTALLED ON

Starter cover

D 07 250

As of engine
941 10/20 099654 ALSO INSTALLED ON

Stop levers

D 07 304 €19.50

As of engine
941 10/20 099654 ALSO INSTALLED ON

Diaphragm pump cpl. no. 841

C 07 286

As of engine
941 10/20 099654 ALSO INSTALLED ON

Compressing spring

D 07 253 €4.10

As of engine
941 10/20 099654 ALSO INSTALLED ON

Throttle opening stop screw

C 07 406

As of engine
941 10/20 099654 ALSO INSTALLED ON

Hex. nut f. stop screw

C 07 314

As of engine
941 10/20 099654 ALSO INSTALLED ON

Sealing ring 5x8x1

C 07 626 €1.40

As of engine
941 10/20 099654 ALSO INSTALLED ON

External air valve

D 07 255 €106.74

As of engine
941 10/20 099654 ALSO INSTALLED ON

Compressing spring

D 07 256 €4.14

As of engine
941 10/20 099654 ALSO INSTALLED ON

Locking washer

D 07 257 €2.25

As of engine
941 10/20 099654 ALSO INSTALLED ON

Bushing for aeration valve

D 07 258 €33.64

As of engine
941 10/20 099654 ALSO INSTALLED ON

Thrust bolt

D 07 259 €4.10

As of engine
941 10/20 099654 ALSO INSTALLED ON

Seal ring f. main nozzle holder

C 07 039 €1.70

As of engine
941 10/20 099654 ALSO INSTALLED ON

Pressure spring for idle speed adjustment screw

D 07 260

NO LONGER AVAILABLE,

Repair kit operating lever

D 07 335 €268.00

As of engine
941 10/20 099654 ALSO INSTALLED ON

Washer

C 07 025

As of engine
941 10/20 099654 ALSO INSTALLED ON

Rod

D 07 262 €39.50

As of engine
941 10/20 099654 ALSO INSTALLED ON

Return spring

D 07 263

As of engine
941 10/20 099654 ALSO INSTALLED ON

Screw neck

C 07 105

Replacement item available

NOT USED WITH HYDRAULIC CLUTCH
As of engine
941 10/20 099654 ALSO INSTALLED ON

Fuel return valve

D 07 018 €99.00

NOT USED WITH HYDRAULIC CLUTCH
As of engine
941 10/20 099654 ALSO INSTALLED ON

Diaphragm spring

D 07 020 €5.90

NOT USED WITH HYDRAULIC CLUTCH
As of engine
941 10/20 099654 ALSO INSTALLED ON

Diaphragm

D 07 021 €28.00

NOT USED WITH HYDRAULIC CLUTCH
As of engine
941 10/20 099654 ALSO INSTALLED ON

Sealing ring 16x20

D 07 022

Replacement item available

As of engine
941 10/20 099654 ALSO INSTALLED ON

Retaining ring

D 07 264 €0.68

NOT USED WITH HYDRAULIC CLUTCH
As of engine
941 10/20 099654 ALSO INSTALLED ON

Banjo fitting

D 07 023 €8.61

As of engine
941 10/20 099654

Pump piston for carburator

D 07 265

As of engine 008168

Closing damper

D 07 266

As of engine 008168

Holder for closing damper

D 07 267

As of engine 008168

Screw

G 42 084

As of engine 008168

Lock washer

G 22 020 €0.30

As of engine 008168

Pipe complete

D 07 268

From Motor:
941 10/20 099654 Also installed in 096942, 097296, 098533, 098781, 098782, 098802, 098824, 098883, 098980, 099185-099638.
941 12/22 005229 Also installed in 004745, 004746, 004804, 005161-005181

Gasket set for carburettor Zenith 35/40 INAT

D 07 271 €34.50

From Motor:
941 10/20 099654 also installed in
096942, 097296, 098533, 098781, 098782, 098802, 098824, 098883, 098980, 099185-099638.
941 12/22 005229 also installed in in 004745, 004746, 004804, 005161-005181

Small repair kit

D 07 404 €356.86

W107	280SL
	350SL
	350SL/C
	380SL
	380SL/C
	500SL
	500SL/C

W113	230SL
	250SL
	280SL
W121	190SL
W129	300SL
W198	300SL

W187	220
	220AC
	220BC

W186	300c
	300cCD
W189	300d
	300dCD
W198	300SL Coupe

W105	219
W120	180
	180a
	180b
	180D
W121	190
	190b
	190D

7 Carburetor for 220Sb Mercedes-Benz w111 Mercedes-Benz
220Sb W111.012

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Popular variants

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Complex search queries

Pagode, Gullwing, Roadster

Sedan, Cabriolet, Coupé

Adenauer, Gullwing

Ponton, Coupe, Cabrio

Tail fin, old S-Class, Pagode

Pullman, Landaulet

Stroke 8, S-Class, Coupé

S-Class, Estate, Coupé, Sedan, T-Model

Roadster

7 Carburetor for 220Sb Mercedes-Benz w111 Mercedes-Benz220Sb W111.012

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Popular variants

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Complex search queries

7 Carburetor for 220Sb Mercedes-Benz w111 Mercedes-Benz
220Sb W111.012
