46 Steering for MB 300SEL3,5 W109.056 engine 116.991 Mercedes-Benz
300SEL3,5 W109.056

Chosen model:

Chassis: 109.056
Engine: 116.991
Change vehicle
Change module

Step 5:

Select spare part

Step 5:

Select spare part

[{"type":"rect","coords":[436,189,502,255],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/d46125-pedestal-body","cssSelector":".product-group-606","info":"{\"ids\":\"D 46 125\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"rect","coords":[487,176,525,213],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/d46127-needle-roller-bearings","cssSelector":".product-group-610","info":"{\"ids\":\"D 46 127\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"rect","coords":[530,222,557,245],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/c01258a-hexagon-socket-screw-6x18","cssSelector":".product-group-614","info":"{\"ids\":\"C 01 258a\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[515,233,534,256],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/g30102-spring-washer","cssSelector":".product-group-618","info":"{\"ids\":\"G 30 102\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[527,343,685,460],"href":"\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/662","cssSelector":".product-group-662","info":"{\"ids\":\"D 46 189, D 46 199\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"rect","coords":[408,158,490,213],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/d46217-twin-contact-carbon","cssSelector":".product-group-671","info":"{\"ids\":\"D 46 217\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"rect","coords":[609,98,665,150],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/d46225-slip-ring","cssSelector":".product-group-692","info":"{\"ids\":\"D 46 225\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"rect","coords":[656,90,690,121],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/d46227-retaining-ring","cssSelector":".product-group-693","info":"{\"ids\":\"D 46 227\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"rect","coords":[2,35,152,255],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/f46195a-steering-wheel","cssSelector":".product-group-696","info":"{\"ids\":\"F 46 195a\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"rect","coords":[119,25,225,161],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/d46242-signal-ring","cssSelector":".product-group-702","info":"{\"ids\":\"D 46 242\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"rect","coords":[534,88,568,109],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/b03018-spring-washer","cssSelector":".product-group-713","info":"{\"ids\":\"B 03 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[560,74,582,102],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/g29021-hex-nut","cssSelector":".product-group-716","info":"{\"ids\":\"G 29 021\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"C 32 027\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[196,2,276,88],"href":"\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/730","cssSelector":".product-group-730","info":"{\"ids\":\"D 46 250, D 46 252, D 46 252b\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"rect","coords":[178,215,216,262],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/d46288-ignition-starter-switch","cssSelector":".product-group-747","info":"{\"ids\":\"D 46 288\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[303,188,334,216],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/460104\/g54633-screw-m8x35-din-931-8g","cssSelector":".product-group-794","info":"{\"ids\":\"G 54 633\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"}]

in stock
low stock level
currently not in stock, but available for order
no longer available

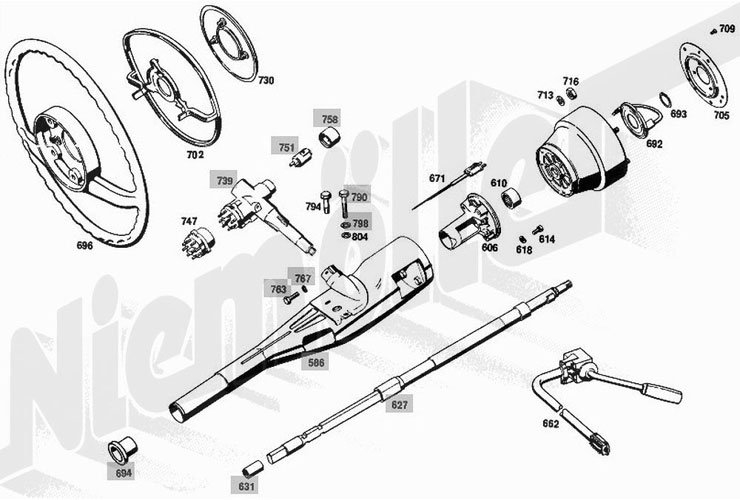

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 606		D 46 125 D 46 125	Pedestal body Pedestal body 115 462 18 35 or 1154621835		on request on request
Image number 610		D 46 127 D 46 127	Needle roller bearings Needle roller bearings 018 981 61 10 or 0189816110		€11.46 €11.46
Image number 614		C 01 258a C 01 258a	Hexagon socket screw 6x18 Hexagon socket screw 6x18 000 912 006 064 or 000912006064		€4.60 €4.60
Image number 618		G 30 102 G 30 102	Spring washer Spring washer 000 137 006 204 or 000137006204		€0.72 €0.72
Image number		D 46 156 D 46 156	Steering shaft Steering shaft 108 460 29 09 or 1084602909		€325.00 €325.00
Image number		D 46 132 D 46 132	Sealing ring Sealing ring 116 462 00 60 or 1164620060		on request on request
Image number 662		D 46 189	Indicator switch 003 545 79 24 or 0035457924	on request		Select variant	on request
Image number 662		D 46 199	Turn signal switch right hand drive 002 545 98 24 or 0025459824	on request		Select variant	on request
Image number		D 46 206 D 46 206	Male Male 009 545 56 28 or 0095455628		€6.03 €6.03
Image number		F 54 455 F 54 455	Plug housing cover Plug housing cover 009 545 57 28 or 0095455728		€4.88 €4.88
Image number		G 46 089 G 46 089	Screw-and-washer assembly Screw-and-washer assembly 914 025 004 103 or 914025004103		on request on request
Image number 671		D 46 217 D 46 217	Twin contact carbon Twin contact carbon 107 464 01 43 or 1074640143		on request on request
Image number		D 46 211 D 46 211	Cover for signal switch Cover for signal switch 115 462 13 96 or 1154621396		€89.50 €89.50
Image number		D 46 218 D 46 218	Contact ring (for horn signal) Contact ring (for horn signal) 000 464 09 28 or 0004640928		on request on request
Image number 692		D 46 225 D 46 225	Slip ring Slip ring 115 464 00 17 or 1154640017		on request on request
Image number 693		D 46 227 D 46 227	Retaining ring Retaining ring 900 055 032 200 or 900055032200		€72.44 €72.44
Image number		D 46 124 D 46 124	Boot Boot 116 462 00 96 or 1164620096		€15.00 €15.00
Image number		D 46 124 D 46 124	Boot Boot 116 462 00 96 or 1164620096		€15.00 €15.00
Image number 696		F 46 195a F 46 195a	Steering wheel Steering wheel 116 460 00 03 or 1164600003		on request on request
Image number		F 46 328 F 46 328	Screw Screw 116 990 01 21 or 1169900121		€2.25 €2.25
Image number		F 46 330 F 46 330	Spring Spring 116 993 55 01 or 1169935501		€2.25 €2.25
Image number		F 46 330 F 46 330	Spring Spring 116 993 51 01 or 1169935101		€2.25 €2.25
Image number		F 46 331 F 46 331	Rifle Rifle 116 464 00 50 or 1164640050		on request on request
Image number		G 46 086 G 46 086	Protective ring Protective ring 601 990 05 40 or 6019900540		€2.47 €2.47
Image number		G 46 086 G 46 086	Protective ring Protective ring 116 464 00 77 or 1164640077		€2.47 €2.47
Image number		F 46 333 F 46 333	Washer Washer 116 990 10 40 or 1169901040		€2.25 €2.25
Image number		F 46 050 F 46 050	Emblem for steering wheel Emblem for steering wheel 000 464 04 32 or 0004640432		€120.08 €120.08
Image number 702		D 46 242 D 46 242	Signal ring Signal ring 115 464 04 15 or 1154640415		€140.00 €140.00
Image number 705		D 46 246 D 46 246	Centering base Centering base 115 464 01 34 or 1154640134		on request on request
Image number 713		B 03 018 B 03 018	Spring washer Spring washer 000 137 008 212 or 000137008212		€0.30 €0.30
Image number 716		G 29 021 C 32 027	Hex. nut M 8 Hex nut 000 934 008 013 or 000934008013		on request €0.54
	C 32 027	Replacement: Hex. nut M 8		€0.54
Image number 730		D 46 250	Pad, steering wheel - black 115 464 03 42 or 1154640342	€242.48		Select variant	€242.48
Image number 730		D 46 252	Hub pad, ivory colored 115 464 04 42 or 1154640442	on request			on request
Image number 730		D 46 252b	Hub pad, ivory colored without star - Repro 115 464 04 42 or 1154640442	€150.00			€150.00
Image number		D 46 248 D 46 248	Centering plug Centering plug 115 464 00 24 or 1154640024		on request on request
Image number		D 46 285 D 46 285	Steering lock right hand drive Steering lock right hand drive 000 462 69 30 or 0004626930		€75.00 €75.00
Image number 747		D 46 288 D 46 288	Ignition starter switch Ignition starter switch 116 462 00 93 or 1164620093		€67.22 €67.22
Image number		D 46 299 D 46 299	Locking cylinder Locking cylinder 000 462 66 30 or 0004626630		on request on request
Image number		D 46 300 D 46 300	Locking cylinder Locking cylinder 000 462 79 30 or 0004627930		on request on request
Image number		D 46 296 D 46 296	Lock cylinder with key replica universal Lock cylinder with key replica universal 000 460 00 04 or 0004600004		€84.03 €84.03
Image number		D 46 301 D 46 301	Locking cylinder Locking cylinder 116 462 00 79 or 1164620079		on request on request
Image number		D 46 305 D 46 305	Cover sleeve Cover sleeve 000 462 10 23 or 0004621023		on request on request
Image number		D 46 307 D 46 307	Cover ignition lock Cover ignition lock 000 462 13 23 or 0004621323		€75.00 €75.00
Image number		G 46 084 G 46 084	Screw Screw 000 931 006 094 or 000931006094		on request on request
Image number		G 22 020 G 22 020	Lock washer Lock washer 912 004 006 102 or 912004006102		€0.30 €0.30
Image number 794		G 54 633 G 54 633	Screw M8x35 DIN 931-8G Screw M8x35 DIN 931-8G 304 017 008 018 or 304017008018		€3.07 €3.07
Image number		D 46 346 D 46 346	Cover plate R.L. (steering passage) Cover plate R.L. (steering passage) 108 460 03 95 or 1084600395		on request on request
Image number		G 22 020 G 22 020	Lock washer Lock washer 912 004 006 102 or 912004006102		€0.30 €0.30
Image number		D 46 354 D 46 354	Gasket, cover plate on end wall Gasket, cover plate on end wall 108 462 02 80 or 1084620280		€45.00 €45.00
Image number		D 46 358 D 46 358	Gasket R.L., cover plate/front cover Gasket R.L., cover plate/front cover 108 462 03 80 or 1084620380		on request on request
Image number		D 46 360 D 46 360	Metal shim Metal shim 111 462 01 75 or 1114620175		€2.77 €2.77
Image number		D 46 363 D 46 363	Boot Boot 108 462 08 96 or 1084620896		on request on request

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Pedestal body

D 46 125

Needle roller bearings

D 46 127 €11.46

Hexagon socket screw 6x18

C 01 258a €4.60

Spring washer

G 30 102 €0.72

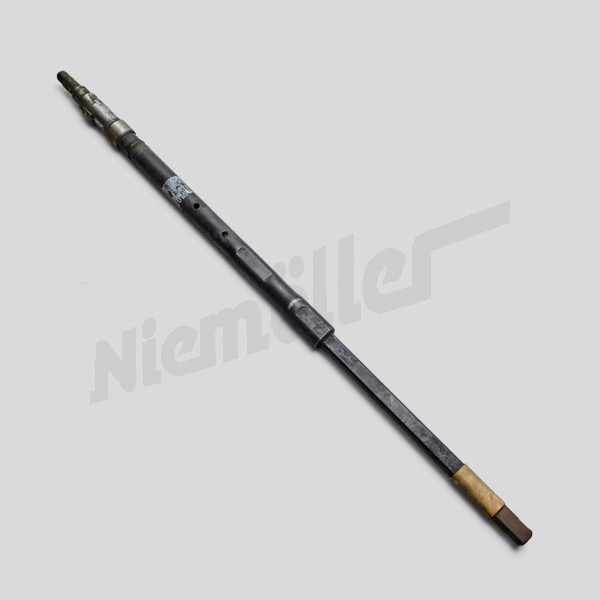

Steering shaft

D 46 156 €325.00

Sealing ring

D 46 132

Indicator switch

D 46 189

Turn signal switch right hand drive

D 46 199

Male

D 46 206 €6.03

Plug housing cover

F 54 455 €4.88

Screw-and-washer assembly

G 46 089

Twin contact carbon

D 46 217

Cover for signal switch

D 46 211 €89.50

Contact ring (for horn signal)

D 46 218

Slip ring

D 46 225

Retaining ring

D 46 227 €72.44

Boot

D 46 124 €15.00

Boot

D 46 124 €15.00

Steering wheel

F 46 195a

Screw

F 46 328 €2.25

Spring

F 46 330 €2.25

Spring

F 46 330 €2.25

Rifle

F 46 331

Protective ring

G 46 086 €2.47

Protective ring

G 46 086 €2.47

Washer

F 46 333 €2.25

Emblem for steering wheel

F 46 050 €120.08

Signal ring

D 46 242 €140.00

Centering base

D 46 246

Spring washer

B 03 018 €0.30

Hex nut

G 29 021

Replacement item available

Pad, steering wheel - black

D 46 250 €242.48

Hub pad, ivory colored

D 46 252

Hub pad, ivory colored without star - Repro

D 46 252b €150.00

Centering plug

D 46 248

Steering lock right hand drive

D 46 285 €75.00

Ignition starter switch

D 46 288 €67.22

Locking cylinder

D 46 299

Locking cylinder

D 46 300

Lock cylinder with key replica universal

D 46 296 €84.03

Locking cylinder

D 46 301

Cover sleeve

D 46 305

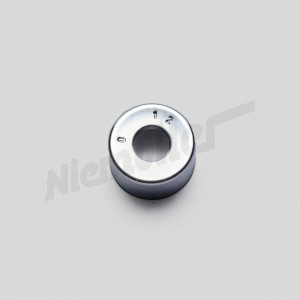

Cover ignition lock

D 46 307 €75.00

Screw

G 46 084

Lock washer

G 22 020 €0.30

Screw M8x35 DIN 931-8G

G 54 633 €3.07

Cover plate R.L. (steering passage)

D 46 346

Lock washer

G 22 020 €0.30

Gasket, cover plate on end wall

D 46 354 €45.00

Gasket R.L., cover plate/front cover

D 46 358

Metal shim

D 46 360 €2.77

Boot

D 46 363

Right-hand-drive

Turn signal switch right hand drive

D 46 199

NOT USED

Boot

D 46 124 €15.00

Right-hand-drive

Steering lock right hand drive

D 46 285 €75.00

016 FROM CHASSIS 002382
018 FROM CHASSIS 003077
018 UP TO CHASSIS 006347
056 UP TO CHASSIS 009012

Locking cylinder

D 46 299

018 UP TO CHASSIS 006348
056 FROM CHASSIS 009013

Locking cylinder

D 46 300

018 UP TO CHASSIS 006347
056 UP TO CHASSIS 009012

;

For W113:
250SL as of chassis number 02980
280SL all

Lock cylinder with key replica universal

D 46 296 €84.03

018 UP TO CHASSIS 006348
056 FROM CHASSIS 009013

Locking cylinder

D 46 301

056 UP TO CHASSIS 009012

Cover sleeve

D 46 305

056 FROM CHASSIS 009013

Cover ignition lock

D 46 307 €75.00

Right-hand-drive

Cover plate R.L. (steering passage)

D 46 346

Left-hand-drive

Gasket, cover plate on end wall

D 46 354 €45.00

Right-hand-drive

Gasket R.L., cover plate/front cover

D 46 358

Pedestal body

D 46 125

Needle roller bearings

D 46 127 €11.46

Hexagon socket screw 6x18

C 01 258a €4.60

Spring washer

G 30 102 €0.72

Steering shaft

D 46 156 €325.00

Sealing ring

D 46 132

Indicator switch

D 46 189

Male

D 46 206 €6.03

Plug housing cover

F 54 455 €4.88

Screw-and-washer assembly

G 46 089

Twin contact carbon

D 46 217

Cover for signal switch

D 46 211 €89.50

Contact ring (for horn signal)

D 46 218

Slip ring

D 46 225

Retaining ring

D 46 227 €72.44

Boot

D 46 124 €15.00

Steering wheel

F 46 195a

Screw

F 46 328 €2.25

Spring

F 46 330 €2.25

Spring

F 46 330 €2.25

Rifle

F 46 331

Protective ring

G 46 086 €2.47

Protective ring

G 46 086 €2.47

Washer

F 46 333 €2.25

Emblem for steering wheel

F 46 050 €120.08

Signal ring

D 46 242 €140.00

Centering base

D 46 246

Spring washer

B 03 018 €0.30

Hex nut

G 29 021

Replacement item available

Pad, steering wheel - black

D 46 250 €242.48

Hub pad, ivory colored

D 46 252

Hub pad, ivory colored without star - Repro

D 46 252b €150.00

Centering plug

D 46 248

Ignition starter switch

D 46 288 €67.22

Screw

G 46 084

Lock washer

G 22 020 €0.30

Screw M8x35 DIN 931-8G

G 54 633 €3.07

Lock washer

G 22 020 €0.30

Metal shim

D 46 360 €2.77

Boot

D 46 363
