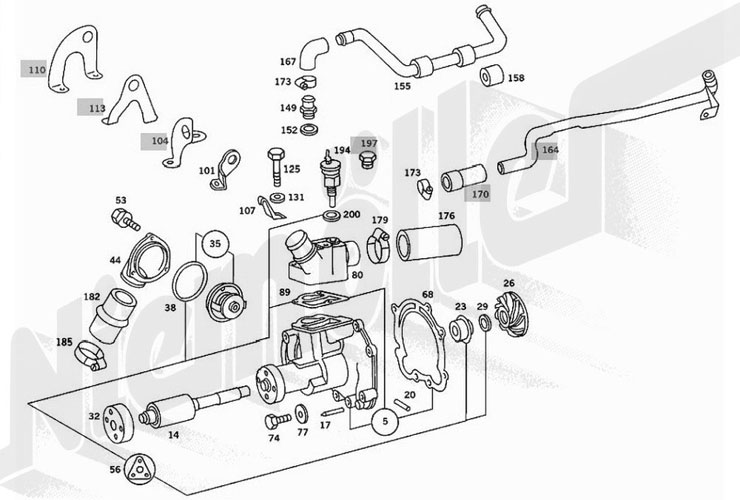

20 Engine Cooling for MB 300SEL3,5 W109.056 engine 116.981 Mercedes-Benz
300SEL3,5 W109.056

Chosen model:
Step 5:
Select spare part
.product-group-5 .product-group-14 .product-group-23 .product-group-26 .product-group-29 .product-group-35 .product-group-38 .product-group-44 .product-group-53 .product-group-56 .product-group-68 .product-group-74 .product-group-77 .product-group-80 .product-group-89 .product-group-101 .product-group-107 .product-group-149 .product-group-152 .product-group-158 .product-group-167 .product-group-173 .product-group-173 .product-group-176 .product-group-182 .product-group-194 .product-group-200 Panel
  • in stock
  • low stock level
  • currently not in stock, but available for order
  • no longer available
Pic. Niemöller
part-no.
Designation   Price/unit excl. tax.
Image number 5
D 20 160 D 20 160 Water pump Water pump
117 200 38 01 or 1172003801
€136.00 €136.00
Image number 14
D 20 160 D 20 160 Water pump Water pump
117 200 02 01 or 1172000201
€136.00 €136.00
Image number 23
D 20 018 D 20 018 Slide ring seal Slide ring seal
000 201 36 19 or 0002013619
€50.00 €50.00
Image number 26
D 20 166 D 20 166 Vane Vane
116 201 02 07 or 1162010207
€136.86 €136.86
Image number 29
D 20 167 Counter ring with rubber ring
000 201 01 63 or 0002010163
€16.90 €16.90
Image number 29
D 20 167 Counter ring with rubber ring
000 201 10 63 or 0002011063
€16.90 €16.90
Image number 35
D 20 168 D 20 168 Thermostat with gasket Thermostat with gasket
116 200 00 15 or 1162000015
€18.00 €18.00
Image number 38
D 20 078 D 20 078 Sealing ring Sealing ring
015 997 23 48 or 0159972348
€1.25 €1.25
Image number 44
D 20 169 D 20 169 Cover Cover
116 203 03 74 or 1162030374
€67.60 €67.60
Image number 53
D 83 311 D 83 311 Screw Screw
304 017 006 020 or 304017006020
€2.16 €2.16
Image number 56
D 20 171 D 20 171 Sealing set water pump Sealing set water pump
116 200 00 60 or 1162000060
on request on request
Image number 68
D 20 172 D 20 172 Gasket Gasket
116 201 07 80 or 1162010780
€7.19 €7.19
Image number 74
G 49 050 G 49 050 Screw Screw
304 014 008 001 or 304014008001
€4.80 €4.80
Image number 77
D 29 082 D 29 082 Disc, push rod on clutch pedal Disc, push rod on clutch pedal
000 125 008 407 or 000125008407
on request on request
Image number 80
D 20 173 D 20 173 Inlet spigot water pump Inlet spigot water pump
116 201 10 30 or 1162011030
€170.98 €170.98
Image number 89
D 20 175 D 20 175 Gasket Gasket
116 203 07 80 or 1162030780
€1.50 €1.50
Image number 101
D 20 182 D 20 182 Suspension eye for motor installation Suspension eye for motor installation
116 223 01 41 or 1162230141
on request on request
Image number 107
D 14 186 D 14 186 Holder, suction pipe on cylinder head Holder, suction pipe on cylinder head
116 094 00 41 or 1160940041
on request on request
Image number 149
D 14 209 D 14 209 Connector Connector
116 997 01 72 or 1169970172
€66.48 €66.48
Image number 152
C 14 061a C 14 061a Aluminum washer 22x27 Aluminum washer 22x27
007 603 022 100 or 007603022100
€0.95 €0.95
Image number 158
D 20 180 D 20 180 Elastic ring Elastic ring
116 987 00 41 or 1169870041
on request on request
Image number 167
D 20 181 D 20 181 Heating water hose Heating water hose
116 203 02 82 or 1162030282
€46.99 €46.99
Image number 173
D 20 000c D 20 000c Hose strap 20-32 Hose strap 20-32
000 000 000 667 or 000000000667
€4.17 €4.17
Image number 176
D 20 185 D 20 185 Rubber hose 42mm - sold per meter Rubber hose 42mm - sold per meter
900 271 042 010 or 900271042010
€145.81 €145.81
Image number 182
D 20 188 D 20 188 Flexible tube Flexible tube
116 501 05 82 or 1165010582
€76.54 €76.54
Image number 194
D 20 190 Temperature switches
003 545 24 24 or 0035452424
on request on request
Image number 194
D 20 191 Temperature switches
006 545 14 24 or 0065451424
€16.00 €16.00
Image number 194
D 20 191 Temperature switches
006 545 39 24 or 0065453924
€16.00 €16.00
Image number 200
A 01 024 A 01 024 Sealing ring A 14x18 Al DIN 7603 Sealing ring A 14x18 Al DIN 7603
007 603 014 100 or 007603014100
€0.35 €0.35
Please note that the product names may be an automatic translation for which no guarantee can be given.
