82 Electrical System for MB 500SL W107.046 engine 117.964 80-85 Mercedes-Benz
500SL W107.046

Chosen model:

Chassis: 107.046
Engine: 117.964
Change vehicle
Change module

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

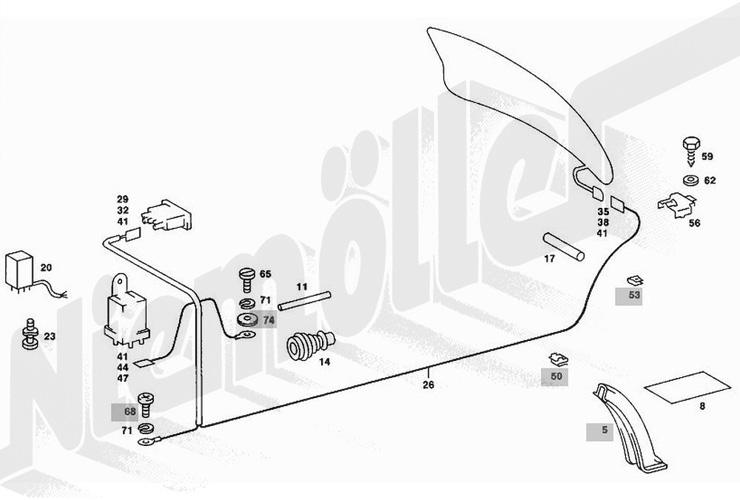

Pic.	Designation		Price/unit excl. tax.
Image number 8	C 68 098 C 68 098	Bitumen felt board thickness 3-4 mm, sold by the metre approx. 1.00 m wide Bitumen felt board thickness 3-4 mm, sold by the metre approx. 1.00 m wide 000 983 29 91 or 0009832991		on request on request
Image number 11	F 82 164 F 82 164	Protective hose A-pillar to driver's door for the electrical cables (e.g. W107, W116, W123) Protective hose A-pillar to driver's door for the electrical cables (e.g. W107, W116, W123) 107 821 00 97 or 1078210097		€4.38 €4.38
Image number 17	D 08 571 D 08 571	Insulating sleeve Insulating sleeve 040 621 014 200 or 040621014200		€4.43 €4.43
Image number 20	F 83 505 F 83 505	Resistor Resistor 107 835 00 06 or 1078350006		on request on request
Image number 23	G 83 170 G 83 170	Combination screw Blower fan resistance a.H Combination screw Blower fan resistance a.H 914 026 004 101 or 914026004101		on request on request
Image number 26	F 82 462 F 82 462	Line Line 107 820 18 15 or 1078201815		on request on request
Image number 29	F 82 172 F 82 172	Clutch, rocker switch heated rear window Clutch, rocker switch heated rear window 000 821 23 26 or 0008212326		€6.00 €6.00
Image number 35	F 54 754 F 54 754	Housing lower part - 2-poles Housing lower part - 2-poles 008 545 37 28 or 0085453728		€5.01 €5.01
Image number 38	F 54 691 F 54 691	Top part (cover) for receptacle housing 2-pole Top part (cover) for receptacle housing 2-pole 008 545 38 28 or 0085453828		€3.48 €3.48
Image number 41	F 54 244	Socket 001 545 44 26 or 0015454426	€3.42		Select variant	€3.42
Image number 41	G 54 146	Pin 003 545 26 26 or 0035452626	€2.73		Select variant	€2.73
Image number 44	F 82 233 F 82 233	Plug housing 6 poles Plug housing 6 poles 006 545 80 28 or 0065458028		€4.49 €4.49
Image number 47	F 54 299 F 54 299	Cover for plug housing Cover for plug housing 009 545 30 28 or 0095453028		€5.01 €5.01
Image number 56	F 82 184 F 82 184	Holder, line connection to tunnel Holder, line connection to tunnel 107 821 07 14 or 1078210714		on request on request
Image number 59	G 30 032 G 30 032	Sheet metal screw 4,8x13 Sheet metal screw 4,8x13 007 976 004 205 or 007976004205		€1.86 €1.86
Image number 62	C 88 251d C 88 251d	Washer Washer 000 433 005 304 or 000433005304		€0.20 €0.20
Image number 71	B 07 032 B 07 032	Lock washer Lock washer 912 004 004 102 or 912004004102		€0.72 €0.72

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Bitumen felt board thickness 3-4 mm, sold by the metre approx. 1.00 m wide

C 68 098

Protective hose A-pillar to driver's door for the electrical cables (e.g. W107, W116, W123)

F 82 164 €4.38

Insulating sleeve

D 08 571 €4.43

Resistor

F 83 505

Combination screw Blower fan resistance a.H

G 83 170

Line

F 82 462

Clutch, rocker switch heated rear window

F 82 172 €6.00

Housing lower part - 2-poles

F 54 754 €5.01

Top part (cover) for receptacle housing 2-pole

F 54 691 €3.48

Socket

F 54 244 €3.42

G 54 146 €2.73

Plug housing 6 poles

F 82 233 €4.49

Cover for plug housing

F 54 299 €5.01

Holder, line connection to tunnel

F 82 184

Sheet metal screw 4,8x13

G 30 032 €1.86

Washer

C 88 251d €0.20

Lock washer

B 07 032 €0.72

ORDER BY THE METER

Bitumen felt board thickness 3-4 mm, sold by the metre approx. 1.00 m wide

C 68 098
