01 Engine Housing for Motor M129 Model 129.980 Mercedes-Benz
250SE, 250SE/Cp, 250SE/Cb W

Chosen model:

Gasoline Engine: 129.980
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

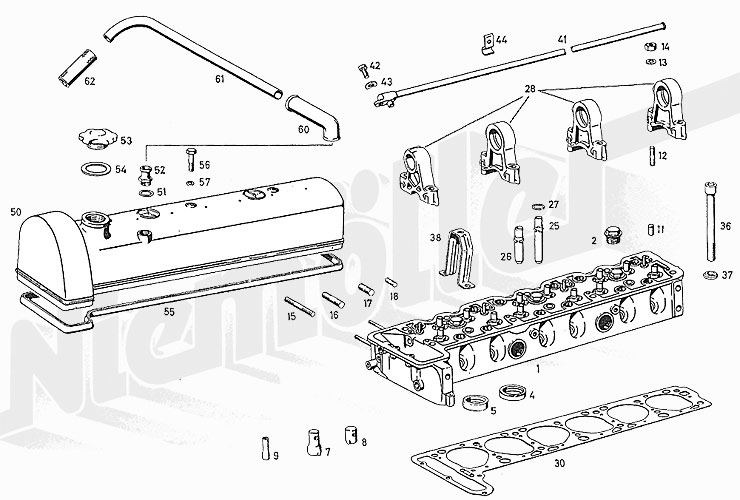

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 1		D 01 387	Cylinder head without camshaft bearings, guides, seat rings and studs -raw part- 129 010 05 20 or 1290100520	on request		Select variant	on request
Image number 1		D 01 389	Cylinder head without camshaft bearing 129 010 17 20 or 1290101720	on request		Select variant	on request
Image number 2		C 01 316 C 01 316	Screw plug Screw plug 000 997 17 30 or 0009971730		€28.50 €28.50
Image number 4		D 01 431	Valve seat ring, normal for inlet 108 053 00 31 or 1080530031	€32.88		Select variant	€32.88
Image number 4		D 01 432	Valve seat ring D: 44mm 108 053 01 31 or 1080530131	€22.83		Select variant	€22.83
Image number 5		D 01 441 D 01 441	Valve seat ring, normal for outlet Valve seat ring, normal for outlet 123 053 01 32 or 1230530132		€22.96 €22.96
Image number -		D 01 442 D 01 442	Valve seat ring, D:42.3mm, Rep.a. A. Valve seat ring, D:42.3mm, Rep.a. A. 129 053 01 32 or 1290530132		on request on request
Image number 7		D 01 451 D 01 451	Water distributor Water distributor 127 016 08 60 or 1270160860		€31.83 €31.83
Image number 8		D 01 452 D 01 452	Water distributor Water distributor 127 016 07 60 or 1270160760		€70.35 €70.35
Image number 9		C 01 459 C 01 459	Water distributor Water distributor 127 016 04 60 or 1270160460		€71.40 €71.40
Image number 11		D 03 076 D 03 076	Dowel pin for counterweight Dowel pin for counterweight 000 007 008 202 or 000007008202		€2.50 €2.50
Image number 14		G 72 159 G 82 081	Hex nut Hex nut 000 934 008 000 or 000934008000		on request €2.25
	G 82 081	Replacement: Hex nut		€2.25
Image number 16		C 01 465 C 01 334	Stud bolt M 10x52 DIN 835-5S Stud bolt M 10x52 DIN 835-5S 000 835 010 046 or 000835010046		on request €1.56
	C 01 334	Replacement: Stud bolt M 10x52 DIN 835-5S		€1.56
Image number 25		D 01 459 D 01 460	Valve guide inlet 14,031mm Valve guide 127 050 10 24 or 1270501024		on request €11.80
	D 01 460	Replacement: Valve guide inlet 14,031mm		€11.80
Image number -		D 01 460 D 01 460	Valve guide inlet 14,031mm Valve guide inlet 14,031mm 127 050 12 24 or 1270501224		€11.80 €11.80
Image number -		D 01 461 D 01 461	Valve guide 14,20mm Valve guide 14,20mm 127 050 13 24 or 1270501324		€12.44 €12.44
Image number -		D 01 462 D 01 462	Valve guide 14,40mm Valve guide 14,40mm 127 050 14 24 or 1270501424		€13.86 €13.86
Image number 26		D 01 480 D 01 482	Valve guide exhaust Valve guide for outlet 108 050 00 24 or 1080500024		on request €28.00
	D 01 482	Replacement: Valve guide exhaust		€28.00
Image number -		D 01 482 D 01 482	Valve guide exhaust Valve guide exhaust 108 050 01 24 or 1080500124		€28.00 €28.00
Image number -		D 01 484 D 01 484	Valve guide for outlet, repair version 15.20 Valve guide for outlet, repair version 15.20 108 050 02 24 or 1080500224		€37.19 €37.19
Image number -		D 01 486 D 01 486	Valve guide for outlet, repair version 15.40 Valve guide for outlet, repair version 15.40 108 050 03 24 or 1080500324		on request on request
Image number 28		D 01 522 D 01 522	Set of camshaft bearings, standard Set of camshaft bearings, standard 130 586 00 05 or 1305860005		€1,150.56 €1,150.56
Image number -		D 01 528 D 01 528	Set camshaft bearings, 0,1mm narrower Set camshaft bearings, 0,1mm narrower 180 050 19 97 or 1800501997		€390.00 €390.00
Image number -		D 01 534 D 01 534	Set of camshaft bearings, 0,25mm narrowe Set of camshaft bearings, 0,25mm narrowe 130 586 02 05 or 1305860205		€1,082.87 €1,082.87
Image number 30		D 01 577	Cylinder head gasket, thickness 1.8mm 129 016 15 20 or 1290161520	€99.40		Select variant	€99.40
Image number 30		D 01 577a	Cylinder head gasket,W113, W111,W108 diff. types thickness 2mm, premium quality	€312.90		Select variant	€312.90
Image number -		D 01 578 D 01 578	Cylinder head gasket low compression ratio 7.0:1 Cylinder head gasket low compression ratio 7.0:1 129 016 16 20 or 1290161620		€582.99 €582.99
Image number -		D 18 173 C 01 309a	Hex. socket screw Fillister head screw 000 912 008 019 or 000912008019		on request €4.75
	C 01 309a	Replacement: Hex. socket screw		€4.75
Image number 38		C 01 363 C 01 363	U-type clamp U-type clamp 115 016 00 38 or 1150160038		on request on request
Image number -		C 01 365 C 01 365	Hex. socket screw M12x105 Hex. socket screw M12x105 000 912 012 028 or 000912012028		€5.03 €5.03
Image number 41		D 01 618 D 01 618	Oil pipe Oil pipe 180 180 00 27 or 1801800027		€360.00 €360.00
Image number 43		C 07 197 G 22 020	Lock washer Spring washer for dismantling screw 000 127 006 200 or 000127006200		on request €0.30
	G 22 020	Replacement: Lock washer		€0.30
Image number 44		C 01 369 C 54 034	Clamp Pipe clamp for oil pipe to bracket 121 995 04 20 or 1219950420		on request €3.86
	C 54 034	Replacement: Clamp		€3.86
Image number 50		D 01 644 D 01 644	Cylinder head cover Cylinder head cover 127 010 00 30 or 1270100030		€2,008.34 €2,008.34
Image number 52		D 01 671 D 01 671	Connecting piece for vent pipe various motors, see details Connecting piece for vent pipe various motors, see details 180 997 21 72 or 1809972172		€27.30 €27.30
Image number 55		D 01 665 D 01 665	Valve cover seal Valve cover seal 50-022 826-00 or 50-022826-00		€12.50 €12.50
Image number 57		A 46 015 A 46 015	Sealing ring C8x14 DIN7603 Sealing ring C8x14 DIN7603 000 461 01 80 or 0004610180		€0.80 €0.80
Image number 60		C 01 522 C 01 522	Hose for valve cover Hose for valve cover 121 094 02 91 or 1210940291		€4.22 €4.22
Image number 61		D 01 697 D 01 697	Breather tube for valve cover Breather tube for valve cover 129 016 00 30 or 1290160030		€20.60 €20.60
Image number -		D 01 706 C 42 371a	Hose clamp 19mm - DIN 3017 Hose clamp for vent pipe 001 997 08 90 or 0019970890		on request €1.30
	C 42 371a	Replacement: Hose clamp 19mm - DIN 3017		€1.30
Image number -		D 01 703 D 01 703	Molded hose Molded hose 127 094 07 91 or 1270940791		€3.50 €3.50
Image number -		D 01 709 D 01 709	Mounting clamp for ventilation Mounting clamp for ventilation 127 995 03 01 or 1279950301		on request on request
Image number -		G 26 005 G 26 005	Hex. head screw Hex. head screw 304 017 006 018 or 304017006018		€2.55 €2.55
Image number -		G 30 102 G 30 102	Spring washer Spring washer 000 137 006 203 or 000137006203		€0.78 €0.78
Image number -		D 01 711 D 01 711	Hose clamp on butterfly valve connection piece Hose clamp on butterfly valve connection piece 000 288 020 006 or 000288020006		on request on request

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Cylinder head without camshaft bearings, guides, seat rings and studs -raw part-

D 01 387

Cylinder head without camshaft bearing

D 01 389

Screw plug

C 01 316 €28.50

Valve seat ring, normal for inlet

D 01 431 €32.88

Valve seat ring D: 44mm

D 01 432 €22.83

Valve seat ring, normal for outlet

D 01 441 €22.96

Valve seat ring, D:42.3mm, Rep.a. A.

D 01 442

Water distributor

D 01 451 €31.83

Water distributor

D 01 452 €70.35

Water distributor

C 01 459 €71.40

Dowel pin for counterweight

D 03 076 €2.50

Hex nut

G 72 159

Replacement item available

Stud bolt M 10x52 DIN 835-5S

C 01 465

Replacement item available

Valve guide

D 01 459

Replacement item available

Valve guide inlet 14,031mm

D 01 460 €11.80

Valve guide 14,20mm

D 01 461 €12.44

Valve guide 14,40mm

D 01 462 €13.86

Valve guide for outlet

D 01 480

Replacement item available

Valve guide exhaust

D 01 482 €28.00

Valve guide for outlet, repair version 15.20

D 01 484 €37.19

Valve guide for outlet, repair version 15.40

D 01 486

Set of camshaft bearings, standard

D 01 522 €1,150.56

Set camshaft bearings, 0,1mm narrower

D 01 528 €390.00

Set of camshaft bearings, 0,25mm narrowe

D 01 534 €1,082.87

Cylinder head gasket, thickness 1.8mm

D 01 577 €99.40

Cylinder head gasket,W113, W111,W108 diff. types thickness 2mm, premium quality

D 01 577a €312.90

Cylinder head gasket low compression ratio 7.0:1

D 01 578 €582.99

Fillister head screw

D 18 173

Replacement item available

U-type clamp

C 01 363

Hex. socket screw M12x105

C 01 365 €5.03

Oil pipe

D 01 618 €360.00

Spring washer for dismantling screw

C 07 197

Replacement item available

Pipe clamp for oil pipe to bracket

C 01 369

Replacement item available

Cylinder head cover

D 01 644 €2,008.34

Connecting piece for vent pipe various motors, see details

D 01 671 €27.30

Valve cover seal

D 01 665 €12.50

Sealing ring C8x14 DIN7603

A 46 015 €0.80

Hose for valve cover

C 01 522 €4.22

Breather tube for valve cover

D 01 697 €20.60

Hose clamp for vent pipe

D 01 706

Replacement item available

Molded hose

D 01 703 €3.50

Mounting clamp for ventilation

D 01 709

Hex. head screw

G 26 005 €2.55

Spring washer

G 30 102 €0.78

Hose clamp on butterfly valve connection piece

D 01 711

Up to engine 004789 with the exception of 004645 to 004718

Cylinder head without camshaft bearing

D 01 389

Appropriate for:
W113 230SL and 250SL
W111 250SE Coupe+Cabrio
W108 250SE
Alternative article D 01 577a

Cylinder head gasket, thickness 1.8mm

D 01 577 €99.40

Appropriate for:
W113 230SL and 250SL
W111 250SE Coupe+Cabrio
W108 250SE

Cylinder head gasket,W113, W111,W108 diff. types thickness 2mm, premium quality

D 01 577a €312.90

Up to engine 004789 with the exception of 004645 to 004718

Cylinder head gasket low compression ratio 7.0:1

D 01 578 €582.99

For the following engines:
100.980, 100.981, 100.982, 100.983
108.920, 108.924
114.920, 114.923, 114.980,114.981
115.951, 115.952, 115.970, 115.971
121.940, 121.943, 121.944
127.981
129.980, 129.981, 129.982
130.920, 130.921, 130.923, 130.924, 130.933
180.952, 180.953, 180.958
615: all
616: all
617: 910, 912, 913, 931, 932, 933

Connecting piece for vent pipe various motors, see details

D 01 671 €27.30

10/50, 20/62 from engine 015626
12/52, 22/62 from engine 012325

Breather tube for valve cover

D 01 697 €20.60

10/50, 20/60 up to engine 015625
12/52, 22/62 up to engine 012324

Molded hose

D 01 703 €3.50

10/50, 20/60 up to engine 015625
12/52, 22/62 up to engine 012324

Mounting clamp for ventilation

D 01 709

10/50, 20/60 up to engine 015625
12/52, 22/62 up to engine 012324

Hex. head screw

G 26 005 €2.55

10/50, 20/60 up to engine 015625
12/52, 22/62 up to engine 012324

Spring washer

G 30 102 €0.78

10/50, 20/62 from engine 015626
12/52, 22/62 from engine 012325

Hose clamp on butterfly valve connection piece

D 01 711

Cylinder head without camshaft bearings, guides, seat rings and studs -raw part-

D 01 387

Screw plug

C 01 316 €28.50

Valve seat ring, normal for inlet

D 01 431 €32.88

Valve seat ring D: 44mm

D 01 432 €22.83

Valve seat ring, normal for outlet

D 01 441 €22.96

Valve seat ring, D:42.3mm, Rep.a. A.

D 01 442

Water distributor

D 01 451 €31.83

Water distributor

D 01 452 €70.35

Water distributor

C 01 459 €71.40

Dowel pin for counterweight

D 03 076 €2.50

Hex nut

G 72 159

Replacement item available

Stud bolt M 10x52 DIN 835-5S

C 01 465

Replacement item available

Valve guide

D 01 459

Replacement item available

Valve guide inlet 14,031mm

D 01 460 €11.80

Valve guide 14,20mm

D 01 461 €12.44

Valve guide 14,40mm

D 01 462 €13.86

Valve guide for outlet

D 01 480

Replacement item available

Valve guide exhaust

D 01 482 €28.00

Valve guide for outlet, repair version 15.20

D 01 484 €37.19

Valve guide for outlet, repair version 15.40

D 01 486

Set of camshaft bearings, standard

D 01 522 €1,150.56

Set camshaft bearings, 0,1mm narrower

D 01 528 €390.00

Set of camshaft bearings, 0,25mm narrowe

D 01 534 €1,082.87

Fillister head screw

D 18 173

Replacement item available

U-type clamp

C 01 363

Hex. socket screw M12x105

C 01 365 €5.03

Oil pipe

D 01 618 €360.00

Spring washer for dismantling screw

C 07 197

Replacement item available

Pipe clamp for oil pipe to bracket

C 01 369

Replacement item available

Cylinder head cover

D 01 644 €2,008.34

Valve cover seal

D 01 665 €12.50

Sealing ring C8x14 DIN7603

A 46 015 €0.80

Hose for valve cover

C 01 522 €4.22

Hose clamp for vent pipe

D 01 706

Replacement item available
