81 Body-Interior Appontments for 220SCp Mercedes-Benz w180 Mercedes-Benz
220SCp W180.037

Chosen model:

Chassis: 180.037
Engine: 180.924
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

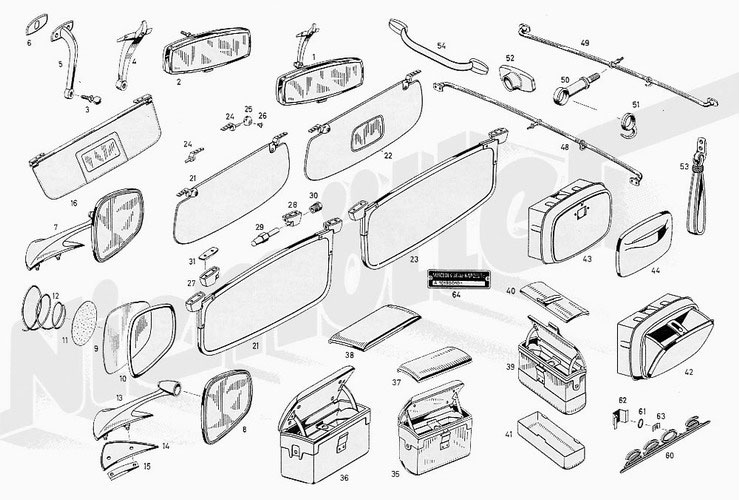

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 2		B 81 001	Rear view mirror head - chromed 000 811 00 20 or 0008110020	€468.00		Select variant	€468.00
Image number 2		C 81 001g	Mirror base interior mirror 220S, SE convertible and coupe	€280.00		Select variant	€280.00
Image number 3		B 81 005 B 81 005	Ball pin for rear view mirror Ball pin for rear view mirror 000 811 00 68 or 0008110068		€23.31 €23.31
Image number 7		C 81 007a	Rear view mirror LHS 190SL/220S/SE/C. 30 180 810 99 16 or 301808109916	€94.00		Select variant	€94.00
Image number 7		C 81 008a	Rear view mirror RHS 190SL/220S/SE/C. 30 180 810 98 16 or 301808109816	€94.00		Select variant	€94.00
Image number 9		C 81 009 C 81 009	Mirror glass Mirror glass 180 811 01 66 or 1808110166		€20.00 €20.00
Image number 10		C 81 010 C 81 010	Mounting ring Mounting ring 000 811 01 65 or 0008110165		€11.60 €11.60
Image number 14		C 81 007c	Rubber pad,left 30 180 811 00 96 or 301808110096	€7.88		Select variant	€7.88
Image number 14		C 81 008c	Rubber pad, right 30 180 811 04 96 or 301808110496	€7.88		Select variant	€7.88
Image number 0		C 07 108 G 22 020	Lock washer Spring ring for carburetor cover 000 127 006 203 or 000127006203		on request €0.30
	G 22 020	Replacement: Lock washer		€0.30
Image number 0		C 81 005a C 81 005a	Plexy screen Plexy screen 180 810 01 10 or 1808100110		on request on request
Image number 0		C 81 006a C 81 006a	Plexy screen Plexy screen 180 810 02 10 or 1808100210		on request on request
Image number 0		B 81 044 B 81 044	Mirror to aperture Mirror to aperture 10 186 811 00 66 or 101868110066		on request on request
Image number 0		B 81 045 B 81 045	Retaining frame for mirror Retaining frame for mirror 10 186 811 00 60 or 101868110060		on request on request
Image number 27		B 81 047 B 81 047	Upper part bearing outside, left, right chrome-plated Upper part bearing outside, left, right chrome-plated 10 186 810 01 12 or 101868100112		on request on request
Image number 28		B 81 048 B 81 048	Bearing inside, left/right with taper pin Bearing inside, left/right with taper pin 10 186 810 02 12 or 101868100212		on request on request
Image number 29		B 81 054 B 81 054	Taper pin for inner bearing Taper pin for inner bearing 10 186 811 03 15 or 101868110315		€31.00 €31.00
Image number 30		B 81 051 B 81 051	Pressure screw for inner bearing Pressure screw for inner bearing 10 186 811 01 42 or 101868110142		on request on request
Image number 31		B 81 056 B 81 056	Underlay for sun visor on front panel Underlay for sun visor on front panel 40 186 811 01 96 or 401868110196		on request on request
Image number 0		C 81 005a C 81 005a	Plexy screen Plexy screen 180 810 01 10 or 1808100110		on request on request
Image number 0		C 81 006a C 81 006a	Plexy screen Plexy screen 180 810 02 10 or 1808100210		on request on request
Image number 0		C 81 006a C 81 006a	Plexy screen Plexy screen 180 810 02 10 or 1808100210		on request on request
Image number 0		C 81 005a C 81 005a	Plexy screen Plexy screen 180 810 01 10 or 1808100110		on request on request
Image number 0		B 81 064 B 81 064	Screw-on bearing, left Screw-on bearing, left 30 180 811 00 41 or 301808110041		on request on request
Image number 0		B 81 065 B 81 065	Screw-on bearing, right Screw-on bearing, right 30 180 811 02 41 or 301808110241		on request on request
Image number 35		B 81 142 B 81 148	Ashtray ( wooden cover ) Ashtray 10 180 810 05 30 or 101808100530		on request €365.00
	B 81 148	Replacement: Ashtray ( wooden cover )		€365.00
Image number 54		B 81 113 B 81 113	Handle above driver's door Handle above driver's door 10 189 810 00 51 or 101898100051		on request on request
Image number 60		C 81 026 C 81 026	220S logo for trunk lid 220S logo for trunk lid 10 180 817 05 15 or 101808170515		€70.35 €70.35
Image number 61		C 81 027 C 81 027	Sealing ring for type sign Sealing ring for type sign 000 997 11 41 or 0009971141		€1.26 €1.26
Image number 62		C 81 028 C 81 028	Mounting bracket for type sign Mounting bracket for type sign 136 403 03 02 or 1364030302		€7.66 €7.66
Image number 63		C 81 032 C 81 032	Spring nut for trim on the rear lid Spring nut for trim on the rear lid 000 994 01 45 or 0009940145		€0.17 €0.17
Image number 64		C 81 034a C 81 034a	Id tag - body number Id tag - body number 40 121 817 00 26 or 401218170026		on request on request

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Rear view mirror head - chromed

B 81 001 €468.00

Mirror base interior mirror 220S, SE convertible and coupe

C 81 001g €280.00

Ball pin for rear view mirror

B 81 005 €23.31

Rear view mirror LHS 190SL/220S/SE/C.

C 81 007a €94.00

Rear view mirror RHS 190SL/220S/SE/C.

C 81 008a €94.00

Mirror glass

C 81 009 €20.00

Mounting ring

C 81 010 €11.60

Rubber pad,left

C 81 007c €7.88

Rubber pad, right

C 81 008c €7.88

Spring ring for carburetor cover

C 07 108

Replacement item available

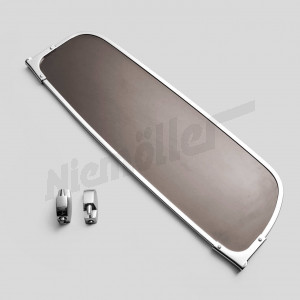

Plexy screen

C 81 005a

Plexy screen

C 81 006a

Mirror to aperture

B 81 044

Retaining frame for mirror

B 81 045

Upper part bearing outside, left, right chrome-plated

B 81 047

Bearing inside, left/right with taper pin

B 81 048

Taper pin for inner bearing

B 81 054 €31.00

Pressure screw for inner bearing

B 81 051

Underlay for sun visor on front panel

B 81 056

Plexy screen

C 81 005a

Plexy screen

C 81 006a

Plexy screen

C 81 006a

Plexy screen

C 81 005a

Screw-on bearing, left

B 81 064

Screw-on bearing, right

B 81 065

Ashtray

B 81 142

Replacement item available

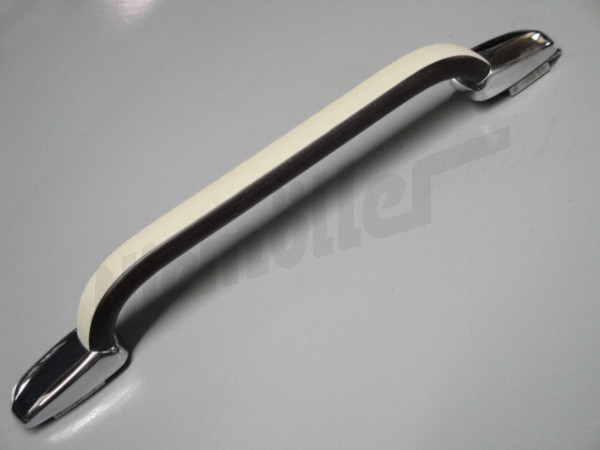

Handle above driver's door

B 81 113

220S logo for trunk lid

C 81 026 €70.35

Sealing ring for type sign

C 81 027 €1.26

Mounting bracket for type sign

C 81 028 €7.66

Spring nut for trim on the rear lid

C 81 032 €0.17

Id tag - body number

C 81 034a

Mirror base see:
300 Cabrio and 300S - B 81 008
220S (W180) Coupe and Convertible - C 81 001g

Rear view mirror head - chromed

B 81 001 €468.00

Right-hand-drive

Plexy screen

C 81 005a

Left-hand-drive

Plexy screen

C 81 006a

Left-hand-drive

Plexy screen

C 81 005a

Right-hand-drive

Plexy screen

C 81 006a

Left-hand-drive

Plexy screen

C 81 006a

Right-hand-drive

Plexy screen

C 81 005a

Mirror base interior mirror 220S, SE convertible and coupe

C 81 001g €280.00

Ball pin for rear view mirror

B 81 005 €23.31

Rear view mirror LHS 190SL/220S/SE/C.

C 81 007a €94.00

Rear view mirror RHS 190SL/220S/SE/C.

C 81 008a €94.00

Mirror glass

C 81 009 €20.00

Mounting ring

C 81 010 €11.60

Rubber pad,left

C 81 007c €7.88

Rubber pad, right

C 81 008c €7.88

Spring ring for carburetor cover

C 07 108

Replacement item available

Mirror to aperture

B 81 044

Retaining frame for mirror

B 81 045

Upper part bearing outside, left, right chrome-plated

B 81 047

Bearing inside, left/right with taper pin

B 81 048

Taper pin for inner bearing

B 81 054 €31.00

Pressure screw for inner bearing

B 81 051

Underlay for sun visor on front panel

B 81 056

Screw-on bearing, left

B 81 064

Screw-on bearing, right

B 81 065

Ashtray

B 81 142

Replacement item available

Handle above driver's door

B 81 113

220S logo for trunk lid

C 81 026 €70.35

Sealing ring for type sign

C 81 027 €1.26

Mounting bracket for type sign

C 81 028 €7.66

Spring nut for trim on the rear lid

C 81 032 €0.17

Id tag - body number

C 81 034a
