30 Control for 280SE/Cb Mercedes-Benz w111 Mercedes-Benz
280SE/Cb W111.025

Chosen model:

Chassis: 111.025
Engine: 130.980,984
Change vehicle
Change module

Step 5:

Select spare part

Step 5:

Select spare part

[{"type":"poly","coords":[617,11,615,31,630,40,643,16],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111\/B025\/13\/d20079-hex-screw-6x22","cssSelector":".product-group-12","info":"{\"ids\":\"D 20 079\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[706,76,673,76,672,55,690,52,708,59],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111\/B025\/13\/c30013-insert-cage-nut-m6","cssSelector":".product-group-14","info":"{\"ids\":\"C 30 013\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"C 47 091\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[177,32,168,131,200,134,221,46,203,24],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111\/B025\/13\/d30080-release-spring","cssSelector":".product-group-27","info":"{\"ids\":\"D 30 080\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[480,45,470,53,500,76,514,81,625,144,635,157,652,160,654,137,610,117,565,96,540,67],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111\/B025\/13\/d30086-pressure-rod","cssSelector":".product-group-45","info":"{\"ids\":\"D 30 086\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[449,19,468,21,462,41,456,48,435,35],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111\/B025\/13\/c07356-ball-socket","cssSelector":".product-group-48","info":"{\"ids\":\"C 07 356\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[618,184,607,177,598,138,615,140,625,159],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111\/B025\/13\/c30045-damping-ring-for-regulating-lever","cssSelector":".product-group-49","info":"{\"ids\":\"C 30 045\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"C 30 044\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[277,125,278,152,307,147,299,125],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111\/B025\/13\/g29036-hex-socket-screw-m8x16","cssSelector":".product-group-51","info":"{\"ids\":\"G 29 036\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[265,130,268,156,278,156,280,131],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111\/B025\/13\/b03018-spring-washer","cssSelector":".product-group-52","info":"{\"ids\":\"B 03 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[246,137,254,161,264,160,267,138],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111\/B025\/13\/d29082-disc-push-rod-on-clutch-pedal","cssSelector":".product-group-53","info":"{\"ids\":\"D 29 082\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[99,49,98,82,146,88,151,43],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111\/B025\/13\/d30124-kick-down-switch","cssSelector":".product-group-58","info":"{\"ids\":\"D 30 124\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"A 26 123\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"}]

in stock
low stock level
currently not in stock, but available for order
no longer available

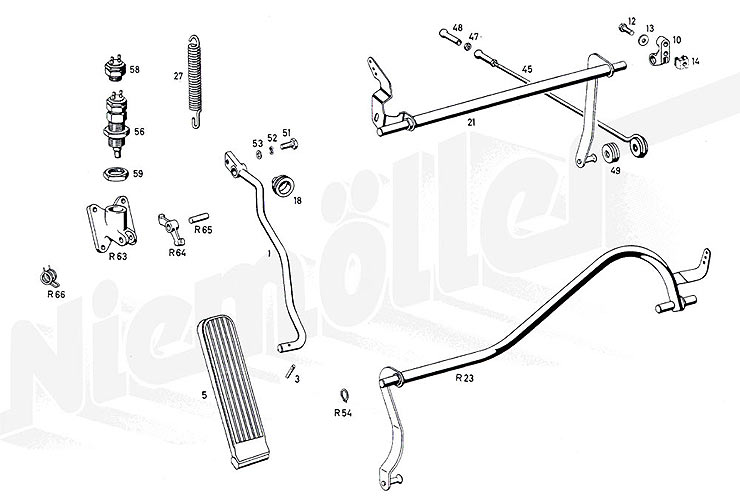

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 2		D 30 005 D 30 005	Pedal lever Pedal lever 108 301 00 01 or 1083010001		on request on request
Image number 0		D 30 019 D 30 013	Foot plate ( accelerator pedal ) Accelerator pedal 112 300 04 02 or 1123000402		on request €69.50
	D 30 013	Replacement: Foot plate ( accelerator pedal )		€69.50
Image number 0		D 30 021 D 30 021	Foam inlay Foam inlay 110 301 00 83 or 1103010083		on request on request

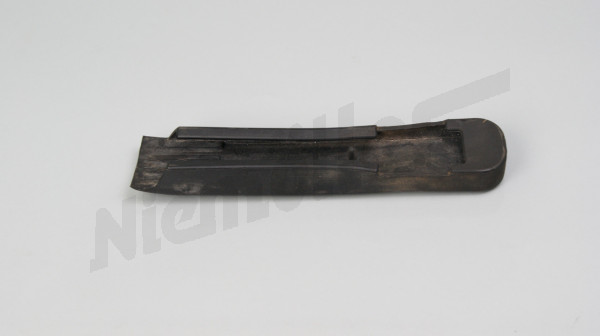

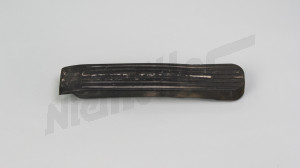

Image number 0		D 30 025 D 30 025	Rubber cover R.L. Rubber cover R.L. 110 301 04 82 or 1103010482		on request on request
Image number 12		D 20 079 D 20 079	Hex screw 6x22 Hex screw 6x22 000 931 006 082 or 000931006082		€3.59 €3.59
Image number 0		G 30 102 G 30 102	Spring washer Spring washer 000 137 006 203 or 000137006203		€0.72 €0.72
Image number 14		C 30 013 C 47 091	Cage clip M6 Insert cage nut M6 000 990 27 91 or 0009902791		on request €1.50
	C 47 091	Replacement: Cage clip M6		€1.50
Image number 0		D 30 065 D 30 065	Control shaft (RL) Control shaft (RL) 108 300 01 20 or 1083000120		on request on request
Image number 0		C 30 009 C 30 009	Pedal mounting Pedal mounting 121 301 00 18 or 1213010018		€77.00 €77.00

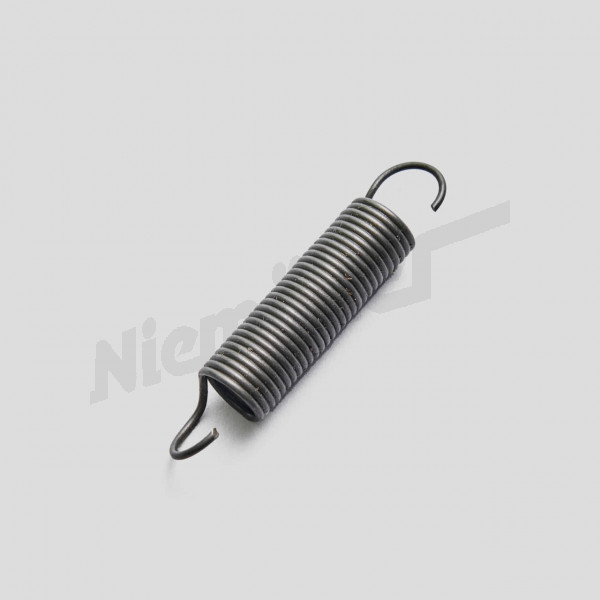

Image number 27		D 30 080 D 30 080	Release spring Release spring 108 993 00 10 or 1089930010		€11.61 €11.61
Image number 0		C 30 032a C 30 032a	Release spring Release spring 186 993 18 10 or 1869931810		€17.65 €17.65
Image number 45		D 30 086 D 30 086	Pressure rod Pressure rod 111 301 05 15 or 1113010515		on request on request
Image number 48		C 07 356 C 07 356	Ball socket Ball socket 000 991 16 22 or 0009911622		€3.57 €3.57
Image number 49		C 30 045 C 30 044	Damping ring Damping ring for regulating lever 121 301 00 97 or 1213010097		on request €5.00
	C 30 044	Replacement: Damping ring		€5.00
Image number 51		G 29 036 G 29 036	Hex. socket screw M8x16 Hex. socket screw M8x16 000 933 008 131 or 000933008131		€0.46 €0.46
Image number 52		B 03 018 B 03 018	Spring washer Spring washer 000 137 008 202 or 000137008202		€0.30 €0.30
Image number 53		D 29 082 D 29 082	Disc, push rod on clutch pedal Disc, push rod on clutch pedal 000 125 008 407 or 000125008407		on request on request

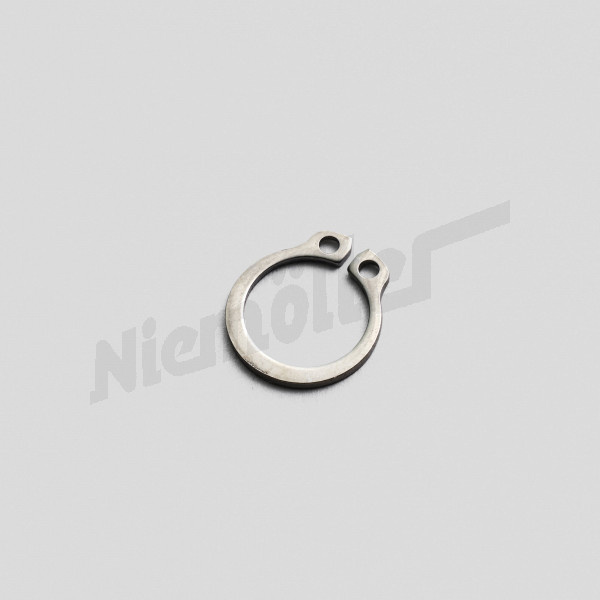

Image number 0		D 30 077 D 08 875	Retaining ring Seeger grip ring, regulating shaft on bearing 900 055 012 401 or 900055012401		on request €1.50
	D 08 875	Replacement: Retaining ring		€1.50
Image number 0		D 30 122 D 30 122	Spring stop for foot return. Spring stop for foot return. 112 300 03 41 or 1123000341		on request on request
Image number 58		D 30 124 A 26 123	Reversing light switch with screw terminals Kick down switch 000 545 09 06 or 0005450906		on request €120.75
	A 26 123	Replacement: Reversing light switch with screw terminals		€120.75

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Pedal lever

D 30 005

Accelerator pedal

D 30 019

Replacement item available

Foam inlay

D 30 021

Rubber cover R.L.

D 30 025

Hex screw 6x22

D 20 079 €3.59

Spring washer

G 30 102 €0.72

Insert cage nut M6

C 30 013

Replacement item available

Control shaft (RL)

D 30 065

Pedal mounting

C 30 009 €77.00

Release spring

D 30 080 €11.61

Release spring

C 30 032a €17.65

Pressure rod

D 30 086

Ball socket

C 07 356 €3.57

Damping ring for regulating lever

C 30 045

Replacement item available

Hex. socket screw M8x16

G 29 036 €0.46

Spring washer

B 03 018 €0.30

Disc, push rod on clutch pedal

D 29 082

Seeger grip ring, regulating shaft on bearing

D 30 077

Replacement item available

Spring stop for foot return.

D 30 122

Kick down switch

D 30 124

Replacement item available

Left-hand-drive;

From chassis 002864 also installed on 002123, 002193, 002327, 002402, 002539, 002546, 002726, 002731, 002744, 002748, 002757, 002760, 002763, 002797, 002862

Pedal lever

D 30 005

Right-hand-drive, automatic transmission;

From chassis 002864 also installed on 002123, 002193, 002327, 002402, 002539, 002546, 002726, 002731, 002744, 002748, 002757, 002760, 002763, 002797, 002862

Accelerator pedal

D 30 019

Replacement item available

Right-hand-drive, automatic transmission;

From chassis 002864 also installed on 002123, 002193, 002327, 002402, 002539, 002546, 002726, 002731, 002744, 002748, 002757, 002760, 002763, 002797, 002862

Foam inlay

D 30 021

Right-hand-drive, automatic transmission;

From chassis 002864 also installed on 002123, 002193, 002327, 002402, 002539, 002546, 002726, 002731, 002744, 002748, 002757, 002760, 002763, 002797, 002862

Rubber cover R.L.

D 30 025

Left-hand-drive

Hex screw 6x22

D 20 079 €3.59

Right-hand-drive

Control shaft (RL)

D 30 065

Right-hand-drive

Pedal mounting

C 30 009 €77.00

Left-hand-drive

Release spring

D 30 080 €11.61

Right-hand-drive

Release spring

C 30 032a €17.65

Right-hand-drive

Seeger grip ring, regulating shaft on bearing

D 30 077

Replacement item available

Right-hand-drive, automatic transmission

Spring stop for foot return.

D 30 122

automatic transmission

Kick down switch

D 30 124

Replacement item available

Spring washer

G 30 102 €0.72

Insert cage nut M6

C 30 013

Replacement item available

Pressure rod

D 30 086

Ball socket

C 07 356 €3.57

Damping ring for regulating lever

C 30 045

Replacement item available

Hex. socket screw M8x16

G 29 036 €0.46

Spring washer

B 03 018 €0.30

Disc, push rod on clutch pedal

D 29 082
