9 Fuel Pump for 220Sb Mercedes-Benz w111 Mercedes-Benz
220Sb W111.012

Chosen model:

Chassis: 111.012
Engine: 180.941
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 75		D 09 095	Suction silencer 004 094 96 02 or 0040949602	on request		Select variant	on request
Image number 75		D 09 103	Suction silencer 003 094 46 02 or 0030944602	on request			on request
Image number 75		D 09 098	Suction silencer 3 or 3	on request			on request
Image number 82		C 09 126 C 09 126	Gasket - 1 meter Gasket - 1 meter 000 094 20 79 or 0000942079		€3.50 €3.50
Image number 84		C 09 054 C 09 054	Spring lock Spring lock 000 094 12 55 or 0000941255		€2.34 €2.34
Image number 85		D 09 111 D 09 111	Air filter element Air filter element 001 094 02 04 or 0010940204		€23.00 €23.00
Image number 86		D 09 120	Retaining bracket 000 094 32 41 or 0000943241	on request		Select variant	on request
Image number 86		D 09 122	Retaining bracket 180 or 180	on request		Select variant	on request
Image number 89		D 09 128 D 09 128	Rubber grommet for upper bracket air filter engine M180 Rubber grommet for upper bracket air filter engine M180 000 997 87 81 or 0009978781		on request on request
Image number 93		G 29 021 C 32 027	Hex. nut M 8 Hex nut 000 934 008 013 or 000934008013		on request €0.54
	C 32 027	Replacement: Hex. nut M 8		€0.54
Image number		D 09 059 D 09 059	Closure Closure 000 094 05 55 or 0000940555		on request on request
Image number		D 09 133 D 09 133	Hat by Fa. Mann u. Hummel Hat by Fa. Mann u. Hummel 000 094 13 08 or 0000941308		on request on request
Image number		D 09 148 D 09 148	Pipe clip Pipe clip 000 995 10 20 or 0009951020		on request on request
Image number		D 09 146 D 09 146	Hexagon bolt Hexagon bolt 000 990 50 01 or 0009905001		€2.25 €2.25
Image number		D 09 137 D 09 137	Hat from company Mann and Hummel Hat from company Mann and Hummel 000 094 33 08 or 0000943308		on request on request
Image number		D 09 147 D 09 147	Flame protection sieve Flame protection sieve 000 094 00 14 or 0000940014		on request on request
Image number		D 09 149 D 09 149	Elastic ring Elastic ring 001 990 50 51 or 0019905051		on request on request
Image number 140		D 09 150 D 09 150	Sealing ring Sealing ring 123 997 01 45 or 1239970145		€3.10 €3.10
Image number		G 32 072 G 32 072	Hex nut holder Hex nut holder 913 002 006 009 or 913002006009		€4.38 €4.38
Image number 141		D 09 151 D 09 151	Rubber boot Rubber boot 180 094 04 91 or 1800940491		€10.00 €10.00
Image number 142		C 01 522 C 01 522	Hose for valve cover Hose for valve cover 121 094 02 91 or 1210940291		€4.22 €4.22
Image number		D 20 000c D 20 000c	Hose strap 20-32 Hose strap 20-32 000 000 000 667 or 000000000667		€4.17 €4.17

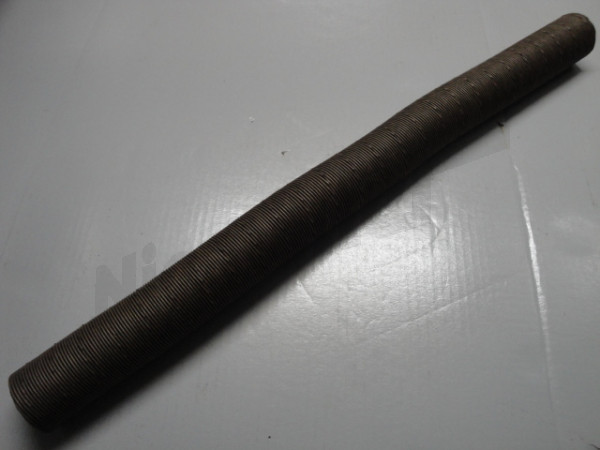

Image number		C 09 076 C 09 076	Warm air hose Warm air hose 000 094 15 82 or 0000941582		on request on request
Image number		G 49 060 G 49 060	Hex. head screw Hex. head screw 304 017 008 021 or 304017008021		€1.54 €1.54
Image number		B 03 018 B 03 018	Spring washer Spring washer 000 137 008 212 or 000137008212		€0.30 €0.30

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Suction silencer

D 09 095

Suction silencer

D 09 103

Suction silencer

D 09 098

Gasket - 1 meter

C 09 126 €3.50

Spring lock

C 09 054 €2.34

Air filter element

D 09 111 €23.00

Retaining bracket

D 09 120

Retaining bracket

D 09 122

Rubber grommet for upper bracket air filter engine M180

D 09 128

Hex nut

G 29 021

Replacement item available

Closure

D 09 059

Hat by Fa. Mann u. Hummel

D 09 133

Pipe clip

D 09 148

Hexagon bolt

D 09 146 €2.25

Hat from company Mann and Hummel

D 09 137

Flame protection sieve

D 09 147

Elastic ring

D 09 149

Sealing ring

D 09 150 €3.10

Hex nut holder

G 32 072 €4.38

Rubber boot

D 09 151 €10.00

Hose for valve cover

C 01 522 €4.22

Hose strap 20-32

D 20 000c €4.17

Warm air hose

C 09 076

Hex. head screw

G 49 060 €1.54

Spring washer

B 03 018 €0.30

Right-hand-drive;

As of engine
940 10/20 046695, also installed in 046023, 046156, 046157, 046233-046236, 046238-046240, 046421.
940 12/22 000802, with the ecxeption of 000777.
941 10/20 099654, also installed in 096942, 097296, 098533, 098781, 098782, 098802, 098824, 098883, 098980, 099185-099638.
940

Suction silencer

D 09 095

Left-hand-drive;

EXPORT,ON SPECIAL REQUEST
To motor:
940 10/20 046694, with the ecxeption of: 046023, 046156, 046157, 046236, 046240, 046421.
940 12/22 000801, with the ecxeption of: 000777.
941 10/20 099563, with the ecxeption of: 096942, 097296, 098533, 098781, 098782, 098802, 098824, 098883, 098980, 099185-099638

Suction silencer

D 09 103

Right-hand-drive;

As of engine
940

Suction silencer

D 09 098

TO 003 094 46 02,003 094 65 02
ORDER BY THE METER

Gasket - 1 meter

C 09 126 €3.50

NO LONGER AVAILABLE

Retaining bracket

D 09 120

TO 003 094 46 02,003 094 65 02
NO LONGER AVAILABLE

Retaining bracket

D 09 122

TO 003 094 46 02,003 094 65 02
NO LONGER AVAILABLE

Closure

D 09 059

Up to engine:
940

Hat by Fa. Mann u. Hummel

D 09 133

NO LONGER AVAILABLE
NO LONGER AVAILABLE

Pipe clip

D 09 148

As of engine
941 10/20 112068
941 12/22 008063

Hat from company Mann and Hummel

D 09 137

NO LONGER AVAILABLE

Flame protection sieve

D 09 147

As of engine
940

Sealing ring

D 09 150 €3.10

As of engine
940

Hex nut holder

G 32 072 €4.38

As of engine 941 10/20003730
USED WITH HYDRAULIC CLUTCH FROM ENGINE 000004

Rubber boot

D 09 151 €10.00

As of engine
940 10/20 035459
941 10/20 073483
941 12/22 000801
USED WITH HYDRAULIC CLUTCH FROM ENGINE
940

Warm air hose

C 09 076

Spring lock

C 09 054 €2.34

Air filter element

D 09 111 €23.00

Rubber grommet for upper bracket air filter engine M180

D 09 128

Hex nut

G 29 021

Replacement item available

Hexagon bolt

D 09 146 €2.25

Elastic ring

D 09 149

Hose for valve cover

C 01 522 €4.22

Hose strap 20-32

D 20 000c €4.17

Hex. head screw

G 49 060 €1.54

Spring washer

B 03 018 €0.30
