1 Crankcase, oil pan for 220Sb Mercedes-Benz w111 Mercedes-Benz
220Sb W111.012

Chosen model:

Chassis: 111.012
Engine: 180.941
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

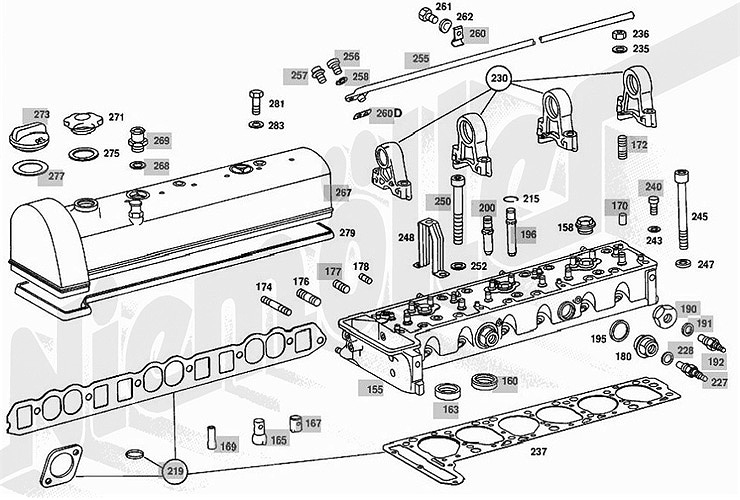

[{"type":"poly","coords":[335,314,338,364,355,379,371,401,423,400,434,377,459,361,527,349,589,330,640,317,674,286,658,260,622,236],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/d01372-cylinder-head-compression-7-0-for-engine-180940-and-180941-w111-012-220sb","cssSelector":".product-group-155","info":"{\"ids\":\"D 01 372\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"rect","coords":[556,214,598,237],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/c01316-screw-plug","cssSelector":".product-group-158","info":"{\"ids\":\"C 01 316\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"circle","coords":[495,383,28],"href":"\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/160","cssSelector":".product-group-160","info":"{\"ids\":\"C 01 447, D 01 429, D 01 430, C 01 448\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"circle","coords":[447,399,23.08679276123],"href":"\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/163","cssSelector":".product-group-163","info":"{\"ids\":\"C 01 449, C 01 450\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"circle","coords":[267,437,23],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/c01457-water-distributor","cssSelector":".product-group-165","info":"{\"ids\":\"C 01 457\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"circle","coords":[310,424,25.019992006394],"href":"\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/167","cssSelector":".product-group-167","info":"{\"ids\":\"C 01 458, C 01 460\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"circle","coords":[222,442,25],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/c01459-water-distributor","cssSelector":".product-group-169","info":"{\"ids\":\"C 01 459\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"circle","coords":[621,213,23.323807579381203],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/c01327-locating-pin-for-camshaft-bearing-8x10","cssSelector":".product-group-170","info":"{\"ids\":\"C 01 327\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"circle","coords":[630,147,21.400934559032695],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/a01027-stud","cssSelector":".product-group-172","info":"{\"ids\":\"A 01 027\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"rect","coords":[253,280,293,318],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/d01399a-stud-bolt-for-cooling-water-regulator","cssSelector":".product-group-174","info":"{\"ids\":\"D 01 399a\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"circle","coords":[334,279,21.93171219946131],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/c01336-stud-m-10x28-din-835-5s","cssSelector":".product-group-177","info":"{\"ids\":\"C 01 336\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[611,347,611,363,653,363,661,347,661,333,634,333],"href":"\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/180","cssSelector":".product-group-180","info":"{\"ids\":\"C 01 376, C 01 374\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[587,323,587,347,617,347,635,331,635,309],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/d20061a-sealing-ring-30x36-din-7603-al","cssSelector":".product-group-195","info":"{\"ids\":\"D 20 061a\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[539,258,499,206],"href":"\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/196","cssSelector":".product-group-196","info":"{\"ids\":\"C 01 347, C 01 349, C 01 348\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"rect","coords":[470,198,502,259],"href":"\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/200","cssSelector":".product-group-200","info":"{\"ids\":\"C 01 343, C 01 479, C 01 344, C 01 480, C 01 345, C 01 481\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"rect","coords":[500,194,543,206],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/c01033-snap-ring","cssSelector":".product-group-215","info":"{\"ids\":\"C 01 033\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"circle","coords":[175,471,13.038404810405],"href":"\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/219","cssSelector":".product-group-219","info":"{\"ids\":\"C 00 026, C 00 029, C 00 027\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"circle","coords":[499,78,15.033296378373],"href":"\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/230","cssSelector":".product-group-230","info":"{\"ids\":\"D 01 522, D 01 528, D 01 534\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"rect","coords":[609,42,652,56],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/g46021-washer","cssSelector":".product-group-235","info":"{\"ids\":\"G 46 021\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[610,27,651,42],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/c32027-hex-nut-m-8","cssSelector":".product-group-236","info":"{\"ids\":\"C 32 027\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[367,443,651,368,690,399,547,440,553,456,533,462,524,447,466,466,469,486,441,491],"href":"\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/237","cssSelector":".product-group-237","info":"{\"ids\":\"C 01 490, C 01 492\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"rect","coords":[644,223,664,248],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/g46021-washer~2","cssSelector":".product-group-243","info":"{\"ids\":\"G 46 021\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[672,167,710,252],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/c01359-hex-socket-screw-m12x140","cssSelector":".product-group-245","info":"{\"ids\":\"C 01 359\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[673,256,717,272],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/d01612-washer","cssSelector":".product-group-247","info":"{\"ids\":\"D 01 612\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[398,215,451,280],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/c01363-u-type-clamp","cssSelector":".product-group-248","info":"{\"ids\":\"C 01 363\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[421,189,447,189,447,175,469,173,466,254,451,254,448,216,422,214],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/c01365-hex-socket-screw-m12x105","cssSelector":".product-group-250","info":"{\"ids\":\"C 01 365\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[450,261,488,271],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/d01612-washer~2","cssSelector":".product-group-252","info":"{\"ids\":\"D 01 612\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[332,94,396,71,391,55,424,47,434,60,529,34,628,5,638,4,640,18,531,51,441,81,378,102,339,110],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/d01618-oil-pipe","cssSelector":".product-group-255","info":"{\"ids\":\"D 01 618\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[5,203,52,194,293,146,327,142,344,161,352,188,355,203,339,218,91,279,90,291,63,298,6,269],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/d01642-cylinder-head-cover","cssSelector":".product-group-267","info":"{\"ids\":\"D 01 642\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[60,109,126,139],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/c01509-screw-cap","cssSelector":".product-group-271","info":"{\"ids\":\"C 01 509\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[66,145,122,164],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/c01511-sealing-ring-47x65x3-for-screw-cap","cssSelector":".product-group-275","info":"{\"ids\":\"C 01 511\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[23,279,12,279,12,326,70,326,359,244,359,212,91,280,91,292,61,299],"href":"https:\/\/www.niemoeller.de\/en\/W111\/w111-mercedes-benz-220sb\/B012\/010103\/c01559-valve-cover-gasket","cssSelector":".product-group-279","info":"{\"ids\":\"C 01 559\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"}]

in stock
low stock level
currently not in stock, but available for order
no longer available

Pic.	Designation		Price/unit excl. tax.
Image number 155	D 01 372 D 01 372	Cylinder head, compression 7.0, for engine 180940 and 180941, W111.012, 220SB Cylinder head, compression 7.0, for engine 180940 and 180941, W111.012, 220SB 180 010 99 20 or 1800109920		on request on request
Image number 158	C 01 316 C 01 316	Screw plug Screw plug 180 997 06 30 or 1809970630		€28.50 €28.50
Image number 160	C 01 447	Valve seat ring inlet normal 180 053 05 31 or 1800530531	€30.05		Select variant	€30.05
Image number 160	D 01 429	Valve seat ring 180 053 07 31 or 1800530731	on request			on request
Image number 160	D 01 430	Valve seat ring, 42,00mm 180 053 08 31 or 1800530831	€35.20			€35.20
Image number 160	C 01 448	Valve seat ring inlet D: 44,3mm 180 053 06 31 or 1800530631	€11.70			€11.70
Image number 163	C 01 449	Valve seat ring, standard 180 053 07 32 or 1800530732	€43.72		Select variant	€43.72
Image number 163	C 01 450	Valve seat ring, 40,3mm 180 053 08 32 or 1800530832	€35.00		Select variant	€35.00
Image number 165	C 01 457 C 01 457	Water distributor Water distributor 127 016 04 60 or 1270160460		€74.01 €74.01
Image number 167	C 01 458	Water distributor 127 016 03 60 or 1270160360	€70.71		Select variant	€70.71
Image number 167	C 01 460	Water distributor 127 016 05 60 or 1270160560	€12.13		Select variant	€12.13
Image number 169	C 01 459 C 01 459	Water distributor Water distributor 127 016 06 60 or 1270160660		€71.40 €71.40
Image number 170	C 01 327 C 01 327	Locating pin for camshaft bearing 8x10 Locating pin for camshaft bearing 8x10 900 037 008 101 or 900037008101		on request on request
Image number 172	A 01 027 A 01 027	Stud Stud 180 or 180		€3.21 €3.21
Image number 174	D 01 399a D 01 399a	Stud bolt (for cooling water regulator) Stud bolt (for cooling water regulator) 000 939 008 116 or 000939008116		€48.28 €48.28
Image number 177	C 01 336 C 01 336	Stud M 10x28 DIN 835-5S Stud M 10x28 DIN 835-5S 180 or 180		€3.50 €3.50
Image number 180	C 01 376	Spigot for heat sensor 180 016 02 29 or 1800160229	€49.00		Select variant	€49.00
Image number 180	C 01 374	Spigot for heat sensor 621 016 05 29 or 6210160529	€187.50		Select variant	€187.50
Image number 195	D 20 061a D 20 061a	Sealing ring 30x36 DIN 7603 Al Sealing ring 30x36 DIN 7603 Al 007 603 030 100 or 007603030100		€2.50 €2.50
Image number 196	C 01 347	Valve guide exhaust 14.018mm 121 050 21 24 or 1210502124	€23.40		Select variant	€23.40
Image number 196	C 01 349	Valve guide exhaust 14.40mm 121 050 23 24 or 1210502324	€23.50			€23.50
Image number 196	C 01 348	Valve guide exhaust 14.20 mm 121 050 22 24 or 1210502224	€12.75			€12.75
Image number 200	C 01 343	Valve guide intake D:14.018mm 121 050 06 24 or 1210500624	€20.00		Select variant	€20.00
Image number 200	C 01 479	Valve guide inlet D: 14.10 mm 180 050 03 24 or 1800500324	on request			on request
Image number 200	C 01 344	Valve guide intake 14.20mm 121 050 02 24 or 1210500224	€15.50			€15.50
Image number 200	C 01 480	Valve guide inlet D: 14.2 mm 180 050 04 24 or 1800500424	on request			on request
Image number 200	C 01 345	Valve guide intake 14.40mm 121 050 03 24 or 1210500324	on request			on request
Image number 200	C 01 481	Valve guide inlet D: 14.4 mm 180 050 05 24 or 1800500524	on request			on request
Image number 215	C 01 033 C 01 033	Snap ring Snap ring 009 045 014 000 or 009045014000		€1.22 €1.22
Image number 219	C 00 026	Engine gasket kit 180 or 180	€287.08		Select variant	€287.08
Image number 219	C 00 029	Engine gasket kit 180 or 180	€370.00			€370.00
Image number 219	C 00 027	Cylinder head gasket kit 180 010 63 21 or 1800106321	€243.91			€243.91
Image number 230	D 01 522	Set of camshaft bearings, standard 130 586 00 05 or 1305860005	€1,150.56		Select variant	€1,150.56
Image number 230	D 01 528	Set camshaft bearings, 0,1mm narrower 130 586 01 05 or 1305860105	€390.00			€390.00
Image number 230	D 01 534	Set of camshaft bearings, 0,25mm narrowe 130 586 02 05 or 1305860205	€1,082.87			€1,082.87
Image number 235	G 46 021 G 46 021	Washer Washer 000 433 008 406 or 000433008406		€0.86 €0.86
Image number 236	C 32 027 C 32 027	Hex. nut M 8 Hex. nut M 8 304 032 008 006 or 304032008006		€0.54 €0.54
Image number 237	C 01 490	Cylinder head gasket, 8,7:1 180 016 46 20 or 1800164620	€152.25		Select variant	€152.25
Image number 237	C 01 492	Cylinder head gasket e:6,8 Cylinder D:80mm 180 016 47 20 or 1800164720	€299.00		Select variant	€299.00
Image number 243	G 46 021 G 46 021	Washer Washer 000 433 008 406 or 000433008406		€0.86 €0.86
Image number 245	C 01 359 C 01 359	Hex. socket screw M12x140 Hex. socket screw M12x140 000 912 012 039 or 000912012039		€5.50 €5.50
Image number 247	D 01 612 D 01 612	Washer Washer 110 016 04 76 or 1100160476		€4.50 €4.50
Image number 248	C 01 363 C 01 363	U-type clamp U-type clamp 115 016 00 38 or 1150160038		on request on request
Image number 250	C 01 365 C 01 365	Hex. socket screw M12x105 Hex. socket screw M12x105 180 or 180		€5.03 €5.03
Image number 252	D 01 612 D 01 612	Washer Washer 110 016 04 76 or 1100160476		€4.50 €4.50
Image number 255	D 01 618 D 01 618	Oil pipe Oil pipe 180 180 01 27 or 1801800127		€360.00 €360.00
Image number 267	D 01 642 D 01 642	Cylinder head cover Cylinder head cover 180 010 26 30 or 1800102630		€357.25 €357.25
Image number 271	C 01 509 C 01 509	Screw cap Screw cap 136 501 00 54 or 1365010054		€37.00 €37.00
Image number 275	C 01 511 C 01 511	Sealing ring 47x65x3 for screw cap Sealing ring 47x65x3 for screw cap 180 997 02 40 or 1809970240		€1.96 €1.96
Image number 279	C 01 559 C 01 559	Valve cover gasket Valve cover gasket 123 016 00 21 or 1230160021		€10.00 €10.00

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

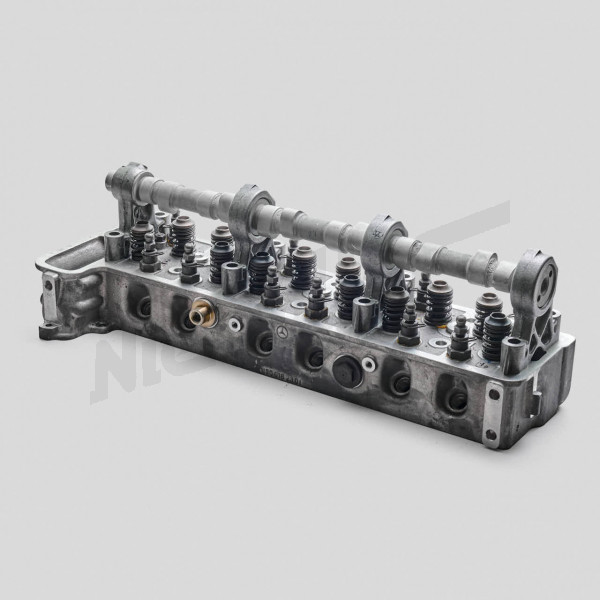

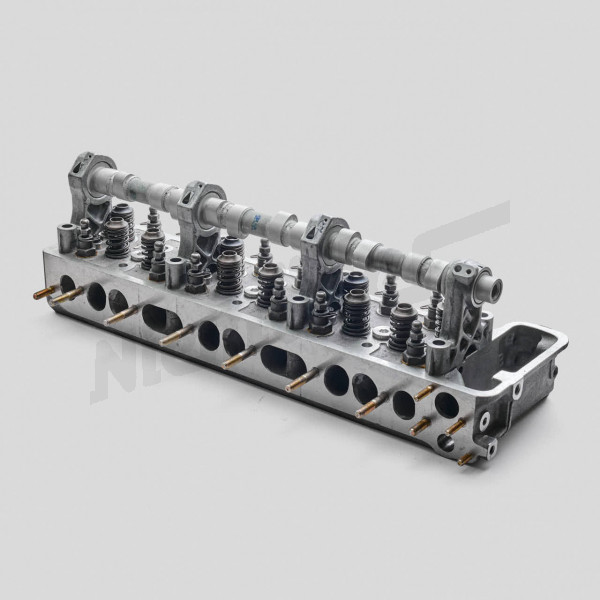

Cylinder head, compression 7.0, for engine 180940 and 180941, W111.012, 220SB

D 01 372

Screw plug

C 01 316 €28.50

Valve seat ring inlet normal

C 01 447 €30.05

Valve seat ring

D 01 429

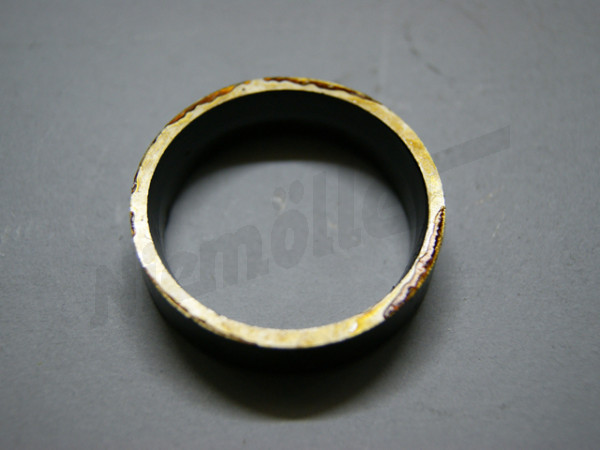

Valve seat ring, 42,00mm

D 01 430 €35.20

Valve seat ring inlet D: 44,3mm

C 01 448 €11.70

Valve seat ring, standard

C 01 449 €43.72

Valve seat ring, 40,3mm

C 01 450 €35.00

Water distributor

C 01 457 €74.01

Water distributor

C 01 458 €70.71

Water distributor

C 01 460 €12.13

Water distributor

C 01 459 €71.40

Locating pin for camshaft bearing 8x10

C 01 327

Stud

A 01 027 €3.21

Stud bolt (for cooling water regulator)

D 01 399a €48.28

Stud M 10x28 DIN 835-5S

C 01 336 €3.50

Spigot for heat sensor

C 01 376 €49.00

Spigot for heat sensor

C 01 374 €187.50

Sealing ring 30x36 DIN 7603 Al

D 20 061a €2.50

Valve guide exhaust 14.018mm

C 01 347 €23.40

Valve guide exhaust 14.40mm

C 01 349 €23.50

Valve guide exhaust 14.20 mm

C 01 348 €12.75

Valve guide intake D:14.018mm

C 01 343 €20.00

Valve guide inlet D: 14.10 mm

C 01 479

Valve guide intake 14.20mm

C 01 344 €15.50

Valve guide inlet D: 14.2 mm

C 01 480

Valve guide intake 14.40mm

C 01 345

Valve guide inlet D: 14.4 mm

C 01 481

Snap ring

C 01 033 €1.22

Engine gasket kit

C 00 026 €287.08

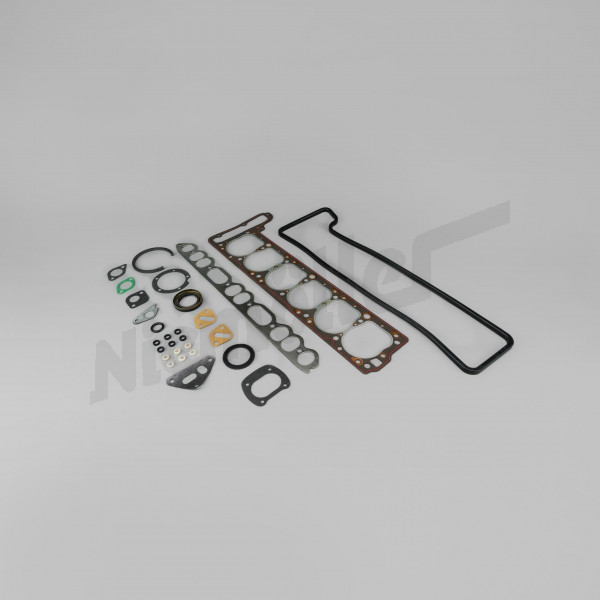

Engine gasket kit

C 00 029 €370.00

Cylinder head gasket kit

C 00 027 €243.91

Set of camshaft bearings, standard

D 01 522 €1,150.56

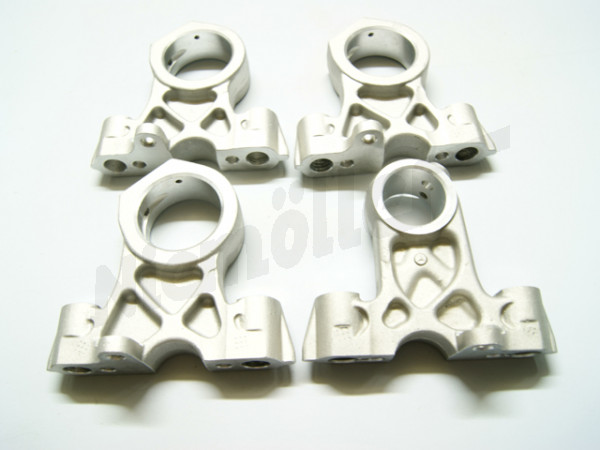

Set camshaft bearings, 0,1mm narrower

D 01 528 €390.00

Set of camshaft bearings, 0,25mm narrowe

D 01 534 €1,082.87

Washer

G 46 021 €0.86

Hex. nut M 8

C 32 027 €0.54

Cylinder head gasket, 8,7:1

C 01 490 €152.25

Cylinder head gasket e:6,8 Cylinder D:80mm

C 01 492 €299.00

Washer

G 46 021 €0.86

Hex. socket screw M12x140

C 01 359 €5.50

Washer

D 01 612 €4.50

U-type clamp

C 01 363

Hex. socket screw M12x105

C 01 365 €5.03

Washer

D 01 612 €4.50

Oil pipe

D 01 618 €360.00

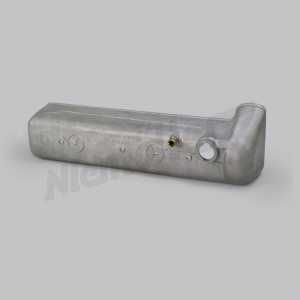

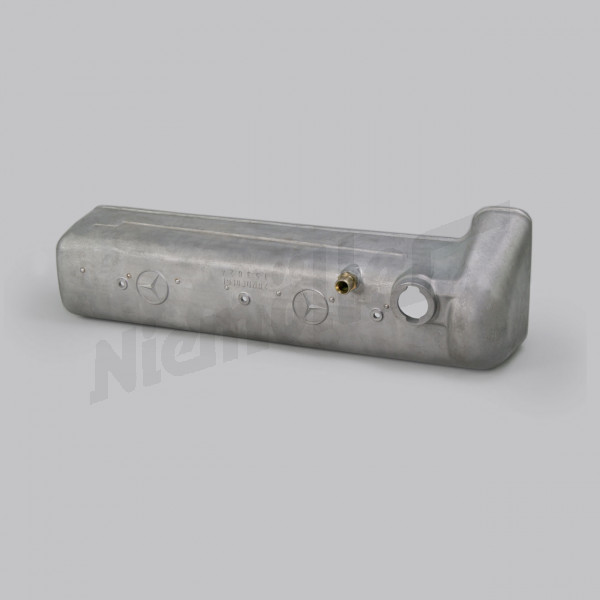

Cylinder head cover

D 01 642 €357.25

Screw cap

C 01 509 €37.00

Sealing ring 47x65x3 for screw cap

C 01 511 €1.96

Valve cover gasket

C 01 559 €10.00

Up to engine:
954 10/50,20/60 073540
954 12/52,22/62 036557
955 10/50,20/60 001769
955 12/52,22/62 000271

Screw plug

C 01 316 €28.50

Up to engine:
940 10/20 020430
941 10/20 041649
USED WITH HYDRAULIC CLUTCH UP TO ENGINE
940

Valve seat ring inlet normal

C 01 447 €30.05

As of engine
940 10/20 020431
941 10/20 041650
USED WITH HYDRAULIC CLUTCH FROM ENGINE
940 001187
941 003682

Valve seat ring

D 01 429

As of engine
940 10/20 020431
941 10/20 041650
USED WITH HYDRAULIC CLUTCH FROM ENGINE
940 001187
941 003682

Valve seat ring, 42,00mm

D 01 430 €35.20

Up to engine:
940 10/20 020430
941 10/20 041649
USED WITH HYDRAULIC CLUTCH UP TO ENGINE
940

Valve seat ring inlet D: 44,3mm

C 01 448 €11.70

Up to engine:
940 10/20 044199
940 12/22 000516
941 10/20 091447
941 12/22 003490

Spigot for heat sensor

C 01 376 €49.00

Up to engine:
954 10/50,20/60 076351
954 12/52,22/62 038434
955 10/50,20/60 001812
955 12/52,22/62 000276
As of engine
940 10/20 044200
940 12/22 000517
941 10/20 091448
941 12/22 003491

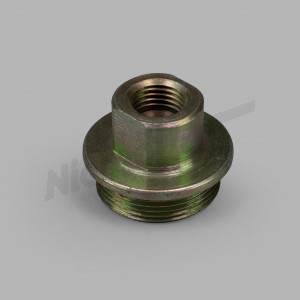

Spigot for heat sensor

C 01 374 €187.50

14.014-019 MM; 14.020-025 MM; 14.026-031 MM
FOR THIS 121 050 21 24

Valve guide exhaust 14.018mm

C 01 347 €23.40

Up to engine:
940 10/20 002161
941 10/20 004090
USED WITH HYDRAULIC CLUTCH UP TO ENGINE 941 000004

Valve guide intake 14.20mm

C 01 344 €15.50

As of engine
940 10/20 002162
941 10/20 004091
USED WITH HYDRAULIC CLUTCH FROM ENGINE 941 000005

Valve guide inlet D: 14.2 mm

C 01 480

Up to engine:
940 10/20 002161
941 10/20 004090
USED WITH HYDRAULIC CLUTCH UP TO ENGINE 941 000004

Valve guide intake 14.40mm

C 01 345

As of engine
940 10/20 002162
941 10/20 004091
USED WITH HYDRAULIC CLUTCH FROM ENGINE 941 000005

Valve guide inlet D: 14.4 mm

C 01 481

With normal compression 8.7:1

;

This set consists of:
A 05 026 Valve stem seal, 6 pieces
A 09 017 Sealing ring A12x16 Cu, DIN 7603, 8 pieces
A 42 112 Sealing ring A32x38 Cu, DIN 7603, 1 piece
A 46 015 Sealing ring C8x14 DIN 7603, 5 pieces
C 01 086 Sealing ring C26x32 DIN 7603 CuAs, 1 piece
C 01 207 Sealing ring for water drain 14x20x2 AL, 1 piece
C 01 256 Sealing shim for cylinder cover, 2 pieces
C 01 266 Gasket, 1 piece
C 01 299 Sealing ring for breather filter, 1 piece
C 01 490 Cylinder head gasket, 1 piece
C 01 511 Sealing ring for screw cap, 1 piece
C 01 559 Valve cover gasket, 1 piece
C 03 152 Fabric sealing ring on rear crankshaft, 1 piece
C 05 205 Sealing shim for chain tensioner, 1 piece
C 05 206 Sealing ring for chain tensioner, 1 piece
C 05 253 Valve stem seal, 6 pieces
C 09 029 Gasket for fuel pump on insulating flange, 2 pieces
C 09 032 Gasket between intermediate flange and cylinder crankcase, 1 piece
C 14 128 Manifold gasket, 1 piece
C 18 089 Gasket insert for oil filter housing, 1 piece
C 18 090 Sealing shim for oil filter housing, 1 piece
C 18 112a Sealing ring D20x24 DIN 7603 Al, 2 pieces
C 20 053 Gasket for water pump housing, 1 piece
C 20 054 Gasket insert, 1 piece
C 20 114 Gasket thermostat housing-cylinder head, 1 piece
D 01 113 Seal ring, front crankshaft, 1 piece
D 01 225a Sealing ring, 4 pieces
D 01 273 Oil pan gasket, 1 piece
D 07 080 Sealing ring A10x14 Al, 2 pieces
D 14 226a Sealing ring 16x20 DIN 7603 Al, 1 piece
D 20 061a Sealing ring 30x36 DIN 7603 Al, 2 pieces
D 20 078 Sealing ring thermostat housing, 1 piece
G 35 013 Sealing ring A24x29 DIN 7603 Al, 1 piece
G 42 078 Sealing ring A14x20 Al, 1 piece
G 46 004 Sealing ring A8x11.5 Cu, 5 pieces
C 49 035 Sealing ring for front exhaust pipe, 2 pieces

Engine gasket kit

C 00 026 €287.08

For lower compression 6.8:1

Engine gasket kit

C 00 029 €370.00

This sentence consists of:
C 01 490 Cylinder head gasket e: 8.7 cyl., 1 piece
C 01 559 Gasket for cylinder head cover, 1 piece
C 05 205 Sealing shim for chain tensioner, 1 piece
C 05 253 Sealing ring for valve, 6 pieces
A 05 026 Sealing ring for inlet valve, 6 pieces
C 20 114 Gasket for cooling water outlet connection, 1 piece
C 14 128 Seal insert, 1 piece

Cylinder head gasket kit

C 00 027 €243.91

As of engine
940 10/20 031677
941 10/20 065064
941 12/22 000288
USED WITH HYDRAULIC CLUTCH FROM ENGINE
940

Set of camshaft bearings, standard

D 01 522 €1,150.56

As of engine
940 10/20 031677
941 10/20 065064
941 12/22 000288
USED WITH HYDRAULIC CLUTCH FROM ENGINE
940

Set camshaft bearings, 0,1mm narrower

D 01 528 €390.00

As of engine
940 10/20 031677
941 10/20 065064
941 12/22 000288
USED WITH HYDRAULIC CLUTCH FROM ENGINE
940

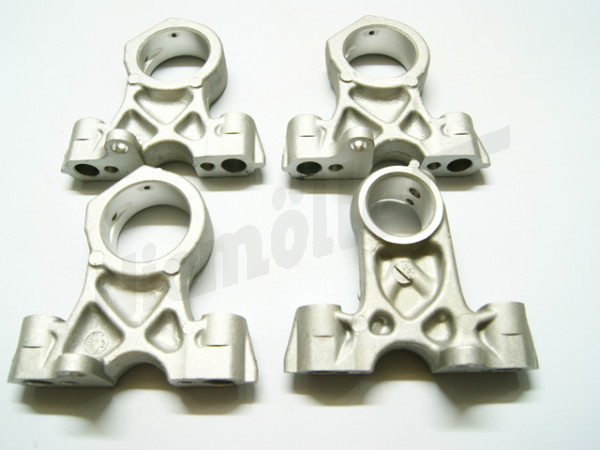

Set of camshaft bearings, 0,25mm narrowe

D 01 534 €1,082.87

Up to engine:
954 10/50,20/60 026370
954 12/52,22/62 013237
955 10/50,20/60 000804
955 12/52,22/62 000166

Cylinder head gasket, 8,7:1

C 01 490 €152.25

WITH A LOW COMPRESSION RATIO

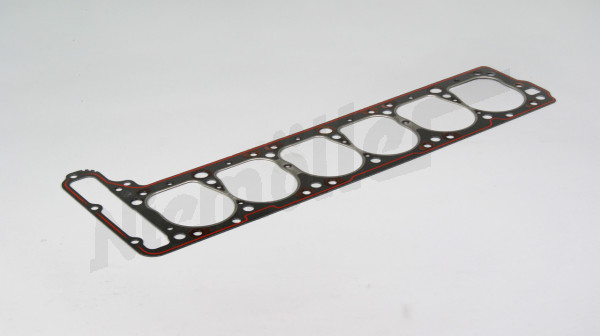

Cylinder head gasket e:6,8 Cylinder D:80mm

C 01 492 €299.00

As of engine
947 10/20 025067
947 12/22 009815
949 10/20 008470
949 12/22 002985

U-type clamp

C 01 363

Up to engine:
954 10/50,20/60 115232
954 12/52,22/62 064326
955 10/50,20/60 002842
955 12/52,22/62 000377
945,947,949,950,951 UNTIL PRODUCTION STOP
As of engine
940 10/20 031677
941 10/20 065064
941 12/22 000288
USED WITH HYDRAULIC CLUTCH FROM ENGINE
940

Oil pipe

D 01 618 €360.00

Suitable for:
Ponton: 180, 190, 219, 220, 220s
W136: 170V, 170VA, 170Vb
W186: 300, 300b, 300c, sedan + convertible
W187: 220, 220AC, 220BC
W188: 300SAC, 300SCp, 300SR
W113: 230SL, 250SL
190SL

;

Up to engine:
954 10/50,20/60 015078
954 12/52,22/62 007301
955 10/50,20/60 000414
955 12/52,22/62 000087
945,947,949,950,951 UNTIL PRODUCTION STOP

Screw cap

C 01 509 €37.00

Up to engine:
954 10/50,20/60 015078
954 12/52,22/62 007301
955 10/50,20/60 000414
955 12/52,22/62 000087
945,947,949,950,951 UNTIL PRODUCTION STOP

Sealing ring 47x65x3 for screw cap

C 01 511 €1.96

Cylinder head, compression 7.0, for engine 180940 and 180941, W111.012, 220SB

D 01 372

Valve seat ring, standard

C 01 449 €43.72

Valve seat ring, 40,3mm

C 01 450 €35.00

Water distributor

C 01 457 €74.01

Water distributor

C 01 458 €70.71

Water distributor

C 01 460 €12.13

Water distributor

C 01 459 €71.40

Locating pin for camshaft bearing 8x10

C 01 327

Stud

A 01 027 €3.21

Stud bolt (for cooling water regulator)

D 01 399a €48.28

Stud M 10x28 DIN 835-5S

C 01 336 €3.50

Sealing ring 30x36 DIN 7603 Al

D 20 061a €2.50

Valve guide exhaust 14.40mm

C 01 349 €23.50

Valve guide exhaust 14.20 mm

C 01 348 €12.75

Valve guide intake D:14.018mm

C 01 343 €20.00

Valve guide inlet D: 14.10 mm

C 01 479

Snap ring

C 01 033 €1.22

Washer

G 46 021 €0.86

Hex. nut M 8

C 32 027 €0.54

Washer

G 46 021 €0.86

Hex. socket screw M12x140

C 01 359 €5.50

Washer

D 01 612 €4.50

Hex. socket screw M12x105

C 01 365 €5.03

Washer

D 01 612 €4.50

Cylinder head cover

D 01 642 €357.25

Valve cover gasket

C 01 559 €10.00

W107	280SL
	350SL
	350SL/C
	380SL
	380SL/C
	500SL
	500SL/C

W113	230SL
	250SL
	280SL
W121	190SL
W129	300SL
W198	300SL

W186	300c
	300cCD
W189	300d
	300dCD
W198	300SL Coupe

W105	219
W120	180
	180a
	180b
	180D
W121	190
	190b
	190D

W121	190Db
	190SL
W128	220SE
	220SEAC
	220SECp
W180	220S
	220SAC
	220SCp

1 Crankcase, oil pan for 220Sb Mercedes-Benz w111 Mercedes-Benz
220Sb W111.012

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Popular variants

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Complex search queries

Pagode, Gullwing, Roadster

Sedan, Cabriolet, Coupé

Adenauer, Gullwing

Ponton, Coupe, Cabrio

Tail fin, old S-Class, Pagode

Pullman, Landaulet

Stroke 8, S-Class, Coupé

S-Class, Estate, Coupé, Sedan, T-Model

Roadster

1 Crankcase, oil pan for 220Sb Mercedes-Benz w111 Mercedes-Benz220Sb W111.012

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Popular variants

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Complex search queries

1 Crankcase, oil pan for 220Sb Mercedes-Benz w111 Mercedes-Benz
220Sb W111.012
