47 Fuel System for MB 300SEL6,3 W109.018 engine 100.981 Mercedes-Benz
300SEL6,3 W109.018

Chosen model:

Chassis: 109.018
Engine: 100.981
Change vehicle
Change module

Step 5:

Select spare part

Step 5:

Select spare part

[{"type":"rect","coords":[56,95,97,112],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/c47007-gasket","cssSelector":".product-group-13","info":"{\"ids\":\"C 47 007\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[72,29,97,40],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/g30031-spring-washer","cssSelector":".product-group-18","info":"{\"ids\":\"G 30 031\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[72,15,98,30],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/c88251g-hex-nut","cssSelector":".product-group-23","info":"{\"ids\":\"C 88 251g\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[448,143,494,178],"href":"\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/29","cssSelector":".product-group-29","info":"{\"ids\":\"D 47 022, D 47 022a\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"rect","coords":[70,246,113,282],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d47037-reinforcement-plate-front","cssSelector":".product-group-34","info":"{\"ids\":\"D 47 037\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[257,372,295,410],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d47032-plug-with-filter-and-seal","cssSelector":".product-group-39","info":"{\"ids\":\"D 47 032\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[257,357,294,373],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d47036-seal-ring","cssSelector":".product-group-43","info":"{\"ids\":\"D 47 036\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[66,285,101,299],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d33142-washer-rubber-bearing-on-body-floor","cssSelector":".product-group-53","info":"{\"ids\":\"D 33 142\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"rect","coords":[66,311,97,325],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/g29021-hex-nut","cssSelector":".product-group-62","info":"{\"ids\":\"G 29 021\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"C 32 027\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[518,220,568,257],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d47041-angle-holder-for-force-hold-off","cssSelector":".product-group-69","info":"{\"ids\":\"D 47 041\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"rect","coords":[346,67,386,87],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/c47032-sealing-ring-for-gas-cap","cssSelector":".product-group-85","info":"{\"ids\":\"C 47 032\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[162,102,215,136],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/a68032-cover","cssSelector":".product-group-91","info":"{\"ids\":\"A 68 032\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[688,13,540,13,540,77,427,96,427,125,531,125,531,154,577,154,577,123,688,123],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d47064-expansion-tank","cssSelector":".product-group-97","info":"{\"ids\":\"D 47 064\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[501,36,543,58],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d47099-fastening-clamp","cssSelector":".product-group-102","info":"{\"ids\":\"D 47 099\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"rect","coords":[600,128,634,174],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d29128-hose-sold-per-meter","cssSelector":".product-group-107","info":"{\"ids\":\"D 29 128\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[487,123,527,141],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d47101-grommet","cssSelector":".product-group-112","info":"{\"ids\":\"D 47 101\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[543,155,579,179],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d47102-rubber-sleeve","cssSelector":".product-group-117","info":"{\"ids\":\"D 47 102\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[440,76,474,93],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d47072-trim-screw","cssSelector":".product-group-120","info":"{\"ids\":\"D 47 072\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"rect","coords":[450,2,487,32],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d47073-clamp","cssSelector":".product-group-123","info":"{\"ids\":\"D 47 073\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[413,58,448,73],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d47074-fixing-clamp-2x5-din-72-571","cssSelector":".product-group-129","info":"{\"ids\":\"D 47 074\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[417,40,446,56],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/g54103-self-tapping-screw-relay-on-jacketed-pipe-bracket","cssSelector":".product-group-133","info":"{\"ids\":\"G 54 103\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[451,43,487,66],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d47071-plug-in-clamp","cssSelector":".product-group-137","info":"{\"ids\":\"D 47 071\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[595,455,518,455,518,424,539,424,539,374,595,374],"href":"\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/472","cssSelector":".product-group-472","info":"{\"ids\":\"D 09 028, D 09 028\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[615,447,631,447,631,423,674,423,674,495,615,495],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d09032-fuel-filter-element-seal-ring-included","cssSelector":".product-group-482","info":"{\"ids\":\"D 09 032\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[629,396,698,422],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/c08127-sealing-ring-to-housing-cover","cssSelector":".product-group-488","info":"{\"ids\":\"C 08 127\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"D 08 067\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[558,317,588,362],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/g49141-hexagon-head-screw-m8x75-din-931-8g","cssSelector":".product-group-492","info":"{\"ids\":\"G 49 141\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[539,356,571,373],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/g46004-sealing-ring-a-8x11-5cu","cssSelector":".product-group-496","info":"{\"ids\":\"G 46 004\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"rect","coords":[594,400,625,425],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/g32023-screw","cssSelector":".product-group-500","info":"{\"ids\":\"G 32 023\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[594,424,626,437],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/b22006-spring-washer","cssSelector":".product-group-505","info":"{\"ids\":\"B 22 006\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[539,402,539,319,472,319,472,377,526,402],"href":"\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/511","cssSelector":".product-group-511","info":"{\"ids\":\"D 47 140, D 47 141\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"rect","coords":[506,393,526,417],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/a01024-sealing-ring-a-14x18-al-din-7603","cssSelector":".product-group-520","info":"{\"ids\":\"A 01 024\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[597,355,616,382],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d08110-screw-neck","cssSelector":".product-group-524","info":"{\"ids\":\"D 08 110\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[581,361,598,386],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/a01024-sealing-ring-a-14x18-al-din-7603~2","cssSelector":".product-group-529","info":"{\"ids\":\"A 01 024\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[615,340,691,379],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d47140-fuel-hose~2","cssSelector":".product-group-534","info":"{\"ids\":\"D 47 140\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"rect","coords":[609,258,672,325],"href":"https:\/\/www.niemoeller.de\/en\/W109\/mb-300sel-w109018-motor-w100981\/B018\/470101\/d47290-fuel-hose","cssSelector":".product-group-540","info":"{\"ids\":\"D 47 290\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"}]

in stock
low stock level
currently not in stock, but available for order
no longer available

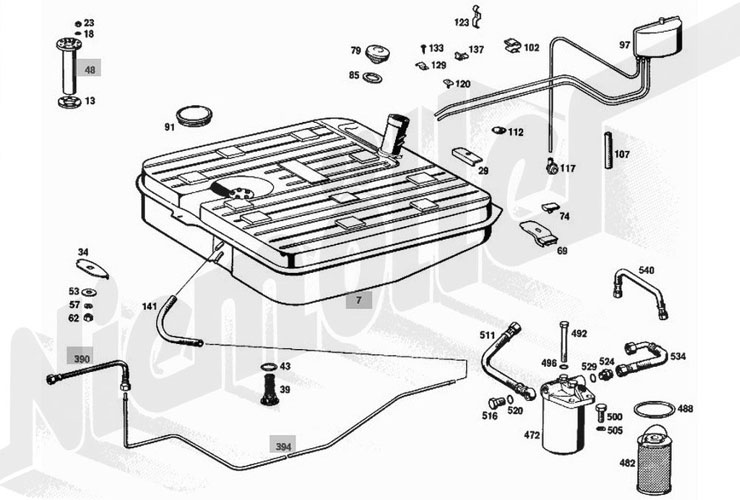

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number		D 47 013 D 47 013	Fuel tank (100 ltr.) Fuel tank (100 ltr.) 109 470 05 01 or 1094700501		€1,541.62 €1,541.62
Image number 13		C 47 007 C 47 007	Gasket Gasket 110 471 01 80 or 1104710180		€1.40 €1.40
Image number 18		G 30 031 G 30 031	Spring washer Spring washer 000 137 005 203 or 000137005203		€0.21 €0.21
Image number 23		C 88 251g C 88 251g	Hex. nut Hex. nut 000 934 005 008 or 000934005008		€0.34 €0.34
Image number 29		D 47 022	Reinforcement plate, rear 130 471 02 22 or 1304710222	€34.82		Select variant	€34.82
Image number 29		D 47 022a	Reinforcement plate rear late 130 471 02 22 or 1304710222	€4.85		Select variant	€4.85
Image number 34		D 47 037 D 47 037	Reinforcement plate front Reinforcement plate front 130 471 01 22 or 1304710122		€48.53 €48.53
Image number 39		D 47 032 D 47 032	Plug with filter and seal Plug with filter and seal 111 470 06 86 or 1114700686		€21.50 €21.50
Image number 43		D 47 036 D 47 036	Seal ring Seal ring 110 997 01 45 or 1109970145		€5.42 €5.42
Image number		D 47 030 D 47 030	Fuel sender unit Fuel sender unit 109 542 00 04 or 1095420004		€463.32 €463.32
Image number 53		D 33 142 D 33 142	Washer, rubber bearing on body-floor Washer, rubber bearing on body-floor 108 990 03 40 or 1089900340		€7.59 €7.59
Image number 62		G 29 021 C 32 027	Hex. nut M 8 Hex nut 000 934 008 013 or 000934008013		on request €0.54
	C 32 027	Replacement: Hex. nut M 8		€0.54
Image number 69		D 47 041 D 47 041	Angle Holder (for force hold off) Angle Holder (for force hold off) 112 470 07 81 or 1124700781		on request on request
Image number		G 42 088 G 42 088	Hexagon head screw 6x15 DIN 933 Hexagon head screw 6x15 DIN 933 304 017 006 016 or 304017006016		€2.19 €2.19
Image number		G 22 020 G 22 020	Lock washer Lock washer 912 004 006 102 or 912004006102		€0.30 €0.30
Image number		G 42 103 G 42 103	Washer, hydraulic unit on holder Washer, hydraulic unit on holder 009 021 006 208 or 009021006208		€1.12 €1.12
Image number		F 75 058 F 75 058	Nut holder M6 Nut holder M6 000 990 99 91 or 0009909991		€13.21 €13.21
Image number		D 47 049 D 47 049	Filler cap Filler cap 124 470 00 05 or 1244700005		€73.09 €73.09
Image number 85		C 47 032 C 47 032	Sealing ring for gas cap Sealing ring for gas cap 110 471 02 80 or 1104710280		€2.20 €2.20
Image number		D 47 062 D 47 062	Sealing ring Sealing ring 115 471 00 79 or 1154710079		€24.54 €24.54
Image number 91		A 68 032 A 68 032	Cover Cover 110 987 01 45 or 1109870145		€11.03 €11.03
Image number 97		D 47 064 D 47 064	Expansion tank Expansion tank 115 471 02 68 or 1154710268		€125.00 €125.00
Image number 102		D 47 099 D 47 099	Fastening clamp Fastening clamp 003 988 81 78 or 0039888178		on request on request
Image number 107		D 29 128 D 29 128	Hose - sold per meter Hose - sold per meter 201 476 11 26 or 2014761126		€23.29 €23.29
Image number 112		D 47 101 D 47 101	Grommet Grommet 111 997 22 81 or 1119972281		€4.64 €4.64
Image number 117		D 47 102 D 47 102	Rubber sleeve Rubber sleeve 108 471 00 81 or 1084710081		€5.48 €5.48
Image number 120		D 47 072 D 47 072	Trim screw Trim screw 000 990 35 33 or 0009903533		on request on request
Image number 123		D 47 073 D 47 073	Clamp Clamp 110 995 03 32 or 1109950332		€8.15 €8.15
Image number 0		B 07 032 B 07 032	Lock washer Lock washer 912 004 004 102 or 912004004102		€0.72 €0.72
Image number 0		G 47 089 G 47 089	Hex. nut Hex. nut 000 934 004 006 or 000934004006		€1.00 €1.00
Image number 129		D 47 074 D 47 074	Fixing clamp 2x5 DIN 72 571 Fixing clamp 2x5 DIN 72 571 072 571 002 015 or 072571002015		€2.53 €2.53
Image number 133		G 54 103 G 54 103	Self-tapping screw, relay on jacketed pipe bracket Self-tapping screw, relay on jacketed pipe bracket 000 000 002 062 or 000000002062		€5.99 €5.99
Image number 137		D 47 071 D 47 071	Plug in clamp Plug in clamp 002 988 46 78 or 0029884678		on request on request
Image number		D 67 136 D 67 136	Fuel hose 8mm - sold per meter Fuel hose 8mm - sold per meter 114 997 18 82 or 1149971882		€8.50 €8.50
Image number		D 08 582 D 08 582	Hose clamp 13mm Hose clamp 13mm 001 997 69 90 or 0019976990		€3.87 €3.87
Image number 472		D 09 028	Fuel filter, Bosch 001 477 30 01 or 0014773001	on request		Select variant	on request
Image number 472		D 09 028	Fuel filter, Bosch 001 477 10 01 or 0014771001	on request		Select variant	on request
Image number 482		D 09 032 D 09 032	Fuel filter element seal ring included Fuel filter element seal ring included 000 477 64 15 or 0004776415		€6.20 €6.20
Image number 488		C 08 127 D 08 067	Sealing ring Sealing ring to housing cover 100 997 00 40 or 1009970040		on request €0.50
	D 08 067	Replacement: Sealing ring		€0.50
Image number 492		G 49 141 G 49 141	Hexagon head screw M8x75 DIN 931-8G Hexagon head screw M8x75 DIN 931-8G 000 931 008 251 or 000931008251		€2.20 €2.20
Image number 496		G 46 004 G 46 004	Sealing ring A 8x11,5Cu Sealing ring A 8x11,5Cu 007 603 008 109 or 007603008109		€1.52 €1.52
Image number 500		G 32 023 G 32 023	Screw Screw 000 933 010 105 or 000933010105		€2.39 €2.39
Image number 505		B 22 006 B 22 006	Spring washer Spring washer 000 137 010 201 or 000137010201		€0.84 €0.84
Image number 511		D 47 140	Fuel hose 109 476 03 26 or 1094760326	€54.10		Select variant	€54.10
Image number 511		D 47 141	Fuel hose 109 476 09 26 or 1094760926	€17.50		Select variant	€17.50
Image number 520		A 01 024 A 01 024	Sealing ring A 14x18 Al DIN 7603 Sealing ring A 14x18 Al DIN 7603 007 603 014 100 or 007603014100		€0.35 €0.35
Image number 524		D 08 110 D 08 110	Screw neck Screw neck 915 013 008 002 or 915013008002		€4.83 €4.83
Image number 529		A 01 024 A 01 024	Sealing ring A 14x18 Al DIN 7603 Sealing ring A 14x18 Al DIN 7603 007 603 014 100 or 007603014100		€0.35 €0.35
Image number 534		D 47 140 D 47 140	Fuel hose Fuel hose 100 476 13 26 or 1004761326		€54.10 €54.10
Image number 540		D 47 290 D 47 290	Fuel hose Fuel hose 109 476 01 26 or 1094760126		on request on request
Image number		C 47 078 C 47 078	Fuel hose Fuel hose 128 476 07 26 or 1284760726		€11.00 €11.00

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Fuel tank (100 ltr.)

D 47 013 €1,541.62

Gasket

C 47 007 €1.40

Spring washer

G 30 031 €0.21

Hex. nut

C 88 251g €0.34

Reinforcement plate, rear

D 47 022 €34.82

Reinforcement plate rear late

D 47 022a €4.85

Reinforcement plate front

D 47 037 €48.53

Plug with filter and seal

D 47 032 €21.50

Seal ring

D 47 036 €5.42

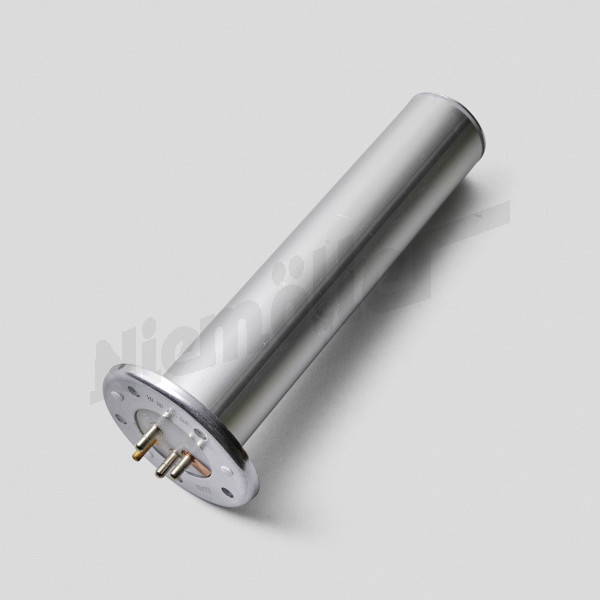

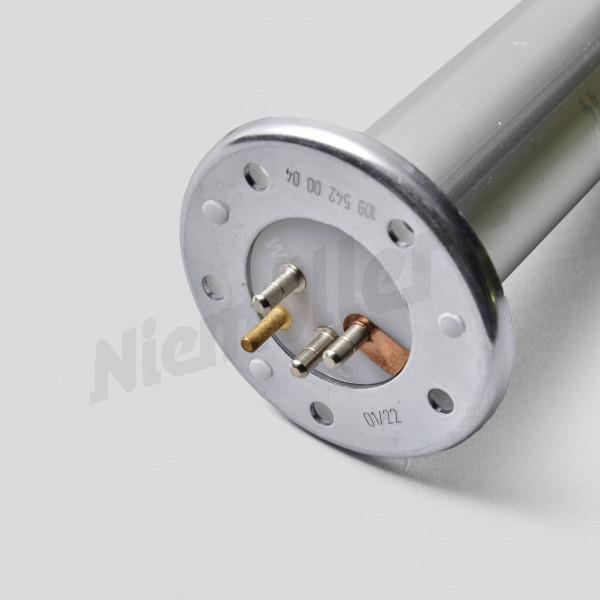

Fuel sender unit

D 47 030 €463.32

Washer, rubber bearing on body-floor

D 33 142 €7.59

Hex nut

G 29 021

Replacement item available

Angle Holder (for force hold off)

D 47 041

Hexagon head screw 6x15 DIN 933

G 42 088 €2.19

Lock washer

G 22 020 €0.30

Washer, hydraulic unit on holder

G 42 103 €1.12

Nut holder M6

F 75 058 €13.21

Filler cap

D 47 049 €73.09

Sealing ring for gas cap

C 47 032 €2.20

Sealing ring

D 47 062 €24.54

Cover

A 68 032 €11.03

Expansion tank

D 47 064 €125.00

Fastening clamp

D 47 099

Hose - sold per meter

D 29 128 €23.29

Grommet

D 47 101 €4.64

Rubber sleeve

D 47 102 €5.48

Trim screw

D 47 072

Clamp

D 47 073 €8.15

Lock washer

B 07 032 €0.72

Hex. nut

G 47 089 €1.00

Fixing clamp 2x5 DIN 72 571

D 47 074 €2.53

Self-tapping screw, relay on jacketed pipe bracket

G 54 103 €5.99

Plug in clamp

D 47 071

Fuel hose 8mm - sold per meter

D 67 136 €8.50

Hose clamp 13mm

D 08 582 €3.87

Fuel filter, Bosch

D 09 028

Fuel filter element seal ring included

D 09 032 €6.20

Sealing ring to housing cover

C 08 127

Replacement item available

Hexagon head screw M8x75 DIN 931-8G

G 49 141 €2.20

Sealing ring A 8x11,5Cu

G 46 004 €1.52

Screw

G 32 023 €2.39

Spring washer

B 22 006 €0.84

Fuel hose

D 47 140 €54.10

Fuel hose

D 47 141 €17.50

Sealing ring A 14x18 Al DIN 7603

A 01 024 €0.35

Screw neck

D 08 110 €4.83

Sealing ring A 14x18 Al DIN 7603

A 01 024 €0.35

Fuel hose

D 47 140 €54.10

Fuel hose

D 47 290

Fuel hose

C 47 078 €11.00

ORDER BY THE METER

Hose - sold per meter

D 29 128 €23.29

Up to ident. no.: 004506

Fuel hose

D 47 140 €54.10

As of ident. no.: 004507

Fuel hose

D 47 141 €17.50

018,20/60,22/62 UP TO CHASSIS 005649

Screw neck

D 08 110 €4.83

018,20/60,22/62 FROM CHASSIS 005650

Fuel hose

D 47 140 €54.10

Up to ident. no.: 004506

Fuel hose

D 47 290

As of ident. no.: 004507

Fuel hose

C 47 078 €11.00
