91 Front Seats for MB 500SL W107.046 engine 117.964 80-85 Mercedes-Benz
500SL W107.046

Chosen model:

Chassis: 107.046
Engine: 117.964
Change vehicle
Change module

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

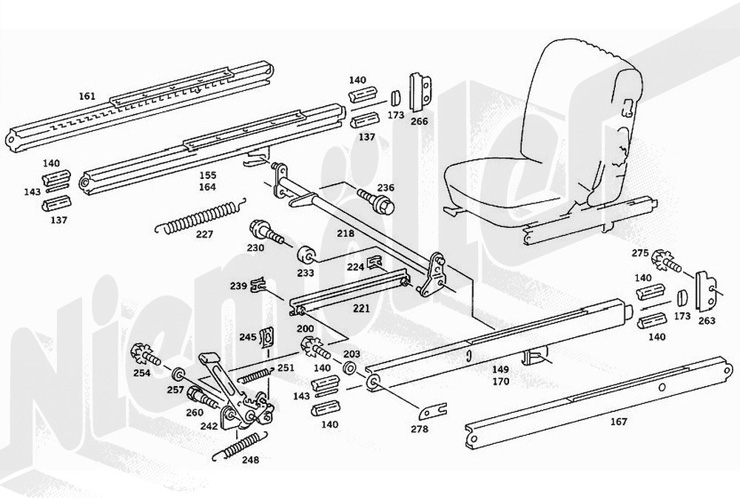

Pic.	Designation		Price/unit excl. tax.
Image number 137	F 91 559 F 91 559	Sliding jaw Sliding jaw 107 919 07 24 or 1079190724		€8.56 €8.56
Image number 140	F 91 561 F 91 561	Sliding jaw Driver seat Sliding jaw Driver seat 107 919 04 24 or 1079190424		€2.25 €2.25
Image number 143	F 91 519 F 91 519	Foam rubber profile 4mm - sold per meter Foam rubber profile 4mm - sold per meter 001 987 09 33 or 0019870933		€5.50 €5.50
Image number 149	F 91 536 F 91 536	Left rail, left seat Left rail, left seat 107 910 41 27 or 1079104127		on request on request
Image number 155	F 91 541 F 91 541	Rail right, left seat Rail right, left seat 107 910 43 27 or 1079104327		on request on request
Image number 161	F 91 528 F 91 528	Rail left, right seat Rail left, right seat 107 910 13 27 or 1079101327		€46.14 €46.14
Image number 164	F 91 529 F 91 529	Rail left, right seat Rail left, right seat 107 910 44 27 or 1079104427		€71.47 €71.47
Image number 167	F 91 530 F 91 530	Rail right, right seat Rail right, right seat 107 910 14 27 or 1079101427		€42.03 €42.03
Image number 170	F 91 531 F 91 531	Rail right, right seat Rail right, right seat 107 910 42 27 or 1079104227		€65.16 €65.16
Image number 173	F 91 560 F 91 560	Sliding jaw Guide rail Sliding jaw Guide rail 107 919 08 24 or 1079190824		€40.88 €40.88
Image number 200	F 91 572 F 91 572	Screw Screw 107 990 03 22 or 1079900322		€51.18 €51.18
Image number 206	F 91 557 F 91 557	Cover left seat left seat right seat Cover left seat left seat right seat 107 919 01 20 or 1079190120		on request on request
Image number 218	F 91 547	Connection left 107 910 07 96 or 1079100796	on request		Select variant	on request
Image number 218	F 91 546	Connection right 107 910 06 96 or 1079100696	€88.23		Select variant	€88.23
Image number 221	F 91 545 F 91 545	Connection, connecting rod Connection, connecting rod 107 910 00 96 or 1079100096		€16.79 €16.79
Image number 224	D 75 096 D 75 096	Fuse, trunk lid support on bearing Fuse, trunk lid support on bearing 912 002 008 000 or 912002008000		on request on request
Image number 227	F 91 580 F 91 580	Spring, connecting rod Spring, connecting rod 107 993 09 10 or 1079930910		on request on request
Image number 230	F 91 570 F 91 570	Screw, side member left Side member right Screw, side member left Side member right 107 990 06 01 or 1079900601		€4.44 €4.44
Image number 233	F 91 577 F 91 577	Bushing, side member left Side member right Bushing, side member left Side member right 107 992 03 01 or 1079920301		€11.12 €11.12
Image number 236	F 91 569 F 91 569	Screw, tunnel Screw, tunnel 107 990 03 01 or 1079900301		€37.91 €37.91
Image number 239	D 75 096 D 75 096	Fuse, trunk lid support on bearing Fuse, trunk lid support on bearing 912 002 008 000 or 912002008000		on request on request
Image number 242	F 91 542	Seat verst. Seat height adjustment left 107 910 03 36 or 1079100336	on request		Select variant	on request
Image number 242	F 91 543	Seat verst. Seat height adjustment right 107 910 04 36 or 1079100436	on request		Select variant	on request
Image number 248	F 91 579 F 91 579	Spring, locking device Spring, locking device 107 993 07 10 or 1079930710		€25.42 €25.42
Image number 251	F 91 578 F 91 578	Spring, handles Spring, handles 107 993 08 10 or 1079930810		on request on request
Image number 254	F 91 571 F 91 571	Screw Screw 107 990 02 22 or 1079900222		€2.29 €2.29
Image number 260	F 91 568 F 91 568	Screw, seat height adjustment Screw, seat height adjustment 107 990 04 01 or 1079900401		on request on request
Image number 263	F 91 563 F 91 563	Guidance hi. left. left. Seat hi. right. Guidance hi. left. left. Seat hi. right. 107 919 02 25 or 1079190225		on request on request
Image number 266	F 91 562 F 91 562	Guide there. right. left. Seat hi. right. Guide there. right. left. Seat hi. right. 107 919 01 25 or 1079190125		on request on request
Image number 275	G 82 283 G 82 283	Schruabe motor on base plate Schruabe motor on base plate 914 114 006 007 or 914114006007		€7.20 €7.20
Image number 278	F 91 567 F 91 567	Driver's underlay on Längstr./Tun. Driver's underlay on Längstr./Tun. 107 919 00 97 or 1079190097		on request on request

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Sliding jaw

F 91 559 €8.56

Sliding jaw Driver seat

F 91 561 €2.25

Foam rubber profile 4mm - sold per meter

F 91 519 €5.50

Left rail, left seat

F 91 536

Rail right, left seat

F 91 541

Rail left, right seat

F 91 528 €46.14

Rail left, right seat

F 91 529 €71.47

Rail right, right seat

F 91 530 €42.03

Rail right, right seat

F 91 531 €65.16

Sliding jaw Guide rail

F 91 560 €40.88

Screw

F 91 572 €51.18

Cover left seat left seat right seat

F 91 557

Connection left

F 91 547

Connection right

F 91 546 €88.23

Connection, connecting rod

F 91 545 €16.79

Fuse, trunk lid support on bearing

D 75 096

Spring, connecting rod

F 91 580

Screw, side member left Side member right

F 91 570 €4.44

Bushing, side member left Side member right

F 91 577 €11.12

Screw, tunnel

F 91 569 €37.91

Fuse, trunk lid support on bearing

D 75 096

Seat verst. Seat height adjustment left

F 91 542

Seat verst. Seat height adjustment right

F 91 543

Spring, locking device

F 91 579 €25.42

Spring, handles

F 91 578

Screw

F 91 571 €2.29

Screw, seat height adjustment

F 91 568

Guidance hi. left. left. Seat hi. right.

F 91 563

Guide there. right. left. Seat hi. right.

F 91 562

Schruabe motor on base plate

G 82 283 €7.20

Driver's underlay on Längstr./Tun.

F 91 567
