29 Pedal Assembly for MB 280SL W107.042 with engine 110.992 Mercedes-Benz
280SL W107.042

Chosen model:

Chassis: 107.042
Engine: 110.992
Change vehicle
Change module

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

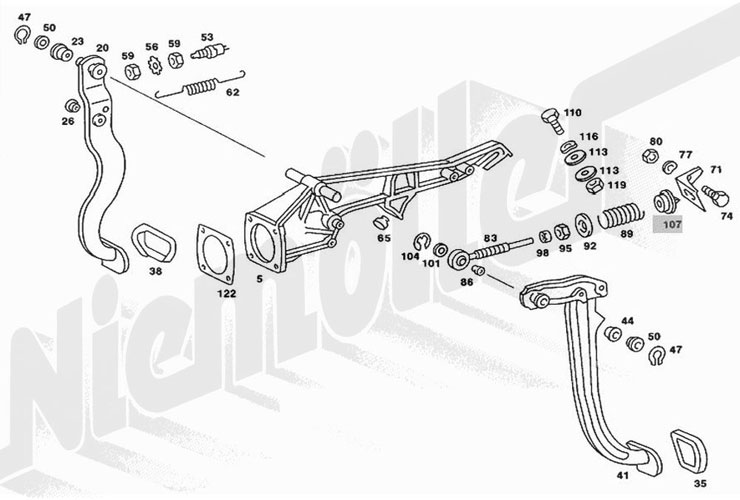

Pic.	Designation		Price/unit excl. tax.
Image number 20	F 29 016	Brake pedal 107 290 20 18 or 1072902018	on request		Select variant	on request
Image number 20	F 29 018	Brake pedal 107 290 22 18 or 1072902218	on request			on request
Image number 20	F 29 020	Brake pedal R.L. 116 290 04 18 or 1162900418	on request			on request
Image number 20	F 29 022	Brake pedal R.L. 107 290 24 18 or 1072902418	on request			on request
Image number 23	D 29 041 D 29 041	Bushing Bushing 124 292 00 50 or 1242920050		€1.59 €1.59
Image number 26	D 29 053	Bushing 110 292 01 50 or 1102920150	€3.87		Select variant	€3.87
Image number 26	F 29 023	Bushing 126 292 00 50 or 1262920050	€2.25		Select variant	€2.25
Image number 35	D 29 039a D 29 039a	Rubber pad for clutch / brake pedal Rubber pad for clutch / brake pedal 107 291 01 82 or 1072910182		€3.00 €3.00
Image number 38	F 29 024 F 29 024	Pedal cover Pedal cover 123 291 00 82 or 1232910082		€5.50 €5.50
Image number 41	F 29 009	Clutch pedal 107 290 22 16 or 1072902216	on request		Select variant	on request
Image number 41	F 29 012	Clutch pedal R.L. 107 290 24 16 or 1072902416	on request		Select variant	on request
Image number 44	D 29 041 D 29 041	Bushing Bushing 124 292 00 50 or 1242920050		€1.59 €1.59
Image number 47	F 29 043	Safety catch 000 994 11 51 or 0009941151	€3.33		Select variant	€3.33
Image number 47	F 29 043	Safety catch 000 994 11 51 or 0009941151	€3.33			€3.33
Image number 47	A 42 029	Seegering ring for brake shoe a. Aufh.bolz. 007 994 20 41 or 0079942041	€1.60			€1.60
Image number 47	A 42 029	Seegering ring for brake shoe a. Aufh.bolz. 007 994 20 41 or 0079942041	€1.60			€1.60
Image number 50	F 29 047	Washer 115 291 00 76 or 1152910076	€1.64		Select variant	€1.64
Image number 50	F 29 047	Washer 115 291 00 76 or 1152910076	€1.64		Select variant	€1.64
Image number 53	D 54 798 D 54 798	Brake light switch Brake light switch 000 545 35 09 or 0005453509		€28.00 €28.00
Image number 59	D 54 802 D 54 802	Nut, brake light switch on pedal system Nut, brake light switch on pedal system 000 990 92 51 or 0009909251		€43.45 €43.45
Image number 62	C 29 114 C 29 114	Spring Spring 107 993 04 10 or 1079930410		€46.31 €46.31
Image number 65	F 29 045 F 29 045	Snubber Snubber 107 291 00 86 or 1072910086		€4.17 €4.17
Image number 71	F 29 049 F 29 049	Holder, over-centre spring Holder, over-centre spring 115 291 05 40 or 1152910540		on request on request
Image number 77	G 30 102 G 30 102	Spring washer Spring washer 000 137 006 204 or 000137006204		€0.72 €0.72
Image number 80	G 42 104 G 42 104	Nut, hydraulic unit on holder Nut, hydraulic unit on holder 304 032 006 008 or 304032006008		€14.34 €14.34
Image number 83	D 29 067	Pressure rod 115 290 13 39 or 1152901339	on request		Select variant	on request
Image number 83	F 29 052	Pressure rod 107 290 01 39 or 1072900139	€6.04		Select variant	€6.04
Image number 86	D 29 070 D 29 070	Bearing race Bearing race 110 291 07 50 or 1102910750		€18.39 €18.39
Image number 89	F 29 054 F 29 054	Spring Spring 107 993 05 01 or 1079930501		€25.00 €25.00
Image number 92	D 29 073 D 29 073	Spring retainer Spring retainer 111 291 04 91 or 1112910491		€5.79 €5.79
Image number 98	D 29 072 D 29 072	Locking nut Locking nut 007 967 010 001 or 007967010001		on request on request
Image number 104	C 05 033 C 05 033	Lock washer for threaded bolt Lock washer for threaded bolt 006 799 006 003 or 006799006003		€0.84 €0.84
Image number 110	D 20 079 D 20 079	Hex screw 6x22 Hex screw 6x22 000 933 006 123 or 000933006123		€3.59 €3.59
Image number 113	G 42 103 G 42 103	Washer, hydraulic unit on holder Washer, hydraulic unit on holder 009 021 006 208 or 009021006208		€1.12 €1.12
Image number 116	G 30 102 G 30 102	Spring washer Spring washer 000 137 006 204 or 000137006204		€0.72 €0.72
Image number 119	G 42 104 G 42 104	Nut, hydraulic unit on holder Nut, hydraulic unit on holder 304 032 006 008 or 304032006008		€14.34 €14.34
Image number 122	F 29 057 F 29 057	Gasket Gasket 115 431 01 80 or 1154310180		€6.04 €6.04
