54 Electrical Equipment and Instruments for MB 280SL W107.042 with engine 110.990 Mercedes-Benz
280SL W107.042

Chosen model:

Chassis: 107.042
Engine: 110.990
Change vehicle
Change module

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

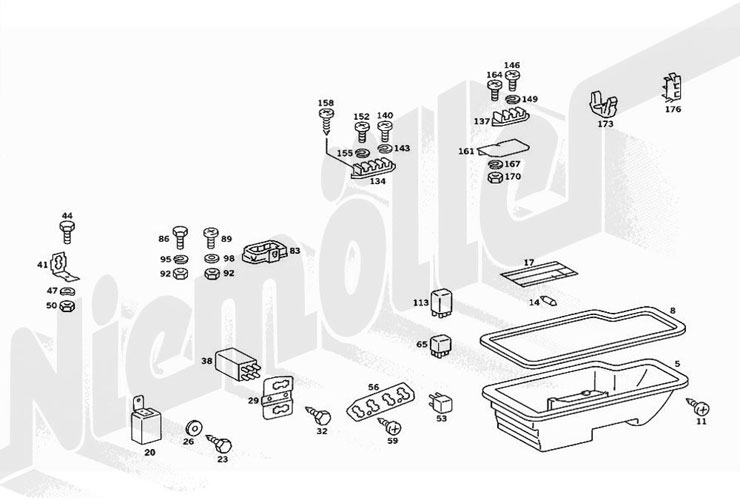

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 5		F 54 717 F 54 717	Fuse box Fuse box 107 540 03 50 or 1075400350		on request on request
Image number 8		F 54 718 F 54 718	Gasket Gasket 107 545 00 80 or 1075450080		on request on request
Image number 11		G 54 467	Sheet-metal screw 000 000 000 454 or 000000000454	€1.35		Select variant	€1.35
Image number 11		G 54 467	Sheet-metal screw 000 000 000 454 or 000000000454	€1.35		Select variant	€1.35
Image number 14		D 67 251	Fuse insert 8 Ampere 072 581 008 101 or 072581008101	on request		Select variant	on request
Image number 14		D 67 361	Fuse 16A 000 545 83 34 or 0005458334	€1.71			€1.71
Image number 14		C 54 166	Fuse, 25A 072 581 025 100 or 072581025100	€3.00			€3.00
Image number 17		F 54 728	Bez. stripes 107 545 05 00 or 1075450500	on request		Select variant	on request
Image number 17		F 54 729	Bez. stripes 107 545 16 00 or 1075451600	on request			on request
Image number 17		F 54 730	Bez. stripes 107 545 20 00 or 1075452000	on request			on request
Image number 17		F 54 731	Bez. stripes 107 545 26 00 or 1075452600	on request			on request
Image number 20		D 67 353 D 67 353	Switch (optional) Switch (optional) 107 820 00 10 or 1078200010		€119.95 €119.95
Image number 23		G 30 032 G 30 032	Sheet metal screw 4,8x13 Sheet metal screw 4,8x13 007 976 004 205 or 007976004205		€1.86 €1.86
Image number 26		G 88 123 G 88 123	Washer 5.3 DIN 9021 Washer 5.3 DIN 9021 009 021 005 205 or 009021005205		€1.05 €1.05
Image number 29		F 54 788 F 54 788	Mounting support Mounting support 107 545 06 40 or 1075450640		on request on request
Image number 32		G 30 032 G 30 032	Sheet metal screw 4,8x13 Sheet metal screw 4,8x13 007 976 004 205 or 007976004205		€1.86 €1.86
Image number 38		F 82 019	Pulse generator 115 821 00 63 or 1158210063	€143.68		Select variant	€143.68
Image number 38		F 82 220	Pulse generator, windscreen wiper system 123 821 00 63 or 1238210063	€65.30			€65.30
Image number 38		F 82 380	Pulse generator 000 821 08 63 or 0008210863	on request			on request
Image number 41		F 54 820 F 54 820	Retarding relay holder R.L. Retarding relay holder R.L. 107 545 46 40 or 1075454640		on request on request
Image number 47		G 30 031 G 30 031	Spring washer Spring washer 000 137 005 203 or 000137005203		€0.21 €0.21
Image number 50		C 88 251g C 88 251g	Hex. nut Hex. nut 000 934 005 008 or 000934005008		€0.34 €0.34
Image number 53		F 82 461 F 82 461	Relay Relay 000 821 30 47 or 0008213047		€131.86 €131.86
Image number 56		F 54 719 F 54 719	Mounting support Mounting support 107 545 04 40 or 1075450440		€3.24 €3.24
Image number 59		G 54 467 G 54 467	Sheet-metal screw Sheet-metal screw 000 000 000 454 or 000000000454		€1.35 €1.35
Image number 65		D 58 060	Relay - 5-pole 001 542 02 19 or 0015420219	€114.54		Select variant	€114.54
Image number 65		F 82 182	Relay, electric window opener 001 542 22 19 or 0015422219	on request			on request
Image number 65		D 58 060a	Relay - 5-pole reproduction 001 542 02 19 or 0015420219	€15.00			€15.00
Image number 83		F 54 821 F 54 821	Fuel pump relay holder Fuel pump relay holder 123 545 43 40 or 1235454340		€3.87 €3.87
Image number 86		G 54 095 G 54 095	Screw, holder on wheel arch Screw, holder on wheel arch 304 017 005 011 or 304017005011		€2.61 €2.61
Image number 89		G 68 335 G 68 335	Screw Holder on loading floor Screw Holder on loading floor 007 985 005 504 or 007985005504		€1.98 €1.98
Image number 95		G 46 040 G 46 040	Spring washer Spring washer 912 004 005 100 or 912004005100		on request on request
Image number 98		C 88 251d C 88 251d	Washer Washer 000 433 005 304 or 000433005304		€0.20 €0.20
Image number 113		F 54 348	Fuel pump cut-off relay 001 545 07 05 or 0015450705	on request		Select variant	on request
Image number 113		F 54 724	Relay, fuel pump shutdown 001 545 43 05 or 0015454305	€237.97		Select variant	€237.97
Image number 134		F 82 470 F 82 470	Leit. Connector engine compartment Leit. Connector engine compartment 001 546 09 41 or 0015460941		on request on request
Image number 137		D 01 119 D 01 119	Cable connector Cable connector 000 546 96 41 or 0005469641		€19.42 €19.42
Image number 140		G 54 124 G 54 124	Oval head screw 4x8 DIN 7985 Oval head screw 4x8 DIN 7985 007 985 004 107 or 007985004107		€2.00 €2.00
Image number 143		B 07 032 B 07 032	Lock washer Lock washer 912 004 004 102 or 912004004102		€0.72 €0.72
Image number 146		G 54 080 G 47 021	Lens head screw Screw, 5x10 DIN 7985 007 985 005 157 or 007985005157		on request €2.50
	G 47 021	Replacement: Lens head screw		€2.50
Image number 149		G 46 040 G 46 040	Spring washer Spring washer 912 004 005 100 or 912004005100		on request on request
Image number 155		G 22 020 G 22 020	Lock washer Lock washer 912 004 006 102 or 912004006102		€0.30 €0.30
Image number 158		G 54 075 G 54 075	Self-tapping screw, conductive connector to holder Self-tapping screw, conductive connector to holder 007 981 004 325 or 007981004325		€22.86 €22.86
Image number 161		F 54 765 F 54 765	Cable connector holder R.L. Cable connector holder R.L. 107 546 00 43 or 1075460043		on request on request
Image number 164		G 30 099 G 30 099	Oval head screw AM 4x15 DIN 85-5S Oval head screw AM 4x15 DIN 85-5S 007 985 004 179 or 007985004179		on request on request
Image number 167		B 07 032 B 07 032	Lock washer Lock washer 912 004 004 102 or 912004004102		€0.72 €0.72
Image number 170		G 47 089 G 47 089	Hex. nut Hex. nut 000 934 004 006 or 000934004006		€1.00 €1.00
Image number 173		F 54 763 F 54 763	Cable connector Cable connector 123 821 00 41 or 1238210041		€18.99 €18.99
Image number 176		G 54 591 G 54 591	Luster terminal Double pole Luster terminal Double pole 000 540 02 69 or 0005400269		€10.30 €10.30

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Fuse box

F 54 717

Gasket

F 54 718

Sheet-metal screw

G 54 467 €1.35

Fuse insert 8 Ampere

D 67 251

Replacement item available

Fuse 16A

D 67 361 €1.71

Fuse, 25A

C 54 166 €3.00

Bez. stripes

F 54 728

Bez. stripes

F 54 729

Bez. stripes

F 54 730

Bez. stripes

F 54 731

Switch (optional)

D 67 353 €119.95

Sheet metal screw 4,8x13

G 30 032 €1.86

Washer 5.3 DIN 9021

G 88 123 €1.05

Mounting support

F 54 788

Sheet metal screw 4,8x13

G 30 032 €1.86

Pulse generator

F 82 019 €143.68

Pulse generator, windscreen wiper system

F 82 220 €65.30

Pulse generator

F 82 380

Retarding relay holder R.L.

F 54 820

Spring washer

G 30 031 €0.21

Hex. nut

C 88 251g €0.34

Relay

F 82 461 €131.86

Mounting support

F 54 719 €3.24

Sheet-metal screw

G 54 467 €1.35

Relay - 5-pole

D 58 060 €114.54

Relay, electric window opener

F 82 182

Replacement item available

Relay - 5-pole reproduction

D 58 060a €15.00

Fuel pump relay holder

F 54 821 €3.87

Screw, holder on wheel arch

G 54 095 €2.61

Screw Holder on loading floor

G 68 335 €1.98

Spring washer

G 46 040

Washer

C 88 251d €0.20

Fuel pump cut-off relay

F 54 348

Relay, fuel pump shutdown

F 54 724 €237.97

Leit. Connector engine compartment

F 82 470

Cable connector

D 01 119 €19.42

Oval head screw 4x8 DIN 7985

G 54 124 €2.00

Lock washer

B 07 032 €0.72

Screw, 5x10 DIN 7985

G 54 080

Replacement item available

Spring washer

G 46 040

Lock washer

G 22 020 €0.30

Self-tapping screw, conductive connector to holder

G 54 075 €22.86

Cable connector holder R.L.

F 54 765

Oval head screw AM 4x15 DIN 85-5S

G 30 099

Lock washer

B 07 032 €0.72

Hex. nut

G 47 089 €1.00

Cable connector

F 54 763 €18.99

Luster terminal Double pole

G 54 591 €10.30

Up to ident. no.:
022 008365 EXCEPT FOR

Bez. stripes

F 54 728

Up to ident. no.:
022 008365 EXCEPT FOR

Bez. stripes

F 54 729

Up to ident. no.:
022 008365 EXCEPT FOR

Bez. stripes

F 54 730

As of ident. no.
022 008366 ALSO INSTALLED ON

Bez. stripes

F 54 731

Up to ident. no.:
042 011568 EXCEPT FOR

Pulse generator

F 82 019 €143.68

As of ident. no.
042 011569 ALSO INSTALLED ON

Pulse generator, windscreen wiper system

F 82 220 €65.30

As of ident. no.
042 011569 ALSO INSTALLED ON

Pulse generator

F 82 380

Right-hand-drive;

As of ident. no.
042 011569 ALSO INSTALLED ON

Retarding relay holder R.L.

F 54 820

Right-hand-drive;

As of ident. no.
042 011569 ALSO INSTALLED ON

Spring washer

G 30 031 €0.21

Right-hand-drive;

As of ident. no.
042 011569 ALSO INSTALLED ON

Hex. nut

C 88 251g €0.34

As of ident. no.
042 011569 ALSO INSTALLED ON

Relay

F 82 461 €131.86

Left-hand-drive;

As of ident. no.
042 011569 ALSO INSTALLED ON

Mounting support

F 54 719 €3.24

Left-hand-drive;

As of ident. no.
042

Sheet-metal screw

G 54 467 €1.35

As of ident. no.
042

Relay - 5-pole

D 58 060 €114.54

As of ident. no.
042

Relay, electric window opener

F 82 182

Replacement item available

As of ident. no.
042

Fuel pump relay holder

F 54 821 €3.87

Left-hand-drive;

Up to ident. no.:
022 008365 EXCEPT FOR

Screw, holder on wheel arch

G 54 095 €2.61

Right-hand-drive;

Up to ident. no.:
022 008365 EXCEPT FOR

Screw Holder on loading floor

G 68 335 €1.98

Left-hand-drive;

As of ident. no.
042 10/50,12/52 014200
042 20/60,22/62 014201
045 10/50,12/52 018609
045 20/60,22/62 018551
046 10/50,12/52 002125
046 20/60,22/62 002118

Spring washer

G 46 040

Right-hand-drive;

NO LONGER AVAILABLE

Washer

C 88 251d €0.20

FROM CHASSIS NEW EQUIPMENT 9/84
A 016567 NOT FOR AUSTRALIA,JAPAN,SWEDEN,SWITZERLAND

Fuel pump cut-off relay

F 54 348

As of ident. no.
023 008931
024 004360
043 010970
044 015352
Up to ident. no.:
022 004113 ALSO INSTALLED ON 004115,004130
023 011970 ALSO INSTALLED ON 011972,011974,011975,011978
024 019071 ALSO INSTALLED ON

Relay, fuel pump shutdown

F 54 724 €237.97

Left-hand-drive;

As of ident. no.
022 004114 EXCEPT FOR 004115,004130
023 011971 EXCEPT FOR 011972,011974,011975,011978
024 019072 EXCEPT FOR

Leit. Connector engine compartment

F 82 470

As of ident. no.
022 008366 ALSO INSTALLED ON

Cable connector

D 01 119 €19.42

Left-hand-drive

Self-tapping screw, conductive connector to holder

G 54 075 €22.86

Right-hand-drive;

As of ident. no.
042 011569 ALSO INSTALLED ON

Cable connector holder R.L.

F 54 765

Right-hand-drive

Oval head screw AM 4x15 DIN 85-5S

G 30 099

Right-hand-drive

Lock washer

B 07 032 €0.72

Right-hand-drive

Hex. nut

G 47 089 €1.00

As of ident. no.
042

Cable connector

F 54 763 €18.99

Left-hand-drive;

As of ident. no.
023

Luster terminal Double pole

G 54 591 €10.30

Fuse box

F 54 717

Gasket

F 54 718

Sheet-metal screw

G 54 467 €1.35

Fuse insert 8 Ampere

D 67 251

Replacement item available

Fuse 16A

D 67 361 €1.71

Fuse, 25A

C 54 166 €3.00

Switch (optional)

D 67 353 €119.95

Sheet metal screw 4,8x13

G 30 032 €1.86

Washer 5.3 DIN 9021

G 88 123 €1.05

Mounting support

F 54 788

Sheet metal screw 4,8x13

G 30 032 €1.86

Relay - 5-pole reproduction

D 58 060a €15.00

Oval head screw 4x8 DIN 7985

G 54 124 €2.00

Lock washer

B 07 032 €0.72

Screw, 5x10 DIN 7985

G 54 080

Replacement item available

Spring washer

G 46 040

Lock washer

G 22 020 €0.30
