01 Cylinder Head for Mercedes-Benz 300SL Gullwing W198 Mercedes-Benz
300SL Coupe W198.040

Chosen model:

Chassis: 198.040
Engine: 198.980
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 85		B 01 091 B 01 091	Cylinder head without NW bearing 198.980 Cylinder head without NW bearing 198.980 198 010 03 20 or 1980100320		on request on request

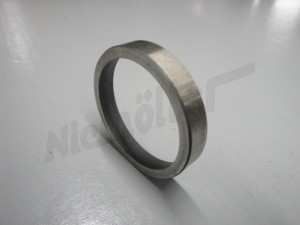

Image number 86		B 01 094 B 01 094	Valve seat ring for inlet Valve seat ring for inlet 199 053 02 31 or 1990530231		on request on request
Image number 87		B 01 099 B 01 099	Valve seat ring for outlet Valve seat ring for outlet 199 053 01 32 or 1990530132		on request on request
Image number 88		B 01 101 B 01 101	Screw plug Screw plug 186 997 01 30 or 1869970130		on request on request
Image number 90		D 01 453 D 01 453	Water distributor Water distributor 189 016 00 60 or 1890160060		€70.71 €70.71
Image number 91		D 01 454 D 01 454	Water distributor Water distributor 189 016 01 60 or 1890160160		€74.01 €74.01
Image number 92		C 01 020 C 01 020	Dowel pin f. engine front cover 8x14 N37 Dowel pin f. engine front cover 8x14 N37 900 037 008 103 or 900037008103		on request on request
Image number 93		D 01 546 D 01 546	Set of camshaft mounts STD size Set of camshaft mounts STD size 189 050 00 97 or 1890500097		€476.76 €476.76
Image number 94		B 01 109 B 01 109	1st camshaft bearing,Id=35,0mm 1st camshaft bearing,Id=35,0mm 186 051 06 10 or 1860510610		on request on request
Image number 95		B 01 110 B 01 110	2nd and 3rd camshaft bearing,Id=49mm 2nd and 3rd camshaft bearing,Id=49mm 186 051 08 12 or 1860510812		on request on request
Image number 96		B 01 111 B 01 111	4.camshaft bearing,Id=50mm 4.camshaft bearing,Id=50mm 186 051 10 16 or 1860511016		on request on request
Image number 98		B 01 118 B 01 118	Hexagon socket screw M10X30 camshaft bearing Hexagon socket screw M10X30 camshaft bearing 000 912 010 038 or 000912010038		€18.50 €18.50
Image number 99		B 01 119 B 01 119	Screw M10x55 Screw M10x55 M10x55 DIN 912-8G or M10x55DIN912-8G		€4.00 €4.00
Image number 100		B 01 121 B 01 121	Stud AM10x60 Stud AM10x60 000 835 010 048 or 000835010048		€8.45 €8.45

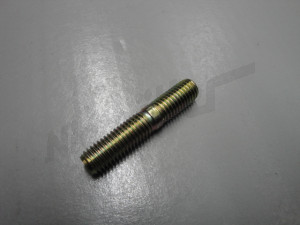

Image number 101		B 01 123 B 01 122	Stud AM10x30 for exhaust pipe Stud bolt M10X32 for A.tube/K.clamp 000 835 010 049 or 000835010049		on request €4.40
	B 01 122	Replacement: Stud AM10x30 for exhaust pipe		€4.40
Image number 102		B 01 125 B 01 125	Stud M8x45 for cooling water outlet st. Stud M8x45 for cooling water outlet st. M8x42 DIN 835-5S or M8x42DIN835-5S		€2.50 €2.50
Image number 103		B 01 130 B 01 130	Cylinder Head Gasket 198.980 Cylinder Head Gasket 198.980 198 016 02 20 or 1980160220		€588.80 €588.80
Image number 105		C 01 356 C 01 356	Washer Washer 186 990 09 40 or 1869900940		€2.40 €2.40
Image number 107		C 01 365 C 01 365	Hex. socket screw M12x105 Hex. socket screw M12x105 000 912 012 028 or 000912012028		€5.03 €5.03
Image number 108		C 01 359 C 01 359	Hex. socket screw M12x140 Hex. socket screw M12x140 000 912 012 038 or 000912012038		€5.50 €5.50
Image number 109		B 01 133 B 01 133	Hex. socket screw M12x160 Hex. socket screw M12x160 000 912 012 045 or 000912012045		€6.29 €6.29
Image number 110		B 01 134 B 01 134	Hexagon socket screw M8X45 DIN 912-8G Hexagon socket screw M8X45 DIN 912-8G 000 912 008 072 or 000912008072		€2.20 €2.20
Image number 115		B 01 140 B 01 140	Cylinder head cover Cylinder head cover 198 010 00 30 or 1980100030		on request on request
Image number 116		B 01 143 B 01 143	Gasket Gasket 186 997 04 40 or 1869970440		€3.15 €3.15
Image number 117		B 01 141 B 01 141	Tensioning screw Tensioning screw 186 010 00 94 or 1860100094		€179.01 €179.01

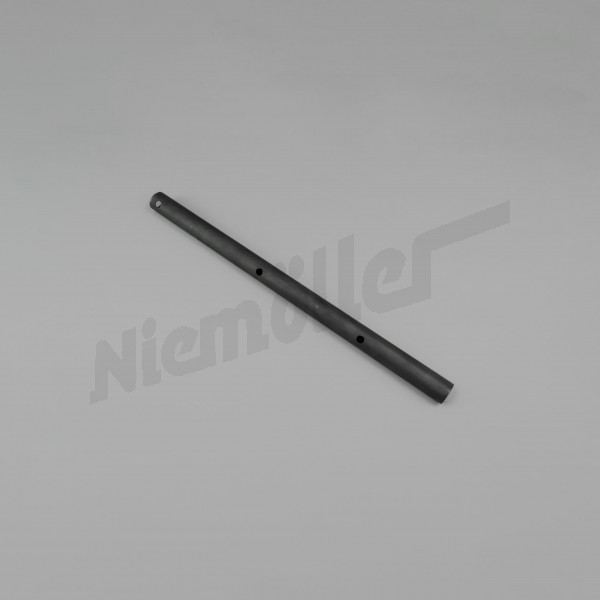

Image number 120		B 01 142 B 01 142	Breather pipe Breather pipe 186 016 04 30 or 1860160430		€94.90 €94.90
Image number 121		D 01 701 D 01 701	Distance sleeve Distance sleeve 186 991 36 40 or 1869913640		€31.59 €31.59
Image number 123		G 22 020 G 22 020	Lock washer Lock washer		€0.30 €0.30
Image number 124		C 01 517a C 01 517a	Seal ring Seal ring		€0.50 €0.50
Image number 125		B 01 150 B 01 150	Connection pipe Connection pipe 198 016 00 29 or 1980160029		on request on request
Image number 126		D 01 670 D 01 670	Valve cover seal Valve cover seal 186 016 00 80 or 1860160080		€47.00 €47.00
Image number 127		B 01 151 B 01 151	Stud for fixing ignition cable tube Stud for fixing ignition cable tube M6x12 DIN 835-5S or M6x12DIN835-5S		€1.80 €1.80
Image number 128		B 01 152 B 01 152	Deaerators Deaerators 198 010 00 70 or 1980100070		on request on request
Image number 130		B 01 153 B 01 153	Gasket Gasket 198 018 00 80 or 1980180080		€13.00 €13.00
Image number 131		C 72 239g C 72 239g	Screw AM6x20 DIN 7988 nickel plated Screw AM6x20 DIN 7988 nickel plated		€1.20 €1.20
Image number 132		B 01 162 B 01 162	Gasket for oil pan cover Gasket for oil pan cover 198 018 01 80 or 1980180180		€2.42 €2.42
Image number 133		B 01 168 B 01 168	Oil deflector for breather on oil pan Oil deflector for breather on oil pan 198 010 00 77 or 1980100077		on request on request
Image number 134		B 01 169 B 01 169	Oil drain pipe for breather on oil pan Oil drain pipe for breather on oil pan 198 010 01 77 or 1980100177		€107.37 €107.37
Image number 136		D 09 034 G 49 141	Hexagon head screw M8x75 DIN 931-8G Hexagon head screw M8x75 DIN 931-8G		on request €2.20
	G 49 141	Replacement: Hexagon head screw M8x75 DIN 931-8G		€2.20
Image number 137		B 01 154 B 01 154	Vent pipe Vent pipe 198 010 00 55 or 1980100055		on request on request
Image number 138		B 01 155 B 01 155	Gasket Gasket 186 997 01 80 or 1869970180		€3.59 €3.59
Image number 139		B 01 156 B 01 156	Rib clamp for venting fro.a.venting and Öw Rib clamp for venting fro.a.venting and Öw 186 995 06 44 or 1869950644		on request on request
Image number 140		G 22 020 G 22 020	Lock washer Lock washer		€0.30 €0.30
Image number 141		C 07 425 C 07 425	Hex. nut Hex. nut		€0.40 €0.40
