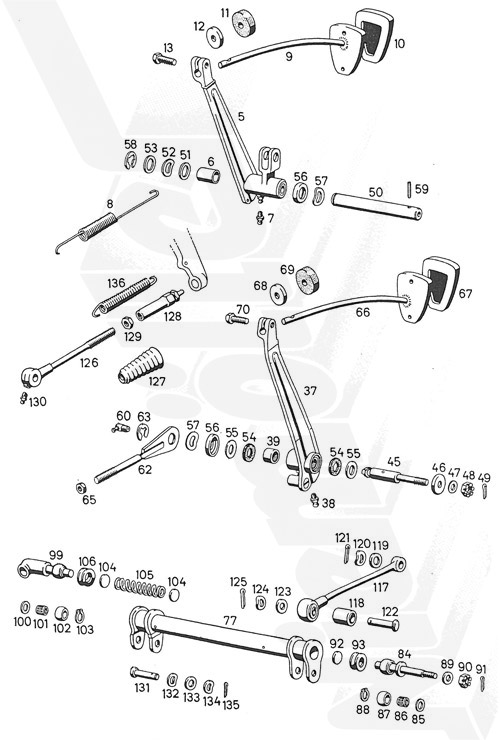

29 Pedal Assembly 2 for Mercedes-Benz 300SL Gullwing W198 Mercedes-Benz
300SL Coupe W198.040

Chosen model:
Step 1:

Select catalog
Step 2:

Select vehicle
Step 3:

Select variant
Step 4:

Select assembly group
Step 5:

Select spare part
Step 5:
Select spare part
.product-group-5 .product-group-6 .product-group-7 .product-group-8 .product-group-9 .product-group-10 .product-group-11 .product-group-12 .product-group-37 .product-group-38 .product-group-39 .product-group-45 .product-group-46 .product-group-50 .product-group-51 .product-group-52 .product-group-53 .product-group-54 .product-group-54 .product-group-55 .product-group-55 .product-group-56 .product-group-56 .product-group-57 .product-group-57 .product-group-58 .product-group-59 .product-group-62 .product-group-63 .product-group-66 .product-group-67 .product-group-68 .product-group-69 .product-group-77 .product-group-84 .product-group-86 .product-group-88 .product-group-90 .product-group-92 .product-group-93 .product-group-99 .product-group-101 .product-group-102 .product-group-104 .product-group-105 .product-group-106 .product-group-117 .product-group-118 .product-group-122 .product-group-126 .product-group-127 .product-group-128 .product-group-130 .product-group-131 .product-group-132 .product-group-136 Panel
29 Pedal Assembly 1 30 Control
  • in stock
  • low stock level
  • currently not in stock, but available for order
  • no longer available
Pic. Niemöller
part-no.		 Designation   Price/unit excl. tax.
Image number 5
B 29 046 B 29 046 Brake pedal Brake pedal
198 290 00 18 or 1982900018
on request on request
Image number 6

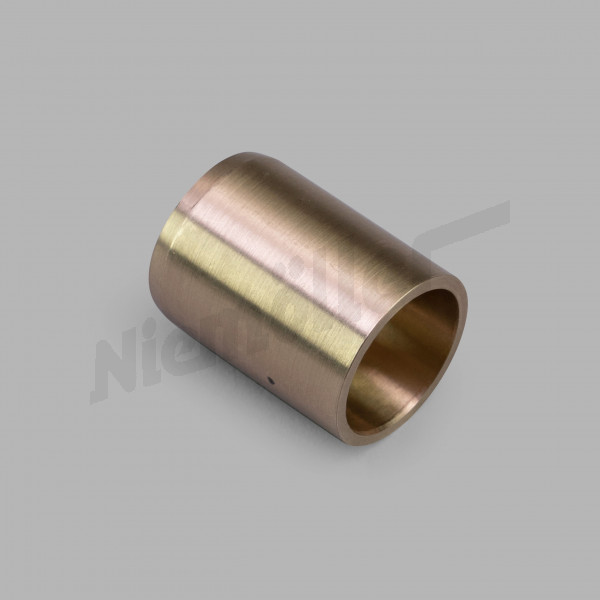

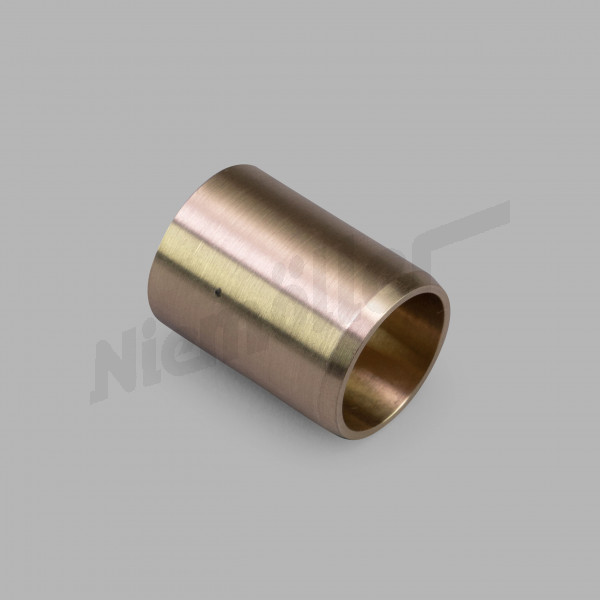

A 29 039 A 29 039 Bushing in bearing tube on frame Bushing in bearing tube on frame
136 294 00 50 or 1362940050
€65.64 €65.64
Image number 7
A 41 015 A 41 015 Grease nipple Grease nipple
071 412 008 100 or 071412008100
€1.25 €1.25
Image number 8
C 29 016 C 29 016 Release spring Release spring
120 993 12 10 or 1209931210
€34.68 €34.68
Image number 9
B 29 047 B 29 047 Bracket for brake foot lever Bracket for brake foot lever
198 290 00 23 or 1982900023
on request on request
Image number 10
A 29 026 C 29 004 Rubber cover Pedal rubber with star clutch/brake
153 292 00 82 or 1532920082
on request €3.00
C 29 004 Replacement: Rubber cover €3.00
Image number 11

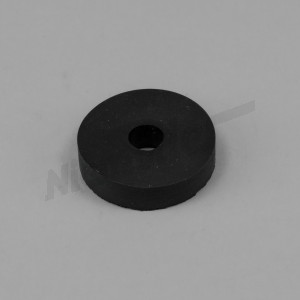

B 29 048 B 29 048 Sealing washer Sealing washer
198 291 00 97 or 1982910097
€20.80 €20.80
Image number 12
A 22 022 A 22 022 Washer 1 mm thick Washer 1 mm thick
136 224 01 66 or 1362240166
€9.06 €9.06
Image number 37
B 29 068 B 29 068 Clutch foot lever with needle bearing Clutch foot lever with needle bearing
198 290 12 16 or 1982901216
€1,192.91 €1,192.91
Image number 38
A 41 015 A 41 015 Grease nipple Grease nipple
071 412 008 100 or 071412008100
€1.25 €1.25
Image number 39

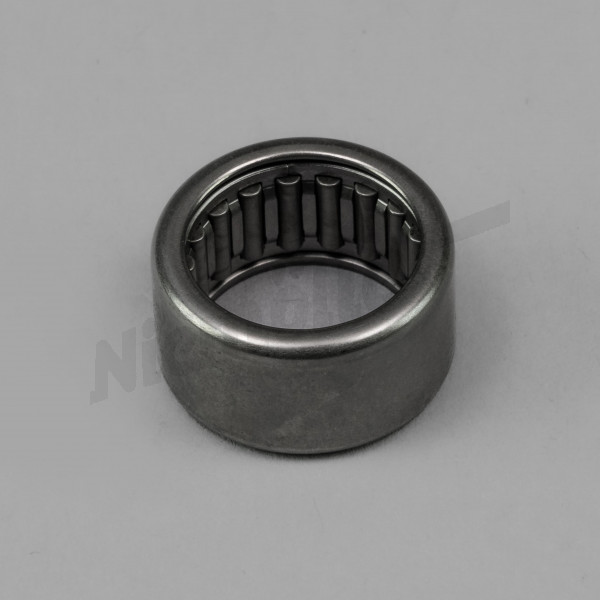

B 29 063 B 29 063 Needle bearing Needle bearing
000 981 20 10 or 0009812010
€6.90 €6.90
Image number 45
B 29 072 B 29 072 Bearing pin for clutch foot lever a. Rh Bearing pin for clutch foot lever a. Rh
198 291 04 74 or 1982910474
on request on request
Image number 46
B 29 073 B 29 073 Dust protection ring f. Kuppl.fußh.a.R. Dust protection ring f. Kuppl.fußh.a.R.
198 291 01 93 or 1982910193
on request on request
Image number 50
B 29 070 B 29 070 Bearing bolts for brake and clutch foot lever Bearing bolts for brake and clutch foot lever
198 292 00 74 or 1982920074
on request on request
Image number 51
A 29 041 D 82 153 Washer Washer 16.4xD: 23 mm
187 990 08 40 or 1879900840
on request €0.65
D 82 153 Replacement: Washer €0.65
Image number 52

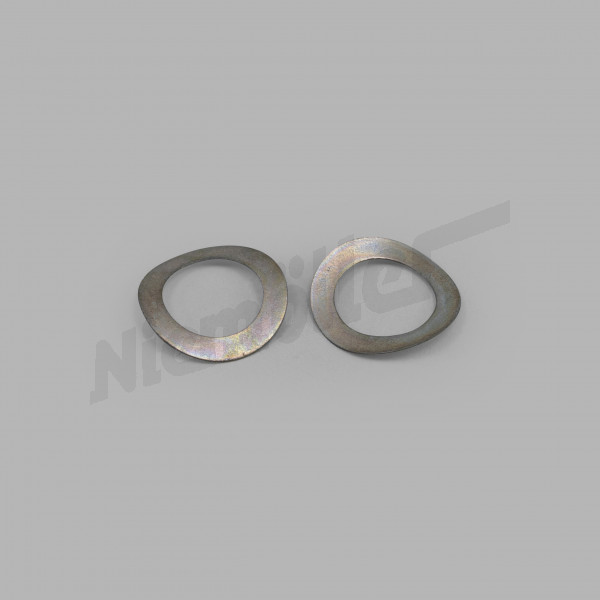

B 29 071 B 29 071 Spring washer f. Lever on pedal shaft Spring washer f. Lever on pedal shaft
198 990 01 48 or 1989900148
€3.98 €3.98
Image number 53
A 29 041 D 82 153 Washer Washer 16.4xD: 23 mm
187 990 08 40 or 1879900840
on request €0.65
D 82 153 Replacement: Washer €0.65
Image number 54

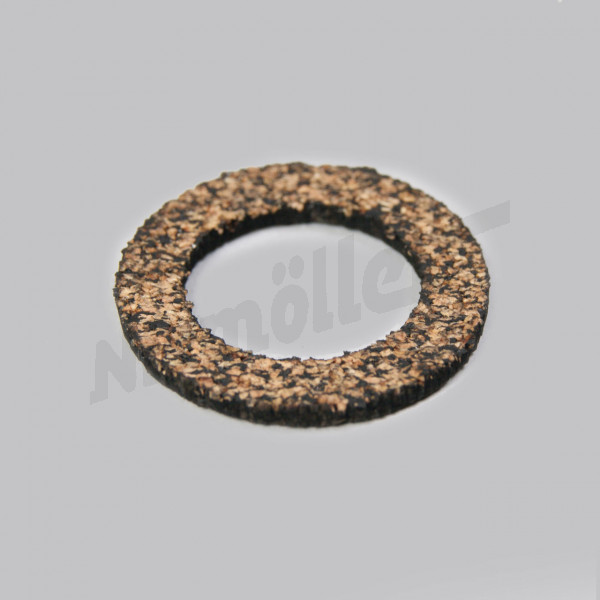

B 29 065 B 29 065 Sealing ring for pedal shaft in bearing tube Sealing ring for pedal shaft in bearing tube
198 997 03 40 or 1989970340
on request on request
Image number 55

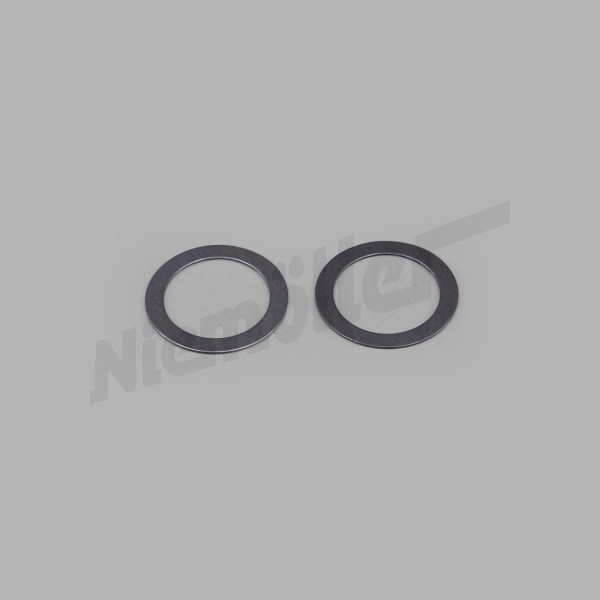

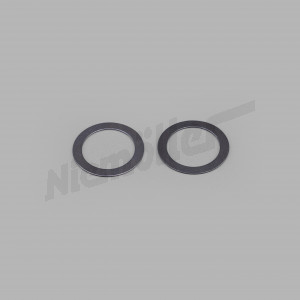

B 29 064 B 29 064 Disc for pedal shaft in bearing tube Disc for pedal shaft in bearing tube
198 990 12 40 or 1989901240
€3.30 €3.30
Image number 56

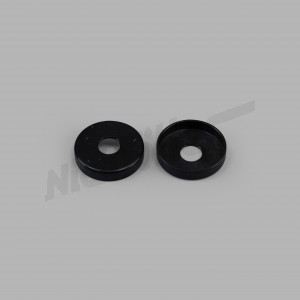

B 29 066 B 29 066 Dust cover ring for pedal shaft frame Dust cover ring for pedal shaft frame
198 291 00 93 or 1982910093
€34.74 €34.74
Image number 57
B 29 071 B 29 071 Spring washer f. Lever on pedal shaft Spring washer f. Lever on pedal shaft
198 990 01 48 or 1989900148
€3.98 €3.98
Image number 58

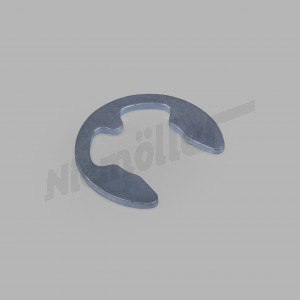

B 29 124 B 29 124 Lock washer for clutch foot lever Lock washer for clutch foot lever
006 799 012 001 or 006799012001
€2.07 €2.07
Image number 59

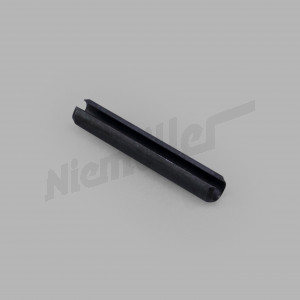

B 29 125 B 29 125 Straight pin 4x24 DIN 1481 Straight pin 4x24 DIN 1481
001 481 004 006 or 001481004006
€1.40 €1.40
Image number 62
B 29 077 B 29 077 Support rod Support rod
198 290 02 21 or 1982900221
on request on request
Image number 63
B 29 124 B 29 124 Lock washer for clutch foot lever Lock washer for clutch foot lever
006 799 012 001 or 006799012001
€2.07 €2.07
Image number 66
B 29 078 B 29 078 Bracket for clutch foot lever Bracket for clutch foot lever
198 290 00 22 or 1982900022
€182.65 €182.65
Image number 67
A 29 026 C 29 004 Rubber cover Pedal rubber with star clutch/brake
153 292 00 82 or 1532920082
on request €3.00
C 29 004 Replacement: Rubber cover €3.00
Image number 68
A 22 022 A 22 022 Washer 1 mm thick Washer 1 mm thick
136 224 01 66 or 1362240166
€9.06 €9.06
Image number 69
B 29 048 B 29 048 Sealing washer Sealing washer
198 291 00 97 or 1982910097
€20.80 €20.80
Image number 77
B 29 106 B 29 106 Intermediate shaft Intermediate shaft
198 290 07 35 or 1982900735
€1,318.68 €1,318.68
Image number 84
B 29 111 B 29 111 Ball pin for intermediate shaft on frame Ball pin for intermediate shaft on frame
198 290 01 74 or 1982900174
€201.11 €201.11
Image number 86
C 29 070 C 29 070 Needle cage Needle cage
000 981 18 10 or 0009811810
€3.49 €3.49
Image number 88
C 29 072 C 29 072 Ball Ball
186 991 00 29 or 1869910029
€37.00 €37.00
Image number 90

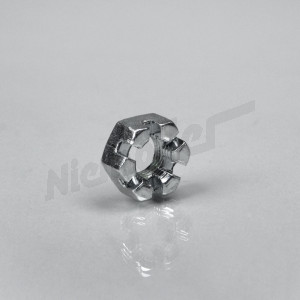

A 32 016 A 32 016 Castle nut M 10 x 1 DIN 937 Castle nut M 10 x 1 DIN 937
000 937 010 007 or 000937010007
€1.25 €1.25
Image number 92
B 29 095 B 29 095 Washer Washer
198 997 01 25 or 1989970125
on request on request
Image number 93
B 29 091 B 29 091 Sealing ring over ball (K.bet) Sealing ring over ball (K.bet)
198 293 00 60 or 1982930060
€9.03 €9.03
Image number 99

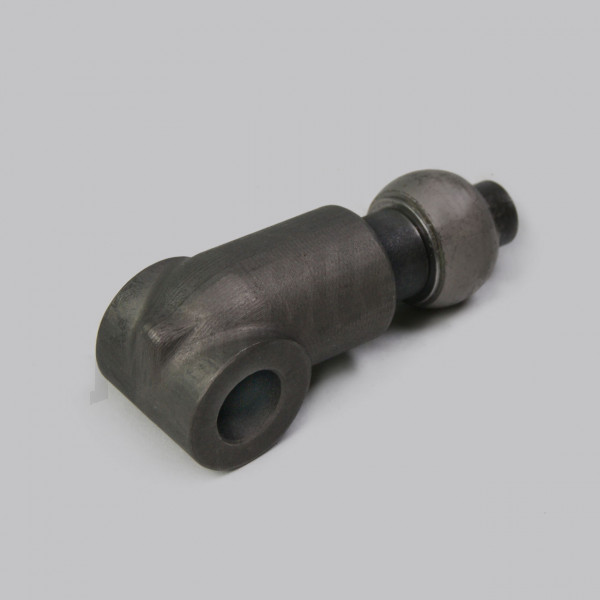

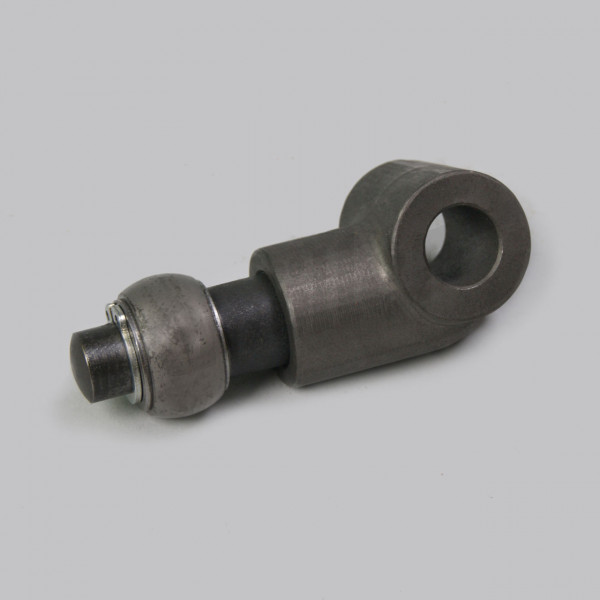

B 29 113 B 29 113 Ball pin for intermediate shaft Ball pin for intermediate shaft
198 290 03 74 or 1982900374
€257.14 €257.14
Image number 101
C 29 070 C 29 070 Needle cage Needle cage
000 981 18 10 or 0009811810
€3.49 €3.49
Image number 102
C 29 072 C 29 072 Ball Ball
186 991 00 29 or 1869910029
€37.00 €37.00
Image number 104
B 29 095 B 29 095 Washer Washer
198 997 01 25 or 1989970125
on request on request
Image number 105
B 29 096 B 29 096 Clutch spring Clutch spring
198 993 03 01 or 1989930301
€23.43 €23.43
Image number 106
B 29 109 B 29 109 Thrust ring Thrust ring
198 291 00 29 or 1982910029
on request on request
Image number 117
B 29 116 B 29 116 Pull rod Pull rod
198 290 12 39 or 1982901239
on request on request
Image number 118
C 29 094 C 29 094 Silent block 24x10 L = 23mm Silent block 24x10 L = 23mm
186 988 00 10 or 1869880010
€23.00 €23.00
Image number 122
B 29 087 B 29 087 Bolt for tie rod on intermediate lever Bolt for tie rod on intermediate lever
198 991 00 05 or 1989910005
€24.21 €24.21
Image number 126
B 29 117 B 29 117 Pressure rod Pressure rod
198 290 09 39 or 1982900939
€356.95 €356.95
Image number 127
C 30 048 C 30 048 Bellow for push rod RHD Bellow for push rod RHD
198 293 01 86 or 1982930186
€29.00 €29.00
Image number 128
B 29 118 B 29 118 Thrust piece Thrust piece
198 293 00 15 or 1982930015
on request on request
Image number 130
C 41 021 C 41 021 Grease nipple Grease nipple
071 412 006 100 or 071412006100
€0.80 €0.80
Image number 131
B 29 102 B 29 102 Dr.rod bolt Lever, right stem Dr.rod bolt Lever, right stem
198 991 01 05 or 1989910105
on request on request
Image number 132

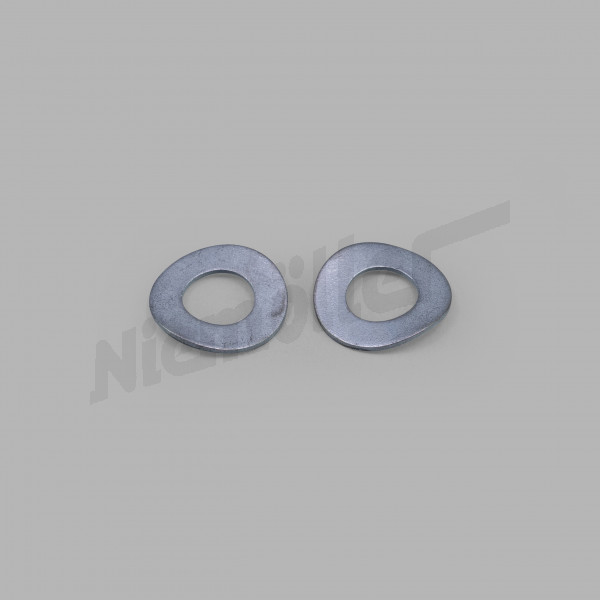

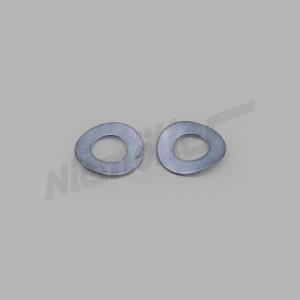

B 29 103 B 29 103 Spring washer for pressure rod right Spring washer for pressure rod right
198 990 02 48 or 1989900248
€1.45 €1.45
Image number 136
B 29 119 B 29 119 Release spring Release spring
198 993 01 10 or 1989930110
on request on request
Please note that the product names may be an automatic translation for which no guarantee can be given.
