26 Transmission 1 for Mercedes-Benz 190SL W121.040 Mercedes-Benz
190SL W121.040

Chosen model:

Chassis: 121.040
Engine: 121.921
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

[{"id":756,"type":"text","coords":[571,9],"text":"gear seal set","bold":false,"italic":false,"underline":false,"color":"#000000","fontSize":14,"doHighlight":false},{"type":"rect","coords":[565,5,706,34],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26177a-gasket-kit-gearbox","cssSelector":".product-group-1","info":"{\"ids\":\"C 26 177a\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[569,309,569,318,563,328,553,325,546,321,549,313],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/d26043-clevis-pin","cssSelector":".product-group-4","info":"{\"ids\":\"D 26 043\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[368,317,377,318,377,308,386,312,401,311,410,299,410,291,406,282,401,277,394,276,382,276,373,279,369,294],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26005-return-wheel-17-teeth","cssSelector":".product-group-5","info":"{\"ids\":\"C 26 005\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[434,294,442,292,442,279,436,268,430,267,408,277,410,284,419,292,432,286],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26006-bushing","cssSelector":".product-group-6","info":"{\"ids\":\"C 26 006\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[489,266,506,257,504,248,497,245,454,262,451,268,454,273,462,274,480,268,480,276,489,276],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26007-reverse-idler-shaft","cssSelector":".product-group-7","info":"{\"ids\":\"C 26 007\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[318,268,319,280,327,279,329,291,336,290,341,289,341,279,338,254,333,243,328,240,318,245,325,267],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/a26089-intermediate-lever-for-reverse-gear","cssSelector":".product-group-10","info":"{\"ids\":\"A 26 089\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[354,260,358,239,339,239,342,261],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c01019-cylindrical-pin","cssSelector":".product-group-11","info":"{\"ids\":\"C 01 019\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[426,308,437,308,440,314,449,309,458,309,466,312,473,325,470,334,462,340,448,347,436,354,420,359,416,353,404,362,380,368,370,368,365,358,370,350,389,344,408,330,412,323,427,317],"href":"\/en\/190sl\/190SL\/B040\/16\/13","cssSelector":".product-group-13","info":"{\"ids\":\"C 26 010, C 26 011\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[379,322,390,323,391,329,399,328,400,333,361,349,358,346,382,333],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26012-key","cssSelector":".product-group-14","info":"{\"ids\":\"C 26 012\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[325,343,336,342,336,348,347,349,357,353,366,364,367,376,364,386,357,390,340,395,332,392,325,389,321,382,319,373,326,358],"href":"\/en\/190sl\/190SL\/B040\/16\/15","cssSelector":".product-group-15","info":"{\"ids\":\"C 26 014, C 26 016, C 26 013\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[248,387,259,387,259,396,267,398,272,405,272,415,262,422,254,420,252,410,250,404],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26017-snap-ring","cssSelector":".product-group-17","info":"{\"ids\":\"C 26 017\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[221,390,233,391,232,400,239,399,248,405,254,418,251,430,237,436,224,433,217,420,222,403],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26018-ball-bearring","cssSelector":".product-group-18","info":"{\"ids\":\"C 26 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[502,274,514,273,513,283,520,286,528,295,528,307,523,317,509,323,500,317,493,307,494,291,503,284],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26018-ball-bearring","cssSelector":".product-group-18","info":"{\"ids\":\"C 26 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[521,264,532,264,532,272,543,273,552,281,554,291,553,301,550,305,540,306,533,304,529,295,523,279],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26020-space-washer-0-25mm","cssSelector":".product-group-19","info":"{\"ids\":\"C 26 020\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[473,288,486,289,485,297,491,304,497,316,494,325,485,328,475,323,468,311,474,300],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26023-shim-countershaft-to-bearing","cssSelector":".product-group-20","info":"{\"ids\":\"C 26 023\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[264,153,276,153,276,163,294,159,303,149,311,145,324,141,334,142,340,147,346,160,342,172,332,179,313,178,299,174,282,178,244,184,231,186,220,186,220,178,248,170,265,165],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26025-drive-shaft-with-synchronous-cone","cssSelector":".product-group-21","info":"{\"ids\":\"C 26 025\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[194,160,207,161,208,170,214,176,216,184,216,193,208,197,200,195,198,186,195,177,196,170],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26027-oil-slinger-ring","cssSelector":".product-group-22","info":"{\"ids\":\"C 26 027\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[122,171,134,171,135,181,143,179,153,185,157,199,155,211,135,218,125,213,126,206,126,199,121,193,124,183],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26028-ring-bearring","cssSelector":".product-group-23","info":"{\"ids\":\"C 26 028\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[83,189,96,190,96,197,104,201,107,210,99,217,90,212,85,202],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26029-spring-ring","cssSelector":".product-group-24","info":"{\"ids\":\"C 26 029\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[168,159,182,161,181,170,189,174,194,183,197,192,195,203,185,208,176,207,178,200,178,190,173,181,170,174],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26031-spacer-ring","cssSelector":".product-group-25","info":"{\"ids\":\"C 26 031\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[144,166,157,166,158,173,170,178,177,195,174,208,168,214,155,213,157,204,157,197,155,185,146,178],"href":"\/en\/190sl\/190SL\/B040\/16\/26","cssSelector":".product-group-26","info":"{\"ids\":\"C 26 033, C 26 034, C 26 032\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[102,178,115,178,113,186,119,192,125,206,122,218,113,220,103,218,107,212,108,205,104,199,98,196,102,189],"href":"\/en\/190sl\/190SL\/B040\/16\/27","cssSelector":".product-group-27","info":"{\"ids\":\"C 26 035, C 26 036, C 26 037, C 26 021\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[243,227,255,228,256,235,269,228,282,227,309,218,343,208,364,201,368,213,357,220,341,225,289,250,280,255,267,256,244,262,232,262,229,252,246,241],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26038-main-shaft-from-gearbox-no-75-02182","cssSelector":".product-group-28","info":"{\"ids\":\"C 26 038\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[165,249,179,249,179,257,187,259,195,267,199,281,195,291,185,297,174,298,161,296,161,289,159,282,155,278,159,269,166,260],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26039-helical-gear-for-3rd-gear-22-teeth-needle-bearing","cssSelector":".product-group-29","info":"{\"ids\":\"C 26 039\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[214,288,227,287,225,275,227,268,226,258,221,251,214,251,201,257,198,263,203,275,215,279],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26041-needle-bearring","cssSelector":".product-group-30","info":"{\"ids\":\"C 26 041\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[68,288,79,289,79,298,86,302,90,309,93,320,90,327,79,332,71,331,65,324,62,318,60,311,67,301],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26042-synchronizer-ring-compare-with-old-ring-besfore-instalation-width-of-the-noses","cssSelector":".product-group-31","info":"{\"ids\":\"C 26 042\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[122,267,132,266,133,276,140,281,144,290,146,304,139,312,126,311,124,307,124,298,117,288,122,279],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26042-synchronizer-ring-compare-with-old-ring-besfore-instalation-width-of-the-noses","cssSelector":".product-group-31","info":"{\"ids\":\"C 26 042\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[141,266,153,266,153,277,157,284,160,295,156,300,147,299,147,292,140,280,143,276],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26043-thrust-washer","cssSelector":".product-group-32","info":"{\"ids\":\"C 26 043\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[94,284,107,283,116,290,121,298,122,313,132,326,137,328,136,336,126,336,126,329,120,322,109,328,101,329,94,327,94,319,94,310,88,303,82,297,86,289],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26044-synchronizer-body-3rd-and-4th-gear","cssSelector":".product-group-33","info":"{\"ids\":\"C 26 044\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[143,358,134,372,134,382,135,392,144,397,165,406,183,405,172,359],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26044b-synchronizer-body","cssSelector":".product-group-34","info":"{\"ids\":\"C 26 044b\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[114,377,132,378,132,365,126,365,126,368,115,368],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/a26028-pressure-spring-for-synchronizer","cssSelector":".product-group-35","info":"{\"ids\":\"A 26 028\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[114,358,114,366,125,366,125,363,131,363,131,357],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/a26046-steel-ball-d-6-5-mm","cssSelector":".product-group-36","info":"{\"ids\":\"A 26 046\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[111,346,134,346,134,355,112,356],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26047-towing-arm","cssSelector":".product-group-37","info":"{\"ids\":\"C 26 047\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[67,357,68,398,85,402,124,406,106,352],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/b26084-sliding-sleeve-for-3-and-4-speed","cssSelector":".product-group-38","info":"{\"ids\":\"B 26 084\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[37,303,49,303,49,312,56,317,59,327,56,333,51,337,42,337,36,327,36,316],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26048-lock-plate","cssSelector":".product-group-39","info":"{\"ids\":\"C 26 048\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[10,312,26,312,25,322,31,330,30,338,25,345,15,346,7,340,10,323],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26049-grooved-nut","cssSelector":".product-group-40","info":"{\"ids\":\"C 26 049\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[354,133,365,133,366,143,372,149,372,157,369,161,357,161,349,159,349,149,356,144],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26050-needle-cage","cssSelector":".product-group-41","info":"{\"ids\":\"C 26 050\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[252,207,266,206,267,210,278,207,285,209,289,218,274,225,261,221,253,216],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26051-needle-cage","cssSelector":".product-group-42","info":"{\"ids\":\"C 26 051\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[266,275,277,275,284,271,293,268,307,261,304,255,290,253,276,260,267,265],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26051-needle-cage","cssSelector":".product-group-42","info":"{\"ids\":\"C 26 051\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[375,165,388,165,388,172,398,172,404,174,411,180,414,190,416,200,411,213,398,220,387,218,376,212,370,197,374,177],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26054-helical-gear-25-teeth-f-2-speed","cssSelector":".product-group-43","info":"{\"ids\":\"C 26 054\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[406,163,419,163,419,173,427,175,431,181,431,189,427,198,419,198,417,194,414,185,411,176],"href":"\/en\/190sl\/190SL\/B040\/16\/44","cssSelector":".product-group-44","info":"{\"ids\":\"C 26 055, C 26 058\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[438,206,449,204,448,196,450,188,452,179,450,171,446,166,438,163,428,163,422,171,428,174,431,180,433,189,432,195,438,196],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26042-synchronizer-ring-compare-with-old-ring-besfore-instalation-width-of-the-noses~2","cssSelector":".product-group-45","info":"{\"ids\":\"C 26 042\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[482,136,482,145,491,145,498,153,502,161,502,175,495,178,483,178,483,168,480,158,472,149,469,136],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26042-synchronizer-ring-compare-with-old-ring-besfore-instalation-width-of-the-noses~3","cssSelector":".product-group-46","info":"{\"ids\":\"C 26 042\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[501,202,491,202,472,195,480,186,482,174,479,161,474,153,463,150,451,149,440,158,440,162,449,166,452,171,454,179,453,189,452,193,453,196,465,198,490,212,500,213],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26060-synchronizer-for-1st-and-2nd-gear","cssSelector":".product-group-47","info":"{\"ids\":\"C 26 060\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[618,188,631,189,630,197,636,204,638,210,637,220,633,226,627,230,608,230,601,224,600,213,601,203,607,197,617,197],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/d26088-synchronizer-for-1st-and-2nd-gear","cssSelector":".product-group-48","info":"{\"ids\":\"D 26 088\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[598,215,599,202,593,203,581,205,581,214],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/a26028-pressure-spring-for-synchronizer~2","cssSelector":".product-group-49","info":"{\"ids\":\"A 26 028\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[580,195,600,195,600,201,581,203],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/a26046-steel-ball-d-6-5-mm~2","cssSelector":".product-group-50","info":"{\"ids\":\"A 26 046\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[580,185,601,186,601,194,580,194],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26047-towing-arm~2","cssSelector":".product-group-51","info":"{\"ids\":\"C 26 047\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[536,214,536,199,547,193,555,188,563,191,577,200,578,215,575,224,587,224,583,233,565,233,552,233,543,233],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/d26090-sliding-sleeve-for-1st-and-2nd-gear","cssSelector":".product-group-52","info":"{\"ids\":\"D 26 090\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[327,200,313,200,296,211,300,214,327,209],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26061-sunk-key-for-main-shaft","cssSelector":".product-group-53","info":"{\"ids\":\"C 26 061\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[491,134,503,135,503,144,511,150,513,162,508,169,504,168,503,160,500,152,492,145],"href":"\/en\/190sl\/190SL\/B040\/16\/54","cssSelector":".product-group-54","info":"{\"ids\":\"C 26 062, C 26 063, C 26 064\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[553,108,568,108,569,117,576,119,581,127,581,136,576,140,563,143,553,138,555,120],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26065-needle-bearring-1st-gear","cssSelector":".product-group-55","info":"{\"ids\":\"C 26 065\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[499,118,513,118,513,124,523,118,537,122,548,136,554,153,548,170,531,176,513,170,513,163,514,153,508,145,504,139,505,130,500,127],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26066-helical-gear-28-teeth-for-1st-gear","cssSelector":".product-group-56","info":"{\"ids\":\"C 26 066\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[596,98,583,98,583,108,580,118,584,129,589,134,597,133,602,126,603,120,596,107],"href":"\/en\/190sl\/190SL\/B040\/16\/57","cssSelector":".product-group-57","info":"{\"ids\":\"C 26 068, C 26 069, C 26 070, C 26 071, C 26 072, C 26 073, C 26 074, C 26 075\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[609,80,622,80,624,90,634,94,639,103,640,116,637,125,623,131,613,131,606,123,602,116,603,102,606,93,610,92],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/a26024-deep-groove-ball-bearing-on-the-main-shaft","cssSelector":".product-group-58","info":"{\"ids\":\"A 26 024\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[632,70,647,71,647,80,652,87,658,97,659,109,657,119,647,125,640,123,641,114,640,105,637,96,628,88],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/a26055-snap-ring-f-ring-groove-bearing","cssSelector":".product-group-59","info":"{\"ids\":\"A 26 055\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[655,67,669,68,668,79,678,92,679,105,673,115,660,116,660,106,660,95,653,87,649,80,656,78],"href":"\/en\/190sl\/190SL\/B040\/16\/60","cssSelector":".product-group-60","info":"{\"ids\":\"C 26 077, C 26 019\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[708,409,698,425,702,442,732,453,737,424,734,409],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26080-speedometer-drive-gear","cssSelector":".product-group-61","info":"{\"ids\":\"C 26 080\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[402,387,414,387,414,401,423,409,427,419,431,446,424,455,422,477,410,481,387,470,381,466,382,447,366,454,360,451,354,441,362,432,377,421,379,401,385,396,401,395],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26085-front-transmission-housing-cover","cssSelector":".product-group-62","info":"{\"ids\":\"C 26 085\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[321,470,336,469,346,465,353,459,354,452,348,444,340,444,332,448,331,458,323,459],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26088-sealing-ring","cssSelector":".product-group-63","info":"{\"ids\":\"C 26 088\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[424,485,440,486,439,476,446,467,442,460,426,467],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26089-bolt-for-clutch-release-fork","cssSelector":".product-group-64","info":"{\"ids\":\"C 26 089\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[367,484,382,483,382,473,372,459,363,461,369,474],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/b03018-spring-washer","cssSelector":".product-group-67","info":"{\"ids\":\"B 03 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[336,409,350,409,360,423,350,429,342,420,336,419],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/b03018-spring-washer","cssSelector":".product-group-67","info":"{\"ids\":\"B 03 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[632,286,643,287,645,296,653,295,658,298,664,307,668,317,672,326,667,330,673,336,676,342,671,345,665,347,665,357,669,365,669,371,666,373,658,373,654,379,646,378,638,373,637,351,638,345,643,340,644,331,640,327,630,318,622,309,622,297,631,294],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26090-gearbox-housing-cover-rear","cssSelector":".product-group-68","info":"{\"ids\":\"C 26 090\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[698,338,685,338,683,343,679,343,675,347,686,354,692,349,699,348],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26092-plug","cssSelector":".product-group-69","info":"{\"ids\":\"C 26 092\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[618,298,606,297,604,307,601,314,600,323,602,339,593,340,593,347,594,354,601,358,601,364,605,371,605,384,620,393,632,392,634,387,641,385,641,380,637,374,637,369,635,355,635,344,641,340,641,330,635,324,628,319,621,313],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26093-gasket-for-rear-gearbox-cover","cssSelector":".product-group-70","info":"{\"ids\":\"C 26 093\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[685,324,698,324,696,312,691,311,691,305,685,296,679,289,670,287,663,289,659,297,662,303,669,315,681,319,687,316],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26095-sealing-ring-rear","cssSelector":".product-group-71","info":"{\"ids\":\"C 26 095\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[655,438,667,437,668,430,672,426,669,420,662,417,653,427],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/d26107-sealing-ring","cssSelector":".product-group-72","info":"{\"ids\":\"D 26 107\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[677,453,691,453,691,449,705,455,710,448,674,427,670,430,678,442],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26097-shaft-for-speedometer-drive","cssSelector":".product-group-73","info":"{\"ids\":\"C 26 097\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[698,468,710,467,721,464,724,456,718,451,711,451,706,456,697,456],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26099-drive-pinion-for-tachometer-drive","cssSelector":".product-group-74","info":"{\"ids\":\"C 26 099\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[627,435,651,433,649,425,624,423],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/g42085-spring-washer","cssSelector":".product-group-75","info":"{\"ids\":\"G 42 085\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[638,275,653,276,652,283,655,293,647,293],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/b03018-spring-washer~2","cssSelector":".product-group-78","info":"{\"ids\":\"B 03 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[708,310,721,310,722,302,728,303,734,300,734,292,731,285,727,277,724,264,718,255,707,254,702,261,699,269,693,276,689,281,684,290,692,302,708,302],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26105-three-arm-flange-on-the-main-shaft","cssSelector":".product-group-79","info":"{\"ids\":\"C 26 105\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[682,58,694,59,695,68,702,75,704,82,700,91,689,91,684,88,680,74,683,69],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26106-locking-plate","cssSelector":".product-group-80","info":"{\"ids\":\"C 26 106\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[701,54,714,54,715,62,719,65,723,72,724,80,714,86,707,84],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26108-nut-m-24x1-5","cssSelector":".product-group-81","info":"{\"ids\":\"C 26 108\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[637,469,624,469,624,465,616,463,609,466,609,475,611,479,620,479,638,480],"href":"\/en\/190sl\/190SL\/B040\/16\/82","cssSelector":".product-group-82","info":"{\"ids\":\"C 14 055, C 14 055\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[562,464,572,464,574,458,579,456,587,456,591,459,593,468,588,474,561,474],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/d26111-plug","cssSelector":".product-group-83","info":"{\"ids\":\"D 26 111\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[601,453,600,440,573,440,570,448,574,454],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c01195a-seal-ring-24x30","cssSelector":".product-group-84","info":"{\"ids\":\"C 01 195a\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[119,91,152,86,154,112,125,112],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/g25028-hexagon-head-screw-m10x40-din-931-8g","cssSelector":".product-group-85","info":"{\"ids\":\"G 25 028\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[97,54,111,55,123,41,119,30,86,35],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/g25028-hexagon-head-screw-m10x40-din-931-8g","cssSelector":".product-group-85","info":"{\"ids\":\"G 25 028\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[106,146,95,146,93,118,92,111,81,110,78,137,71,145,74,159,87,165,95,159,105,157],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c26109b-holder-on-gearbox-190sl","cssSelector":".product-group-86","info":"{\"ids\":\"C 26 109b\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[51,181,62,181,62,171,70,168,72,154,62,145,53,145,45,148,45,162,50,172],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/c42439-grommet-14-35","cssSelector":".product-group-87","info":"{\"ids\":\"C 42 439\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[47,120,62,121,57,96,40,93],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/g49063a-washer-10-5-din-125","cssSelector":".product-group-89","info":"{\"ids\":\"G 49 063a\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[76,61,88,61,84,35,75,35],"href":"https:\/\/www.niemoeller.de\/en\/190sl\/190SL\/B040\/16\/g49063a-washer-10-5-din-125","cssSelector":".product-group-89","info":"{\"ids\":\"G 49 063a\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"}]

in stock
low stock level
currently not in stock, but available for order
no longer available

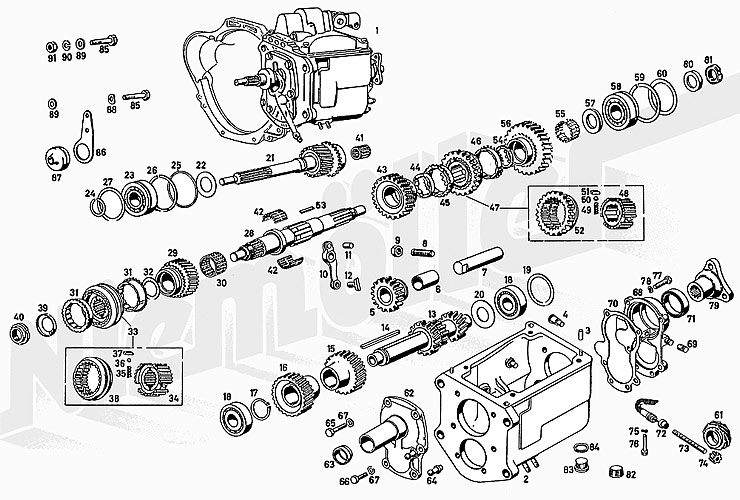

Pic.	Designation		Price/unit excl. tax.
Image number 1	C 26 177a C 26 177a	Gasket kit gearbox Gasket kit gearbox 120 586 02 26. 120 586 01 26 or 1205860226.1205860126		€48.22 €48.22
Image number 4	D 26 043 D 26 043	Clevis pin Clevis pin 111 262 00 74 or 1112620074		€11.14 €11.14
Image number 5	C 26 005 C 26 005	Return wheel 17 teeth Return wheel 17 teeth 120 260 03 25 or 1202600325		on request on request
Image number 6	C 26 006 C 26 006	Bushing Bushing 120 263 03 50 or 1202630350		€86.11 €86.11
Image number 7	C 26 007 C 26 007	Reverse idler shaft Reverse idler shaft 186 263 00 30 or 1862630030		€152.07 €152.07
Image number 10	A 26 089 A 26 089	Intermediate lever for reverse gear Intermediate lever for reverse gear 136 260 00 37 or 1362600037		€157.59 €157.59
Image number 11	C 01 019 C 01 019	Cylindrical pin Cylindrical pin 000 007 008 101 or 000007008101		on request on request
Image number 13	C 26 010	Layshaft 120 260 01 24 or 1202600124	on request		Select variant	on request
Image number 13	C 26 011	Layshaft 110 260 02 24 or 1102600224	€598.86		Select variant	€598.86
Image number 14	C 26 012 C 26 012	Key Key 186 991 03 68 or 1869910368		€1.85 €1.85
Image number 15	C 26 014	Front wheel 25 teeth f.3. gear 180 263 04 13 or 1802630413	on request		Select variant	on request
Image number 15	C 26 016	30 teeth for gear 180 263 05 10 or 1802630510	on request			on request
Image number 15	C 26 013	Front wheel 27 teeth for 3.gear 120 263 03 13 or 1202630313	€500.00			€500.00
Image number 17	C 26 017 C 26 017	Snap ring Snap ring 900 055 035 300 or 900055035300		on request on request
Image number 18	C 26 018 C 26 018	Ball bearring Ball bearring 000 625 036 305 or 000625036305		€18.50 €18.50
Image number 19	C 26 020 C 26 020	Space washer 0,25mm Space washer 0,25mm 120 263 15 52 or 1202631552		€10.05 €10.05
Image number 20	C 26 023 C 26 023	Shim countershaft to bearing Shim countershaft to bearing 186 990 18 40 or 1869901840		on request on request
Image number 21	C 26 025 C 26 025	Drive shaft with synchronous cone Drive shaft with synchronous cone 121 260 10 20 or 1212601020		on request on request
Image number 22	C 26 027 C 26 027	Oil slinger ring Oil slinger ring 186 262 00 66 or 1862620066		€9.80 €9.80
Image number 23	C 26 028 C 26 028	Ring bearring Ring bearring 000 625 606 306 or 000625606306		€56.00 €56.00
Image number 24	C 26 029 C 26 029	Spring ring Spring ring 123 262 04 94 or 1232620494		€5.15 €5.15
Image number 25	C 26 031 C 26 031	Spacer ring Spacer ring 186 262 04 51 or 1862620451		€6.99 €6.99
Image number 26	C 26 033	Spring ring 1,9mm 136 994 06 35 or 1369940635	€4.65		Select variant	€4.65
Image number 26	C 26 034	Spring ring 2,05mm 115 994 22 35 or 1159942235	€5.24			€5.24
Image number 26	C 26 032	Spring ring 2,0mm 136 994 09 35 or 1369940935	€5.24			€5.24
Image number 27	C 26 035	Space washer 0,1mm 136 262 06 52 or 1362620652	on request		Select variant	on request
Image number 27	C 26 036	Space washer 0,2mm 136 262 07 52 or 1362620752	€3.97			€3.97
Image number 27	C 26 037	Shim 0.3 mm thick 136 262 08 52 or 1362620852	on request			on request
Image number 27	C 26 021	Shim 0.5 mm thick 120 263 16 52 or 1202631652	on request			on request
Image number 28	C 26 038 C 26 038	Main shaft from gearbox no.75 02182 Main shaft from gearbox no.75 02182 180 262 00 05 or 1802620005		€1,310.76 €1,310.76
Image number 29	C 26 039 C 26 039	Helical gear for 3rd gear 22 teeth, needle bearing Helical gear for 3rd gear 22 teeth, needle bearing 121 260 02 44 or 1212600244		€395.00 €395.00
Image number 30	C 26 041 C 26 041	Needle bearring Needle bearring 000 981 29 12 or 0009812912		€197.41 €197.41
Image number 31	C 26 042 C 26 042	Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) 113 262 00 34 or 1132620034		€32.00 €32.00
Image number 32	C 26 043 C 26 043	Thrust washer Thrust washer 120 262 23 62 or 1202622362		€97.89 €97.89
Image number 33	C 26 044 C 26 044	Synchronizer body 3rd and 4th gear Synchronizer body 3rd and 4th gear 111 260 08 45 or 1112600845		€1,442.55 €1,442.55
Image number 34	C 26 044b C 26 044b	Synchronizer body Synchronizer body 120 262 09 35 or 1202620935		on request on request
Image number 35	A 26 028 A 26 028	Pressure spring for synchronizer Pressure spring for synchronizer 183 993 05 01 or 1839930501		€10.46 €10.46
Image number 36	A 26 046 A 26 046	Steel ball D: 6.5 mm Steel ball D: 6.5 mm 000 981 46 85 or 0009814685		€1.00 €1.00
Image number 37	C 26 047 C 26 047	Towing arm Towing arm 121 262 00 40 or 1212620040		€36.24 €36.24
Image number 38	B 26 084 B 26 084	Sliding sleeve for 3 and 4 speed Sliding sleeve for 3 and 4 speed 111 262 04 23 or 1112620423		on request on request
Image number 39	C 26 048 C 26 048	Lock plate Lock plate 120 994 01 15 or 1209940115		€2.73 €2.73
Image number 40	C 26 049 C 26 049	Grooved nut Grooved nut 120 262 03 26 or 1202620326		€24.83 €24.83
Image number 41	C 26 050 C 26 050	Needle cage Needle cage 000 981 08 12 or 0009810812		€19.65 €19.65
Image number 42	C 26 051 C 26 051	Needle cage Needle cage 120 981 03 12 or 1209810312		€303.26 €303.26
Image number 43	C 26 054 C 26 054	Helical gear, 25. teeth, f.2.speed Helical gear, 25. teeth, f.2.speed 180 262 07 12 or 1802620712		on request on request
Image number 44	C 26 055	Thrust ring 7.9 mm thick 120 262 16 62 or 1202621662	€130.40		Select variant	€130.40
Image number 44	C 26 058	Thrust ring 8.1 mm thick 120 262 20 62 or 1202622062	€95.68		Select variant	€95.68
Image number 45	C 26 042 C 26 042	Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) 113 262 00 34 or 1132620034		€32.00 €32.00
Image number 46	C 26 042 C 26 042	Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) 113 262 00 34 or 1132620034		€32.00 €32.00
Image number 47	C 26 060 C 26 060	Synchronizer for 1st and 2nd gear Synchronizer for 1st and 2nd gear 111 260 07 45 or 1112600745		€1,373.89 €1,373.89
Image number 48	D 26 088 D 26 088	Synchronizer for 1st and 2nd gear Synchronizer for 1st and 2nd gear 111 262 03 35 or 1112620335		€500.00 €500.00
Image number 49	A 26 028 A 26 028	Pressure spring for synchronizer Pressure spring for synchronizer 183 993 05 01 or 1839930501		€10.46 €10.46
Image number 50	A 26 046 A 26 046	Steel ball D: 6.5 mm Steel ball D: 6.5 mm 000 981 46 85 or 0009814685		€1.00 €1.00
Image number 51	C 26 047 C 26 047	Towing arm Towing arm 121 262 00 40 or 1212620040		€36.24 €36.24
Image number 52	D 26 090 D 26 090	Sliding sleeve for 1st and 2nd gear Sliding sleeve for 1st and 2nd gear 111 262 03 23 or 1112620323		on request on request
Image number 53	C 26 061 C 26 061	Sunk key for main shaft Sunk key for main shaft 120 262 00 81 or 1202620081		€25.17 €25.17
Image number 54	C 26 062	Thrust washer 4.4 mm thick 120 262 11 62 or 1202621162	€110.00		Select variant	€110.00
Image number 54	C 26 063	Thrust washer 4.5 mm thick 120 262 13 62 or 1202621362	€66.53			€66.53
Image number 54	C 26 064	Thrust washer 4.6 mm thick 120 262 15 62 or 1202621562	€110.34			€110.34
Image number 55	C 26 065 C 26 065	Needle bearring 1st gear Needle bearring 1st gear 001 981 69 10 or 0019816910		€139.80 €139.80
Image number 56	C 26 066 C 26 066	Helical gear, 28 teeth for 1st gear Helical gear, 28 teeth for 1st gear 120 262 10 11 or 1202621011		on request on request
Image number 57	C 26 068	Thrust washer 3.8 mm thick 186 262 01 62 or 1862620162	on request		Select variant	on request
Image number 57	C 26 069	Thrust washer 3.9 mm thick 186 262 02 62 or 1862620262	on request			on request
Image number 57	C 26 070	Thrust washer 4.0 mm thick 186 262 03 62 or 1862620362	on request			on request
Image number 57	C 26 071	Thrust washer 4.1 mm thick 186 262 04 62 or 1862620462	on request			on request
Image number 57	C 26 072	Thrust washer 4.2 mm thick 186 262 05 62 or 1862620562	on request			on request
Image number 57	C 26 073	Thrust washer 4.3 mm thick 186 262 06 62 or 1862620662	on request			on request
Image number 57	C 26 074	Thrust washer 4.4, mm thick 186 262 07 62 or 1862620762	on request			on request
Image number 57	C 26 075	Thrust washer 4.5 mm thick 186 262 08 62 or 1862620862	on request			on request
Image number 58	A 26 024 A 26 024	Deep groove ball bearing on the main shaft Deep groove ball bearing on the main shaft 001 981 32 25 or 0019813225		€38.00 €38.00
Image number 59	A 26 055 A 26 055	Snap ring f. ring groove bearing Snap ring f. ring groove bearing 005 417 072 001 or 005417072001		on request on request
Image number 60	C 26 077	Spacer shim 0,1mm thick 136 262 04 52 or 1362620452	€6.50		Select variant	€6.50
Image number 60	C 26 019	Space washer 0,1mm 120 263 14 52 or 1202631452	€4.50		Select variant	€4.50
Image number 61	C 26 080 C 26 080	Speedometer drive gear Speedometer drive gear 120 264 07 30 or 1202640730		€116.00 €116.00
Image number 62	C 26 085 C 26 085	Front transmission housing cover Front transmission housing cover 121 260 00 21 or 1212600021		€414.05 €414.05
Image number 63	C 26 088 C 26 088	Sealing ring Sealing ring 186 261 00 60 or 1862610060		€3.29 €3.29
Image number 64	C 26 089 C 26 089	Bolt for clutch release fork Bolt for clutch release fork 120 991 03 15 or 1209910315		€72.50 €72.50
Image number 67	B 03 018 B 03 018	Spring washer Spring washer 000 137 008 202 or 000137008202		€0.30 €0.30
Image number 68	C 26 090 C 26 090	Gearbox housing cover rear Gearbox housing cover rear 120 260 20 16 or 1202602016		on request on request
Image number 69	C 26 092 C 26 092	Plug Plug 153 264 00 55 or 1532640055		€4.74 €4.74
Image number 70	C 26 093 C 26 093	Gasket for rear gearbox cover Gasket for rear gearbox cover 186 261 04 79 or 1862610479		€2.47 €2.47
Image number 71	C 26 095 C 26 095	Sealing ring rear Sealing ring rear 000 997 17 46 or 0009971746		€9.50 €9.50
Image number 72	D 26 107 D 26 107	Sealing ring Sealing ring 007 997 73 46 or 0079977346		€4.00 €4.00
Image number 73	C 26 097 C 26 097	Shaft for speedometer drive Shaft for speedometer drive 120 264 04 32 or 1202640432		€90.00 €90.00

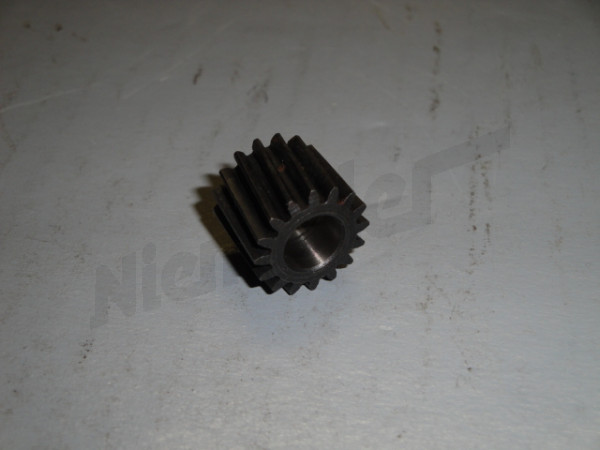

Image number 74	C 26 099 C 26 099	Drive pinion for tachometer drive Drive pinion for tachometer drive 136 264 00 31 or 1362640031		€58.76 €58.76
Image number 75	G 42 085 G 42 085	Spring washer Spring washer 000 137 006 204 or 000137006204		€0.30 €0.30
Image number 78	B 03 018 B 03 018	Spring washer Spring washer 000 137 008 202 or 000137008202		€0.30 €0.30
Image number 79	C 26 105 C 26 105	Three-arm flange on the main shaft Three-arm flange on the main shaft 111 262 00 45 or 1112620045		€415.61 €415.61
Image number 80	C 26 106 C 26 106	Locking plate Locking plate 186 262 01 73 or 1862620173		€3.99 €3.99
Image number 81	C 26 108 C 26 108	Nut M 24x1,5 Nut M 24x1,5 186 262 02 26 or 1862620226		€18.00 €18.00
Image number 82	C 14 055	Screw plug 24x1,5 000 997 62 32 or 0009976232	€2.73		Select variant	€2.73
Image number 82	C 14 055	Screw plug 24x1,5 000 997 62 32 or 0009976232	€2.73		Select variant	€2.73
Image number 83	D 26 111 D 26 111	Plug Plug 115 997 00 32 or 1159970032		€2.50 €2.50
Image number 84	C 01 195a C 01 195a	Seal ring 24x30 Seal ring 24x30 A 24x30 DIN 7603 Al or A24x30DIN7603Al		€0.80 €0.80
Image number 85	G 25 028 G 25 028	Hexagon head screw M10x40 DIN 931-8G Hexagon head screw M10x40 DIN 931-8G 000 931 010 282 or 000931010282		€7.50 €7.50
Image number 86	C 26 109b C 26 109b	Holder on gearbox, 190SL Holder on gearbox, 190SL 121 546 00 43 or 1215460043		€48.00 €48.00
Image number 87	C 42 439 C 42 439	Grommet 14-35 Grommet 14-35 186 997 07 81 or 1869970781		€2.14 €2.14
Image number 89	G 49 063a G 49 063a	Washer 10,5 DIN 125 Washer 10,5 DIN 125 000 125 010 514 or 000125010514		€0.70 €0.70
Image number 271	C 26 022 C 26 022	Shim 1.0 mm thick Shim 1.0 mm thick 120 263 08 52 or 1202630852		on request on request
Image number 999	C 26 078	Spacer shim 0,2mm thick 136 262 05 52 or 1362620552	€9.00		Select variant	€9.00
Image number 999	C 26 079	Spacer shim 0,3mm thick 136 262 09 52 or 1362620952	€12.00			€12.00

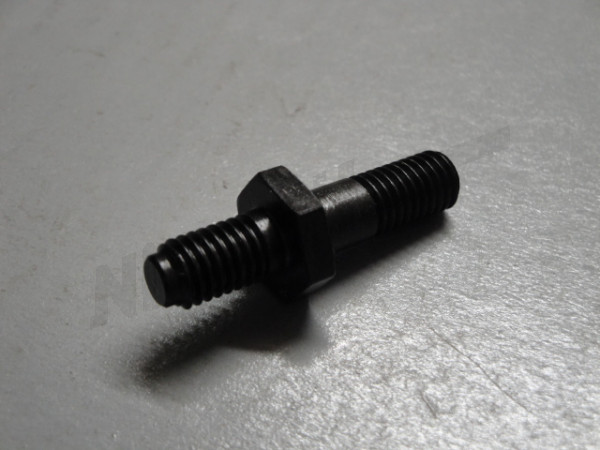

Image number 999	C 26 102	Collar screw for rear gearbox cover 120 990 00 10 or 1209900010	€34.05			€34.05

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Gasket kit gearbox

C 26 177a €48.22

Clevis pin

D 26 043 €11.14

Return wheel 17 teeth

C 26 005

Bushing

C 26 006 €86.11

Reverse idler shaft

C 26 007 €152.07

Intermediate lever for reverse gear

A 26 089 €157.59

Cylindrical pin

C 01 019

Layshaft

C 26 010

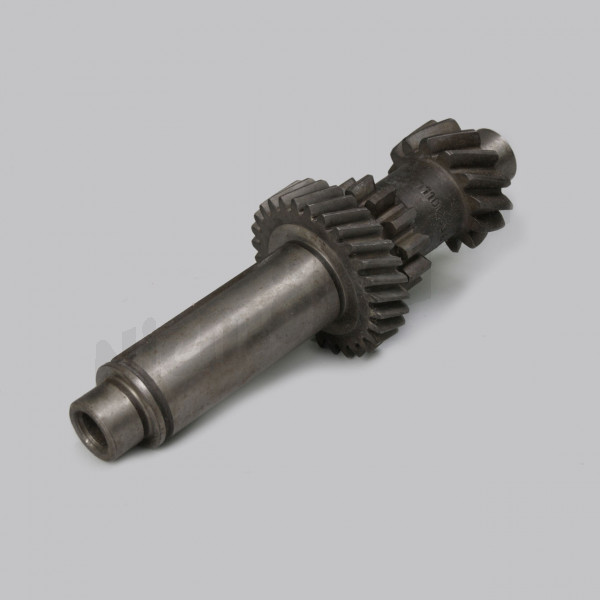

Layshaft

C 26 011 €598.86

Key

C 26 012 €1.85

Front wheel 25 teeth f.3. gear

C 26 014

30 teeth for gear

C 26 016

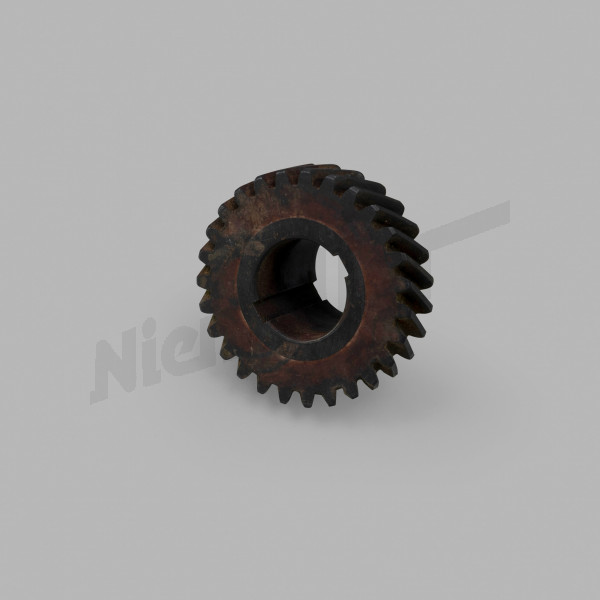

Front wheel 27 teeth for 3.gear

C 26 013 €500.00

Snap ring

C 26 017

Ball bearring

C 26 018 €18.50

Space washer 0,25mm

C 26 020 €10.05

Shim countershaft to bearing

C 26 023

Drive shaft with synchronous cone

C 26 025

Oil slinger ring

C 26 027 €9.80

Ring bearring

C 26 028 €56.00

Spring ring

C 26 029 €5.15

Spacer ring

C 26 031 €6.99

Spring ring 1,9mm

C 26 033 €4.65

Spring ring 2,05mm

C 26 034 €5.24

Spring ring 2,0mm

C 26 032 €5.24

Space washer 0,1mm

C 26 035

Space washer 0,2mm

C 26 036 €3.97

Shim 0.3 mm thick

C 26 037

Shim 0.5 mm thick

C 26 021

Main shaft from gearbox no.75 02182

C 26 038 €1,310.76

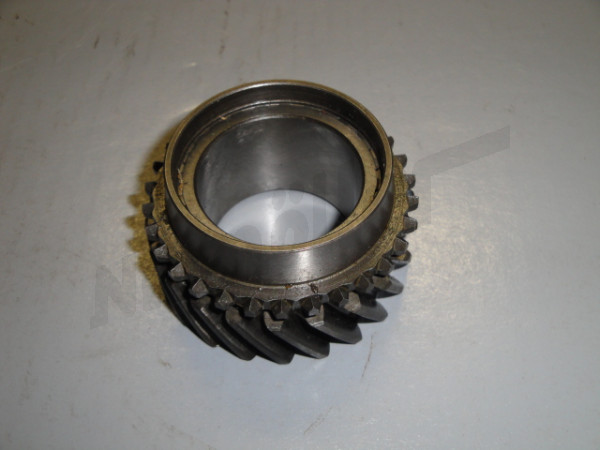

Helical gear for 3rd gear 22 teeth, needle bearing

C 26 039 €395.00

Needle bearring

C 26 041 €197.41

Synchronizer ring ( compare with old ring besfore instalation - width of the noses )

C 26 042 €32.00

Thrust washer

C 26 043 €97.89

Synchronizer body 3rd and 4th gear

C 26 044 €1,442.55

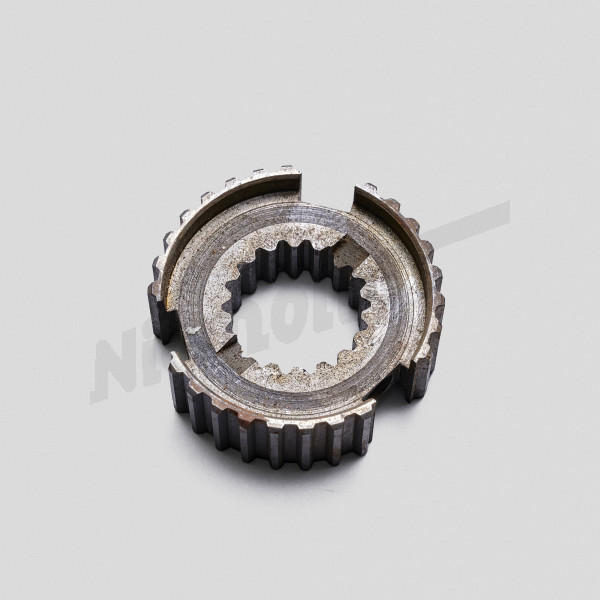

Synchronizer body

C 26 044b

Pressure spring for synchronizer

A 26 028 €10.46

Steel ball D: 6.5 mm

A 26 046 €1.00

Towing arm

C 26 047 €36.24

Sliding sleeve for 3 and 4 speed

B 26 084

Lock plate

C 26 048 €2.73

Grooved nut

C 26 049 €24.83

Needle cage

C 26 050 €19.65

Needle cage

C 26 051 €303.26

Helical gear, 25. teeth, f.2.speed

C 26 054

Thrust ring 7.9 mm thick

C 26 055 €130.40

Thrust ring 8.1 mm thick

C 26 058 €95.68

Synchronizer ring ( compare with old ring besfore instalation - width of the noses )

C 26 042 €32.00

Synchronizer ring ( compare with old ring besfore instalation - width of the noses )

C 26 042 €32.00

Synchronizer for 1st and 2nd gear

C 26 060 €1,373.89

Synchronizer for 1st and 2nd gear

D 26 088 €500.00

Pressure spring for synchronizer

A 26 028 €10.46

Steel ball D: 6.5 mm

A 26 046 €1.00

Towing arm

C 26 047 €36.24

Sliding sleeve for 1st and 2nd gear

D 26 090

Sunk key for main shaft

C 26 061 €25.17

Thrust washer 4.4 mm thick

C 26 062 €110.00

Thrust washer 4.5 mm thick

C 26 063 €66.53

Thrust washer 4.6 mm thick

C 26 064 €110.34

Needle bearring 1st gear

C 26 065 €139.80

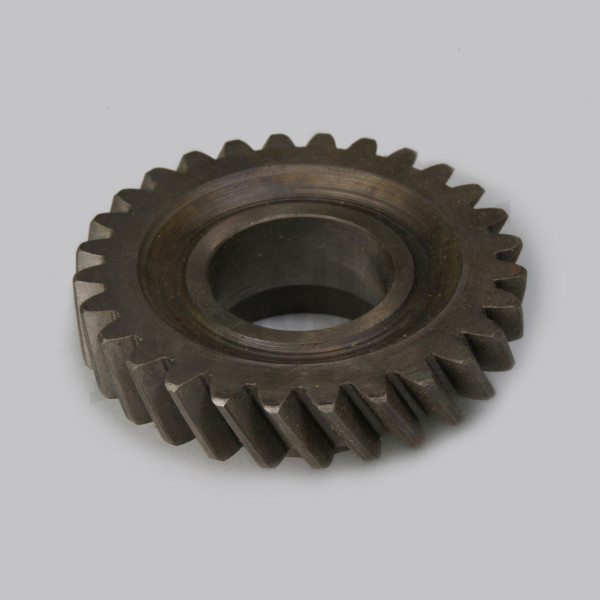

Helical gear, 28 teeth for 1st gear

C 26 066

Thrust washer 3.8 mm thick

C 26 068

Thrust washer 3.9 mm thick

C 26 069

Thrust washer 4.0 mm thick

C 26 070

Thrust washer 4.1 mm thick

C 26 071

Thrust washer 4.2 mm thick

C 26 072

Thrust washer 4.3 mm thick

C 26 073

Thrust washer 4.4, mm thick

C 26 074

Thrust washer 4.5 mm thick

C 26 075

Deep groove ball bearing on the main shaft

A 26 024 €38.00

Snap ring f. ring groove bearing

A 26 055

Spacer shim 0,1mm thick

C 26 077 €6.50

Space washer 0,1mm

C 26 019 €4.50

Speedometer drive gear

C 26 080 €116.00

Front transmission housing cover

C 26 085 €414.05

Sealing ring

C 26 088 €3.29

Bolt for clutch release fork

C 26 089 €72.50

Spring washer

B 03 018 €0.30

Gearbox housing cover rear

C 26 090

Plug

C 26 092 €4.74

Gasket for rear gearbox cover

C 26 093 €2.47

Sealing ring rear

C 26 095 €9.50

Sealing ring

D 26 107 €4.00

Shaft for speedometer drive

C 26 097 €90.00

Drive pinion for tachometer drive

C 26 099 €58.76

Spring washer

G 42 085 €0.30

Spring washer

B 03 018 €0.30

Three-arm flange on the main shaft

C 26 105 €415.61

Locking plate

C 26 106 €3.99

Nut M 24x1,5

C 26 108 €18.00

Screw plug 24x1,5

C 14 055 €2.73

Plug

D 26 111 €2.50

Seal ring 24x30

C 01 195a €0.80

Hexagon head screw M10x40 DIN 931-8G

G 25 028 €7.50

Holder on gearbox, 190SL

C 26 109b €48.00

Grommet 14-35

C 42 439 €2.14

Washer 10,5 DIN 125

G 49 063a €0.70

Shim 1.0 mm thick

C 26 022

Spacer shim 0,2mm thick

C 26 078 €9.00

Spacer shim 0,3mm thick

C 26 079 €12.00

Collar screw for rear gearbox cover

C 26 102 €34.05

This sentence consists of:
C 01 195a Sealing ring A 24x30 AI, 1 piece
C 26 088 Sealing ring for drive shaft on front gearbox housing cover, 1 piece
C 26 093 Gasket shim for rear transmission housing cover, 1 piece
C 26 095 Sealing ring for main shaft, 1 piece
C 26 106 Fuse for three-arm flange on main shaft, 1 piece
C 26 177 Sealing shim for top gear housing, 1 piece
D 26 081 Seal insert, 1 piece
D 26 107 Sealing ring, 1 piece
D 26 245 Radial sealing ring for selector shaft A 14x26 DIN 6503, 1 piece
C 26 176 Gasket shim for gearbox housing cover top, 1 piece

Gasket kit gearbox

C 26 177a €48.22

From gear 025118
up to chassis 8501329

Clevis pin

D 26 043 €11.14

Up to gear 5501250
up to chassis 5500107

Layshaft

C 26 010

From gear 024022
to chassis 6500172, with the exception of 6500168

Layshaft

C 26 011 €598.86

From gearbox 5501251 to 024021
from chassis 5500108 to 5501612, with the exception of 501595, 5501598, 5501600,

Front wheel 25 teeth f.3. gear

C 26 014

Up to gear 024021
from chassis 8502329

30 teeth for gear

C 26 016

From gear 024022
up to chassis 6500172
with the exception of 6500168

Front wheel 27 teeth for 3.gear

C 26 013 €500.00

From gear 024022
up to chassis 6500172
with the exception of 6500168

Drive shaft with synchronous cone

C 26 025

From gearbox 6503836
from chassis 5501613 )

Main shaft from gearbox no.75 02182

C 26 038 €1,310.76

From gear 024022
up to chassis 6500172
with the exception of 6500168

Helical gear for 3rd gear 22 teeth, needle bearing

C 26 039 €395.00

From gearbox 6503836
from chassis 5501613 )

Needle bearring

C 26 041 €197.41

From gear 5501251 to 024021
from chassis 5500108 to 5501612 ) with the exception of
) 5501595, 5501598, 5501600,

Helical gear, 25. teeth, f.2.speed

C 26 054

From gear 5501251
from chassis 5500108

Synchronizer for 1st and 2nd gear

C 26 060 €1,373.89

From gear 5501251
from chassis 5500108

Synchronizer for 1st and 2nd gear

D 26 088 €500.00

From gear 025177
from chassis 6500173 to 6501692

Helical gear, 28 teeth for 1st gear

C 26 066

From gear 6500163
from chassis 6501693

Three-arm flange on the main shaft

C 26 105 €415.61

From gear 6504119

Screw plug 24x1,5

C 14 055 €2.73

From gear 6504119

Plug

D 26 111 €2.50

From gear 6504119

Seal ring 24x30

C 01 195a €0.80

Up to gear 6500162
up to chassis 6501692

Collar screw for rear gearbox cover

C 26 102 €34.05

Return wheel 17 teeth

C 26 005

Bushing

C 26 006 €86.11

Reverse idler shaft

C 26 007 €152.07

Intermediate lever for reverse gear

A 26 089 €157.59

Cylindrical pin

C 01 019

Key

C 26 012 €1.85

Snap ring

C 26 017

Ball bearring

C 26 018 €18.50

Space washer 0,25mm

C 26 020 €10.05

Shim countershaft to bearing

C 26 023

Oil slinger ring

C 26 027 €9.80

Ring bearring

C 26 028 €56.00

Spring ring

C 26 029 €5.15

Spacer ring

C 26 031 €6.99

Spring ring 1,9mm

C 26 033 €4.65

Spring ring 2,05mm

C 26 034 €5.24

Spring ring 2,0mm

C 26 032 €5.24

Space washer 0,1mm

C 26 035

Space washer 0,2mm

C 26 036 €3.97

Shim 0.3 mm thick

C 26 037

Shim 0.5 mm thick

C 26 021

Synchronizer ring ( compare with old ring besfore instalation - width of the noses )

C 26 042 €32.00

Thrust washer

C 26 043 €97.89

Synchronizer body 3rd and 4th gear

C 26 044 €1,442.55

Synchronizer body

C 26 044b

Pressure spring for synchronizer

A 26 028 €10.46

Steel ball D: 6.5 mm

A 26 046 €1.00

Towing arm

C 26 047 €36.24

Sliding sleeve for 3 and 4 speed

B 26 084

Lock plate

C 26 048 €2.73

Grooved nut

C 26 049 €24.83

Needle cage

C 26 050 €19.65

Needle cage

C 26 051 €303.26

Thrust ring 7.9 mm thick

C 26 055 €130.40

Thrust ring 8.1 mm thick

C 26 058 €95.68

Synchronizer ring ( compare with old ring besfore instalation - width of the noses )

C 26 042 €32.00

Synchronizer ring ( compare with old ring besfore instalation - width of the noses )

C 26 042 €32.00

Pressure spring for synchronizer

A 26 028 €10.46

Steel ball D: 6.5 mm

A 26 046 €1.00

Towing arm

C 26 047 €36.24

Sliding sleeve for 1st and 2nd gear

D 26 090

Sunk key for main shaft

C 26 061 €25.17

Thrust washer 4.4 mm thick

C 26 062 €110.00

Thrust washer 4.5 mm thick

C 26 063 €66.53

Thrust washer 4.6 mm thick

C 26 064 €110.34

Needle bearring 1st gear

C 26 065 €139.80

Thrust washer 3.8 mm thick

C 26 068

Thrust washer 3.9 mm thick

C 26 069

Thrust washer 4.0 mm thick

C 26 070

Thrust washer 4.1 mm thick

C 26 071

Thrust washer 4.2 mm thick

C 26 072

Thrust washer 4.3 mm thick

C 26 073

Thrust washer 4.4, mm thick

C 26 074

Thrust washer 4.5 mm thick

C 26 075

Deep groove ball bearing on the main shaft

A 26 024 €38.00

Snap ring f. ring groove bearing

A 26 055

Spacer shim 0,1mm thick

C 26 077 €6.50

Space washer 0,1mm

C 26 019 €4.50

Speedometer drive gear

C 26 080 €116.00

Front transmission housing cover

C 26 085 €414.05

Sealing ring

C 26 088 €3.29

Bolt for clutch release fork

C 26 089 €72.50

Spring washer

B 03 018 €0.30

Gearbox housing cover rear

C 26 090

Plug

C 26 092 €4.74

Gasket for rear gearbox cover

C 26 093 €2.47

Sealing ring rear

C 26 095 €9.50

Sealing ring

D 26 107 €4.00

Shaft for speedometer drive

C 26 097 €90.00

Drive pinion for tachometer drive

C 26 099 €58.76

Spring washer

G 42 085 €0.30

Spring washer

B 03 018 €0.30

Locking plate

C 26 106 €3.99

Nut M 24x1,5

C 26 108 €18.00

Hexagon head screw M10x40 DIN 931-8G

G 25 028 €7.50

Holder on gearbox, 190SL

C 26 109b €48.00

Grommet 14-35

C 42 439 €2.14

Washer 10,5 DIN 125

G 49 063a €0.70

Shim 1.0 mm thick

C 26 022

Spacer shim 0,2mm thick

C 26 078 €9.00

Spacer shim 0,3mm thick

C 26 079 €12.00

W107	280SL
	350SL
	350SL/C
	380SL
	380SL/C
	500SL
	500SL/C

W113	230SL
	250SL
	280SL
W121	190SL
W129	300SL
W198	300SL

W187	220
	220AC
	220BC

W186	300c
	300cCD
W189	300d
	300dCD
W198	300SL Coupe

W105	219
W120	180
	180a
	180b
	180D
W121	190
	190b
	190D

26 Transmission 1 for Mercedes-Benz 190SL W121.040 Mercedes-Benz
190SL W121.040

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Popular variants

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Complex search queries

Pagode, Gullwing, Roadster

Sedan, Cabriolet, Coupé

Adenauer, Gullwing

Ponton, Coupe, Cabrio

Tail fin, old S-Class, Pagode

Pullman, Landaulet

Stroke 8, S-Class, Coupé

S-Class, Estate, Coupé, Sedan, T-Model

Roadster

26 Transmission 1 for Mercedes-Benz 190SL W121.040 Mercedes-Benz190SL W121.040

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Popular variants

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Complex search queries

26 Transmission 1 for Mercedes-Benz 190SL W121.040 Mercedes-Benz
190SL W121.040
