47 Fuel tank for Mercedes-Benz 300c, w186 Mercedes-Benz
300c W186.016

Chosen model:

Chassis: 186.016
Engine: 186.920, 921
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

[{"type":"poly","coords":[71,49,58,65,61,78,75,85,104,104,118,117,175,122,146,203,149,223,163,231,207,241,246,251,292,245,332,96,321,83,275,74,264,60,247,61,241,67,198,68,183,97,132,91,104,62],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/b47001-fuel-tank-72l","cssSelector":".product-group-1","info":"{\"ids\":\"B 47 001\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[212,267,200,269,198,279,206,291,220,290,230,285,234,274],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/a47019-screw-plug-m18x1-5-for-fuel-drain","cssSelector":".product-group-3","info":"{\"ids\":\"A 47 019\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[414,39,402,55,408,66,408,181,429,182,434,163,443,155,440,143,432,136,428,69,437,51],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/b47009-fuel-extraction-nozzle-300-b-c","cssSelector":".product-group-4","info":"{\"ids\":\"B 47 009\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[419,192,408,195,407,211,415,216,429,217,444,212,448,202],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/c47007-gasket","cssSelector":".product-group-5","info":"{\"ids\":\"C 47 007\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[147,278,149,301,158,309,158,352,174,353,184,343,194,330,190,313,178,276],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/b47017-tank-sensor-for-power-tank","cssSelector":".product-group-8","info":"{\"ids\":\"B 47 017\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[165,357,151,361,150,378,172,385,187,384,198,373,198,362],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/c47007-gasket~2","cssSelector":".product-group-9","info":"{\"ids\":\"C 47 007\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[24,13,11,56,21,65,33,60,38,45,41,19],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/b47026-screw-cap-filling-supports","cssSelector":".product-group-12","info":"{\"ids\":\"B 47 026\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"C 47 029a\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[49,31,38,64,44,70,52,63,61,51,67,34],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/c47031-sealing-ring","cssSelector":".product-group-13","info":"{\"ids\":\"C 47 031\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[375,69,363,81,316,281,310,325,320,327,336,304,346,245,370,239,371,218,363,215,378,120,402,70],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/b47032-tension-strap-for-fuel-tank-suspension","cssSelector":".product-group-14","info":"{\"ids\":\"B 47 032\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[94,109,76,123,68,147,68,167,86,179,101,179,112,165,115,141,116,131],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/a47028-rubber-grommet-fuel-filler-neck-lower","cssSelector":".product-group-22","info":"{\"ids\":\"A 47 028\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[57,81,36,94,32,123,33,137,44,147,56,144,71,129,79,113,78,101,65,85],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/a47029-rubber-grommet-fuel-filler-neck-upper","cssSelector":".product-group-23","info":"{\"ids\":\"A 47 029\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[144,135,106,185,84,259,68,258,50,247,28,247,20,270,21,295,35,309,39,325,49,336,62,343,74,347,86,337,88,323,84,315,118,192,156,142],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/b47046-vent-with-vent-wm-010-014","cssSelector":".product-group-26","info":"{\"ids\":\"B 47 046\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[23,325,38,327,42,375,58,377,56,392,47,410,42,433,28,431],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/a47013-rubber-hose-9x15mm-yard-goods","cssSelector":".product-group-28","info":"{\"ids\":\"A 47 013\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[448,51,445,65,463,80,468,100,479,110,486,141,474,207,479,241,480,281,468,347,473,365,482,361,486,329,490,275,489,231,495,164,492,75],"href":"\/en\/w186\/w186\/BIL\/46\/33","cssSelector":".product-group-33","info":"{\"ids\":\"B 47 055, B 47 057\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[294,607,294,623,332,622,353,630,370,653,388,659,416,647,442,620,464,607,476,595,477,577,484,508,480,400,484,379,478,375,470,379,466,405,470,518,467,549,452,571,434,591,422,618,414,637,398,647,380,649,366,628,346,605],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/b47056-fuel-pipe","cssSelector":".product-group-34","info":"{\"ids\":\"B 47 056\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[158,631,158,644,171,647,181,675,180,687,159,694,153,703,157,709,178,711,194,701,198,686,196,664,199,647,212,639,226,635,231,624,230,618],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/b47061-fuel-line-from-switchover-to-zw","cssSelector":".product-group-35","info":"{\"ids\":\"B 47 061\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[99,687,96,707,98,717,109,720,119,715,121,702,114,686],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/a47059-intermediate-piece-for-fuel-line-holder-right-side","cssSelector":".product-group-36","info":"{\"ids\":\"A 47 059\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[432,73,428,82,434,104,453,124,460,143,460,171,454,199,456,235,452,248,438,259,444,271,454,277,446,333,445,373,446,387,453,381,458,362,459,327,466,289,471,247,468,202,478,169,473,127,449,86],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/b47058-fuel-pipe","cssSelector":".product-group-39","info":"{\"ids\":\"B 47 058\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[442,395,440,527,430,537,430,559,388,635,379,648,390,651,424,593,454,563,464,515,459,393],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/b47059-fuel-pipe","cssSelector":".product-group-40","info":"{\"ids\":\"B 47 059\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[305,648,301,661,312,673,339,682,358,681,374,673,382,661,373,657,359,665,333,665],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/b47059-fuel-pipe","cssSelector":".product-group-40","info":"{\"ids\":\"B 47 059\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[414,432,410,457,406,471,412,479,422,481,429,464,433,439,428,431],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/a42151-brake-line-mounting-clamp-to-frame","cssSelector":".product-group-44","info":"{\"ids\":\"A 42 151\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[19,578,28,565,41,566,54,599,58,629,70,630,68,641,56,644,43,681,44,705,68,707,84,703,91,706,93,711,90,720,80,727,43,725,26,713,22,681,45,624,36,593],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/c47076-fuel-hose","cssSelector":".product-group-47","info":"{\"ids\":\"C 47 076\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[244,563,240,579,239,598,237,615,232,623,233,635,234,647,238,656,246,659,256,653,270,649,284,647,288,640,288,617,285,607,291,593,292,579,274,561],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/c47038-fuel-filter-unit-early-version","cssSelector":".product-group-50","info":"{\"ids\":\"C 47 038\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[286,669,273,677,264,687,274,695,286,696,292,687,298,685,306,685,308,677,300,670],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/c47041-seal-between-housing-and-rotary-valve-up-to-57","cssSelector":".product-group-51","info":"{\"ids\":\"C 47 041\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[294,687,289,697,274,703,272,713,292,719,312,717,316,705,315,691,308,687],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/b47107-retaining-ring-for-cap-for-chick","cssSelector":".product-group-53","info":"{\"ids\":\"B 47 107\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[86,619,80,624,86,635,104,637,120,632,125,625,125,620],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/c47044-seal-up-to-chassis-7502460","cssSelector":".product-group-54","info":"{\"ids\":\"C 47 044\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[82,557,94,555,108,558,121,561,127,573,118,584,103,592,88,591,80,589],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/c47050-fuel-filter-element-shortened-if-necessary","cssSelector":".product-group-55","info":"{\"ids\":\"C 47 050\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[85,599,82,610,94,615,111,613,124,613,129,605,129,597],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/c47053-spring-ring","cssSelector":".product-group-56","info":"{\"ids\":\"C 47 053\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[78,520,88,513,101,514,106,522,123,523,124,529,114,539,101,547,82,549],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/c47056-filter-cup-ponton-w105-w120-w121-w110-110-200d","cssSelector":".product-group-57","info":"{\"ids\":\"C 47 056\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[74,462,86,455,112,457,115,481,125,483,126,499,106,511,74,511],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/c47060-wire-bracket-with-wing-nut-and-bell","cssSelector":".product-group-58","info":"{\"ids\":\"C 47 060\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"C 47 058\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[370,325,310,397,302,415,180,575,194,587,204,582,201,569,254,503,280,503,277,487,316,421,319,403,376,331],"href":"\/en\/w186\/w186\/BIL\/46\/64","cssSelector":".product-group-64","info":"{\"ids\":\"B 47 117, B 47 118\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[382,347,381,362,390,367,410,367,415,361,416,353],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/c30062-rubber-grommet-for-starter-train","cssSelector":".product-group-69","info":"{\"ids\":\"C 30 062\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"A 54 224\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[390,289,382,307,394,313,416,307,419,295,417,287],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/46\/c30053-knob-chromed-m5","cssSelector":".product-group-70","info":"{\"ids\":\"C 30 053\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"}]

in stock
low stock level
currently not in stock, but available for order
no longer available

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 1		B 47 001 B 47 001	Fuel tank 72l Fuel tank 72l 186 470 24 01 or 1864702401		on request on request
Image number 3		A 47 019 A 47 019	Screw plug M18x1.5 for fuel. Drain Screw plug M18x1.5 for fuel. Drain 183 997 00 30 or 1839970030		on request on request
Image number 4		B 47 009 B 47 009	Fuel extraction nozzle 300,b,c Fuel extraction nozzle 300,b,c 186 470 13 27 or 1864701327		€350.00 €350.00
Image number 5		C 47 007 C 47 007	Gasket Gasket 110 471 01 80 or 1104710180		€1.55 €1.55

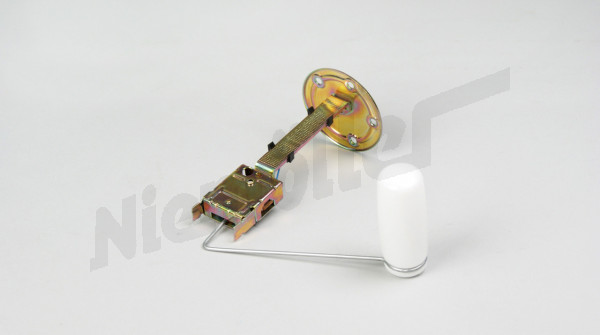

Image number 8		B 47 017 B 47 017	Tank sensor for power tank Tank sensor for power tank 001 542 75 17 or 0015427517		€149.50 €149.50
Image number 9		C 47 007 C 47 007	Gasket Gasket 110 471 01 80 or 1104710180		€1.55 €1.55
Image number 12		B 47 026 C 47 029a	Cap chromed Screw cap filling supports 183 471 00 30 or 1834710030		on request €125.00
	C 47 029a	Replacement: Cap chromed		€125.00
Image number 13		C 47 031 C 47 031	Sealing ring Sealing ring 136 470 01 85 or 1364700185		€1.54 €1.54
Image number 14		B 47 032 B 47 032	Tension strap for fuel tank suspension Tension strap for fuel tank suspension 186 470 03 40 or 1864700340		€50.00 €50.00
Image number 22		A 47 028 A 47 028	Rubber grommet fuel filler neck / lower Rubber grommet fuel filler neck / lower 183 471 01 81 or 1834710181		€20.06 €20.06
Image number 23		A 47 029 A 47 029	Rubber grommet fuel filler neck / upper Rubber grommet fuel filler neck / upper 136 471 00 81 or 1364710081		€20.06 €20.06
Image number 26		B 47 046 B 47 046	Vent with vent. Wm 010,014 Vent with vent. Wm 010,014 186 470 05 25 or 1864700525		on request on request
Image number 28		A 47 013 A 47 013	Rubber hose 9x15mm yard goods Rubber hose 9x15mm yard goods 312 476 00 26 or 3124760026		€19.50 €19.50
Image number 33		B 47 055	Fuel line from the fuel tank to the fuel tank 186 470 06 64 or 1864700664	on request		Select variant	on request
Image number 33		B 47 057	Fuel line from diff. to diff. to diff. 186 470 07 64 or 1864700764	on request		Select variant	on request

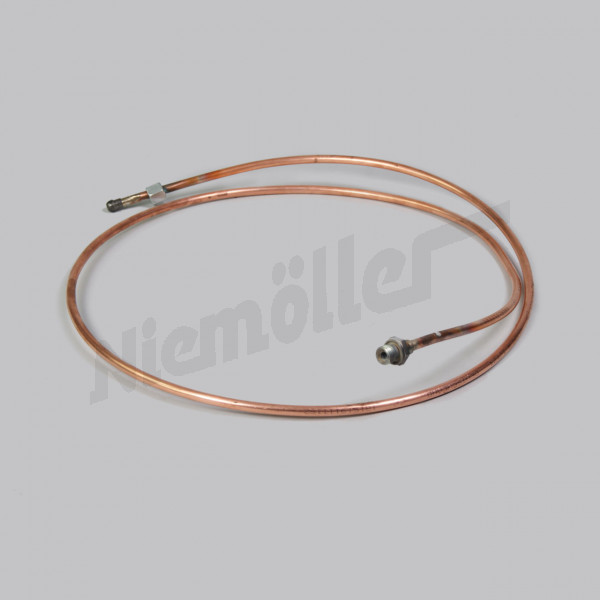

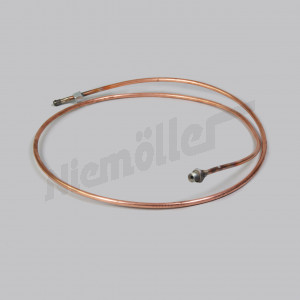

Image number 34		B 47 056 B 47 056	Fuel pipe Fuel pipe 186 470 02 64 or 1864700264		on request on request
Image number 35		B 47 061 B 47 061	Fuel line from switchover.to Zw Fuel line from switchover.to Zw 186 470 04 65 or 1864700465		on request on request
Image number 36		A 47 059 A 47 059	Intermediate piece for fuel line holder right side Intermediate piece for fuel line holder right side 136 476 00 25 or 1364760025		on request on request

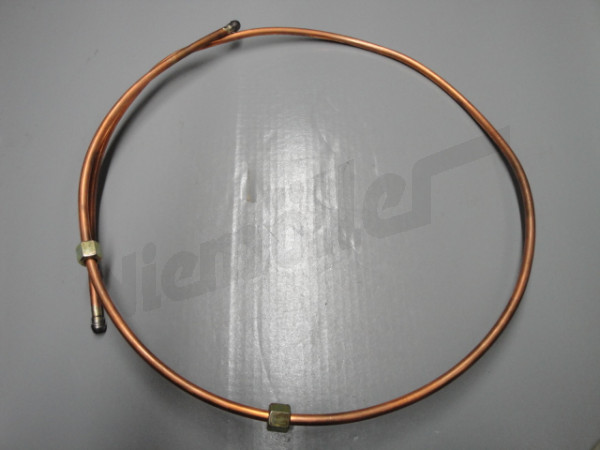

Image number 39		B 47 058 B 47 058	Fuel pipe Fuel pipe 186 470 05 64 or 1864700564		on request on request
Image number 40		B 47 059 B 47 059	Fuel pipe Fuel pipe 186 470 03 64 or 1864700364		on request on request
Image number 44		A 42 151 A 42 151	Brake line mounting clamp to frame Brake line mounting clamp to frame 153 995 03 22 or 1539950322		on request on request
Image number -		B 42 245 A 47 050	Mounting clamp Fixing clamp (triple) 153 995 01 22 or 1539950122		on request €2.10
	A 47 050	Replacement: Mounting clamp		€2.10
Image number 47		C 47 076 C 47 076	Fuel hose Fuel hose 100 476 23 26 or 1004762326		€23.50 €23.50
Image number 50		C 47 038 C 47 038	Fuel filter unit - early version Fuel filter unit - early version 000 476 06 90 or 0004760690		€485.00 €485.00
Image number 51		C 47 041 C 47 041	Seal between housing and rotary valve up to '57 Seal between housing and rotary valve up to '57 000 477 05 60 or 0004770560		€6.93 €6.93
Image number 53		B 47 107 B 47 107	Retaining ring(for cap for chick) Retaining ring(for cap for chick) 000 994 14 35 or 0009941435		on request on request
Image number 54		C 47 044 C 47 044	Seal - up to chassis 7502460 Seal - up to chassis 7502460 000 477 16 80 or 0004771680		€4.62 €4.62
Image number 55		C 47 050 C 47 050	Fuel filter element (shortened if necessary) Fuel filter element (shortened if necessary) 000 477 36 15 or 0004773615		€50.88 €50.88
Image number 56		C 47 053 C 47 053	Spring ring Spring ring 000 994 04 37 or 0009940437		€12.39 €12.39
Image number 57		C 47 056 C 47 056	Filter cup Ponton W105, W120, W121, W110.110 200D Filter cup Ponton W105, W120, W121, W110.110 200D 000 477 07 16 or 0004770716		on request on request
Image number 58		C 47 060 C 47 058	Wire clip with nut Wire bracket with wing nut and bell 000 477 03 18 or 0004770318		on request €17.00
	C 47 058	Replacement: Wire clip with nut		€17.00
Image number 64		B 47 117	Control rod for stopcock 186 470 04 14 or 1864700414	on request		Select variant	on request
Image number 64		B 47 118	Control rod for stopcock 186 470 05 14 or 1864700514	on request		Select variant	on request
Image number R65		B 47 119 B 47 119	Control rod for stopcock Control rod for stopcock 186 470 06 14 or 1864700614		on request on request
Image number 69		C 30 062 A 54 224	Rubber grommet Rubber grommet for starter train 000 997 18 81 or 0009971881		on request €2.03
	A 54 224	Replacement: Rubber grommet		€2.03
Image number 70		C 30 053 C 30 053	Knob / chromed M5 Knob / chromed M5 120 302 02 01 or 1203020201		€34.50 €34.50

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Fuel tank 72l

B 47 001

Screw plug M18x1.5 for fuel. Drain

A 47 019

Fuel extraction nozzle 300,b,c

B 47 009 €350.00

Gasket

C 47 007 €1.55

Tank sensor for power tank

B 47 017 €149.50

Gasket

C 47 007 €1.55

Screw cap filling supports

B 47 026

Replacement item available

Sealing ring

C 47 031 €1.54

Tension strap for fuel tank suspension

B 47 032 €50.00

Rubber grommet fuel filler neck / lower

A 47 028 €20.06

Rubber grommet fuel filler neck / upper

A 47 029 €20.06

Vent with vent. Wm 010,014

B 47 046

Rubber hose 9x15mm yard goods

A 47 013 €19.50

Fuel line from the fuel tank to the fuel tank

B 47 055

Fuel line from diff. to diff. to diff.

B 47 057

Fuel pipe

B 47 056

Fuel line from switchover.to Zw

B 47 061

Intermediate piece for fuel line holder right side

A 47 059

Fuel pipe

B 47 058

Fuel pipe

B 47 059

Brake line mounting clamp to frame

A 42 151

Fixing clamp (triple)

B 42 245

Replacement item available

Fuel hose

C 47 076 €23.50

Fuel filter unit - early version

C 47 038 €485.00

Seal between housing and rotary valve up to '57

C 47 041 €6.93

Retaining ring(for cap for chick)

B 47 107

Seal - up to chassis 7502460

C 47 044 €4.62

Fuel filter element (shortened if necessary)

C 47 050 €50.88

Spring ring

C 47 053 €12.39

Filter cup Ponton W105, W120, W121, W110.110 200D

C 47 056

Wire bracket with wing nut and bell

C 47 060

Replacement item available

Control rod for stopcock

B 47 117

Control rod for stopcock

B 47 118

Control rod for stopcock

B 47 119

Rubber grommet for starter train

C 30 062

Replacement item available

Knob / chromed M5

C 30 053 €34.50

At fuel tank bottom for fuel drain

Screw plug M18x1.5 for fuel. Drain

A 47 019

For fuel nozzles on fuel tanks

Gasket

C 47 007 €1.55

For sensors on fuel tanks

Gasket

C 47 007 €1.55

For vent line on fuel tank and for overflow

Rubber hose 9x15mm yard goods

A 47 013 €19.50

From the fuel tank to the fuel switchover tap

Fuel line from the fuel tank to the fuel tank

B 47 055

Up to chassis no. 65 00066

Fuel line from diff. to diff. to diff.

B 47 057

As of chassis no. 65 00067

Fuel pipe

B 47 056

As of chassis no. 65 00067

Fuel line from switchover.to Zw

B 47 061

As of chassis no. 65 00067

Fuel pipe

B 47 059

Left-hand drive from chassis no. 65 00067

Brake line mounting clamp to frame

A 42 151

Up to chassis no. 65 00066

Fixing clamp (triple)

B 42 245

Replacement item available

Up to chassis no. 65 00066

Control rod for stopcock

B 47 117

Left-hand drive, as of chassis no. 65 00067

Control rod for stopcock

B 47 118

Right-hand drive

Control rod for stopcock

B 47 119

Fuel tank 72l

B 47 001

Fuel extraction nozzle 300,b,c

B 47 009 €350.00

Tank sensor for power tank

B 47 017 €149.50

Screw cap filling supports

B 47 026

Replacement item available

Sealing ring

C 47 031 €1.54

Tension strap for fuel tank suspension

B 47 032 €50.00

Rubber grommet fuel filler neck / lower

A 47 028 €20.06

Rubber grommet fuel filler neck / upper

A 47 029 €20.06

Vent with vent. Wm 010,014

B 47 046

Intermediate piece for fuel line holder right side

A 47 059

Fuel pipe

B 47 058

Fuel hose

C 47 076 €23.50

Fuel filter unit - early version

C 47 038 €485.00

Seal between housing and rotary valve up to '57

C 47 041 €6.93

Retaining ring(for cap for chick)

B 47 107

Seal - up to chassis 7502460

C 47 044 €4.62

Fuel filter element (shortened if necessary)

C 47 050 €50.88

Spring ring

C 47 053 €12.39

Filter cup Ponton W105, W120, W121, W110.110 200D

C 47 056

Wire bracket with wing nut and bell

C 47 060

Replacement item available

Rubber grommet for starter train

C 30 062

Replacement item available

Knob / chromed M5

C 30 053 €34.50
