Mercedes-Benz 300c, w186

Chosen model:

Chassis: 186.016
Engine: 186.920, 921
Choose different model

Current unit you are viewing: 15 Electrical Equipment at Engine

[{"type":"poly","coords":[92,510,88,588,66,591,65,614,55,627,52,635,52,664,68,673,87,676,105,676,131,657,170,658,207,668,254,674,300,687,305,708,323,726,379,732,402,721,394,694,359,668,323,645,298,644,286,653,160,634,131,628,126,588,112,508],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/b18001-repair-oil-pump-old-part-needed-first","cssSelector":".product-group-1","info":"{\"ids\":\"B 18 001\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[83,482,95,476,113,477,113,491,114,499,87,502],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/c18004-bushing","cssSelector":".product-group-2","info":"{\"ids\":\"C 18 004\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[98,340,95,382,88,398,91,415,91,444,91,457,103,469,113,470,121,454,121,433,111,342],"href":"\/en\/w186\/w186\/BIL\/10\/3","cssSelector":".product-group-3","info":"{\"ids\":\"B 18 009, B 18 010\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[87,304,86,316,94,331,105,336,120,333,117,309,110,299],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/b18026-cam-f-kra-st-f-pumpe-a-oel-a-w","cssSelector":".product-group-8","info":"{\"ids\":\"B 18 026\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[187,599,193,615,238,609,367,624,380,637,400,653,436,669,480,666,490,653,483,639,444,604,322,597,227,584],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/b18028-suction-pipe-with-suction-basket","cssSelector":".product-group-11","info":"{\"ids\":\"B 18 028\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[200,709,213,708,231,710,234,724,227,733,220,735,204,737],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/c18025-pipe-clamp-for-suction-pipe-oil-pump","cssSelector":".product-group-12","info":"{\"ids\":\"C 18 025\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[98,218,81,254,80,270,98,279,115,275,116,218],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/d18074-coupling-sleeve","cssSelector":".product-group-13","info":"{\"ids\":\"D 18 074\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[259,365,169,387,137,410,137,428,211,491,234,492,257,485,269,473,276,423,276,409],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/b18054-lubricating-oil-strainer-disc-filters","cssSelector":".product-group-20","info":"{\"ids\":\"B 18 054\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[288,151,294,172,306,185,318,179,323,164,325,149,315,143],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/a18041-screw-plug-m22x1-5-for-fuel-hose-valve","cssSelector":".product-group-22","info":"{\"ids\":\"A 18 041\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[208,173,213,195,231,202,246,192,254,179,252,162],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/a18042-spring-for-short-circuit-valve","cssSelector":".product-group-23","info":"{\"ids\":\"A 18 042\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[181,180,183,207,196,211,206,206,200,179],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/a18043-valve-plug-for-short-circuit-valve","cssSelector":".product-group-24","info":"{\"ids\":\"A 18 043\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[349,187,337,207,350,235,371,249,403,251,429,251,445,229,445,198,424,166],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/b18055-sieve-filter-insert-without-lid","cssSelector":".product-group-28","info":"{\"ids\":\"B 18 055\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[328,101,328,125,338,160,360,165,408,151,422,125,425,99,415,91,393,86],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/b18056-oil-filter-coil","cssSelector":".product-group-29","info":"{\"ids\":\"B 18 056\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[301,194,286,202,281,213,294,249,304,263,327,268,343,260,340,244,317,189],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/a18006-oil-filter-housing-cover-gasket","cssSelector":".product-group-30","info":"{\"ids\":\"A 18 006\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[228,330,288,317,300,326,305,336,305,352,290,363,277,367,230,346],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/b18058-gasket-oil-filter-hosing-to-crankcase","cssSelector":".product-group-33","info":"{\"ids\":\"B 18 058\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[343,509,345,530,320,535,289,528,269,519,255,518,247,529,223,515,207,493,190,499,194,524,220,554,251,560,287,551,314,551,336,556,370,553,385,534,382,514,360,503],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/b18063-oil-line-from-oil-filter-to-oil-cooler","cssSelector":".product-group-36","info":"{\"ids\":\"B 18 063\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[37,79,39,110,58,111,73,100,81,84,63,71],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/c18108-oil-overpressure-valve","cssSelector":".product-group-38","info":"{\"ids\":\"C 18 108\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[85,63,85,89,103,91,113,82,107,65],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/c18110-spring-in-oil-overpressure-valve","cssSelector":".product-group-39","info":"{\"ids\":\"C 18 110\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[123,53,126,80,140,82,146,69,140,56],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/c18111-piston-in-oil-overpressure-valve","cssSelector":".product-group-40","info":"{\"ids\":\"C 18 111\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[36,39,34,58,42,68,55,63,71,51,71,37,54,30],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/b18101-oil-overd-v-10atue-behind-cylinder-lubricr","cssSelector":".product-group-42","info":"{\"ids\":\"B 18 101\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[74,23,74,46,85,51,109,47,119,39,117,29,89,23],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/b18104-spring-for-8-atue","cssSelector":".product-group-43","info":"{\"ids\":\"B 18 104\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[117,10,119,36,130,41,140,36,141,24,132,15],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/c18111-piston-in-oil-overpressure-valve~2","cssSelector":".product-group-44","info":"{\"ids\":\"C 18 111\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[85,120,86,165,102,177,133,178,272,133,280,114,267,65,126,95],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/b18105-oil-cooler-for-transmission-automatic-transmission","cssSelector":".product-group-50","info":"{\"ids\":\"B 18 105\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[290,49,288,146,305,143,312,137,321,115,325,96,317,89,310,47],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/10\/b18106-clamping-strap-oil-on-holder-aut-get","cssSelector":".product-group-51","info":"{\"ids\":\"B 18 106\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"}]

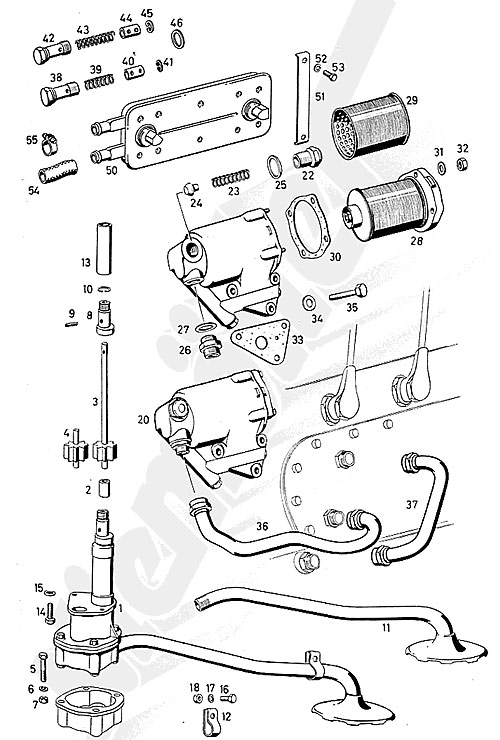

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.

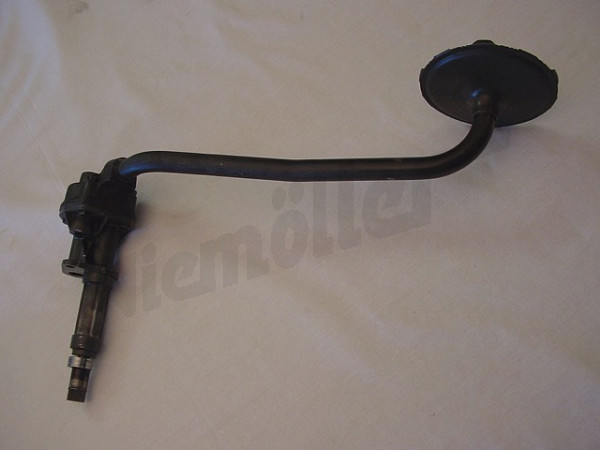

Image number 1		B 18 001 B 18 001	Repair oil pump old part needed first Repair oil pump old part needed first 186 180 04 01 oder 1861800401		€640.00 €640.00
Image number 2		C 18 004 C 18 004	Bushing Bushing 136 181 01 50 oder 1361810150		€28.00 €28.00
Image number 3		B 18 009	Drive shaft with gear wheel 22 mm high 186 180 04 07 oder 1861800407		on request	Choose the suitable product variant
Image number 3	Image number 3		B 18 010	Drive shaft with gear wheel 24mm high 186 180 05 07 oder 1861800507		Choose the suitable product variant	on request
Image number -		C 18 017 C 18 017	Oil pump axle with gear Oil pump axle with gear 180 180 03 08 oder 1801800308		on request on request
Image number 8		B 18 026 B 18 026	Cam (f.Kra.st.-F.pumpe/a.Oel.a.w Cam (f.Kra.st.-F.pumpe/a.Oel.a.w 186 091 02 12 oder 1860910212		on request on request

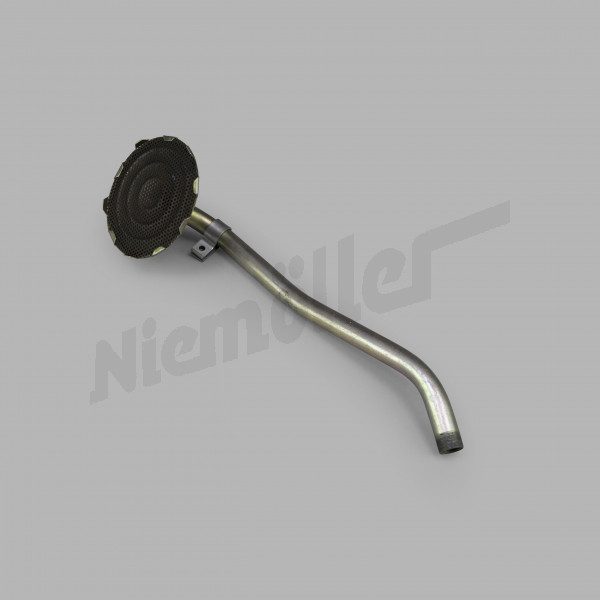

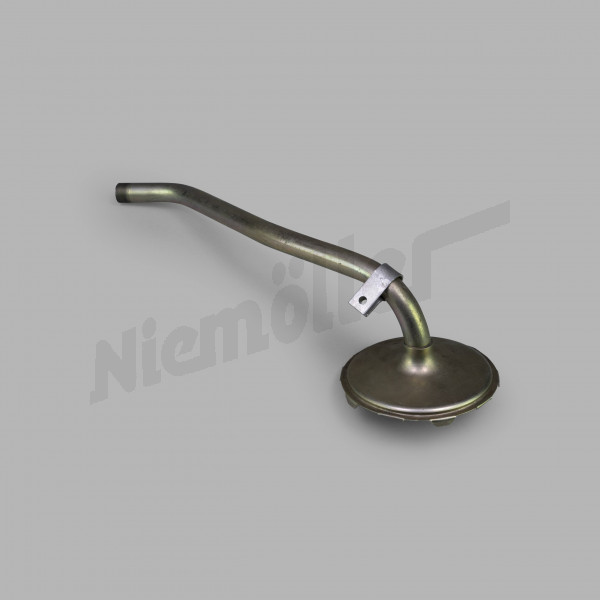

Image number 11		B 18 028 B 18 028	Suction pipe with suction basket Suction pipe with suction basket 186 180 04 52 oder 1861800452		€806.00 €806.00
Image number 12		C 18 025 C 18 025	Pipe clamp for suction pipe oil pump Pipe clamp for suction pipe oil pump 186 995 09 44 oder 1869950944		on request on request
Image number 13		D 18 074 D 18 074	Coupling sleeve Coupling sleeve 186 181 04 33 oder 1861810433		€245.96 €245.96
Image number 20		B 18 054 B 18 054	Lubricating oil strainer disc filters Lubricating oil strainer disc filters 000 184 17 01 oder 0001841701		on request on request
Image number 22		A 18 041 A 18 041	Screw plug M22x1,5 for fuel hose valve Screw plug M22x1,5 for fuel hose valve 180 184 00 56 oder 1801840056		€42.16 €42.16
Image number 23		A 18 042 A 18 042	Spring for short circuit valve Spring for short circuit valve 186 993 16 01 oder 1869931601		€16.25 €16.25
Image number 24		A 18 043 A 18 043	Valve plug for short circuit valve Valve plug for short circuit valve 186 184 00 30 oder 1861840030		€12.84 €12.84
Image number 28		B 18 055 B 18 055	Sieve filter insert without lid Sieve filter insert without lid 000 184 12 25 oder 0001841225		€95.00 €95.00
Image number 29		B 18 056 B 18 056	Oil filter coil Oil filter coil 000 184 04 12 oder 0001840412		on request on request
Image number 30		A 18 006 A 18 006	Oil filter housing cover gasket Oil filter housing cover gasket 636 184 04 80 oder 6361840480		€1.25 €1.25
Image number 33		B 18 058 B 18 058	Gasket oil filter hosing to crankcase Gasket oil filter hosing to crankcase 186 184 05 80 oder 1861840580		€5.90 €5.90
Image number 36		B 18 063 B 18 063	Oil line (from oil filter to oil cooler Oil line (from oil filter to oil cooler 186 180 03 30 oder 1861800330		on request on request
Image number 38		C 18 108 C 18 108	Oil overpressure valve Oil overpressure valve 186 180 02 33 oder 1861800233		€178.50 €178.50
Image number 39		C 18 110 C 18 110	Spring in oil overpressure valve Spring in oil overpressure valve 186 993 17 01 oder 1869931701		on request on request
Image number 40		C 18 111 C 18 111	Piston in oil overpressure valve Piston in oil overpressure valve 159 181 00 42 oder 1591810042		on request on request
Image number 42		B 18 101 B 18 101	Oil overd. v. (10atü) behind cylinder lubricr. Oil overd. v. (10atü) behind cylinder lubricr. 186 180 03 33 oder 1861800333		€273.52 €273.52
Image number 43		B 18 104 B 18 104	Spring ( for 8 atü ) Spring ( for 8 atü ) 186 993 18 01 oder 1869931801		on request on request
Image number 44		C 18 111 C 18 111	Piston in oil overpressure valve Piston in oil overpressure valve 159 181 00 42 oder 1591810042		on request on request
Image number 50		B 18 105 B 18 105	Oil cooler for transmission, automatic transmission Oil cooler for transmission, automatic transmission 000 188 10 01 oder 0001881001		on request on request
Image number 51		B 18 106 B 18 106	Clamping strap oil on holder aut.get Clamping strap oil on holder aut.get 186 188 00 45 oder 1861880045		on request on request

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

For this spare part we offer a repair / overhaul of your old part. In how far your old part is repairable, we can only judge after viewing. Please send us your old part with the article number, your name with complete address, telephone number and an e-mail address. The price always refers to a standard overhaul without additional work. We will gladly provide you with a cost estimate. Should you decide against a repair after the cost estimate or should your old part not be repairable, a service fee of 40,00 Euro (incl. VAT) will be charged for the cost estimate . Address: Niemöller, Markircher Str. 6, 68229 Mannheim, Germany

B 18 001 €640.00

C 18 004 €28.00

Up to engine no. 55 00190

B 18 009

From engine no. 55 00191

B 18 010

Up to engine no. 55 00190

C 18 017

B 18 026

B 18 028 €806.00

C 18 025

D 18 074 €245.96

B 18 054

A 18 041 €42.16

A 18 042 €16.25

A 18 043 €12.84

B 18 055 €95.00

B 18 056

A 18 006 €1.25

B 18 058 €5.90

B 18 063

C 18 108 €178.50

C 18 110

C 18 111

B 18 101 €273.52

B 18 104

C 18 111

B 18 105

(for oil cooler on holder cylinder crankcase) (for vehicles with automatic transmission)

B 18 106

in stock
low stock level
currently not in stock, but available for order
no longer available

B 18 001 €640.00

C 18 004 €28.00

B 18 009

B 18 010

C 18 017

B 18 026

B 18 028 €806.00

C 18 025

D 18 074 €245.96

B 18 054

A 18 041 €42.16

A 18 042 €16.25

A 18 043 €12.84

B 18 055 €95.00

B 18 056

A 18 006 €1.25

B 18 058 €5.90

B 18 063

C 18 108 €178.50

C 18 110

C 18 111

B 18 101 €273.52

B 18 104

C 18 111

B 18 105

B 18 106

in stock
low stock level
currently not in stock, but available for order
no longer available
