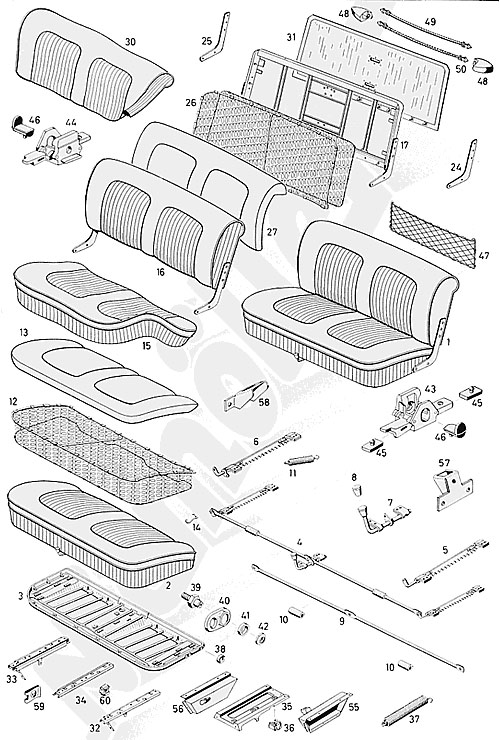

Image number
1
|
|
B 91 323
|
Driver's bench (plush) built in.
10 186 910 25 01 or 101869102501
|
on request
|
|
Select variant
|
on request
|
|
|
Image number
1
|
|
B 91 324
|
Driver's bench,cord with MB-tex cover
10 186 910 26 01 or 101869102601
|
on request
|
|
on request
|
|
|
Image number
2
|
|
B 91 326
|
Driver cushion, plush cover
10 186 910 13 30 or 101869101330
|
on request
|
|
Select variant
|
on request
|
|
|
Image number
2
|
|
B 91 327
|
Driver Cushion,Cord with MB-Tex cover
10 186 910 14 30 or 101869101430
|
on request
|
|
on request
|
|
|
Image number
3
|
|
B 91 329
B 91 329
|
Seat cushion frame
Seat cushion frame
10 186 910 07 22 or 101869100722
|
|
on request
on request
|
|
|
Image number
4
|
|
B 91 330
B 91 330
|
Brake for seat adjuster
Brake for seat adjuster
10 186 910 01 05 or 101869100105
|
|
on request
on request
|
|
|
Image number
5
|
|
B 91 331
B 91 331
|
Lock left
Lock left
10 120 910 10 05 or 101209101005
|
|
on request
on request
|
|
|
Image number
6
|
|
B 91 332
B 91 332
|
Brake right
Brake right
10 186 910 02 05 or 101869100205
|
|
on request
on request
|
|
|
Image number
7
|
|
B 91 333
B 91 333
|
Handle for brake
Handle for brake
10 186 910 00 05 or 101869100005
|
|
on request
on request
|
|
|
Image number
8
|
|
C 91 034
C 91 034
|
Knob ( black )
Knob ( black )
12 136 919 00 60 or 121369190060
|
|
€25.00
€25.00
|
|
|
Image number
9
|
|
B 91 334
B 91 334
|
Connecting rod for brake
Connecting rod for brake
10 186 919 00 27 or 101869190027
|
|
on request
on request
|
|
|
Image number
10
|
|
B 91 335
B 91 335
|
Felt hose 50mm long, other connections
Felt hose 50mm long, other connections
000 983 00 20 or 0009830020
|
|
on request
on request
|
|
|
Image number
11
|
|
C 91 109
C 91 109
|
Tension spring for hold-open
Tension spring for hold-open
10 120 912 03 36 or 101209120336
|
|
€123.80
€123.80
|
|
|
Image number
12
|
|
B 91 336
B 91 336
|
Spring box for driver's seat cushion.
Spring box for driver's seat cushion.
10 120 910 04 40 or 101209100440
|
|
on request
on request
|
|
|
Image number
13
|
|
B 91 337
|
Rubber hair mat for plush version
10 186 914 17 14 or 101869141714
|
on request
|
|
Select variant
|
on request
|
|
|
Image number
13
|
|
B 91 338
|
Rubberhaarma.f.Cord w.MB-Tex-u.Leather
10 186 914 18 14 or 101869141814
|
on request
|
|
on request
|
|
|
Image number
14
|
|
C 91 028
C 91 028
|
Clamp for rubber hair pad
Clamp for rubber hair pad
000 984 20 61 or 0009842061
|
|
€1.50
€1.50
|
|
|
Image number
15
|
|
B 91 339
|
Cover (plush)fert.sewn for F.bank.
10 186 910 47 46 or 101869104746
|
on request
|
|
Select variant
|
on request
|
|
|
Image number
15
|
|
B 91 340
|
Cover (cord with MB-Tex)fert.sewn
10 186 910 57 46 or 101869105746
|
on request
|
|
on request
|
|
|
Image number
16
|
|
B 91 342
|
Backrest(plush)for driver.ba.
10 186 910 31 32 or 101869103132
|
on request
|
|
Select variant
|
on request
|
|
|
Image number
16
|
|
B 91 343
|
Backrest(cord with MB-tex cover)F.bank
10 186 910 32 32 or 101869103232
|
on request
|
|
on request
|
|
|
Image number
17
|
|
B 91 345
B 91 345
|
Backrest frame with backrest bracket
Backrest frame with backrest bracket
10 186 910 19 34 or 101869101934
|
|
on request
on request
|
|
|
Image number
-
|
|
B 91 346
B 91 346
|
Backrest bar, left, hole spacing 97mm
Backrest bar, left, hole spacing 97mm
10 186 913 05 26 or 101869130526
|
|
on request
on request
|
|
|
Image number
-
|
|
B 91 347
B 91 347
|
Backrest bar right. hole distance 97mm
Backrest bar right. hole distance 97mm
10 186 913 06 26 or 101869130626
|
|
on request
on request
|
|
|
Image number
-
|
|
B 91 348
B 91 348
|
Backrest bar, left, hole spacing 70mm
Backrest bar, left, hole spacing 70mm
10 186 913 07 26 or 101869130726
|
|
on request
on request
|
|
|
Image number
0
|
|
B 91 349
B 91 349
|
Backrest bar right. hole distance 70mm
Backrest bar right. hole distance 70mm
10 186 913 08 26 or 101869130826
|
|
on request
on request
|
|
|
Image number
24
|
|
B 91 350
B 91 350
|
Backrest bar left
Backrest bar left
10 120 913 11 26 or 101209131126
|
|
on request
on request
|
|
|
Image number
25
|
|
B 91 351
B 91 351
|
Backrest bracket, right
Backrest bracket, right
10 120 913 12 26 or 101209131226
|
|
on request
on request
|
|
|
Image number
26
|
|
B 91 352
B 91 352
|
Spring box for driver's backrest
Spring box for driver's backrest
10 120 910 00 41 or 101209100041
|
|
on request
on request
|
|
|
Image number
27
|
|
B 91 353
B 91 353
|
Rubber hair mat for plush version
Rubber hair mat for plush version
10 186 914 13 16 or 101869141316
|
|
on request
on request
|
|
|
Image number
30
|
|
B 91 355
|
Sewn cover (plush) for driver's seat
10 186 910 50 47 or 101869105047
|
on request
|
|
Select variant
|
on request
|
|
|
Image number
30
|
|
B 91 356
|
Cover(Cord with MB-Tex)for backrest,sewn
10 186 910 53 47 or 101869105347
|
on request
|
|
on request
|
|
|
Image number
31
|
|
B 91 358
|
Cladding.hi.m.plush.f.rear.500mm
10 186 910 13 39 or 101869101339
|
on request
|
|
Select variant
|
on request
|
|
|
Image number
31
|
|
B 91 359
|
Cladding hi.(Cord-MB-Texb.)500mm
10 186 910 15 39 or 101869101539
|
on request
|
|
on request
|
|
|
Image number
31
|
|
B 91 361
|
Cladding.hi.m.plush.f.Rückl.450
10 186 910 23 39 or 101869102339
|
on request
|
|
on request
|
|
|
Image number
31
|
|
B 91 362
|
Fairing.hi.m.Cord m.MB-Texb.450
10 186 910 24 39 or 101869102439
|
on request
|
|
on request
|
|
|
Image number
32
|
|
B 91 364
B 91 364
|
Sliding seat fitting outside left for barrel.
Sliding seat fitting outside left for barrel.
10 120 910 15 05 or 101209101505
|
|
on request
on request
|
|
|
Image number
33
|
|
C 91 125
C 91 125
|
Sliding seat fitting outside right
Sliding seat fitting outside right
10 120 910 16 05 or 101209101605
|
|
on request
on request
|
|
|
Image number
34
|
|
B 91 365
B 91 365
|
Sliding seat center for slide rail
Sliding seat center for slide rail
10 186 910 03 05 or 101869100305
|
|
on request
on request
|
|
|
Image number
35
|
|
B 91 366
B 91 366
|
Driver seat cover, middle
Driver seat cover, middle
10 186 610 03 67 or 101866100367
|
|
on request
on request
|
|
|
Image number
36
|
|
C 47 091
C 47 091
|
Cage clip M6
Cage clip M6
000 990 22 91 or 0009902291
|
|
€1.50
€1.50
|
|
|
Image number
37
|
|
B 91 367
B 91 367
|
Tension spring for driver seat bottom middle
Tension spring for driver seat bottom middle
10 120 912 02 36 or 101209120236
|
|
on request
on request
|
|
|
Image number
38
|
|
B 91 016
B 91 016
|
Support ring for rotating pin
Support ring for rotating pin
191 991 00 35 or 1919910035
|
|
on request
on request
|
|
|
Image number
39
|
|
D 91 201
D 91 201
|
Rotating pins
Rotating pins
10 120 919 00 15 or 101209190015
|
|
€43.01
€43.01
|
|
|
Image number
40
|
|
B 91 074
B 91 074
|
Escutcheon
Escutcheon
10 120 919 00 23 or 101209190023
|
|
on request
on request
|
|
|
Image number
41
|
|
B 91 368
B 91 368
|
Spacer tube
Spacer tube
187 991 00 40 or 1879910040
|
|
on request
on request
|
|
|
Image number
42
|
|
D 91 202
D 91 202
|
Washer
Washer
120 919 00 13 or 1209190013
|
|
€20.50
€20.50
|
|
|
Image number
43
|
|
B 91 369
C 91 052a
|
Seat adjuster / LHS
Left support
10 180 910 03 91 or 101809100391
|
|
on request
€162.00
|
|
|
C 91 052a
|
Replacement: Seat adjuster / LHS
|
|
€162.00
|
|
Image number
44
|
|
B 91 370
C 91 053a
|
Seat adjuster / RHS
Support right
10 180 910 04 91 or 101809100491
|
|
on request
€162.00
|
|
|
C 91 053a
|
Replacement: Seat adjuster / RHS
|
|
€162.00
|
|
Image number
45
|
|
C 91 055
C 91 055
|
Rubber buffer for seat adjuster
Rubber buffer for seat adjuster
10 180 919 00 96 or 101809190096
|
|
€5.15
€5.15
|
|
|
Image number
46
|
|
B 91 371
B 91 371
|
Rubber buffer
Rubber buffer
10 180 919 00 97 or 101809190097
|
|
€7.88
€7.88
|
|
|
Image number
48
|
|
A 81 021
A 81 021
|
Holder chrome plated for retaining rope
Holder chrome plated for retaining rope
12 136 815 00 04 or 121368150004
|
|
on request
on request
|
|
|
Image number
49
|
|
B 81 080
B 81 080
|
Cloak rope on driver's backrest
Cloak rope on driver's backrest
000 810 03 53 or 0008100353
|
|
on request
on request
|
|
|
Image number
55
|
|
B 91 376
B 91 376
|
Driver seat cover left
Driver seat cover left
10 186 610 05 66 or 101866100566
|
|
on request
on request
|
|
|
Image number
56
|
|
B 91 377
B 91 377
|
Driver seat cover, right
Driver seat cover, right
10 186 610 06 66 or 101866100666
|
|
on request
on request
|
|
|
Image number
57
|
|
C 91 130
C 91 130
|
Locking console left
Locking console left
10 120 919 01 31 or 101209190131
|
|
on request
on request
|
|
|
Image number
58
|
|
C 91 132
C 91 132
|
Locking console right
Locking console right
10 120 919 02 31 or 101209190231
|
|
on request
on request
|
|
|
Image number
59
|
|
C 47 063
C 47 063
|
Plug-in clip nut for power through filter
Plug-in clip nut for power through filter
000 994 09 45 or 0009940945
|
|
€2.21
€2.21
|
|
|
Image number
60
|
|
B 91 378
B 91 378
|
Square cage M6
Square cage M6
000 991 22 91 or 0009912291
|
|
on request
on request
|
|
|
Image number
-
|
|
B 91 379
B 91 379
|
Driver's seat fully upholstered in white
Driver's seat fully upholstered in white
10 186 910 09 02 or 101869100902
|
|
on request
on request
|
|
|
Image number
-
|
|
B 91 380
B 91 380
|
Seat cushion fully upholstered in white
Seat cushion fully upholstered in white
10 186 910 09 06 or 101869100906
|
|
on request
on request
|
|
|
Image number
-
|
|
B 91 381
B 91 381
|
Backrest fully upholstered in white
Backrest fully upholstered in white
10 186 910 11 07 or 101869101107
|
|
on request
on request
|
|
