01 Crankcase 1 for Mercedes-Benz 300c, w186 Mercedes-Benz
300c W186.016

Chosen model:

Chassis: 186.016
Engine: 186.920, 921
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

[{"type":"poly","coords":[18,448,8,534,32,562,79,582,115,577,150,557,177,549,204,548,228,540,253,524,273,524,299,515,321,498,310,465,310,440,299,390,261,387],"href":"\/en\/w186\/w186\/BIL\/1\/1","cssSelector":".product-group-1","info":"{\"ids\":\"B 01 004, B 01 003\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[94,157,82,243,112,270,117,284,134,289,165,287,197,272,398,222,401,208,398,187,395,139,376,98,340,90],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/b01002-cylinder-crankcase-300b","cssSelector":".product-group-2","info":"{\"ids\":\"B 01 002\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[346,17,352,40,382,32,380,12],"href":"\/en\/w186\/w186\/BIL\/1\/4","cssSelector":".product-group-4","info":"{\"ids\":\"C 01 022, C 01 183\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[435,84,434,116,446,112,453,95,450,85],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/c01183-cylindrical-pin-8x26~2","cssSelector":".product-group-5","info":"{\"ids\":\"C 01 183\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[404,147,405,166,420,179,428,172,427,163,420,151],"href":"\/en\/w186\/w186\/BIL\/1\/6","cssSelector":".product-group-6","info":"{\"ids\":\"A 01 028, A 01 028\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[392,110,399,132,417,135,417,120,403,110],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/c14059-plug-screw","cssSelector":".product-group-7","info":"{\"ids\":\"C 14 059\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[48,168,67,166,78,181,69,194,49,195],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/b01018-bolt-for-air-bearing-pedestal","cssSelector":".product-group-13","info":"{\"ids\":\"B 01 018\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[65,246,57,259,65,276,73,276,77,255],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/b01012-slotted-plug-for-oil-channel-closure","cssSelector":".product-group-8","info":"{\"ids\":\"B 01 012\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[42,318,136,293,169,311,169,339,157,348,54,368,46,344],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/a01010-crankshaft-bearing-cap-1-2-4-cylinder","cssSelector":".product-group-15","info":"{\"ids\":\"A 01 010\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[265,259,360,234,392,253,384,276,373,282,276,305,266,286],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/a01010-crankshaft-bearing-cap-1-2-4-cylinder","cssSelector":".product-group-15","info":"{\"ids\":\"A 01 010\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[177,291,176,318,196,316,194,294],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/c01177-dowel-pin","cssSelector":".product-group-17","info":"{\"ids\":\"C 01 177\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[195,275,195,303,211,317,230,320,244,317,232,290],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/c01217-crankshaft-bearing-cap-with-dowel-pin","cssSelector":".product-group-16","info":"{\"ids\":\"C 01 217\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[193,325,205,320,235,336,226,354,197,350],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/b01020-holder-for-suction-pipe-and-oil-pump","cssSelector":".product-group-21","info":"{\"ids\":\"B 01 020\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[236,270,236,282,246,297,256,297,261,286,261,274,253,271],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/b01022-thrust-plate-2-00mm","cssSelector":".product-group-18","info":"{\"ids\":\"B 01 022\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[114,19,116,34,26,60,14,98,16,143,39,145,48,82,247,24,244,4,137,27,132,16],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/b01040-cylinder-cover-rhs","cssSelector":".product-group-25","info":"{\"ids\":\"B 01 040\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[50,80,38,163,271,107,276,63,290,56,279,43,261,25,251,23],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/b01044-gasket-engine-block-rhs","cssSelector":".product-group-26","info":"{\"ids\":\"B 01 044\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[50,34,43,41,33,44,33,51,43,52,54,48,63,41],"href":"\/en\/w186\/w186\/BIL\/1\/28","cssSelector":".product-group-28","info":"{\"ids\":\"C 01 257, C 01 257\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[317,321,465,283,486,294,490,310,489,330,492,351,489,364,462,369,450,367,344,392,317,399,295,380,297,352,301,339],"href":"\/en\/w186\/w186\/BIL\/1\/29","cssSelector":".product-group-29","info":"{\"ids\":\"B 01 048b, B 01 048\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[399,382,393,402,406,414,409,405,412,389,412,381],"href":"\/en\/w186\/w186\/BIL\/1\/33","cssSelector":".product-group-33","info":"{\"ids\":\"C 01 257, C 01 257\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[283,308,409,275,411,265,422,264,428,269,454,271,464,282,311,322,294,344,293,369,295,381,294,384,275,376,272,346],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/d01177-gasket-cylinder-side-cover","cssSelector":".product-group-30","info":"{\"ids\":\"D 01 177\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[47,576,44,594,51,605,60,614,71,614,81,602,80,591,59,577],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/d01202-gasket","cssSelector":".product-group-35","info":"{\"ids\":\"D 01 202\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[450,184,462,184,467,205,473,232,476,241,464,268,450,264,444,243],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/b01064-holder-for-oil-cooler-aut-get","cssSelector":".product-group-37","info":"{\"ids\":\"B 01 064\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[414,192,417,209,418,219,428,219,432,206,430,196],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/d01205-fitting-for-oil-pressure-hose-at-oil-filter","cssSelector":".product-group-44","info":"{\"ids\":\"D 01 205\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[444,526,456,526,469,536,478,547,477,564,463,582,459,584,452,582],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/b01077-guiding-tube","cssSelector":".product-group-47","info":"{\"ids\":\"B 01 077\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[53,645,66,680,83,692,94,722,111,734,136,729,143,718,156,698,178,697,197,705,225,722,312,719,327,704,332,670,324,649,333,630,334,619,320,615,298,619,282,583,157,617,148,607,139,608,137,621],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/b01073-front-part-of-oil-pan-with-threaded-bushing","cssSelector":".product-group-46","info":"{\"ids\":\"B 01 073\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[441,378,443,396,442,423,448,510,458,512,466,474,476,456,468,426,457,374],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/b01079-oil-dipstick-with-vent-filter","cssSelector":".product-group-48","info":"{\"ids\":\"B 01 079\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[449,516,477,512,479,522,471,527,446,525],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/c01299-seal-ring","cssSelector":".product-group-49","info":"{\"ids\":\"C 01 299\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[31,697,23,708,38,723,47,727,55,721,51,705],"href":"\/en\/w186\/w186\/BIL\/1\/51","cssSelector":".product-group-51","info":"{\"ids\":\"C 01 085, C 01 085\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[298,581,301,604,303,615,310,616,320,615,332,615,332,625,328,638,338,639,349,639,361,625,357,611,354,609,339,622,333,617,324,602,325,592,304,575],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/1\/c01289-seal-between-oil-pan-front-and-rear-part","cssSelector":".product-group-52","info":"{\"ids\":\"C 01 289\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"}]

in stock
low stock level
currently not in stock, but available for order
no longer available

Pic.	Designation		Price/unit excl. tax.
Image number 1	B 01 004	Cylinder crankcases 186 010 39 08 or 1860103908	on request		Select variant	on request
Image number 1	B 01 003	Cylinder crankcases 186 010 38 08 or 1860103808	on request		Select variant	on request
Image number 2	B 01 002 B 01 002	Cylinder crankcase 300b Cylinder crankcase 300b 186 010 14 08 or 1860101408		on request on request
Image number 4	C 01 022	Cylindr. pin f. clutch housing to engine 186 991 08 01 or 1869910801	€3.95		Select variant	€3.95
Image number 4	C 01 183	Cylindrical pin 8x26 186 991 07 01 or 1869910701	on request		Select variant	on request
Image number 5	C 01 183 C 01 183	Cylindrical pin 8x26 Cylindrical pin 8x26 186 991 07 01 or 1869910701		on request on request
Image number 6	A 01 028	Grub screw M14x1.5 136 997 00 06 or 1369970006	€4.02		Select variant	€4.02
Image number 6	A 01 028	Grub screw M14x1.5 000 906 014 000 or 000906014000	€4.02		Select variant	€4.02
Image number 7	C 14 059 C 14 059	Plug screw Plug screw M18x1,5SK6DIN71022-4 or M18x1,5SK6DIN71022-4		€3.50 €3.50
Image number 13	B 01 018 B 01 018	Bolt for air bearing pedestal Bolt for air bearing pedestal 188 205 01 74 or 1882050174		on request on request
Image number 8	B 01 012 B 01 012	Slotted plug for oil channel closure Slotted plug for oil channel closure 186 997 01 03 or 1869970103		on request on request
Image number 15	A 01 010 A 01 010	Crankshaft bearing cap 1,2,4 cylinder Crankshaft bearing cap 1,2,4 cylinder 108 011 02 11 or 1080110211		€110.00 €110.00
Image number 17	C 01 177 C 01 177	Dowel pin Dowel pin 121 991 00 41 or 1219910041		€9.62 €9.62
Image number 16	C 01 217 C 01 217	Crankshaft bearing cap with dowel pin Crankshaft bearing cap with dowel pin 180 010 01 23 or 1800100123		€150.00 €150.00
Image number 21	B 01 020 B 01 020	Holder (for suction pipe and oil pump) Holder (for suction pipe and oil pump) 186 186 05 40 or 1861860540		on request on request
Image number 18	B 01 022 B 01 022	Thrust plate 2,00mm Thrust plate 2,00mm 186 011 00 52 or 1860110052		€72.00 €72.00
Image number 25	B 01 040 B 01 040	Cylinder cover RHS Cylinder cover RHS 186 010 08 10 or 1860100810		€1,454.98 €1,454.98
Image number 26	B 01 044 B 01 044	Gasket, engine block RHS Gasket, engine block RHS 186 015 04 21 or 1860150421		€27.50 €27.50
Image number 28	C 01 257	Washer 180 990 10 40 or 1809901040	€0.24		Select variant	€0.24
Image number 28	C 01 257	Washer 000 125 006 421 or 000125006421	€0.24		Select variant	€0.24
Image number 29	B 01 048b	Cylinder cover, without oil tube	€580.80		Select variant	€580.80
Image number 29	B 01 048	Cylinder cover with oil cooler coil on the spark plug side, original 186 010 10 10 or 1860101010	€4,009.48		Select variant	€4,009.48
Image number 33	C 01 257	Washer 000 125 006 421 or 000125006421	€0.24		Select variant	€0.24
Image number 33	C 01 257	Washer 180 990 10 40 or 1809901040	€0.24		Select variant	€0.24
Image number 30	D 01 177 D 01 177	Gasket, cylinder side cover Gasket, cylinder side cover 186 015 03 21 or 1860150321		€13.50 €13.50
Image number 35	D 01 202 D 01 202	Gasket Gasket 186 011 00 80 or 1860110080		€3.78 €3.78
Image number 37	B 01 064 B 01 064	Holder for oil cooler aut.Get Holder for oil cooler aut.Get 186 180 00 40 or 1861800040		on request on request
Image number 44	D 01 205 D 01 205	Fitting for oil pressure hose at oil filter Fitting for oil pressure hose at oil filter 181 990 01 68 or 1819900168		on request on request
Image number 47	B 01 077 B 01 077	Guiding tube Guiding tube 199 010 00 66 or 1990100066		on request on request
Image number 46	B 01 073 B 01 073	Front part of oil pan with threaded bushing Front part of oil pan with threaded bushing 186 010 08 13 or 1860100813		on request on request
Image number 48	B 01 079 B 01 079	Oil dipstick with vent filter Oil dipstick with vent filter 186 010 03 72 or 1860100372		on request on request
Image number 49	C 01 299 C 01 299	Seal ring Seal ring 180 997 00 40 or 1809970040		€0.58 €0.58
Image number 51	C 01 085	Screw plug (oil pan) M26 130 997 00 32 or 1309970032	€5.50		Select variant	€5.50
Image number 51	C 01 085	Screw plug (oil pan) M26 136 997 12 30 or 1369971230	€5.50		Select variant	€5.50
Image number 52	C 01 289 C 01 289	Seal between oil pan front and rear part Seal between oil pan front and rear part 180 014 01 80 or 1800140180		€61.05 €61.05
Image number -	B 00 011 B 00 011	Engine complete with converter gear. automatic transmission Engine complete with converter gear. automatic transmission 186 010 26 00 or 1860102600		on request on request
Image number -	B 00 010 B 00 010	Motor complete without clutch gearbox starter Motor complete without clutch gearbox starter 186 010 11 00 or 1860101100		on request on request
Image number -	B 00 012 B 00 012	Motor complete with W.ge. automatic transmission Exp. Motor complete with W.ge. automatic transmission Exp. 186 010 30 00 or 1860103000		on request on request
Image number -	B 00 013 B 00 013	Engine completely n. Verd. automatic transmission Engine completely n. Verd. automatic transmission 186 010 3100 or 1860103100		on request on request
Image number -	B 00 014 B 00 014	Engine complete 4 speed transmission (o.K.G.A) Ex Engine complete 4 speed transmission (o.K.G.A) Ex 186 010 1900 or 1860101900		on request on request
Image number -	B 01 025 B 01 025	Half thrust washer 2,15mm Half thrust washer 2,15mm 186 011 03 52 or 1860110352		€133.00 €133.00
Image number -	B 01 023 B 01 023	Half thrust washer 2,05mm Half thrust washer 2,05mm 186 011 01 52 or 1860110152		€133.00 €133.00
Image number -	B 01 026 B 01 026	Half thrust washer 2,20mm Half thrust washer 2,20mm 186 011 08 52 or 1860110852		€72.00 €72.00
Image number -	B 01 024 B 01 024	Half thrust washer 2,10mm Half thrust washer 2,10mm 186 011 02 52 or 1860110252		€72.00 €72.00
Image number -	B 01 027 B 01 027	Half thrust washer 2,30mm Half thrust washer 2,30mm 186 011 09 52 or 1860110952		€72.00 €72.00
Image number -	B 01 029 B 01 029	Half thrust washer 2,50mm Half thrust washer 2,50mm 186 011 06 52 or 1860110652		€72.00 €72.00
Image number -	B 01 028 B 01 028	Shim half 2,40mm Shim half 2,40mm 186 011 13 52 or 1860111352		€72.00 €72.00
Image number -	C 01 270 C 01 270	Bushing f. intermed. gear shaft,rear Bushing f. intermed. gear shaft,rear 110 052 01 06 or 1100520106		on request on request
Image number -	B 01 065 B 01 065	Transducer housing Transducer housing 186 250 12 05 or 1862501205		on request on request
Image number -	D 01 203 D 01 203	Bearing Bearing 186 150 03 14 or 1861500314		€584.57 €584.57

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Cylinder crankcases

B 01 004

Cylinder crankcases

B 01 003

Cylinder crankcase 300b

B 01 002

Cylindr. pin f. clutch housing to engine

C 01 022 €3.95

Cylindrical pin 8x26

C 01 183

Cylindrical pin 8x26

C 01 183

Grub screw M14x1.5

A 01 028 €4.02

Plug screw

C 14 059 €3.50

Bolt for air bearing pedestal

B 01 018

Slotted plug for oil channel closure

B 01 012

Crankshaft bearing cap 1,2,4 cylinder

A 01 010 €110.00

Dowel pin

C 01 177 €9.62

Crankshaft bearing cap with dowel pin

C 01 217 €150.00

Holder (for suction pipe and oil pump)

B 01 020

Thrust plate 2,00mm

B 01 022 €72.00

Cylinder cover RHS

B 01 040 €1,454.98

Gasket, engine block RHS

B 01 044 €27.50

Washer

C 01 257 €0.24

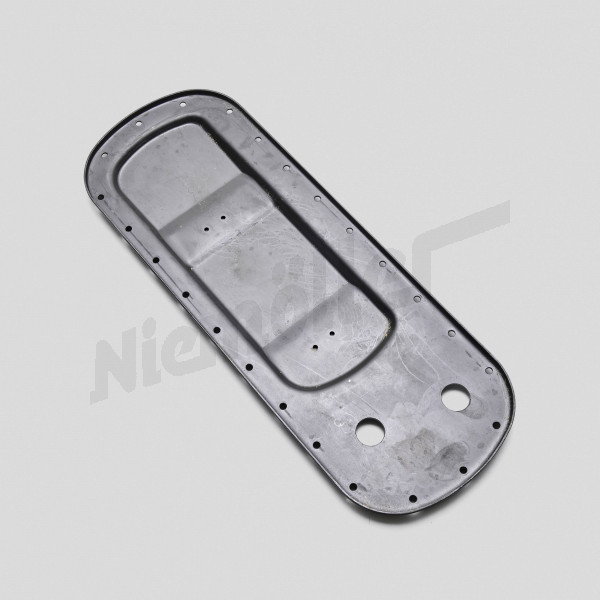

Cylinder cover, without oil tube

B 01 048b €580.80

Cylinder cover with oil cooler coil on the spark plug side, original

B 01 048 €4,009.48

Washer

C 01 257 €0.24

Gasket, cylinder side cover

D 01 177 €13.50

Gasket

D 01 202 €3.78

Holder for oil cooler aut.Get

B 01 064

Fitting for oil pressure hose at oil filter

D 01 205

Guiding tube

B 01 077

Front part of oil pan with threaded bushing

B 01 073

Oil dipstick with vent filter

B 01 079

Seal ring

C 01 299 €0.58

Screw plug (oil pan) M26

C 01 085 €5.50

Seal between oil pan front and rear part

C 01 289 €61.05

Engine complete with converter gear. automatic transmission

B 00 011

Motor complete without clutch gearbox starter

B 00 010

Motor complete with W.ge. automatic transmission Exp.

B 00 012

Engine completely n. Verd. automatic transmission

B 00 013

Engine complete 4 speed transmission (o.K.G.A) Ex

B 00 014

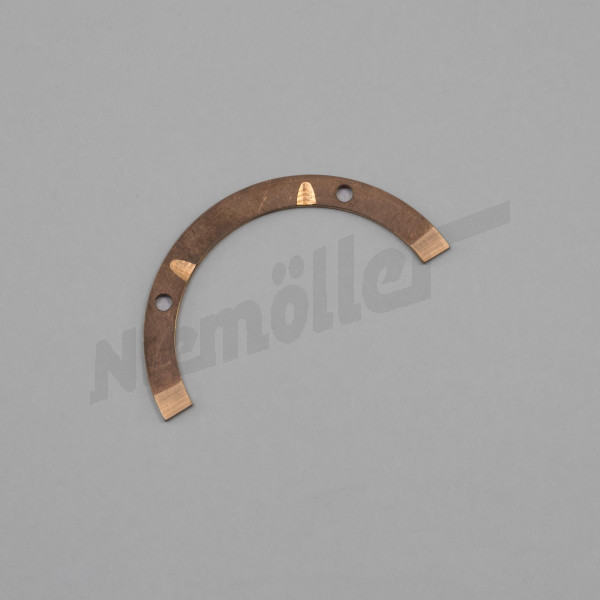

Half thrust washer 2,15mm

B 01 025 €133.00

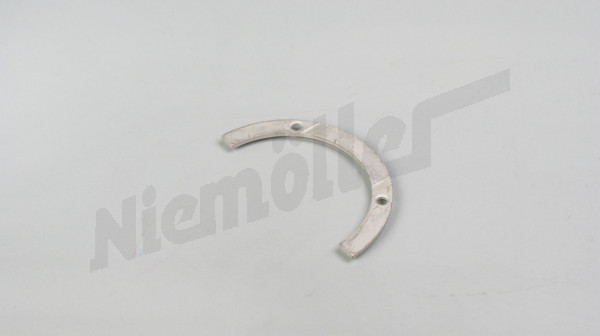

Half thrust washer 2,05mm

B 01 023 €133.00

Half thrust washer 2,20mm

B 01 026 €72.00

Half thrust washer 2,10mm

B 01 024 €72.00

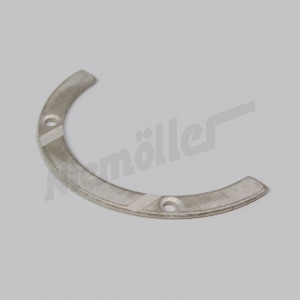

Half thrust washer 2,30mm

B 01 027 €72.00

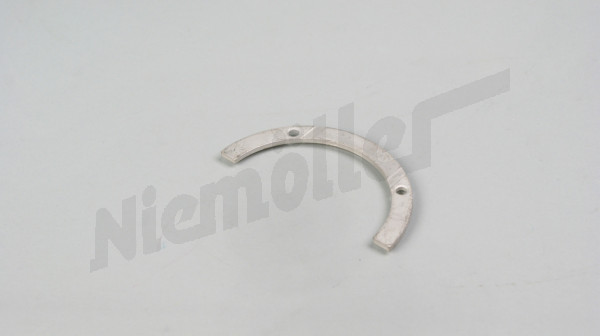

Half thrust washer 2,50mm

B 01 029 €72.00

Shim half 2,40mm

B 01 028 €72.00

Bushing f. intermed. gear shaft,rear

C 01 270

Transducer housing

B 01 065

Bearing

D 01 203 €584.57

For low compaction

Cylinder crankcases

B 01 004

For vehicles with automatic transmission up to engine no. 55 00030

Cylinder crankcases

B 01 003

From engine no. 55 00031 (for vehicles with forced-synchronized four-speed transmission)

Cylinder crankcase 300b

B 01 002

For vehicles with four-speed positively synchronized transmission

Cylindr. pin f. clutch housing to engine

C 01 022 €3.95

For vehicles with four-speed positively synchronized transmission

Cylindrical pin 8x26

C 01 183

For vehicles with four-speed positively synchronized transmission

Cylindrical pin 8x26

C 01 183

For front and rear oil channel

Grub screw M14x1.5

A 01 028 €4.02

For front and rear oil channel

Plug screw

C 14 059 €3.50

For fan bearing block on cylinder crankcase

Bolt for air bearing pedestal

B 01 018

For front and rear oil channel

Slotted plug for oil channel closure

B 01 012

For crankshaft bearing caps on cylinder crankcases

Holder (for suction pipe and oil pump)

B 01 020

For cylinder cover (starter side) on cylinder crankcase

Gasket, engine block RHS

B 01 044 €27.50

For cylinder cover (starter side) on cylinder crankcase

Washer

C 01 257 €0.24

Alternative:
See B 01 048b.

Cylinder cover with oil cooler coil on the spark plug side, original

B 01 048 €4,009.48

For vehicles with four-speed positively synchronized transmission

Washer

C 01 257 €0.24

For cover on cylinder crankcase

Gasket

D 01 202 €3.78

For vehicles with automatic transmissions

Holder for oil cooler aut.Get

B 01 064

For oil pressure gauge line connection on cylinder crankcase

Fitting for oil pressure hose at oil filter

D 01 205

For oil drain on oil pan front part

Screw plug (oil pan) M26

C 01 085 €5.50

For oil pan front part on cylinder crankcase

Seal between oil pan front and rear part

C 01 289 €61.05

For vehicles with automatic transmissions

Engine complete with converter gear. automatic transmission

B 00 011

For vehicles with four-speed positively synchronized transmission

Motor complete without clutch gearbox starter

B 00 010

Export (for vehicles with automatic transmission)

Motor complete with W.ge. automatic transmission Exp.

B 00 012

For vehicles with automatic transmissions

Engine completely n. Verd. automatic transmission

B 00 013

Export (for vehicles with forced-synchronised four-speed transmission)

Engine complete 4 speed transmission (o.K.G.A) Ex

B 00 014

For repair work

Half thrust washer 2,15mm

B 01 025 €133.00

For repair work

Half thrust washer 2,05mm

B 01 023 €133.00

For repair work

Half thrust washer 2,20mm

B 01 026 €72.00

For repair work

Half thrust washer 2,10mm

B 01 024 €72.00

For repair work

Half thrust washer 2,30mm

B 01 027 €72.00

For repair work

Half thrust washer 2,50mm

B 01 029 €72.00

For repair work

Shim half 2,40mm

B 01 028 €72.00
