Mercedes-Benz 300c, w186

Chosen model:

Chassis: 186.016
Engine: 186.920, 921
Choose different model

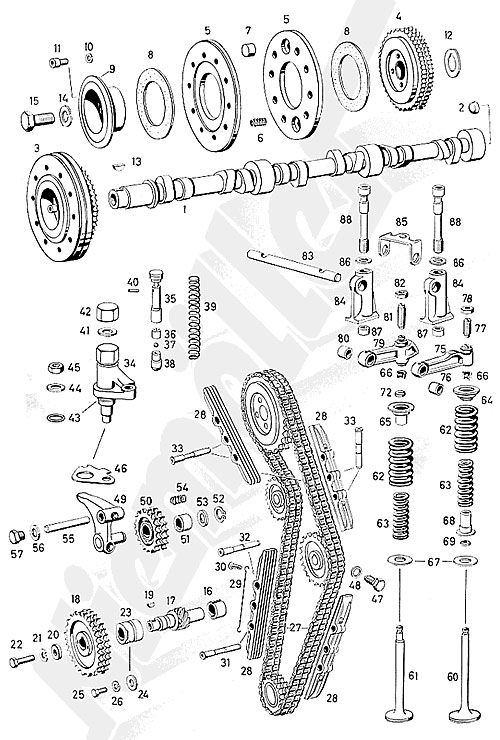

Current unit you are viewing: 05 Timing

[{"type":"poly","coords":[109,186,151,169,222,164,293,152,367,140,481,125,491,141,491,158,473,165,303,193,198,214,176,216,112,212,109,199],"href":"\/en\/w186\/w186\/BIL\/4\/1","cssSelector":".product-group-1","info":"{\"ids\":\"B 05 002, B 05 001\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[29,141,40,141,61,149,77,153,94,177,99,199,102,220,93,261,72,265,56,264,28,242,23,211,24,176],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05005-vibration-damper-with-camshaft-sprocket-a-d-w","cssSelector":".product-group-3","info":"{\"ids\":\"B 05 005\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[394,6,386,28,377,51,378,83,390,110,410,117,427,107,434,76,432,39,412,13],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05006-camshaft-gear","cssSelector":".product-group-4","info":"{\"ids\":\"B 05 006\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[203,20,189,48,181,77,182,112,191,138,206,152,224,154,234,144,246,96,225,45,214,22],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05007-momentum-ring","cssSelector":".product-group-5","info":"{\"ids\":\"B 05 007\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[279,12,279,26,265,49,261,73,262,96,270,122,283,137,300,143,324,114,324,63,305,31,298,12],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05007-momentum-ring","cssSelector":".product-group-5","info":"{\"ids\":\"B 05 007\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[252,118,265,117,270,126,267,142,256,144,249,128],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05008-pressure-spring","cssSelector":".product-group-6","info":"{\"ids\":\"B 05 008\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[241,24,241,52,246,62,259,55,261,37,255,14],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05009-rubber-plug","cssSelector":".product-group-7","info":"{\"ids\":\"B 05 009\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[148,45,139,67,134,100,141,136,158,147,171,132,176,105,174,78,158,49],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05010-friction-disc","cssSelector":".product-group-8","info":"{\"ids\":\"B 05 010\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[344,22,336,38,329,62,333,97,348,114,364,111,368,93,370,65,364,40,351,24],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05010-friction-disc","cssSelector":".product-group-8","info":"{\"ids\":\"B 05 010\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[86,74,101,65,112,60,120,66,123,95,128,120,124,139,108,153,89,150,79,120,76,90],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05012-hub","cssSelector":".product-group-9","info":"{\"ids\":\"B 05 012\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[442,27,443,46,442,60,444,73,453,80,463,75,464,54,457,29],"href":"\/en\/w186\/w186\/BIL\/4\/12","cssSelector":".product-group-12","info":"{\"ids\":\"D 05 034, D 05 036, D 05 037, C 05 125, C 05 126\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[200,585,203,604,209,620,223,620,229,607,217,582],"href":"\/en\/w186\/w186\/BIL\/4\/16","cssSelector":".product-group-16","info":"{\"ids\":\"C 01 270, C 01 270\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[68,592,64,616,66,642,71,670,86,677,98,677,113,668,111,626,81,585],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05139-intermediate-spocket","cssSelector":".product-group-18","info":"{\"ids\":\"C 05 139\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[46,628,48,643,54,659,60,661,63,648,62,632],"href":"\/en\/w186\/w186\/BIL\/4\/20","cssSelector":".product-group-20","info":"{\"ids\":\"C 05 145, C 05 145\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[118,604,115,619,113,636,121,643,136,644,149,637,137,620,131,602],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/d05063-bushing-for-in","cssSelector":".product-group-23","info":"{\"ids\":\"D 05 063\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[126,672,128,692,144,702,154,699,137,675],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05152-washer-f-bearing-yoke","cssSelector":".product-group-24","info":"{\"ids\":\"C 05 152\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[246,376,239,396,244,428,263,466,264,492,273,521,279,537,278,561,259,688,263,708,274,714,289,712,298,701,309,677,343,587,346,554,301,412,282,365,263,359],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/d05101-timing-chain-with-lock","cssSelector":".product-group-27","info":"{\"ids\":\"D 05 101\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[309,407,308,436,341,530,355,527,357,505,331,430,331,412],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05160-sliding-rail-with-lock-wire","cssSelector":".product-group-28","info":"{\"ids\":\"C 05 160\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[201,381,190,415,200,430,235,477,253,488,260,479,221,384],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05160-sliding-rail-with-lock-wire","cssSelector":".product-group-28","info":"{\"ids\":\"C 05 160\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[341,591,333,612,303,697,312,702,328,709,341,697,354,596],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05160-sliding-rail-with-lock-wire","cssSelector":".product-group-28","info":"{\"ids\":\"C 05 160\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[264,548,254,569,248,612,246,645,240,673,250,680,262,657,278,548],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05160-sliding-rail-with-lock-wire","cssSelector":".product-group-28","info":"{\"ids\":\"C 05 160\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[229,579,232,590,239,591,243,580],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05162-lock-wire-f-sliding-rail","cssSelector":".product-group-29","info":"{\"ids\":\"C 05 162\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[196,648,196,663,225,671,235,664,243,646,241,638],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05016-bearing-bolt-58mm-for-slid-cylinder-head-housing","cssSelector":".product-group-31","info":"{\"ids\":\"B 05 016\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[213,547,217,558,232,559,264,544,261,529,241,531],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05177-pivot-pin-62mm","cssSelector":".product-group-32","info":"{\"ids\":\"C 05 177\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[343,416,343,430,355,466,363,470,368,449,366,421,358,412],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/d05120-pivot-pin-68mm","cssSelector":".product-group-33","info":"{\"ids\":\"D 05 120\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[168,442,167,462,180,467,211,453,210,445],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/d05120-pivot-pin-68mm","cssSelector":".product-group-33","info":"{\"ids\":\"D 05 120\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[92,346,101,341,116,341,126,347,136,361,138,394,137,406,116,409,113,425,98,424,85,396],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05017-chain-adjusters","cssSelector":".product-group-34","info":"{\"ids\":\"B 05 017\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":\"D 05 143\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(106, 165, 109)\"}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[146,268,147,321,156,323,165,320,170,309,175,301,176,290,168,268],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05020-pressure-pin-with-clamping-sleeve","cssSelector":".product-group-35","info":"{\"ids\":\"B 05 020\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[151,328,159,326,172,328,176,336,170,338,158,340,148,340],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05192-ball-retainer","cssSelector":".product-group-36","info":"{\"ids\":\"C 05 192\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[148,350,158,351,168,353,175,357,177,368,163,373,149,370],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05021-headpiece","cssSelector":".product-group-38","info":"{\"ids\":\"B 05 021\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[187,270,184,360,199,360,205,341,215,323,218,304,207,275],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05022-compressing-spring","cssSelector":".product-group-39","info":"{\"ids\":\"B 05 022\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[78,305,77,317,90,320,107,321,117,320,121,309,116,298],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05198-closing-cap","cssSelector":".product-group-42","info":"{\"ids\":\"C 05 198\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[44,413,56,411,76,411,80,415,78,426,45,426],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05025-sealing-ring","cssSelector":".product-group-43","info":"{\"ids\":\"B 05 025\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[79,460,67,481,87,486,111,487,124,482,131,464],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05032-gasket-for-chain-tensioner","cssSelector":".product-group-46","info":"{\"ids\":\"B 05 032\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[368,570,365,583,367,606,381,608,389,595,390,583],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/d05127-lock-screw","cssSelector":".product-group-47","info":"{\"ids\":\"D 05 127\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[142,493,131,512,133,539,148,553,162,554,170,544,164,515,156,497],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05211-idler-sprocket-with-bushing","cssSelector":".product-group-50","info":"{\"ids\":\"C 05 211\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[174,515,183,511,191,512,193,523,193,536,189,547,179,545,174,528],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05213-bushing","cssSelector":".product-group-51","info":"{\"ids\":\"C 05 213\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[194,495,194,514,200,527,209,529,211,514,207,494],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05215-washer-f-idler-sprocket","cssSelector":".product-group-53","info":"{\"ids\":\"C 05 215\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[176,479,167,498,173,504,185,506,189,497,190,482],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05216-pressure-spring","cssSelector":".product-group-54","info":"{\"ids\":\"C 05 216\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[37,520,45,534,62,541,74,544,80,534,91,520,85,516],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/d05192-clevis-pin","cssSelector":".product-group-55","info":"{\"ids\":\"D 05 192\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[453,628,469,627,476,644,482,702,482,720,471,726,452,720,446,710,440,677],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05034-intake-valve","cssSelector":".product-group-60","info":"{\"ids\":\"B 05 034\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[390,622,412,622,423,679,424,702,419,722,400,726,379,722],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05035-exhaust-vale","cssSelector":".product-group-61","info":"{\"ids\":\"B 05 035\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[453,406,465,402,476,405,480,415,480,448,471,457,454,455,439,439,434,428],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05036-valve-spring-outer","cssSelector":".product-group-62","info":"{\"ids\":\"B 05 036\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[373,466,372,479,381,487,404,490,418,483,415,436,390,435,383,463],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05036-valve-spring-outer","cssSelector":".product-group-62","info":"{\"ids\":\"B 05 036\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[457,458,465,456,474,458,475,487,474,506,458,507,445,503,436,490,437,482],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/d05216-valve-spring-inner","cssSelector":".product-group-63","info":"{\"ids\":\"D 05 216\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[388,494,394,489,409,492,415,513,408,542,392,542,373,530,372,518,385,516],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/d05216-valve-spring-inner","cssSelector":".product-group-63","info":"{\"ids\":\"D 05 216\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[377,369,387,369,402,370,409,373,403,379,375,380],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05254-valve-cone-half","cssSelector":".product-group-66","info":"{\"ids\":\"C 05 254\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[467,370,461,373,462,381,479,382,487,381,490,372],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05254-valve-cone-half","cssSelector":".product-group-66","info":"{\"ids\":\"C 05 254\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[384,553,398,551,437,552,466,553,480,558,482,563,460,573,426,568,387,569],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/d05206-washer","cssSelector":".product-group-67","info":"{\"ids\":\"D 05 206\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[439,517,453,512,468,508,475,516,478,532,471,535,459,533,443,528],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/d05208-seal-ring-retainer","cssSelector":".product-group-68","info":"{\"ids\":\"D 05 208\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[444,537,453,536,480,537,479,544,464,548,444,547],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05253-sealing-ring-for-exhaust-valve","cssSelector":".product-group-69","info":"{\"ids\":\"C 05 253\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[377,386,388,385,403,386,408,392,403,396,392,400,381,399],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/a05026-sealing-ring-for-inlet-valve","cssSelector":".product-group-72","info":"{\"ids\":\"A 05 026\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[426,386,433,380,439,373,449,372,452,374,450,386,441,398,429,397],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05042-bushing-for-rocker-arm","cssSelector":".product-group-76","info":"{\"ids\":\"B 05 042\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[462,317,468,315,478,316,486,320,486,327,471,337,461,337],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/d05298-regulating-screw","cssSelector":".product-group-77","info":"{\"ids\":\"D 05 298\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[461,292,461,308,463,315,470,315,478,311,476,292],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05047-hex-nut","cssSelector":".product-group-78","info":"{\"ids\":\"C 05 047\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[335,332,334,354,343,360,352,360,353,348,352,333],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05042-bushing-for-rocker-arm~2","cssSelector":".product-group-80","info":"{\"ids\":\"B 05 042\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[391,307,384,313,385,322,392,327,404,330,409,324,410,304,400,302],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05043-adjusting-screw","cssSelector":".product-group-81","info":"{\"ids\":\"B 05 043\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[391,274,392,294,401,300,409,299,411,286,406,275],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05047-hex-nut~2","cssSelector":".product-group-82","info":"{\"ids\":\"C 05 047\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[251,244,246,252,247,260,336,287,345,280,341,272,321,263,318,252,303,248,297,255],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05044-rocker-arm-axle","cssSelector":".product-group-83","info":"{\"ids\":\"B 05 044\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":\"D 05 317\",\"stock_info_replacement\":\" (currently not in stock, but available for order)\",\"stock_light_replacement\":\"rgb(224, 151, 78)\"}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[374,227,375,251,380,260,416,271,421,254,423,238,410,212,394,211],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/b05052-clamps","cssSelector":".product-group-85","info":"{\"ids\":\"B 05 052\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[360,327,367,326,380,328,383,332,377,336,363,335,358,335],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05285-adjusting-sleeve","cssSelector":".product-group-87","info":"{\"ids\":\"C 05 285\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[415,329,425,327,437,325,444,326,443,337,432,340,415,340],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05285-adjusting-sleeve","cssSelector":".product-group-87","info":"{\"ids\":\"C 05 285\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[426,182,447,182,462,197,465,215,460,232,446,253,433,254,424,251,430,229],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05304-bolt","cssSelector":".product-group-88","info":"{\"ids\":\"C 05 304\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[354,184,367,184,374,191,370,231,369,254,362,254,350,252,336,223,337,215],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BIL\/4\/c05304-bolt","cssSelector":".product-group-88","info":"{\"ids\":\"C 05 304\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"}]

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.

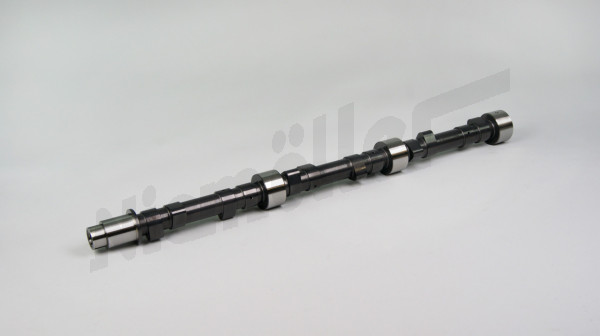

Image number 1		B 05 002	Camshaft 186 050 08 01 oder 1860500801		on request	Choose the suitable product variant
Image number 1	Image number 1		B 05 001	Cam carrier 186 050 07 01 oder 1860500701		Choose the suitable product variant	on request
Image number 3		B 05 005 B 05 005	Vibration damper with camshaft sprocket a.d.W. Vibration damper with camshaft sprocket a.d.W. 180 050 01 82 oder 1800500182		€1,852.52 €1,852.52
Image number 4		B 05 006 B 05 006	Camshaft gear Camshaft gear 180 052 01 01 oder 1800520101		on request on request
Image number 5		B 05 007 B 05 007	Momentum ring Momentum ring 180 051 01 81 oder 1800510181		on request on request
Image number 6		B 05 008 B 05 008	Pressure spring Pressure spring 180 993 02 01 oder 1809930201		€23.40 €23.40
Image number 7		B 05 009 B 05 009	Rubber plug Rubber plug 180 051 00 95 oder 1800510095		on request on request
Image number 8		B 05 010 B 05 010	Friction disc Friction disc 180 051 00 86 oder 1800510086		€16.25 €16.25
Image number 9		B 05 012 B 05 012	Hub Hub 186 051 01 83 oder 1860510183		on request on request
Image number 12		D 05 034	Shim 2,4mm thick 186 052 04 52 oder 1860520452		on request	Choose the suitable product variant
	Image number 12		D 05 036	Shim 3.25 mm thick 186 052 02 52 oder 1860520252			€1.50
	Image number 12		D 05 037	Shim 3,50mm thick 186 052 03 52 oder 1860520352			on request
	Image number 12		C 05 125	Shim 2.75 mm dick 186 052 01 52 oder 1860520152			€17.00
	Image number 12		C 05 126	Shim 3mm thick 186 052 00 52 oder 1860520052			on request
Image number 16		C 01 270	Bushing f. intermed. gear shaft,rear 110 052 01 06 oder 1100520106		€44.03	Choose the suitable product variant
Image number 16	Image number 16		C 01 270	Bushing f. intermed. gear shaft,rear 180 052 10 06 oder 1800521006		Choose the suitable product variant	€44.03
Image number 18		C 05 139 C 05 139	Intermediate spocket Intermediate spocket 114 052 00 02 oder 1140520002		€96.00 €96.00
Image number 20		C 05 145	Washer for intermediate wheel 003 990 29 40 oder 0039902940		€1.42	Choose the suitable product variant
Image number 20	Image number 20		C 05 145	Washer for intermediate wheel 180 990 06 40 oder 1809900640		Choose the suitable product variant	€1.42
Image number 23		D 05 063 D 05 063	Bushing for in Bushing for in 186 052 11 06 oder 1860521106		€68.77 €68.77
Image number 24		C 05 152 C 05 152	Washer f. bearing yoke Washer f. bearing yoke 180 990 01 40 oder 1809900140		€33.75 €33.75
Image number 27		D 05 101 D 05 101	Timing chain with lock Timing chain with lock 000 997 52 94 oder 0009975294		€143.31 €143.31
Image number 28		C 05 160 C 05 160	Sliding rail with lock wire Sliding rail with lock wire 180 050 08 16 oder 1800500816		€156.00 €156.00
Image number 29		C 05 162 C 05 162	Lock wire (f. sliding rail) Lock wire (f. sliding rail) 180 052 00 76 oder 1800520076		€4.38 €4.38
Image number 31		B 05 016 B 05 016	Bearing bolt 58mm for slid. Cylinder head housing Bearing bolt 58mm for slid. Cylinder head housing 186 052 13 74 oder 1860521374		€69.03 €69.03
Image number 32		C 05 177 C 05 177	Pivot pin 62mm Pivot pin 62mm 186 052 14 74 oder 1860521474		€59.11 €59.11
Image number 33		D 05 120 D 05 120	Pivot pin 68mm Pivot pin 68mm 186 052 15 74 oder 1860521574		€59.11 €59.11
Image number 34		B 05 017 D 05 143	Chain adjusters Chain tensioner including gasket ( for W186/189 the 3rd mounting hole can be cutted off ) 186 050 08 11 oder 1860500811		on request €297.35
	D 05 143	Replacement: Chain tensioner including gasket ( for W186/189 the 3rd mounting hole can be cutted off )		€297.35
Image number 35		B 05 020 B 05 020	Pressure pin with clamping sleeve Pressure pin with clamping sleeve 186 050 02 74 oder 1860500274		on request on request
Image number 36		C 05 192 C 05 192	Ball retainer Ball retainer 180 052 00 35 oder 1800520035		on request on request
Image number 38		B 05 021 B 05 021	Headpiece Headpiece 180 052 00 34 oder 1800520034		on request on request
Image number 39		B 05 022 B 05 022	Compressing spring Compressing spring 186 993 45 01 oder 1869934501		on request on request
Image number 42		C 05 198 C 05 198	Closing cap Closing cap 180 052 02 32 oder 1800520232		on request on request
Image number 43		B 05 025 B 05 025	Sealing ring Sealing ring 000 997 14 41 oder 0009971441		€2.00 €2.00
Image number 46		B 05 032 B 05 032	Gasket for chain tensioner Gasket for chain tensioner 186 052 04 80 oder 1860520480		€15.00 €15.00
Image number 47		D 05 127 D 05 127	Lock screw Lock screw 186 052 02 71 oder 1860520271		€12.69 €12.69
Image number 50		C 05 211 C 05 211	Idler sprocket with bushing Idler sprocket with bushing 180 050 01 09 oder 1800500109		€130.00 €130.00
Image number 51		C 05 213 C 05 213	Bushing Bushing 180 052 00 50 oder 1800520050		€56.80 €56.80
Image number 53		C 05 215 C 05 215	Washer f. idler sprocket Washer f. idler sprocket 180 990 02 40 oder 1809900240		€34.34 €34.34
Image number 54		C 05 216 C 05 216	Pressure spring Pressure spring 186 993 11 01 oder 1869931101		€4.10 €4.10
Image number 55		D 05 192 D 05 192	Clevis pin Clevis pin 186 052 20 74 oder 1860522074		€50.31 €50.31
Image number 60		B 05 034 B 05 034	Intake valve Intake valve 186 053 02 01 oder 1860530201		€36.00 €36.00
Image number 61		B 05 035 B 05 035	Exhaust vale Exhaust vale 186 053 03 05 oder 1860530305		€67.00 €67.00
Image number 62		B 05 036 B 05 036	Valve spring / outer Valve spring / outer 186 053 01 20 oder 1860530120		€32.28 €32.28
Image number 63		D 05 216 D 05 216	Valve spring / inner Valve spring / inner 186 053 02 22 oder 1860530222		€36.27 €36.27
Image number 66		C 05 254 C 05 254	Valve cone half Valve cone half 180 053 01 27 oder 1800530127		€4.08 €4.08
Image number 67		D 05 206 D 05 206	Washer Washer 186 053 02 53 oder 1860530253		€13.50 €13.50
Image number 68		D 05 208 D 05 208	Seal ring retainer Seal ring retainer 186 053 00 58 oder 1860530058		on request on request
Image number 69		C 05 253 C 05 253	Sealing ring for exhaust valve Sealing ring for exhaust valve 70-15446-00 oder 70-15446-00		€5.50 €5.50
Image number 72		A 05 026 A 05 026	Sealing ring for inlet valve Sealing ring for inlet valve 180 053 03 60 oder 1800530360		€4.20 €4.20
Image number 76		B 05 042 B 05 042	Bushing for rocker arm Bushing for rocker arm 186 055 01 50 oder 1860550150		on request on request
Image number 77		D 05 298 D 05 298	Regulating screw Regulating screw 186 055 07 71 oder 1860550771		on request on request
Image number 78		C 05 047 C 05 047	Hex. nut Hex. nut 153 990 02 51 oder 1539900251		€3.50 €3.50
Image number 80		B 05 042 B 05 042	Bushing for rocker arm Bushing for rocker arm 186 055 01 50 oder 1860550150		on request on request
Image number 81		B 05 043 B 05 043	Adjusting screw Adjusting screw 186 055 06 71 oder 1860550671		€22.30 €22.30
Image number 82		C 05 047 C 05 047	Hex. nut Hex. nut 153 990 02 51 oder 1539900251		€3.50 €3.50
Image number 83		B 05 044 D 05 317	Rocker arm axle Rocker arm axle 186 055 04 05 oder 1860550405		on request €120.26
	D 05 317	Replacement: Rocker arm axle		€120.26
Image number 85		B 05 052 B 05 052	Clamps Clamps 186 055 01 07 oder 1860550107		on request on request
Image number 87		C 05 285 C 05 285	Adjusting sleeve Adjusting sleeve 180 055 01 75 oder 1800550175		€5.21 €5.21
Image number 88		C 05 304 C 05 304	Bolt Bolt 112 055 00 71 oder 1120550071		€88.79 €88.79

Please note that the product names may be an automatic translation for which no guarantee can be given.
