49 Exhaust System for Mercedes-Benz 220 Chasis 187010 Mercedes-Benz
220 W187.010

Chosen model:

Chassis: 187.010
Engine: 180.920
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.

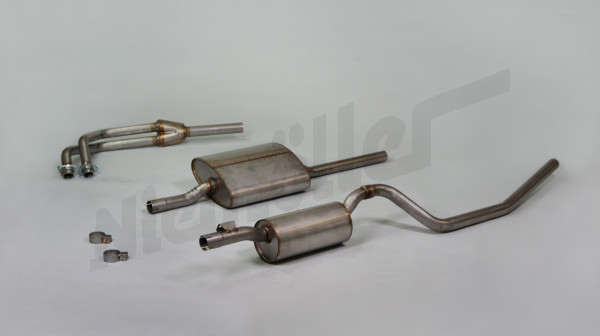

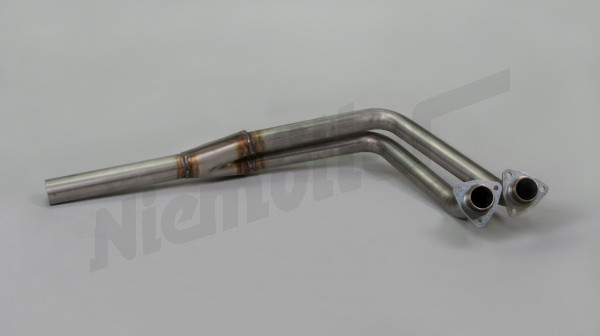

Image number 1		A 49 000d A 49 000d	Exhaust system 220 Limousine ,A-Cabrio ,B-Cabrio, stainless steel including clamps Exhaust system 220 Limousine ,A-Cabrio ,B-Cabrio, stainless steel including clamps		€1,208.64 €1,208.64
Image number 3		A 49 035 A 49 035	Bracket for exhaust pipe front Bracket for exhaust pipe front 187 490 06 35 or 1874900635		on request on request

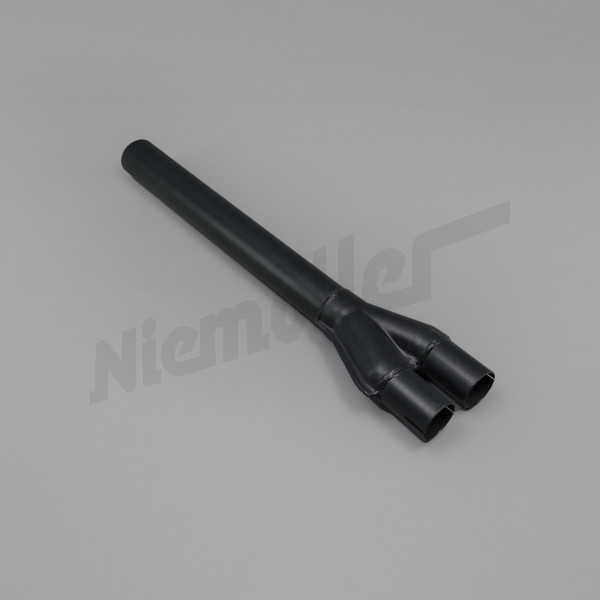

Image number 5		A 49 004 A 49 004	Exhaust pipe front (double pipe) 3-piece, reproduction, 51mm outer diameter, picture shows only 1 part, Exhaust pipe front (double pipe) 3-piece, reproduction, 51mm outer diameter, picture shows only 1 part, 187 490 00 19 or 1874900019		€150.00 €150.00

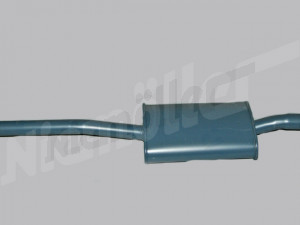

Image number 7		A 49 011 A 49 011	Muffler front 220, AC, BC reproduction, 51mm outer diameter, Muffler front 220, AC, BC reproduction, 51mm outer diameter, 187 491 03 00 or 1874910300		on request on request

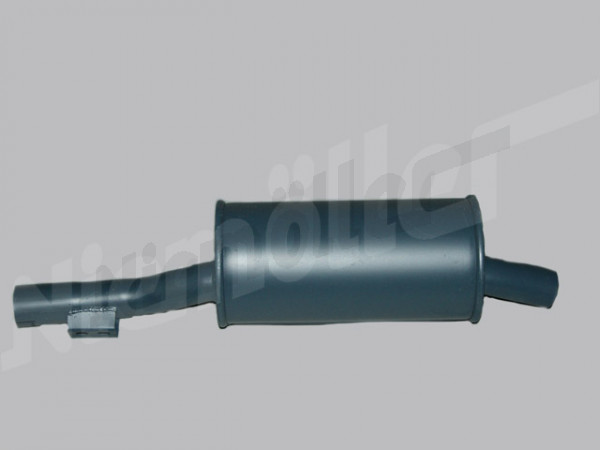

Image number 8		A 49 015 A 49 015	Rear exhaust muffler 220,AC,BC Rear exhaust muffler 220,AC,BC 187 490 05 01 or 1874900501		on request on request

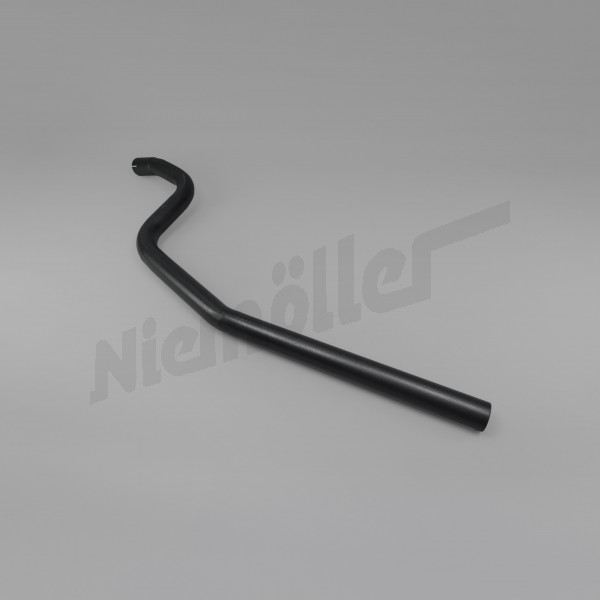

Image number 9		A 49 020 A 49 020	Exhaust pipe rear 220, AC, BC reproduction, 51mm outer diameter Exhaust pipe rear 220, AC, BC reproduction, 51mm outer diameter 187 492 03 06 or 1874920306		on request on request
Image number 10		C 49 011 C 49 011	Flange for exhaust pipe Flange for exhaust pipe 181 492 00 11 or 1814920011		€7.70 €7.70
Image number 11		C 49 035 C 49 035	Sealing ring Sealing ring 621 492 00 81 or 6214920081		€18.35 €18.35
Image number 12		C 49 039 C 49 039	Screw M8x55 DIN 931-8G Screw M8x55 DIN 931-8G		€0.95 €0.95
Image number 13		C 49 041 C 49 041	Nut Nut		€1.40 €1.40

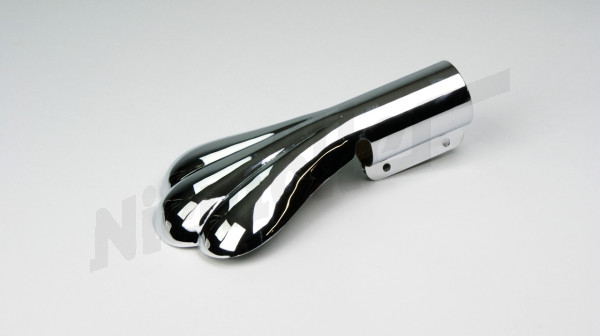

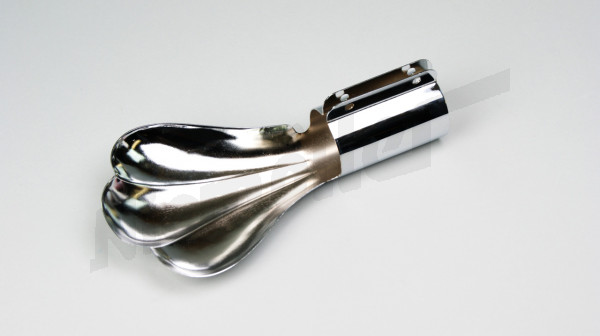

Image number 14		A 49 030 A 49 030	Exhaust claw 220, AC, BC Exhaust claw 220, AC, BC 187 492 00 15 or 1874920015		€95.55 €95.55
Image number 17		A 41 043 A 41 043	Lock washer Lock washer		€0.40 €0.40
Image number 18		C 32 027 C 32 027	Hex. nut M 8 Hex. nut M 8		€0.54 €0.54
Image number 19		A 49 024 A 49 024	Shielding plate at the bottom of the front wall Shielding plate at the bottom of the front wall 187 510 00 33 or 1875100033		on request on request
Image number 22		A 49 026 A 49 026	Floor shield Floor shield 183 490 00 30 or 1834900030		on request on request
Image number 25		A 49 036a A 49 036a	Upper bracket f.vo.Exhaust pipe upright Upper bracket f.vo.Exhaust pipe upright 187 490 04 35 or 1874900435		on request on request
Image number 27		C 49 067 C 49 067	Hex. head screw M8x45 Hex. head screw M8x45		€0.80 €0.80
Image number 29		B 49 048 B 49 048	Insulating plate Insulating plate 183 492 02 83 or 1834920283		on request on request
Image number 30		C 14 070 C 14 070	Washer Washer 136 155 00 82 or 1361550082		€1.97 €1.97

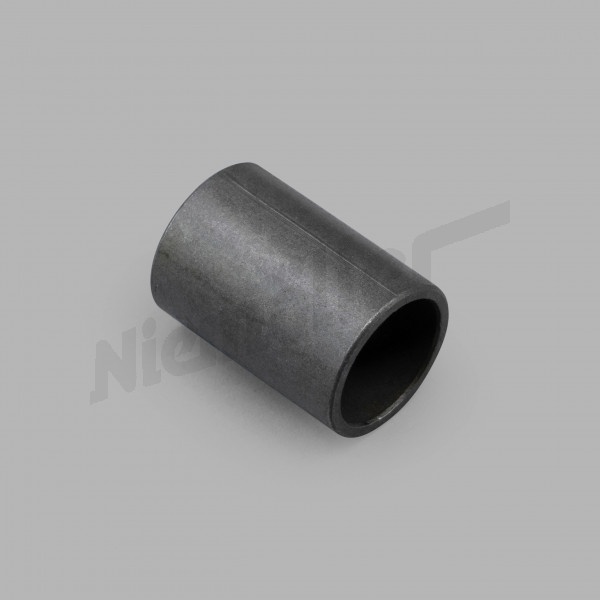

Image number 31		C 15 021 C 15 021	Sleeve for alternator mounting Sleeve for alternator mounting 136 155 04 53 or 1361550453		€13.25 €13.25
Image number 32		A 49 037 C 14 069	Rubber washer Rubber washer for front upper bracket 136 155 00 81 or 1361550081		on request €3.22
	C 14 069	Replacement: Rubber washer		€3.22
Image number 33		A 41 043 A 41 043	Lock washer Lock washer		€0.40 €0.40
Image number 34		C 32 027 C 32 027	Hex. nut M 8 Hex. nut M 8		€0.54 €0.54
Image number 37		A 41 043 A 41 043	Lock washer Lock washer		€0.40 €0.40
Image number 38		C 32 027 C 32 027	Hex. nut M 8 Hex. nut M 8		€0.54 €0.54
Image number 39		B 49 039 B 49 039	Mounting support Mounting support 183 492 06 19 or 1834920619		on request on request
Image number 41		B 49 047 C 49 065	Insulation Insulating plate 187 492 01 83 or 1874920183		on request €2.73
	C 49 065	Replacement: Insulation		€2.73
Image number 42		A 41 043 A 41 043	Lock washer Lock washer		€0.40 €0.40
Image number 43		C 32 027 C 32 027	Hex. nut M 8 Hex. nut M 8		€0.54 €0.54

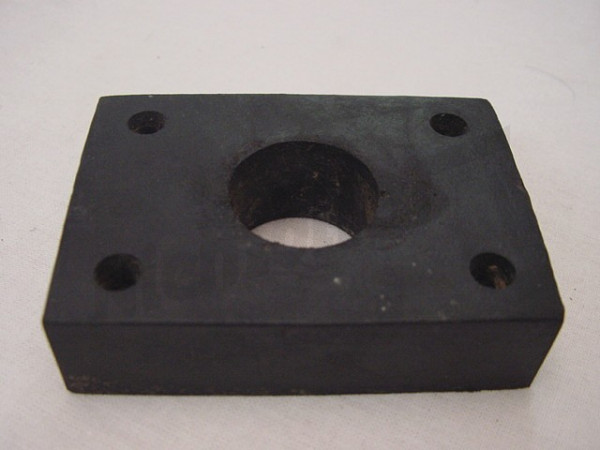

Image number 44		B 49 042 A 49 044	Rubber mounting for exhaust system Rubber damping plate 183 492 01 82 or 1834920182		on request €14.70
	A 49 044	Replacement: Rubber mounting for exhaust system		€14.70

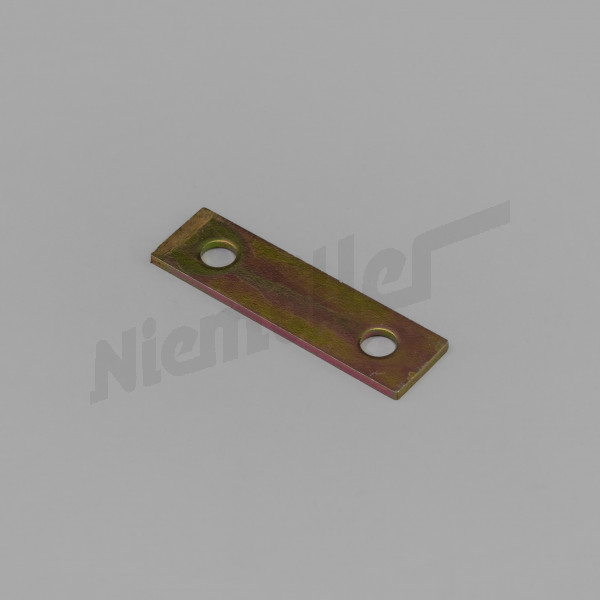

Image number 46		A 49 045 A 49 045	Metal plate Metal plate 183 492 00 18 or 1834920018		€38.95 €38.95

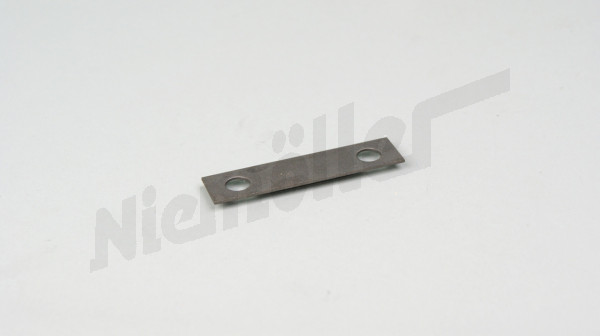

Image number 47		A 49 042 A 49 042	Lock plate Lock plate 636 074 00 73 or 6360740073		€12.46 €12.46
Image number 48		C 07 425 C 07 425	Hex. nut Hex. nut		€0.40 €0.40
Image number 49		B 49 042 A 49 044	Rubber mounting for exhaust system Rubber damping plate 183 492 01 82 or 1834920182		on request €14.70
	A 49 044	Replacement: Rubber mounting for exhaust system		€14.70
Image number 51		A 49 045 A 49 045	Metal plate Metal plate 183 492 00 18 or 1834920018		€38.95 €38.95
Image number 52		A 49 042 A 49 042	Lock plate Lock plate 636 074 00 73 or 6360740073		€12.46 €12.46
Image number 53		A 49 046 A 49 046	Insulation plate f.hint.Ausp.t.-aufh. Insulation plate f.hint.Ausp.t.-aufh. 187 492 00 83 or 1874920083		on request on request
Image number 54		A 41 043 A 41 043	Lock washer Lock washer		€0.40 €0.40
Image number 58		A 41 043 A 41 043	Lock washer Lock washer		€0.40 €0.40
Image number 59		C 32 027 C 32 027	Hex. nut M 8 Hex. nut M 8		€0.54 €0.54
Image number 60		A 49 041 A 49 041	Pipe clamp exhaust 48,5mm Pipe clamp exhaust 48,5mm 071 555 048 500 or 071555048500		€2.00 €2.00
Image number 61		A 49 049 A 49 049	Bracket for rear exhaust suspension Bracket for rear exhaust suspension 183 492 07 19 or 1834920719		on request on request
Image number 63		B 49 048 B 49 048	Insulating plate Insulating plate 183 492 02 83 or 1834920283		on request on request
Image number 64		A 41 043 A 41 043	Lock washer Lock washer		€0.40 €0.40
Image number 65		C 32 027 C 32 027	Hex. nut M 8 Hex. nut M 8		€0.54 €0.54
Image number 66		B 49 042 A 49 044	Rubber mounting for exhaust system Rubber damping plate 183 492 01 82 or 1834920182		on request €14.70
	A 49 044	Replacement: Rubber mounting for exhaust system		€14.70
Image number 68		A 49 045 A 49 045	Metal plate Metal plate 183 492 00 18 or 1834920018		€38.95 €38.95
Image number 69		A 49 042 A 49 042	Lock plate Lock plate 636 074 00 73 or 6360740073		€12.46 €12.46
Image number 70		C 07 425 C 07 425	Hex. nut Hex. nut		€0.40 €0.40

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Exhaust system 220 Limousine ,A-Cabrio ,B-Cabrio, stainless steel including clamps

A 49 000d €1,208.64

Bracket for exhaust pipe front

A 49 035

Exhaust pipe front (double pipe) 3-piece, reproduction, 51mm outer diameter, picture shows only 1 part,

A 49 004 €150.00

Muffler front 220, AC, BC reproduction, 51mm outer diameter,

A 49 011

Rear exhaust muffler 220,AC,BC

A 49 015

Exhaust pipe rear 220, AC, BC reproduction, 51mm outer diameter

A 49 020

Flange for exhaust pipe

C 49 011 €7.70

Sealing ring

C 49 035 €18.35

Screw M8x55 DIN 931-8G

C 49 039 €0.95

Nut

C 49 041 €1.40

Exhaust claw 220, AC, BC

A 49 030 €95.55

Lock washer

A 41 043 €0.40

Hex. nut M 8

C 32 027 €0.54

Shielding plate at the bottom of the front wall

A 49 024

Floor shield

A 49 026

Upper bracket f.vo.Exhaust pipe upright

A 49 036a

Hex. head screw M8x45

C 49 067 €0.80

Insulating plate

B 49 048

Washer

C 14 070 €1.97

Sleeve for alternator mounting

C 15 021 €13.25

Rubber washer for front upper bracket

A 49 037

Replacement item available

Lock washer

A 41 043 €0.40

Hex. nut M 8

C 32 027 €0.54

Lock washer

A 41 043 €0.40

Hex. nut M 8

C 32 027 €0.54

Mounting support

B 49 039

Insulating plate

B 49 047

Replacement item available

Lock washer

A 41 043 €0.40

Hex. nut M 8

C 32 027 €0.54

Rubber damping plate

B 49 042

Replacement item available

Metal plate

A 49 045 €38.95

Lock plate

A 49 042 €12.46

Hex. nut

C 07 425 €0.40

Rubber damping plate

B 49 042

Replacement item available

Metal plate

A 49 045 €38.95

Lock plate

A 49 042 €12.46

Insulation plate f.hint.Ausp.t.-aufh.

A 49 046

Lock washer

A 41 043 €0.40

Lock washer

A 41 043 €0.40

Hex. nut M 8

C 32 027 €0.54

Pipe clamp exhaust 48,5mm

A 49 041 €2.00

Bracket for rear exhaust suspension

A 49 049

Insulating plate

B 49 048

Lock washer

A 41 043 €0.40

Hex. nut M 8

C 32 027 €0.54

Rubber damping plate

B 49 042

Replacement item available

Metal plate

A 49 045 €38.95

Lock plate

A 49 042 €12.46

Hex. nut

C 07 425 €0.40

When ordering, please inform us of the exact type of your vehicle, the chassis number and the year of manufacture by e-mail (info@niemoeller.de). However, you can also store this information in the master data of your store account, then no e-mail is necessary.

Exhaust system 220 Limousine ,A-Cabrio ,B-Cabrio, stainless steel including clamps

A 49 000d €1,208.64

As of chassis no. 05642/52

Bracket for exhaust pipe front

A 49 035

Please measure before ordering the outer diameter of your
old exhaust system and compare them!

Exhaust pipe front (double pipe) 3-piece, reproduction, 51mm outer diameter, picture shows only 1 part,

A 49 004 €150.00

Weld into the exhaust system

;

Please measure before ordering the outer diameter of your
old exhaust system and compare them!

Muffler front 220, AC, BC reproduction, 51mm outer diameter,

A 49 011

Weld into the exhaust system

Rear exhaust muffler 220,AC,BC

A 49 015

Weld to rear muffler

;

Please measure before ordering the outer diameter of your
old exhaust system and compare them!

Exhaust pipe rear 220, AC, BC reproduction, 51mm outer diameter

A 49 020

For front exhaust pipe at exhaust manifold)

Flange for exhaust pipe

C 49 011 €7.70

For front exhaust pipe at exhaust manifold)

Sealing ring

C 49 035 €18.35

Model; 012; 013

Exhaust claw 220, AC, BC

A 49 030 €95.55

For lower to upper holder

Insulating plate

B 49 048

For lower to upper holder

Washer

C 14 070 €1.97

For lower to upper holder

Sleeve for alternator mounting

C 15 021 €13.25

For lower to upper holder

Rubber washer for front upper bracket

A 49 037

Replacement item available

For holder and pipe clamp on the exhaust pipe at the front of the manifold

Mounting support

B 49 039

For holder and pipe clamp on the exhaust pipe at the front of the manifold

Insulating plate

B 49 047

Replacement item available

For front exhaust suspension

Rubber damping plate

B 49 042

Replacement item available

For front exhaust suspension

Metal plate

A 49 045 €38.95

For front exhaust suspension

Lock plate

A 49 042 €12.46

For rear exhaust suspension

Rubber damping plate

B 49 042

Replacement item available

For rear exhaust suspension

Metal plate

A 49 045 €38.95

For rear exhaust suspension

Lock plate

A 49 042 €12.46

For rear muffler suspension on frame

Insulation plate f.hint.Ausp.t.-aufh.

A 49 046
