41 Propeller Shaft for MB 190Dc W110.110 Mercedes-Benz
190Dc W110.110

Chosen model:

Chassis: 110.110
Engine: 621.912
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

[{"type":"poly","coords":[151,157,616,35,634,85,173,199],"href":"\/en\/w110\/w110\/B110\/17\/1","cssSelector":".product-group-1","info":"{\"ids\":\"D 41 001, D 41 043\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[167,394,430,314,451,371,184,443],"href":"\/en\/w110\/w110\/B110\/17\/2","cssSelector":".product-group-2","info":"{\"ids\":\"D 41 056, D 41 104\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[170,137,198,135,200,118,178,115],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c35250-grease-nipple-b-6-din-71412","cssSelector":".product-group-3","info":"{\"ids\":\"C 35 250\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[197,196,218,191,220,206,199,209],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c41022-overflow-valve","cssSelector":".product-group-4","info":"{\"ids\":\"C 41 022\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[466,305,494,298,516,344,477,361],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/d41136-housing","cssSelector":".product-group-5","info":"{\"ids\":\"D 41 136\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[507,299,532,291,549,336,526,341],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/f41157-grooved-ball-bearing","cssSelector":".product-group-6","info":"{\"ids\":\"F 41 157\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[551,349,570,347,584,394,555,401],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c41049-spacer-ring-with-groove-for-sealing-ring","cssSelector":".product-group-7","info":"{\"ids\":\"C 41 049\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[584,351,598,396,609,387,600,351],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c41051-sealing-ring","cssSelector":".product-group-8","info":"{\"ids\":\"C 41 051\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[541,292,557,339,578,337,569,287],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c41052-lock-ring-55x2-din","cssSelector":".product-group-9","info":"{\"ids\":\"C 41 052\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[488,360,522,346,524,362,501,369],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c41021-grease-nipple","cssSelector":".product-group-10","info":"{\"ids\":\"C 41 021\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[582,281,579,324,618,335,622,275],"href":"\/en\/w110\/w110\/B110\/17\/11","cssSelector":".product-group-11","info":"{\"ids\":\"D 41 144, D 41 146\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[615,345,635,338,641,383,621,384],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c41054-sealing-ring-a40x3-ac-din73102","cssSelector":".product-group-12","info":"{\"ids\":\"C 41 054\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[628,269,625,313,650,317,642,276],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/d41150-locking-ring","cssSelector":".product-group-13","info":"{\"ids\":\"D 41 150\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[643,269,654,308,666,305,664,267],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/d41151-grooved-nut","cssSelector":".product-group-14","info":"{\"ids\":\"D 41 151\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[292,245,615,157,637,212,303,291],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/d41122-rear-cardan-shaft-with-universal-joint","cssSelector":".product-group-20","info":"{\"ids\":\"D 41 122\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[681,15,654,47,695,81,723,47],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/d41148-hinged-flange","cssSelector":".product-group-21","info":"{\"ids\":\"D 41 148\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[690,145,702,191,668,200,656,167],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c41024-universal-joint-cross","cssSelector":".product-group-22","info":"{\"ids\":\"C 41 024\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[695,145,704,175,717,177,716,132],"href":"\/en\/w110\/w110\/B110\/17\/23","cssSelector":".product-group-23","info":"{\"ids\":\"C 41 034, D 41 152, C 41 036, C 41 037, C 41 038\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[175,279,274,263,282,295,194,335],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/d41153-splined-hub-universal-joint","cssSelector":".product-group-25","info":"{\"ids\":\"D 41 153\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[216,245,247,239,248,252,220,261],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c41021-grease-nipple~2","cssSelector":".product-group-26","info":"{\"ids\":\"C 41 021\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[405,173,416,198,425,198,432,175],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/d41169-screw-propeller-shaft-to-rear-axle","cssSelector":".product-group-31","info":"{\"ids\":\"D 41 169\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[376,171,394,201,403,201,402,178],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/d41170-lock-plate","cssSelector":".product-group-32","info":"{\"ids\":\"D 41 170\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[373,176,384,199,364,209],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/d41171-hex-nut","cssSelector":".product-group-33","info":"{\"ids\":\"D 41 171\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[102,153,107,216,135,218,138,158],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c41074-centering-cross-complete-with-ball-spring-etc","cssSelector":".product-group-65","info":"{\"ids\":\"C 41 074\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[62,105,72,138,85,135,76,103],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c41076-ball-socket","cssSelector":".product-group-66","info":"{\"ids\":\"C 41 076\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[30,111,43,111,48,127,50,137,48,145,38,145],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c41076-ball-socket","cssSelector":".product-group-66","info":"{\"ids\":\"C 41 076\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[58,103,70,140,53,142,50,113],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c41078-centering-ball","cssSelector":".product-group-67","info":"{\"ids\":\"C 41 078\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[18,179,22,222,46,224,40,187],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c41101-sealing-ring-for-cardan-shaft-on-gearbox","cssSelector":".product-group-80","info":"{\"ids\":\"C 41 101\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[23,307,90,323,93,360,47,361],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/d41161-repair-kit-flexibal-joint-disc","cssSelector":".product-group-82","info":"{\"ids\":\"D 41 161\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[222,10,231,72,182,83,167,15],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/c41095-rubber-mounting-for-propeller-shaft","cssSelector":".product-group-85","info":"{\"ids\":\"C 41 095\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[246,72,310,63,290,8,237,7],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/d41164-bearing-pedestal","cssSelector":".product-group-86","info":"{\"ids\":\"D 41 164\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[315,83,288,79,288,92,314,94],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B110\/17\/g35010-hexagon-head-screw-m8x22-din-933-8g","cssSelector":".product-group-87","info":"{\"ids\":\"G 35 010\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"}]

in stock
low stock level
currently not in stock, but available for order
no longer available

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 1		D 41 001	Split PTO shaft (two-piece) 110 410 17 03 or 1104101703	on request		Select variant	on request
Image number 1		D 41 043	Split PTO shaft (second R.L. 110 410 18 03 or 1104101803	on request		Select variant	on request
Image number 2		D 41 056	Front PTO shaft 110 410 14 01 or 1104101401	on request		Select variant	on request
Image number 2		D 41 104	Front PTO shaft R.L. 110 410 15 01 or 1104101501	on request		Select variant	on request
Image number 3		C 35 250 C 35 250	Grease nipple B 6 DIN 71412 Grease nipple B 6 DIN 71412 000 997 11 88 or 0009971188		€0.48 €0.48
Image number 4		C 41 022 C 41 022	Overflow valve Overflow valve 122 997 00 87 or 1229970087		€7.80 €7.80
Image number 0		C 41 045 C 41 045	Housing for intermediate bearing Housing for intermediate bearing 180 413 02 01 or 1804130201		on request on request
Image number 5		D 41 136 D 41 136	Housing Housing 110 413 03 01 or 1104130301		on request on request
Image number 6		F 41 157 F 41 157	Grooved ball bearing Grooved ball bearing 001 981 12 25 or 0019811225		€16.50 €16.50
Image number 7		C 41 049 C 41 049	Spacer ring with groove for sealing ring Spacer ring with groove for sealing ring 110 413 00 51 or 1104130051		€47.98 €47.98
Image number 8		C 41 051 C 41 051	Sealing ring Sealing ring 180 997 03 40 or 1809970340		€3.58 €3.58
Image number 9		C 41 052 C 41 052	Lock ring 55x2 DIN Lock ring 55x2 DIN 000 472 055 000 or 000472055000		€2.21 €2.21
Image number 10		C 41 021 C 41 021	Grease nipple Grease nipple 071 412 006 100 or 071412006100		€0.80 €0.80
Image number 11		D 41 144	Hinged flange 111 411 00 45 or 1114110045	on request		Select variant	on request
Image number 11		D 41 146	Hinged flange 111 411 02 45 or 1114110245	on request		Select variant	on request
Image number 12		C 41 054 C 41 054	Sealing ring A40x3 ac DIN73102 Sealing ring A40x3 ac DIN73102 110 413 00 80 or 1104130080		€8.31 €8.31
Image number 13		D 41 150 D 41 150	Locking ring Locking ring 111 994 00 43 or 1119940043		€10.00 €10.00
Image number 14		D 41 151 D 41 151	Grooved nut Grooved nut 111 990 00 60 or 1119900060		€68.77 €68.77
Image number 20		D 41 122 D 41 122	Rear cardan shaft with universal joint Rear cardan shaft with universal joint 111 410 01 02 or 1114100102		on request on request
Image number 21		D 41 148 D 41 148	Hinged flange Hinged flange 111 411 00 44 or 1114110044		€134.78 €134.78
Image number 22		C 41 024 C 41 024	Universal joint cross Universal joint cross 111 410 00 31 or 1114100031		€130.00 €130.00
Image number 23		C 41 034	Spring ring 1,45mm thick 188 994 05 34 or 1889940534	€1.56		Select variant	€1.56
Image number 23		D 41 152	Snap ring 1.55 thick 188 994 01 34 or 1889940134	on request			on request
Image number 23		C 41 036	Snap ring 1.6 mm thick 188 994 02 34 or 1889940234	on request			on request
Image number 23		C 41 037	Snap ring 1.65 mm thick 188 994 03 34 or 1889940334	€1.56			€1.56
Image number 23		C 41 038	Snap ring 1.70 mm thick 188 994 04 34 or 1889940434	on request			on request
Image number 25		D 41 153 D 41 153	Splined hub - universal joint Splined hub - universal joint 111 410 02 28 or 1114100228		on request on request
Image number 0		D 41 148 D 41 148	Hinged flange Hinged flange 111 411 00 44 or 1114110044		€134.78 €134.78
Image number 0		C 41 024 C 41 024	Universal joint cross Universal joint cross 111 410 00 31 or 1114100031		€130.00 €130.00
Image number 0		C 41 034 C 41 034	Spring ring 1,45mm thick Spring ring 1,45mm thick 188 994 05 34 or 1889940534		€1.56 €1.56
Image number 0		C 41 035 C 41 035	Snap ring 1.5 mm thick Snap ring 1.5 mm thick 188 994 00 34 or 1889940034		on request on request
Image number 0		C 41 036 C 41 036	Snap ring 1.6 mm thick Snap ring 1.6 mm thick 188 994 02 34 or 1889940234		on request on request
Image number 0		C 41 037 C 41 037	Snap ring 1.65 mm thick Snap ring 1.65 mm thick 188 994 03 34 or 1889940334		€1.56 €1.56
Image number 0		C 41 038 C 41 037	Snap ring 1.65 mm thick Snap ring 1.70 mm thick 188 994 04 34 or 1889940434		on request €1.56
	C 41 037	Replacement: Snap ring 1.65 mm thick		€1.56
Image number 26		C 41 021 C 41 021	Grease nipple Grease nipple 071 412 006 100 or 071412006100		€0.80 €0.80
Image number 31		D 41 169 D 41 169	Screw, propeller shaft to rear axle Screw, propeller shaft to rear axle 111 990 00 20 or 1119900020		€32.00 €32.00
Image number 32		D 41 170 D 41 170	Lock plate Lock plate 111 994 02 09 or 1119940209		€6.20 €6.20
Image number 33		D 41 171 D 41 171	Hex nut Hex nut 000 936 010 014 or 000936010014		€1.71 €1.71
Image number 0		D 41 133 D 41 133	Vibration absorber Vibration absorber 000 411 00 47 or 0004110047		€49.50 €49.50
Image number 65		C 41 074 C 41 074	Centering cross ( complete with ball.spring etc. ) Centering cross ( complete with ball.spring etc. ) 186 410 00 30 or 1864100030		€170.00 €170.00
Image number 66		C 41 076 C 41 076	Ball socket Ball socket 136 411 00 18 or 1364110018		€13.50 €13.50
Image number 67		C 41 078 C 41 078	Centering ball Centering ball 184 411 00 17 or 1844110017		on request on request
Image number 80		C 41 101 C 41 101	Sealing ring for cardan shaft on gearbox Sealing ring for cardan shaft on gearbox 120 411 00 60 or 1204110060		€4.20 €4.20
Image number 0		A 42 016 A 42 016	Washer Washer 153 990 19 40 or 1539901940		€3.79 €3.79
Image number 82		D 41 161 D 41 161	Repair kit flexibal joint disc Repair kit flexibal joint disc 108 410 01 15 or 1084100115		€180.24 €180.24
Image number 85		C 41 095 C 41 095	Rubber mounting for propeller shaft Rubber mounting for propeller shaft 180 413 02 12 or 1804130212		€12.20 €12.20
Image number 86		D 41 164 D 41 164	Bearing pedestal Bearing pedestal 110 413 04 29 or 1104130429		on request on request
Image number 87		G 35 010 G 35 010	Hexagon head screw M8x22 DIN 933-8G Hexagon head screw M8x22 DIN 933-8G 000 933 008 114 or 000933008114		€2.20 €2.20
Image number 0		D 41 166 C 09 113	Square nut M 8 DIN 557 Square nut intermediate bearing on superstructure base 000 557 008 002 or 000557008002		on request €1.35
	C 09 113	Replacement: Square nut M 8 DIN 557		€1.35
Image number 0		D 41 169 D 41 169	Screw, propeller shaft to rear axle Screw, propeller shaft to rear axle 111 990 00 20 or 1119900020		€32.00 €32.00
Image number 0		D 41 170 D 41 170	Lock plate Lock plate 111 994 02 09 or 1119940209		€6.20 €6.20
Image number 0		D 41 171 D 41 171	Hex nut Hex nut 000 936 010 014 or 000936010014		€1.71 €1.71

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Split PTO shaft (two-piece)

D 41 001

Split PTO shaft (second R.L.

D 41 043

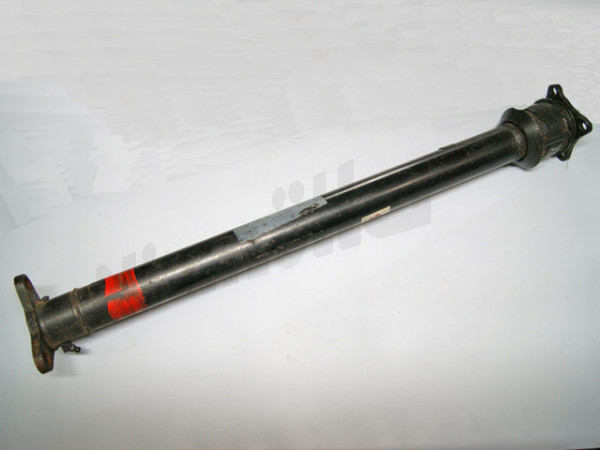

Front PTO shaft

D 41 056

Front PTO shaft R.L.

D 41 104

Grease nipple B 6 DIN 71412

C 35 250 €0.48

Overflow valve

C 41 022 €7.80

Housing for intermediate bearing

C 41 045

Housing

D 41 136

Grooved ball bearing

F 41 157 €16.50

Spacer ring with groove for sealing ring

C 41 049 €47.98

Sealing ring

C 41 051 €3.58

Lock ring 55x2 DIN

C 41 052 €2.21

Grease nipple

C 41 021 €0.80

Hinged flange

D 41 144

Hinged flange

D 41 146

Sealing ring A40x3 ac DIN73102

C 41 054 €8.31

Locking ring

D 41 150 €10.00

Grooved nut

D 41 151 €68.77

Rear cardan shaft with universal joint

D 41 122

Hinged flange

D 41 148 €134.78

Universal joint cross

C 41 024 €130.00

Spring ring 1,45mm thick

C 41 034 €1.56

Snap ring 1.55 thick

D 41 152

Snap ring 1.6 mm thick

C 41 036

Snap ring 1.65 mm thick

C 41 037 €1.56

Snap ring 1.70 mm thick

C 41 038

Replacement item available

Splined hub - universal joint

D 41 153

Hinged flange

D 41 148 €134.78

Universal joint cross

C 41 024 €130.00

Spring ring 1,45mm thick

C 41 034 €1.56

Snap ring 1.5 mm thick

C 41 035

Snap ring 1.6 mm thick

C 41 036

Snap ring 1.65 mm thick

C 41 037 €1.56

Snap ring 1.70 mm thick

C 41 038

Replacement item available

Grease nipple

C 41 021 €0.80

Screw, propeller shaft to rear axle

D 41 169 €32.00

Lock plate

D 41 170 €6.20

Hex nut

D 41 171 €1.71

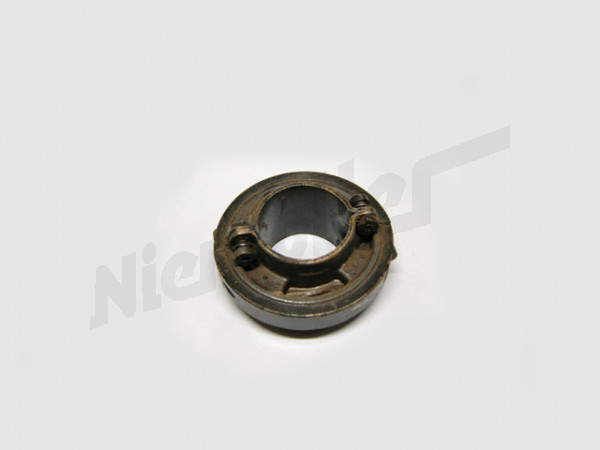

Vibration absorber

D 41 133 €49.50

Centering cross ( complete with ball.spring etc. )

C 41 074 €170.00

Ball socket

C 41 076 €13.50

Centering ball

C 41 078

Sealing ring for cardan shaft on gearbox

C 41 101 €4.20

Washer

A 42 016 €3.79

Repair kit flexibal joint disc

D 41 161 €180.24

Rubber mounting for propeller shaft

C 41 095 €12.20

Bearing pedestal

D 41 164

Hexagon head screw M8x22 DIN 933-8G

G 35 010 €2.20

Square nut intermediate bearing on superstructure base

D 41 166

Replacement item available

Screw, propeller shaft to rear axle

D 41 169 €32.00

Lock plate

D 41 170 €6.20

Hex nut

D 41 171 €1.71

gearshift transmission;

Up to chassis 064105
with the exception of:051265, 053061, 053217, 053344, 060327, 060368, 060578, 061064, 061068, 061199, 061280, 061343, 061813, 061840, 062585, 062631, 062670, 063897, 063909, 063913, 063915, 063916, 063919, 063925, 063926, 063935,063938, 063940, 063941, 0
up to chassis 130557, gasoline vehicles
up to chassis 225647, Diesel vehicles

Split PTO shaft (two-piece)

D 41 001

automatic transmission;

Split PTO shaft (second R.L.

D 41 043

gearshift transmission;

Front PTO shaft

D 41 056

automatic transmission;

Front PTO shaft R.L.

D 41 104

gearshift transmission;

On special request, H.D. springs
up to chassis 076271, gasoline vehicles
up to chassis 119430, Diesel vehicles

Housing for intermediate bearing

C 41 045

gearshift transmission;

On model 000
from chassis 064106-130557
also installed on: 051265, 053061, 053217, 053344, 060327, 060368, 060578, 061064, 061068, 061199, 061280, 061343, 061813, 061840, 062585, 062631, 062670, 063897, 063909, 063913, 063915, 063916, 063919, 063925, 063926, 063935, 063938, 063940, 063941, 0639
from chassis 076272, gasoline vehicles
from chassis 119431, Diesel vehicles

Housing

D 41 136

gearshift transmission;

On special request, H.D. springs
up to chassis 076271, gasoline vehicles
up to chassis 119430, Diesel vehicles

Spacer ring with groove for sealing ring

C 41 049 €47.98

gearshift transmission;

On special request, H.D. springs
up to chassis 076271, gasoline vehicles
up to chassis 119430, Diesel vehicles

Sealing ring

C 41 051 €3.58

gearshift transmission;

Lock ring 55x2 DIN

C 41 052 €2.21

gearshift transmission;

On special request, H.D. springs
up to chassis 076271, gasoline vehicles
up to chassis 119430, Diesel vehicles

Grease nipple

C 41 021 €0.80

gearshift transmission;

On special request, H.D. springs
up to chassis 076271, gasoline vehicles
up to chassis 119430, Diesel vehicles

Hinged flange

D 41 144

gearshift transmission;

Hinged flange

D 41 146

gearshift transmission;

On special request, H.D. springs
up to chassis 076271, gasoline vehicles
up to chassis 119430, Diesel vehicles

Sealing ring A40x3 ac DIN73102

C 41 054 €8.31

Rear cardan shaft with universal joint

D 41 122

From chassis 064106
also installed on: 051265, 053061, 053217, 053344, 060327, 060368, 060578, 061064, 061068, 061199, 061280, 061343, 061813, 061840, 062585, 062631, 062670, 063897, 063909, 063913, 063915, 063916, 063919, 063925, 063926, 063935, 063938, 063940, 063941, 0639
up to chassis 044797
for subsequent installation in case of too strong vibrations

Vibration absorber

D 41 133 €49.50

Grease nipple B 6 DIN 71412

C 35 250 €0.48

Overflow valve

C 41 022 €7.80

Grooved ball bearing

F 41 157 €16.50

Locking ring

D 41 150 €10.00

Grooved nut

D 41 151 €68.77

Hinged flange

D 41 148 €134.78

Universal joint cross

C 41 024 €130.00

Spring ring 1,45mm thick

C 41 034 €1.56

Snap ring 1.55 thick

D 41 152

Snap ring 1.6 mm thick

C 41 036

Snap ring 1.65 mm thick

C 41 037 €1.56

Snap ring 1.70 mm thick

C 41 038

Replacement item available

Splined hub - universal joint

D 41 153

Hinged flange

D 41 148 €134.78

Universal joint cross

C 41 024 €130.00

Spring ring 1,45mm thick

C 41 034 €1.56

Snap ring 1.5 mm thick

C 41 035

Snap ring 1.6 mm thick

C 41 036

Snap ring 1.65 mm thick

C 41 037 €1.56

Snap ring 1.70 mm thick

C 41 038

Replacement item available

Grease nipple

C 41 021 €0.80

Screw, propeller shaft to rear axle

D 41 169 €32.00

Lock plate

D 41 170 €6.20

Hex nut

D 41 171 €1.71

Centering cross ( complete with ball.spring etc. )

C 41 074 €170.00

Ball socket

C 41 076 €13.50

Centering ball

C 41 078

Sealing ring for cardan shaft on gearbox

C 41 101 €4.20

Washer

A 42 016 €3.79

Repair kit flexibal joint disc

D 41 161 €180.24

Rubber mounting for propeller shaft

C 41 095 €12.20

Bearing pedestal

D 41 164

Hexagon head screw M8x22 DIN 933-8G

G 35 010 €2.20

Square nut intermediate bearing on superstructure base

D 41 166

Replacement item available

Screw, propeller shaft to rear axle

D 41 169 €32.00

Lock plate

D 41 170 €6.20

Hex nut

D 41 171 €1.71

W107	280SL
	350SL
	350SL/C
	380SL
	380SL/C
	500SL
	500SL/C

W113	230SL
	250SL
	280SL
W121	190SL
W129	300SL
W198	300SL

W136	170S
	170V
W187	220
	220AC
	220BC

W186	300c
	300cCD
W189	300d
	300dCD
W198	300SL Coupe

W105	219
W120	180
	180a
	180b
	180D
W121	190
	190b
	190D

41 Propeller Shaft for MB 190Dc W110.110 Mercedes-Benz
190Dc W110.110

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Popular variants

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Complex search queries

Pagode, Gullwing, Roadster

Sedan, Cabriolet, Coupé

Adenauer, Gullwing

Ponton, Coupe, Cabrio

Tail fin, old S-Class, Pagode

Pullman, Landaulet

Stroke 8, S-Class, Coupé

S-Class, Estate, Coupé, Sedan, T-Model

Roadster

41 Propeller Shaft for MB 190Dc W110.110 Mercedes-Benz190Dc W110.110

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Popular variants

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Mercedes-Benz

Complex search queries

41 Propeller Shaft for MB 190Dc W110.110 Mercedes-Benz
190Dc W110.110
