Motor M100 Model 100.980 250HP

Chosen model:

Gasoline Engine: 100.980
Choose different model

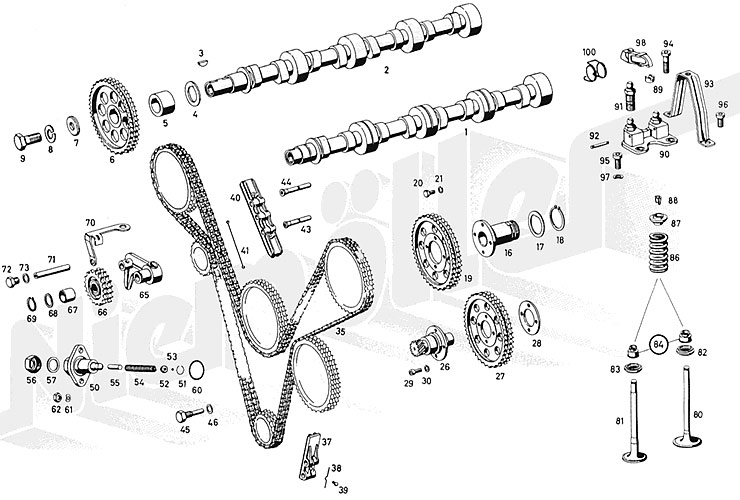

Current unit you are viewing: 05 Timing

[{"type":"poly","coords":[470,138,463,138,460,126,438,137,421,142,398,142,380,150,367,159,339,157,301,167,284,165,284,147,304,134,358,118,378,119,398,114,414,103,427,101,437,103,465,93,479,86,501,88,517,81,528,73,544,69,555,84,555,98,546,107,529,109,509,111,491,120,473,126],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05024-camshaft-left","cssSelector":".product-group-1","info":"{\"ids\":\"D 05 024\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[382,75,393,75,393,56,408,56,424,49,454,38,467,40,487,33,483,13,470,2,454,5,420,19,409,15,393,25,361,34,351,29,334,41,296,47,276,52,251,61,203,81,205,94,214,100,274,87,310,84,382,62],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05026-camshaft-right","cssSelector":".product-group-2","info":"{\"ids\":\"D 05 026\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[196,47,204,47,206,55,211,59,209,68,201,69,195,63],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05127-woodruff-key","cssSelector":".product-group-3","info":"{\"ids\":\"C 05 127\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[192,120,201,120,201,108,202,101,201,86,192,77,185,80,184,91],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05125-shim-2-75-mm-dick","cssSelector":".product-group-4","info":"{\"ids\":\"C 05 125\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[161,128,170,127,171,115,179,112,178,98,172,88,161,87,146,96,147,109,160,120],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05040-camshaft-spacer-ring-right","cssSelector":".product-group-5","info":"{\"ids\":\"D 05 040\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[108,165,117,165,117,157,135,154,142,138,141,117,128,86,116,76,99,74,89,85,85,100,92,127,107,153],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05032-camschaft-gear","cssSelector":".product-group-6","info":"{\"ids\":\"D 05 032\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[72,147,81,145,81,138,84,127,78,114,67,112,64,119,66,134],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05131-washer-for-camshaft-gear","cssSelector":".product-group-7","info":"{\"ids\":\"C 05 131\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[515,258,514,248,521,237,520,222,513,218,493,221,479,217,471,222,468,242,486,261,501,253],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05077-drive-shaft","cssSelector":".product-group-16","info":"{\"ids\":\"D 05 077\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[535,252,547,252,547,240,549,226,541,212,532,207,526,215,527,232,535,243],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05079-distance-washer","cssSelector":".product-group-17","info":"{\"ids\":\"D 05 079\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[554,245,567,246,567,235,569,229,569,215,561,205,553,202,549,205,548,213,552,231],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d25286-retaining-ring","cssSelector":".product-group-18","info":"{\"ids\":\"D 25 286\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[473,283,474,272,464,271,463,252,455,227,444,218,434,210,419,212,406,227,408,258,425,286,436,293],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05081-sprocket","cssSelector":".product-group-19","info":"{\"ids\":\"D 05 081\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[432,173,445,173,446,197,439,196],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c07197-spring-washer-for-dismantling-screw","cssSelector":".product-group-21","info":"{\"ids\":\"C 07 197\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"G 22 020\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[438,372,452,372,454,354,458,342,454,332,448,329,438,324,432,322,425,326,406,341,412,359,432,356,440,364],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05083-idler-shaft","cssSelector":".product-group-26","info":"{\"ids\":\"D 05 083\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[493,383,506,382,508,369,516,356,516,340,509,320,506,305,495,292,485,287,471,293,458,309,466,339,472,359,492,372],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05085-idle-wheel","cssSelector":".product-group-27","info":"{\"ids\":\"D 05 085\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[531,349,543,348,544,336,544,321,539,302,527,295,520,297,514,306,515,324,528,338],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05087-shim-2-55m-thick","cssSelector":".product-group-28","info":"{\"ids\":\"D 05 087\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[420,385,434,386,432,375,433,366,427,362,425,365,424,372],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c07197-spring-washer-for-dismantling-screw~2","cssSelector":".product-group-30","info":"{\"ids\":\"C 07 197\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"G 22 020\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[295,396,308,415,329,414,345,400,326,336,336,336,348,335,350,327,372,311,380,296,361,239,344,232,320,241,289,309,280,290,270,278,259,275,244,283,236,275,194,155,179,140,157,142,146,160,150,196,177,220,188,238,187,255,194,273,210,277,249,435,259,450,281,451],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05102-roller-chain","cssSelector":".product-group-35","info":"{\"ids\":\"D 05 102\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[333,435,318,429,305,432,294,480,306,484,319,476,322,448,334,447],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05163-sliding-rail-with-lock-wire","cssSelector":".product-group-37","info":"{\"ids\":\"C 05 163\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[344,462,329,460,320,488,327,488,330,474,344,475],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05167-safety-wire-for-slide-rail","cssSelector":".product-group-38","info":"{\"ids\":\"C 05 167\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[349,495,349,485,333,478,330,484,337,494],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05169-half-round-notched-nail-for-fuse-wire","cssSelector":".product-group-39","info":"{\"ids\":\"C 05 169\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[250,245,241,245,230,217,223,219,242,273,247,269,245,257,252,254],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05162-lock-wire-f-sliding-rail","cssSelector":".product-group-41","info":"{\"ids\":\"C 05 162\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[279,178,294,176,292,182,310,178,312,189,281,199,276,188],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05175-pivot-pin-58-mm-long-for-sliding-rail","cssSelector":".product-group-44","info":"{\"ids\":\"C 05 175\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[178,435,191,434,191,421,205,411,202,406,183,408,174,408],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05128-locking-screw-on-cylinder-crankcase","cssSelector":".product-group-45","info":"{\"ids\":\"D 05 128\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[207,428,219,428,220,416,211,402,204,402,206,415],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/a01024-sealing-ring-a-14x18-al-din-7603","cssSelector":".product-group-46","info":"{\"ids\":\"A 01 024\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[101,393,100,382,103,369,103,362,92,356,84,340,73,341,66,353,62,357,61,371,68,384,81,393],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05145-chain-tensioner","cssSelector":".product-group-50","info":"{\"ids\":\"D 05 145\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[177,388,188,388,188,380,185,364,179,364,176,371],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d01510-snap-ring-for-valve-guide","cssSelector":".product-group-51","info":"{\"ids\":\"D 01 510\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[170,389,158,389,158,362,166,362,170,375],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05200-ball-cage","cssSelector":".product-group-52","info":"{\"ids\":\"C 05 200\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[165,350,178,351,178,361,175,368,174,374,170,372],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05193-ball","cssSelector":".product-group-53","info":"{\"ids\":\"C 05 193\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[132,387,147,387,147,376,157,374,157,362,125,363,125,371,132,375],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05149-compressing-spring","cssSelector":".product-group-54","info":"{\"ids\":\"D 05 149\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[109,387,121,387,120,377,123,370,123,363,106,363],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05203-pin","cssSelector":".product-group-55","info":"{\"ids\":\"C 05 203\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[25,385,38,384,40,376,43,366,41,355,31,352,21,358],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05198-closing-cap","cssSelector":".product-group-56","info":"{\"ids\":\"C 05 198\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[190,395,204,397,205,387,204,377,208,371,205,362,198,358,191,360,188,370,192,382],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05153-o-ring-chain-tensioner","cssSelector":".product-group-60","info":"{\"ids\":\"D 05 153\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[63,415,74,415,74,406,70,392,64,392],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/b03018-spring-washer","cssSelector":".product-group-61","info":"{\"ids\":\"B 03 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[61,415,49,414,50,402,53,390,60,389,62,398],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/g75029-hex-nut","cssSelector":".product-group-62","info":"{\"ids\":\"G 75 029\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"C 32 027\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[137,298,153,298,152,287,165,279,162,264,127,246,118,257,121,291,136,292],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05178-tension-wheel-bearing","cssSelector":".product-group-65","info":"{\"ids\":\"D 05 178\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[95,317,111,318,110,307,116,296,111,273,98,267,83,270,82,287,96,308],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05211-idler-sprocket-with-bushing","cssSelector":".product-group-66","info":"{\"ids\":\"C 05 211\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[66,315,80,315,80,307,76,292,71,285,56,290],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05213-bushing","cssSelector":".product-group-67","info":"{\"ids\":\"C 05 213\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[47,318,59,317,59,307,51,290,43,289,42,303],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05182-washer","cssSelector":".product-group-68","info":"{\"ids\":\"D 05 182\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[83,215,96,217,97,226,119,220,131,223,130,232,105,236,106,245,99,249,98,265,89,265,83,236],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05183-safety-plate-for-roller-chain","cssSelector":".product-group-70","info":"{\"ids\":\"D 05 183\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[45,253,56,254,58,266,69,262,73,271,34,281,32,271,50,268],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05217-pivot-pin","cssSelector":".product-group-71","info":"{\"ids\":\"C 05 217\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[17,262,30,262,30,272,32,285,24,285],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d07097-sealing-ring-a-12x16-cu","cssSelector":".product-group-73","info":"{\"ids\":\"D 07 097\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"A 09 017\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[705,420,705,407,692,407,691,364,679,364,679,432,668,436,671,447,683,448,702,449,704,439,696,431,694,418],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05199-intake-valve","cssSelector":".product-group-80","info":"{\"ids\":\"D 05 199\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[613,415,626,414,627,376,639,376,644,445,649,456,646,464,629,464,618,457,625,448,625,427,613,426],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05205-exhaust-valve-no-natrium-filling","cssSelector":".product-group-81","info":"{\"ids\":\"D 05 205\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[710,358,708,345,697,345,691,343,679,343,675,349,679,359],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05273-rotocap-for-inlet-valve","cssSelector":".product-group-82","info":"{\"ids\":\"D 05 273\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[608,363,623,363,631,361,641,361,644,369,637,374,609,374],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05274-rotocap-for-exhaust-valve","cssSelector":".product-group-83","info":"{\"ids\":\"D 05 274\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[683,217,672,217,670,212,658,211,648,212,649,224,661,226,684,229],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05251-valve-spring-retainer","cssSelector":".product-group-87","info":"{\"ids\":\"D 05 251\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[680,194,652,194,653,207,682,207],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05276-valve-plug","cssSelector":".product-group-88","info":"{\"ids\":\"D 05 276\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[664,94,665,85,657,81,657,72,645,72,642,80,653,93],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/c05257-thrust-fitting-9mm-high-std","cssSelector":".product-group-89","info":"{\"ids\":\"C 05 257\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[657,158,673,159,674,148,682,140,677,131,668,121,659,109,647,115,646,123,635,117,624,119,618,144,639,156,657,150],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05323-rocker-arm-bearing-block","cssSelector":".product-group-90","info":"{\"ids\":\"D 05 323\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[587,130,602,129,602,137,610,138,610,144,589,153],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05327-bolt-for-tension-spring","cssSelector":".product-group-92","info":"{\"ids\":\"D 05 327\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[716,77,703,78,698,70,686,67,674,74,667,108,661,108,668,118,681,119,685,101,692,104,693,131,698,146,716,147,718,142,711,134,704,91,719,87],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05328-bracket-for-cylinder-head-cover","cssSelector":".product-group-93","info":"{\"ids\":\"D 05 328\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[662,37,677,38,677,47,672,76,662,75,658,52],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/e25003-screw","cssSelector":".product-group-94","info":"{\"ids\":\"E 25 003\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[598,154,612,150,623,150,624,170,613,170,598,167],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/e01017-cylinder-head-screw","cssSelector":".product-group-95","info":"{\"ids\":\"E 01 017\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[633,35,646,37,647,50,653,59,653,69,641,68,618,60,625,46,633,46],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05287-rocker-arm","cssSelector":".product-group-98","info":"{\"ids\":\"D 05 287\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[580,45,599,46,599,54,606,63,610,71,606,83,590,83,581,83,583,60],"href":"https:\/\/www.niemoeller.de\/en\/m100\/m100\/B980\/4\/d05313-tension-spring","cssSelector":".product-group-100","info":"{\"ids\":\"D 05 313\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"}]

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 1		D 05 024 D 05 024	Camshaft left Camshaft left 100 051 12 01 oder 1000511201		on request on request
Image number 2		D 05 026 D 05 026	Camshaft right Camshaft right 100 051 13 01 oder 1000511301		on request on request
Image number 3		C 05 127 C 05 127	Woodruff key Woodruff key 006 888 004 002 oder 006888004002		€1.46 €1.46
Image number 4		C 05 125 C 05 125	Shim 2.75 mm dick Shim 2.75 mm dick 186 052 01 52 oder 1860520152		€17.00 €17.00
Image number 5		D 05 040 D 05 040	Camshaft spacer ring right Camshaft spacer ring right 100 052 00 51 oder 1000520051		on request on request
Image number 6		D 05 032 D 05 032	Camschaft gear Camschaft gear 100 052 02 01 oder 1000520201		€346.15 €346.15
Image number 7		C 05 131 C 05 131	Washer for camshaft gear Washer for camshaft gear 180 990 03 40 oder 1809900340		on request on request
Image number 16		D 05 077 D 05 077	Drive shaft Drive shaft 100 075 00 05 oder 1000750005		on request on request
Image number 17		D 05 079 D 05 079	Distance washer Distance washer 100 077 00 52 oder 1000770052		on request on request
Image number 18		D 25 286 D 25 286	Retaining ring Retaining ring 000 471 034 000 oder 000471034000		€2.34 €2.34
Image number 19		D 05 081 D 05 081	Sprocket Sprocket 100 077 02 12 oder 1000770212		on request on request
Image number 21		C 07 197 G 22 020	Spring washer for dismantling screw Lock washer 000 127 006 200 oder 000127006200		on request €0.30
	G 22 020	Replacement: Lock washer		€0.30
Image number 26		D 05 083 D 05 083	Idler shaft Idler shaft 100 157 03 06 oder 1001570306		on request on request
Image number 27		D 05 085 D 05 085	Idle wheel Idle wheel 100 157 01 14 oder 1001570114		on request on request
Image number 28		D 05 087 D 05 087	Shim 2,55m thick Shim 2,55m thick 100 157 01 52 oder 1001570152		on request on request
Image number 0		D 05 089 D 05 089	Shim 2,75mm thick Shim 2,75mm thick 100 157 02 52 oder 1001570252		on request on request

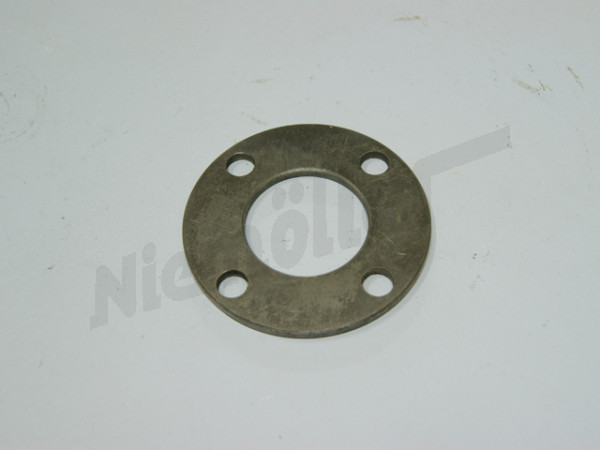

Image number 0		D 05 091 D 05 091	Shim 3,00mm thick Shim 3,00mm thick 100 157 03 52 oder 1001570352		€2.50 €2.50
Image number 0		D 05 093 D 05 093	Shim 3,25mm thick Shim 3,25mm thick 100 157 04 52 oder 1001570452		on request on request
Image number 0		D 05 095 D 05 095	Shim 3,50mm thick Shim 3,50mm thick 100 157 05 52 oder 1001570552		on request on request
Image number 30		C 07 197 G 22 020	Spring washer for dismantling screw Lock washer 000 127 006 200 oder 000127006200		on request €0.30
	G 22 020	Replacement: Lock washer		€0.30
Image number 35		D 05 102 D 05 102	Roller chain Roller chain 000 997 78 94 oder 0009977894		€320.80 €320.80
Image number 37		C 05 163 C 05 163	Sliding rail with lock wire Sliding rail with lock wire 180 050 07 16 oder 1800500716		€150.00 €150.00
Image number 38		C 05 167 C 05 167	Safety wire for slide rail Safety wire for slide rail 180 052 01 76 oder 1800520176		on request on request
Image number 39		C 05 169 C 05 169	Half round notched nail for fuse wire Half round notched nail for fuse wire 4x8 DIN 1476 oder 4x8DIN1476		€1.00 €1.00
Image number 41		C 05 162 C 05 162	Lock wire (f. sliding rail) Lock wire (f. sliding rail) 180 052 00 76 oder 1800520076		€4.38 €4.38
Image number 0		C 05 169 C 05 169	Half round notched nail for fuse wire Half round notched nail for fuse wire 4x8 DIN 1476 oder 4x8DIN1476		€1.00 €1.00
Image number 44		C 05 175 C 05 175	Pivot pin 58 mm long for sliding rail Pivot pin 58 mm long for sliding rail 180 052 10 74 oder 1800521074		€13.32 €13.32
Image number 45		D 05 128 D 05 128	Locking screw on cylinder crankcase Locking screw on cylinder crankcase 100 052 00 71 oder 1000520071		€28.03 €28.03
Image number 46		A 01 024 A 01 024	Sealing ring A 14x18 Al DIN 7603 Sealing ring A 14x18 Al DIN 7603 007 603 014 100 oder 007603014100		€0.35 €0.35
Image number 50		D 05 145 D 05 145	Chain tensioner Chain tensioner 100 050 03 11 oder 1000500311		on request on request
Image number 51		D 01 510 D 01 510	Snap ring for valve guide Snap ring for valve guide 009 045 016 000 oder 009045016000		on request on request
Image number 52		C 05 200 C 05 200	Ball cage Ball cage 621 052 00 35 oder 6210520035		€3.60 €3.60
Image number 53		C 05 193 C 05 193	Ball Ball 005 401 305 000 oder 005401305000		€0.83 €0.83
Image number 54		D 05 149 D 05 149	Compressing spring Compressing spring 100 993 41 01 oder 1009934101		on request on request
Image number 55		C 05 203 C 05 203	Pin Pin 000 007 008 217 oder 000007008217		on request on request
Image number 56		C 05 198 C 05 198	Closing cap Closing cap 180 052 02 32 oder 1800520232		on request on request
Image number 60		D 05 153 D 05 153	O-ring, chain tensioner O-ring, chain tensioner 003 997 46 45 oder 0039974645		€11.85 €11.85
Image number 61		B 03 018 B 03 018	Spring washer Spring washer 000 137 008 202 oder 000137008202		€0.30 €0.30
Image number 62		G 75 029 C 32 027	Hex nut Hex. nut M 8 000 934 008 008 oder 000934008008		on request €0.54
	C 32 027	Replacement: Hex. nut M 8		€0.54
Image number 65		D 05 178 D 05 178	Tension wheel bearing Tension wheel bearing 100 050 04 10 oder 1000500410		€746.67 €746.67
Image number 66		C 05 211 C 05 211	Idler sprocket with bushing Idler sprocket with bushing 180 050 01 09 oder 1800500109		€130.00 €130.00
Image number 67		C 05 213 C 05 213	Bushing Bushing 180 052 00 50 oder 1800520050		€76.38 €76.38
Image number 0		C 05 213 C 05 213	Bushing Bushing 180 052 00 50 oder 1800520050		€76.38 €76.38
Image number 0		C 05 215 C 05 215	Washer f. idler sprocket Washer f. idler sprocket 180 990 02 40 oder 1809900240		€34.34 €34.34
Image number 68		D 05 182 D 05 182	Washer Washer 000 988 020 015 oder 000988020015		€21.42 €21.42
Image number 70		D 05 183 D 05 183	Safety plate for roller chain Safety plate for roller chain 100 052 00 73 oder 1000520073		on request on request
Image number 71		C 05 217 C 05 217	Pivot pin Pivot pin 121 052 02 74 oder 1210520274		€8.40 €8.40
Image number 73		D 07 097 A 09 017	Sealing ring A 12x16 Cu Sealing ring A 12x16 Cu - DIN 7603 007 603 012 100 oder 007603012100		on request €0.60
	A 09 017	Replacement: Sealing ring A 12x16 Cu - DIN 7603		€0.60
Image number 80		D 05 199 D 05 199	Intake valve Intake valve 100 053 01 01 oder 1000530101		on request on request
Image number 81		D 05 205 D 05 205	Exhaust valve ( no Natrium filling ) Exhaust valve ( no Natrium filling ) 100 053 02 05 oder 1000530205		€95.00 €95.00
Image number 82		D 05 273 D 05 273	Rotocap for inlet valve Rotocap for inlet valve 000 053 03 35 oder 0000530335		on request on request
Image number 83		D 05 274 D 05 274	Rotocap for exhaust valve Rotocap for exhaust valve 000 053 04 35 oder 0000530435		on request on request
Image number 0		E 05 005 E 05 005	Valve seal kit Valve seal kit 100 586 00 05 oder 1005860005		€97.90 €97.90
Image number 87		D 05 251 D 05 251	Valve spring retainer Valve spring retainer 100 053 02 25 oder 1000530225		€59.93 €59.93
Image number 88		D 05 276 D 05 276	Valve plug Valve plug 115 053 00 26 oder 1150530026		€1.50 €1.50
Image number 89		C 05 257 C 05 257	Thrust fitting, 9mm high, std. Thrust fitting, 9mm high, std. 180 053 19 52 oder 1800531952		€44.62 €44.62
Image number 0		C 05 258 C 05 258	Thrust fitting, 7mm high, rep. size1 Thrust fitting, 7mm high, rep. size1 180 053 20 52 oder 1800532052		€44.62 €44.62
Image number 0		C 05 259 C 05 259	Thrust fitting, 5mm high, rep. size 2 Thrust fitting, 5mm high, rep. size 2 180 053 21 52 oder 1800532152		€44.62 €44.62
Image number 90		D 05 323 D 05 323	Rocker arm bearing block Rocker arm bearing block 100 055 01 10 oder 1000550110		on request on request
Image number 92		D 05 327 D 05 327	Bolt for tension spring Bolt for tension spring 100 055 00 74 oder 1000550074		€5.28 €5.28
Image number 93		D 05 328 D 05 328	Bracket for cylinder head cover Bracket for cylinder head cover 100 016 04 38 oder 1000160438		€18.72 €18.72
Image number 94		E 25 003 E 25 003	Screw Screw 000 912 008 023 oder 000912008023		on request on request
Image number 95		E 01 017 E 01 017	Cylinder head screw Cylinder head screw 000 912 008 201 oder 000912008201		€3.48 €3.48
Image number 98		D 05 287 D 05 287	Rocker arm Rocker arm 108 055 01 01 oder 1080550101		€32.00 €32.00
Image number 0		C 05 295 D 05 313	Tension spring for swing lever bearing Tension spring 180 993 08 25 oder 1809930825		on request €16.73
	D 05 313	Replacement: Tension spring		€16.73
Image number 100		D 05 313 D 05 313	Tension spring Tension spring 180 993 12 25 oder 1809931225		€16.73 €16.73

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

From engine 000985

D 05 024

From engine 000985

D 05 026

C 05 127 €1.46

C 05 125 €17.00

D 05 040

D 05 032 €346.15

C 05 131

D 05 077

D 05 079

D 25 286 €2.34

D 05 081

D 05 083

D 05 085

D 05 087

D 05 089

D 05 091 €2.50

D 05 093

D 05 095

D 05 102 €320.80

C 05 163 €150.00

C 05 167

C 05 169 €1.00

C 05 162 €4.38

C 05 169 €1.00

C 05 175 €13.32

D 05 128 €28.03

A 01 024 €0.35

D 05 145

D 01 510

C 05 200 €3.60

C 05 193 €0.83

D 05 149

C 05 203

C 05 198

D 05 153 €11.85

B 03 018 €0.30

From engine 000098

D 05 178 €746.67

C 05 211 €130.00

C 05 213 €76.38

Up to engine 000097

C 05 215 €34.34

From engine 000098

D 05 182 €21.42

D 05 183

C 05 217 €8.40

From engine 000838

D 05 199

From engine 000838

D 05 205 €95.00

D 05 273

D 05 274

On model 980 up to engine 001572

on model 980 USA up to engine 001502

on model 981 up to engine 003215

on model 981 USA up to engine 002712

E 05 005 €97.90

From engine 000838

D 05 251 €59.93

From engine 000838

D 05 276 €1.50

C 05 257 €44.62

C 05 258 €44.62

C 05 259 €44.62

D 05 323

D 05 327 €5.28

D 05 328 €18.72

E 25 003

E 01 017 €3.48

From engine 000606

D 05 287 €32.00

Up to engine 000605

From engine 000606

D 05 313 €16.73
