450SEL/6.9 Mercedes-Benz w116.036

Chosen model:

Chassis: 116.036
Engine: 100.985
Choose different model

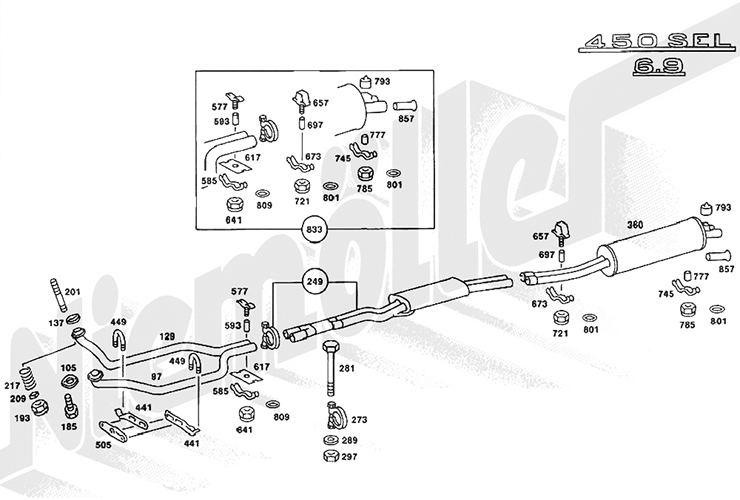

Current unit you are viewing: 49 Exhaust System

[{"type":"poly","coords":[85,377,93,390,124,388,153,395,164,395,223,377,227,371,227,360,231,356,254,350,255,345,251,342,224,349,220,353,219,358,218,367,217,370,160,385,162,371,149,370,148,382,131,379,104,378,101,369,92,368,88,371],"href":"\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/97,129,249,360","cssSelector":".product-group-97-129-249-360","info":"{\"ids\":\"F 49 000c, F 49 088, F 49 089, F 49 110, F 49 111, F 49 139\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[60,362,59,387,74,390,81,383,78,362],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/f49073-flange","cssSelector":".product-group-105","info":"{\"ids\":\"F 49 073\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[46,319,46,329,62,328,78,324,83,317,79,311,69,313,62,318],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/f49073-flange~2","cssSelector":".product-group-137","info":"{\"ids\":\"F 49 073\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[12,411,12,422,35,423,54,409,48,396,40,397,30,406],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/c49041-nut","cssSelector":".product-group-193","info":"{\"ids\":\"C 49 041\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[6,392,6,404,29,404,47,394,41,386,28,393],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/f49114-spacer-pipe-exhaust-pipe-front-exhaust-manifold","cssSelector":".product-group-209","info":"{\"ids\":\"F 49 114\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[4,392,25,392,33,390,39,384,32,365,18,368,18,377,6,378],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/f49010-spring-exhaust-pipe-front-to-exhaust-manifold","cssSelector":".product-group-217","info":"{\"ids\":\"F 49 010\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[326,399,328,429,343,430,371,423,370,414,335,399],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/c49043-clamp-55mm","cssSelector":".product-group-273","info":"{\"ids\":\"C 49 043\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[322,342,326,395,338,397,357,372,356,362,341,341,334,335,327,337],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/g49048-screw","cssSelector":".product-group-281","info":"{\"ids\":\"G 49 048\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[324,447,324,463,359,461,360,450,338,446],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/g75029-hex-nut","cssSelector":".product-group-297","info":"{\"ids\":\"G 75 029\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":\"C 32 027\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(106, 165, 109)\"}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[96,451,116,450,131,444,130,433,105,417,98,419,94,440],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/f49178-plate-gearbox-housing","cssSelector":".product-group-505","info":"{\"ids\":\"F 49 178\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":\"F 49 177\",\"stock_info_replacement\":\" (currently not in stock, but available for order)\",\"stock_light_replacement\":\"rgb(224, 151, 78)\"}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[243,225,246,199,240,195,227,193,225,203,225,227,243,225,257,404,256,434,235,435,236,404,256,404],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/c49041-nut~2","cssSelector":".product-group-641","info":"{\"ids\":\"C 49 041\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[329,96,300,86,290,95,298,113,305,112,330,106,329,96,527,227,530,242,564,247,570,235,566,218,558,215,526,226],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/f49182-bracket-front-main-muffler-suspension","cssSelector":".product-group-657","info":"{\"ids\":\"F 49 182\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[318,171,325,160,324,152,289,152,285,158,291,171,305,175,317,170,529,309,567,306,578,302,573,294,552,285,540,289,528,296,528,308],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/f49184-bracket-bottom-front-main-muffler-suspension","cssSelector":".product-group-673","info":"{\"ids\":\"F 49 184\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[325,129,325,118,301,115,296,120,297,132,324,129,534,260,565,262,564,247,532,246,534,260],"href":"\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/697","cssSelector":".product-group-697","info":"{\"ids\":\"D 49 164, F 49 181\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[313,206,312,181,302,176,293,180,293,207,312,206,549,340,571,341,571,311,562,307,550,314,549,340],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/c49041-nut~3","cssSelector":".product-group-721","info":"{\"ids\":\"C 49 041\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[335,165,369,163,381,156,378,149,363,148,357,142,348,144,334,154,335,164,656,300,691,298,701,292,699,285,686,284,678,276,669,278,655,287,656,300],"href":"\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/745","cssSelector":".product-group-745","info":"{\"ids\":\"F 49 187, F 49 188\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[302,239,308,245,319,244,327,240,331,228,327,220,320,213,308,213,303,217,298,227],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/c49043-clamp-55mm~2","cssSelector":".product-group-833","info":"{\"ids\":\"C 49 043\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[419,127,422,107,417,96,388,101,392,114,399,126,717,275,734,276,737,264,728,245,704,252,705,262,714,264,716,274,399,126],"href":"https:\/\/www.niemoeller.de\/en\/w116\/w116-mercedes-450SEL-6.9\/B036\/490104\/d49206-exhaust-tip-d-52mm-l-132mm","cssSelector":".product-group-857","info":"{\"ids\":\"D 49 206\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"}]

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 97, 129, 249, 360		F 49 000c	Exhaust system stainless steel W116 350SE, 450SE, 450SEL 6.9		€1,770.00	Choose the suitable product variant

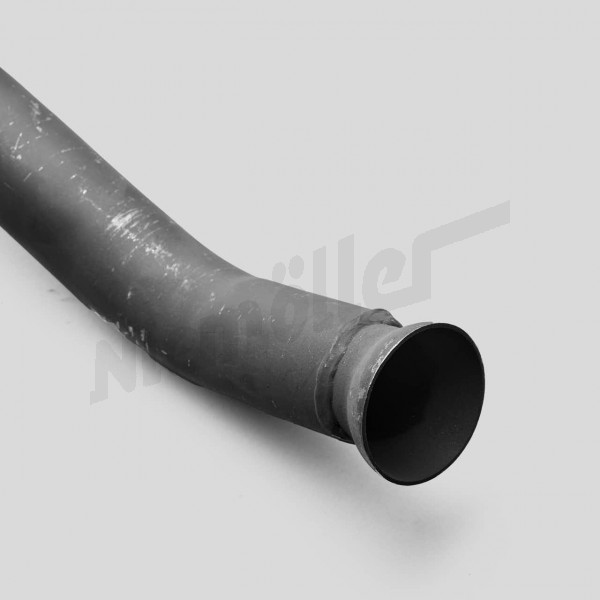

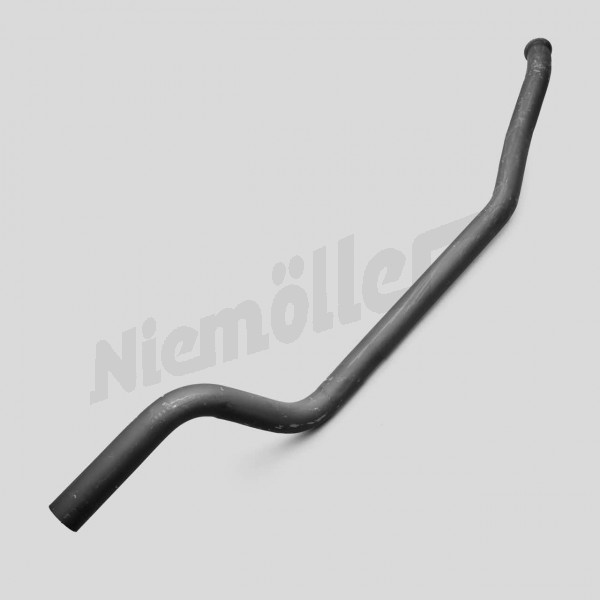

	Image number 97, 129, 249, 360		F 49 088	Exhaust pipe front left 116 490 19 19 oder 1164901919			€547.56
	Image number 97, 129, 249, 360		F 49 089	Exhaust pipe front left right hand drive 116 490 47 19 oder 1164904719			€133.04
	Image number 97, 129, 249, 360		F 49 110	Exhaust pipe front right 116 490 20 19 oder 1164902019			on request
	Image number 97, 129, 249, 360		F 49 111	Exhaust pipe front right R.L. 116 490 48 19 oder 1164904819			on request
	Image number 97, 129, 249, 360		F 49 139	Exhaust part with pipe, plugged version 116 490 16 15 oder 1164901615			on request
Image number 105		F 49 073 F 49 073	Flange Flange 107 492 03 45 oder 1074920345		€21.06 €21.06
Image number 137		F 49 073 F 49 073	Flange Flange 107 492 03 45 oder 1074920345		€21.06 €21.06
Image number 193		C 49 041 C 49 041	Nut Nut 000 990 32 50 oder 0009903250		€1.40 €1.40
Image number 209		F 49 114 F 49 114	Spacer pipe, exhaust pipe, front exhaust manifold Spacer pipe, exhaust pipe, front exhaust manifold 116 492 03 53 oder 1164920353		€24.00 €24.00
Image number 217		F 49 010 F 49 010	Spring exhaust pipe front to exhaust manifold Spring exhaust pipe front to exhaust manifold 115 993 90 02 oder 1159939002		€5.90 €5.90
Image number 273		C 49 043 C 49 043	Clamp 55mm Clamp 55mm 000 490 08 41 oder 0004900841		€2.60 €2.60
Image number 281		G 49 048 G 49 048	Screw Screw 304 014 008 002 oder 304014008002		€10.67 €10.67
Image number 297		G 75 029 C 32 027	Hex nut Hex. nut M 8 000 934 008 013 oder 000934008013		on request €0.54
	C 32 027	Replacement: Hex. nut M 8		€0.54
Image number 505		F 49 178 F 49 177	Plate, gearbox housing Gearbox housing plate 116 490 00 44 oder 1164900044		on request €107.45
	F 49 177	Replacement: Gearbox housing plate		€107.45
Image number 641		C 49 041 C 49 041	Nut Nut 000 990 32 50 oder 0009903250		€1.40 €1.40
Image number 657		F 49 182 F 49 182	Bracket, front main muffler suspension Bracket, front main muffler suspension 116 490 02 43 oder 1164900243		€226.98 €226.98
Image number 673		F 49 184 F 49 184	Bracket bottom front main muffler suspension Bracket bottom front main muffler suspension 116 492 03 43 oder 1164920343		€12.15 €12.15
Image number 697		D 49 164	Spacer tube 000 492 00 53 oder 0004920053		€3.16	Choose the suitable product variant
Image number 697	Image number 697		F 49 181	Spacer tube, middle suspension 116 492 04 53 oder 1164920453		Choose the suitable product variant	on request
Image number 721		C 49 041 C 49 041	Nut Nut 000 990 32 50 oder 0009903250		€1.40 €1.40
Image number 745		F 49 187	Bracket rear main silencer suspension 116 492 05 43 oder 1164920543		€10.50	Choose the suitable product variant

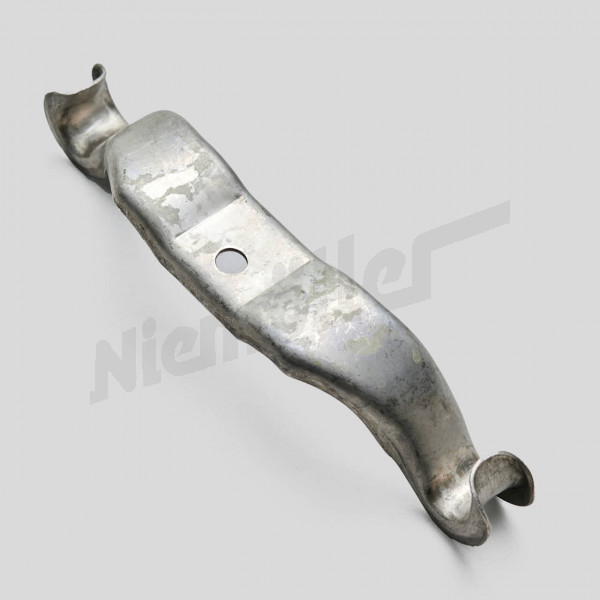

Image number 745	Image number 745		F 49 188	Bracket rear main silencer suspension 116 492 12 43 oder 1164921243		Choose the suitable product variant	€37.05
Image number 833		C 49 043 C 49 043	Clamp 55mm Clamp 55mm 000 490 08 41 oder 0004900841		€2.60 €2.60
Image number		F 49 196 F 49 196	Repair kit Repair kit 100 586 01 49 oder 1005860149		on request on request
Image number 857		D 49 206 D 49 206	Exhaust tip d=52mm l=132mm Exhaust tip d=52mm l=132mm 100 492 00 14 oder 1004920014		€40.95 €40.95

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Left-hand-drive;

When ordering, please inform us of the exact type of your vehicle, the chassis number and year of manufacture by e-mail (info@niemoeller.de). You can also enter this information in the master data of your shop account, then no e-mail is necessary.

F 49 000c €1,770.00

Left-hand-drive;

FROM CHASSIS: 036 001630

F 49 088 €547.56

Right-hand-drive

F 49 089 €133.04

Left-hand-drive;

FROM CHASSIS: 036 001630

F 49 110

Right-hand-drive

F 49 111

F 49 139

F 49 073 €21.06

UP TO CHASSIS:
028,029 10/50,12/52 044653, EXCEPT FOR:
044455, 044486, 044506, 044507, 044511, 044516, 044519- 044523, 044525, 044527, 044528, 044530- 044533, 044536,
044537, 044539- 044541, 044543, 044545, 044547, 044548, 044550, 044552, 044554, 044555, 044557, 044559- 044569,
044571- 044573, 044575- 044586, 044588, 044590- 044609, 044611- 044614, 044616- 044621, 044623- 044630, 044632-
044634, 044636- 044647, 044649- 044652.
032,033 10/50,12/52 077605, EXCEPT FOR:
076307, 076334, 076344, 076346, 076347, 076349, 076350, 076354, 076359- 076361, 076364, 076366, 076368, 076377,
076386, 076388, 076390, 076391, 076393, 076396, 076397, 076406, 076407, 076414, 076416, 076420, 076423, 076425,
076427, 076430, 076434, 076435, 076437, 076440, 076445, 076447- 076449, 076502, 076508, 076509, 076515, 076521,
076523- 076526, 076533, 076534, 076538, 076539, 076543- 076545, 076548, 076549, 076555, 076557, 076561, 076564,
076567, 076569, 076572, 076573, 076576, 076578, 076580, 076582, 076584, 076588, 076591, 076592, 076597, 076599,
076601.

C 49 041 €1.40

UP TO CHASSIS: 036 001629

F 49 114 €24.00

UP TO CHASSIS: 036 001629

F 49 010 €5.90

C 49 043 €2.60

G 49 048 €10.67

As of ident. no. 036 005258

Up to ident. no.: 036 005257

C 49 041 €1.40

F 49 182 €226.98

F 49 184 €12.15

UP TO CHASSIS: 036 001995

D 49 164 €3.16

FROM CHASSIS: 036 001996

F 49 181

C 49 041 €1.40

FOR STRAIGHT TAIL PIPE

F 49 187 €10.50

FOR BENT TAIL PIPE

F 49 188 €37.05

FROM CHASSIS: 036 001996

C 49 043 €2.60

FOR BENT TAIL PIPE

F 49 196

UP TO CHASSIS:
020 093167, EXCEPT FOR:
092903, 092906, 092908, 092910- 092912, 092915, 092919, 092920, 092924, 092926- 092929, 092931, 092934- 092937,
092939, 092942, 092944- 092953, 092955, 092958, 092959, 092961- 092964, 092967- 092971, 092974- 092976, 092979,
092981, 092982, 092984- 092999, 093001- 093004, 093006, 093007, 093009- 093011, 093013- 093017, 093019, 093021-
093023, 093025- 093038, 093040, 093042- 093061, 093063- 093092, 093094- 093166.
024,025 100533, EXCEPT FOR:
100232, 100257, 100280, 100284, 100295, 100296, 100299, 100301, 100305, 100308, 100309, 100311, 100314, 100315,
100317- 100321, 100323, 100327, 100328, 100333- 100335, 100337- 100339, 100344, 100345, 100347- 100363, 100365-
100374, 100376- 100393, 100395- 100398, 100400- 100402, 100404- 100406, 100408- 100474, 100476- 100503, 100505-
100512, 100514- 100532.
028,029 043287, EXCEPT FOR:
043226, 043233, 043236- 043249, 043251- 043253, 043255- 043279, 043281- 043286.
032,033 073228, EXCEPT FOR:
073097, 073117, 073132, 073135- 073139, 073142, 073143, 073145- 073149, 073151- 073154, 073156- 073158, 073160-
073166, 073168, 073169, 073171, 073174, 073176- 073183, 073185, 073187, 073188, 073190- 073192, 073194- 073224,
073226, 073227.
036 003489, EXCEPT FOR: 003482-003488

D 49 206 €40.95
