220SEb Mercedes-Benz w111

Chosen model:

Chassis: 111.014
Engine: 127.982
Choose different model

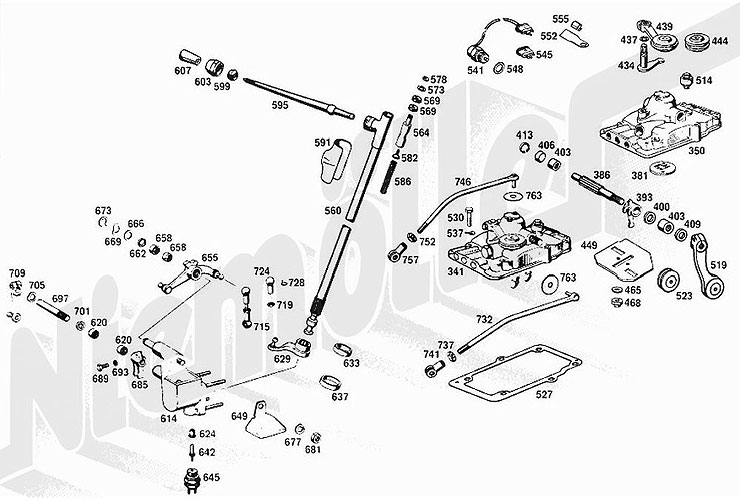

Current unit you are viewing: 26 Transmission

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 341		D 26 241 D 26 241	Gearbox cover Gearbox cover 111 260 31 14 oder 1112603114		€225.00 €225.00
Image number		C 26 113 C 26 113	Gearbox housing cover top R.L. Gearbox housing cover top R.L. 111 260 33 14 oder 1112603314		on request on request
Image number		C 26 114 C 26 114	Bushing for shifting bolt Bushing for shifting bolt 153 992 00 05 oder 1539920005		€11.50 €11.50
Image number 381		C 26 127 C 26 127	Locking plate Locking plate 183 265 00 46 oder 1832650046		€61.65 €61.65
Image number		G 22 073 G 22 073	Hex. head screw Hex. head screw 000 933 006 130 oder 000933006130		€0.32 €0.32
Image number		G 30 102 G 30 102	Spring washer Spring washer 000 137 006 204 oder 000137006204		€0.72 €0.72
Image number		C 07 425 C 07 425	Hex. nut Hex. nut 000 934 006 007 oder 000934006007		€0.40 €0.40
Image number 393		C 26 130 C 26 130	Shift fingers Shift fingers 186 268 00 33 oder 1862680033		on request on request
Image number 400		C 26 132 C 26 132	Washer to shift finger W105, W108, W109, W110, W111, W112, W120, W121, W128, W136, W180 W186, W187, W188, W189, W191 Washer to shift finger W105, W108, W109, W110, W111, W112, W120, W121, W128, W136, W180 W186, W187, W188, W189, W191 183 268 00 52 oder 1832680052		on request on request
Image number 403		C 26 133 C 26 133	Needle bearing for shift shaft Needle bearing for shift shaft 000 981 01 10 oder 0009810110		€23.00 €23.00
Image number 406		C 26 134 C 26 134	Closure cover for selector shaft Closure cover for selector shaft 186 997 01 20 oder 1869970120		€2.61 €2.61
Image number 409		C 26 135 C 26 135	Radial seal ring for shift shaft Radial seal ring for shift shaft 006 503 012 100 oder 006503012100		€5.00 €5.00
Image number 413		C 26 136 C 26 136	Sea ring for shift shaft Sea ring for shift shaft 000 472 022 000 oder 000472022000		€0.80 €0.80
Image number 434		D 26 253 D 26 253	Dialling finger Dialling finger 111 260 01 79 oder 1112600179		€112.65 €112.65
Image number 437		C 26 139 C 26 139	Sealing ring for bolt selector finger Sealing ring for bolt selector finger 186 997 11 40 oder 1869971140		€4.30 €4.30
Image number 439		C 26 140	Dial lever for dial finger a.Getr.geh.d 110 260 01 37 oder 1102600137		on request	Choose the suitable product variant
Image number 439	Image number 439		C 26 142	Selector lever for selector finger on gearbox housing cover 110 260 03 37 oder 1102600337		Choose the suitable product variant	€48.00
Image number 444		C 26 144	Bushing, 18,2mm outside 000 992 03 10 oder 0009920310		€6.83	Choose the suitable product variant
Image number 444	Image number 444		C 26 145	Bushing D 35,2 mm outside 000 992 01 10 oder 0009920110		Choose the suitable product variant	€9.68
Image number		G 22 020 G 22 020	Lock washer Lock washer 912 004 006 102 oder 912004006102		€0.30 €0.30
Image number		C 07 425 C 07 425	Hex. nut Hex. nut 000 934 006 007 oder 000934006007		€0.40 €0.40
Image number 449		C 26 147	Steering plate 186 260 01 28 oder 1862600128		on request	Choose the suitable product variant
Image number 449	Image number 449		C 26 148	Steering plate 186 260 03 28 oder 1862600328		Choose the suitable product variant	€75.00
Image number 519		C 26 174 C 26 174	Levers Levers 110 260 04 37 oder 1102600437		on request on request
Image number		D 26 259 D 26 259	Shaft lever, R.L. Shaft lever, R.L. 110 260 05 37 oder 1102600537		on request on request
Image number 523		C 26 144	Bushing, 18,2mm outside 000 992 03 10 oder 0009920310		€6.83	Choose the suitable product variant
Image number 523	Image number 523		C 26 145	Bushing D 35,2 mm outside 000 992 01 10 oder 0009920110		Choose the suitable product variant	€9.68
Image number		G 22 020 G 22 020	Lock washer Lock washer 912 004 006 102 oder 912004006102		€0.30 €0.30
Image number		C 07 425 C 07 425	Hex. nut Hex. nut 000 934 006 007 oder 000934006007		€0.40 €0.40
Image number 527		C 26 176	Gasket for gearbox cover / top - 4 holes 186 261 01 79 oder 1862610179		€3.99	Choose the suitable product variant
Image number 527	Image number 527		C 26 177	Gasket for top gearbox cover - 6 holes 111 261 01 79 oder 1112610179		Choose the suitable product variant	€6.30
Image number 534		D 26 261 D 26 261	Stud, for support Stud, for support 111 268 07 74 oder 1112680774		€12.50 €12.50
Image number 541		D 26 262 D 26 262	Reverse lamp switches Reverse lamp switches 000 545 12 06 oder 0005451206		on request on request
Image number 552		D 26 265 D 26 265	Holder for rear light cable Holder for rear light cable 111 546 01 43 oder 1115460143		on request on request
Image number 555		C 54 137 C 54 137	Clip Clip 000 988 16 78 oder 0009881678		€0.70 €0.70
Image number 560		D 26 308	Switching tube 111 260 13 82 oder 1112601382		on request	Choose the suitable product variant
	Image number 560		D 26 300	Switching tube 111 260 25 82 oder 1112602582			on request
	Image number 560		D 26 310	Switching tube 111 260 21 82 oder 1112602182			on request
Image number 564		D 26 313 D 26 313	Pilot pin Pilot pin 111 268 05 39 oder 1112680539		€97.00 €97.00
Image number 569		C 26 204 C 26 204	Guide ring Guide ring 111 997 12 40 oder 1119971240		€5.50 €5.50
Image number		A 42 030 A 42 030	Shim 1,0mm Shim 1,0mm 183 990 35 40 oder 1839903540		€34.19 €34.19
Image number 573		D 26 316 D 26 316	Washer Washer 186 990 69 40 oder 1869906940		€4.65 €4.65
Image number		C 07 359 C 07 359	Lock washer f. bell cranks Lock washer f. bell cranks 006 799 007 000 oder 006799007000		on request on request
Image number 578		C 26 206 C 26 206	Locking ring Locking ring 186 268 02 73 oder 1862680273		€13.65 €13.65
Image number 582		C 26 208 C 26 208	Cup pin for compression spring Cup pin for compression spring 186 268 02 74 oder 1862680274		€17.31 €17.31
Image number 586		C 26 209 C 26 209	Pressure spring Pressure spring 182 993 08 01 oder 1829930801		€10.56 €10.56
Image number 591		C 26 211 C 26 211	Shift boot Shift boot 111 268 03 97 oder 1112680397		€16.28 €16.28
Image number 595		C 26 213 C 26 213	Gearshift Gearshift 180 268 05 24 oder 1802680524		€418.47 €418.47
Image number 599		C 26 223 C 26 223	Plastic sleeve for gearshift lever Plastic sleeve for gearshift lever 111 268 03 92 oder 1112680392		€3.95 €3.95
Image number 603		C 26 225 C 26 225	Chrome cap Chrome cap 180 268 00 57 oder 1802680057		on request on request
Image number 607		D 27 172 D 27 172	Gearshift knob (dark graphite gray) Gearshift knob (dark graphite gray) 108 268 02 42 oder 1082680242		€91.16 €91.16
Image number		C 26 230 C 26 230	Knob for gear shifter ivory color / push Knob for gear shifter ivory color / push 111 268 08 42 oder 1112680842		€25.00 €25.00
Image number 614		D 26 329	Bearing body R.L. 111 260 37 94 oder 1112603794		on request	Choose the suitable product variant
Image number 614	Image number 614		D 26 327	Pedestal body 111 260 28 94 oder 1112602894		Choose the suitable product variant	€250.00
Image number 620		C 26 275 C 26 275	Needle bearing HK 12 Needle bearing HK 12 000 981 21 10 oder 0009812110		€12.00 €12.00
Image number 624		D 26 333 D 26 333	Collar bushing Collar bushing 180 268 02 50 oder 1802680250		on request on request
Image number 629		D 26 334 D 26 334	Lever on switching tube Lever on switching tube 111 260 04 15 oder 1112600415		€75.00 €75.00
Image number 633		D 26 338 D 26 338	Bushing Bushing 111 268 10 50 oder 1112681050		€34.26 €34.26
Image number 637		D 26 339 D 26 339	Spacer ring Spacer ring 111 268 02 51 oder 1112680251		€12.32 €12.32
Image number		G 30 102 G 30 102	Spring washer Spring washer 000 137 006 204 oder 000137006204		€0.72 €0.72
Image number		C 07 425 C 07 425	Hex. nut Hex. nut 000 934 006 007 oder 000934006007		€0.40 €0.40
Image number 642		D 26 340 D 26 340	Bolt Bolt 180 268 00 74 oder 1802680074		€9.00 €9.00
Image number 645		D 26 341 A 26 123	Reverse lamp switches Reversing light switch with screw terminals 000 545 08 06 oder 0005450806		on request €120.75
	A 26 123	Replacement: Reversing light switch with screw terminals		€120.75
Image number 649		D 26 343	Cover plate 111 268 07 05 oder 1112680705		on request	Choose the suitable product variant
Image number 649	Image number 649		D 26 345	Cover plate R.L. 111 268 08 05 oder 1112680805		Choose the suitable product variant	on request
Image number 655		D 26 348	Intermediate lever 111 260 13 81 oder 1112601381		on request	Choose the suitable product variant
Image number 655	Image number 655		D 26 350	Intermediate lever R.L. 111 260 26 81 oder 1112602681		Choose the suitable product variant	on request
Image number 658		C 26 275 C 26 275	Needle bearing HK 12 Needle bearing HK 12 000 981 21 10 oder 0009812110		€12.00 €12.00
Image number 662		C 26 277 C 26 277	Sealing ring for selector lever shaft Sealing ring for selector lever shaft 180 997 08 40 oder 1809970840		on request on request
Image number 666		C 26 252 C 26 252	Washer on bearing body Washer on bearing body 312 990 03 40 oder 3129900340		€7.54 €7.54
Image number 669		G 88 109 G 88 109	Spring washer Spring washer 900 055 012 001 oder 900055012001		€0.80 €0.80
Image number 673		D 26 234 D 26 234	Locking washer Locking washer 006 799 010 001 oder 006799010001		€1.44 €1.44
Image number 681		C 32 027 C 32 027	Hex. nut M 8 Hex. nut M 8 304 032 008 006 oder 304032008006		€0.54 €0.54
Image number 685		C 26 278 C 26 278	Selector lever on switching tube Selector lever on switching tube 180 268 02 15 oder 1802680215		on request on request
Image number 689		G 22 073 G 22 073	Hex. head screw Hex. head screw 000 933 006 130 oder 000933006130		€0.32 €0.32
Image number 693		G 22 020 G 22 020	Lock washer Lock washer 912 004 006 102 oder 912004006102		€0.30 €0.30
Image number 697		C 26 267 C 26 267	Selector shaft Selector shaft 180 268 00 32 oder 1802680032		on request on request
Image number		D 26 355 D 26 355	Selector lever shaft R. L. Selector lever shaft R. L. 111 268 05 32 oder 1112680532		€75.00 €75.00
Image number 701		C 26 277 C 26 277	Sealing ring for selector lever shaft Sealing ring for selector lever shaft 180 997 08 40 oder 1809970840		on request on request
Image number 705		G 88 109 G 88 109	Spring washer Spring washer 900 055 012 001 oder 900055012001		€0.80 €0.80
Image number 709		C 26 263 C 26 263	Selector lever with ball stud Selector lever with ball stud 180 260 02 37 oder 1802600237		€105.64 €105.64
Image number		D 26 358 D 26 358	Selector lever R. L. Selector lever R. L. 111 260 01 37 oder 1112600137		€75.00 €75.00
Image number		C 32 027 C 32 027	Hex. nut M 8 Hex. nut M 8 304 032 008 006 oder 304032008006		€0.54 €0.54
Image number 715		D 26 359 D 26 359	Ball socket Ball socket 111 260 00 66 oder 1112600066		on request on request
Image number 724		D 26 361 D 26 361	Ball socket Ball socket 071 805 010 200 oder 071805010200		on request on request
Image number 728		D 26 362 G 42 204	Safety catches Safety catch 071 805 010 401 oder 071805010401		on request €1.46
	G 42 204	Replacement: Safety catch		€1.46

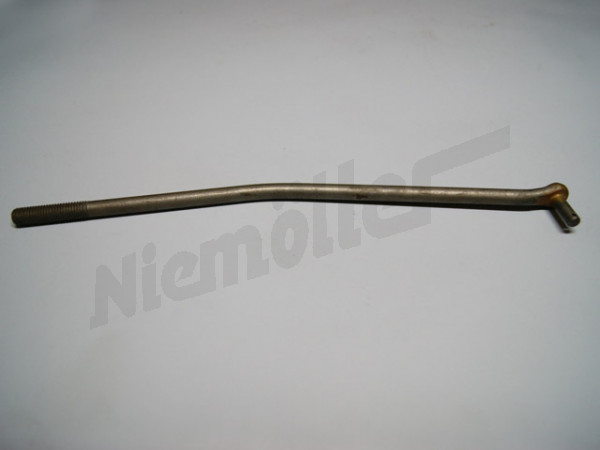

Image number 732		D 26 369	Selector rod 111 260 48 33 oder 1112604833		€85.00	Choose the suitable product variant
Image number 732	Image number 732		D 26 371	Switch rod R.L. 111 260 54 33 oder 1112605433		Choose the suitable product variant	on request
Image number 741		C 26 299 C 26 299	Ball socket Ball socket 000 991 38 22 oder 0009913822		€6.30 €6.30

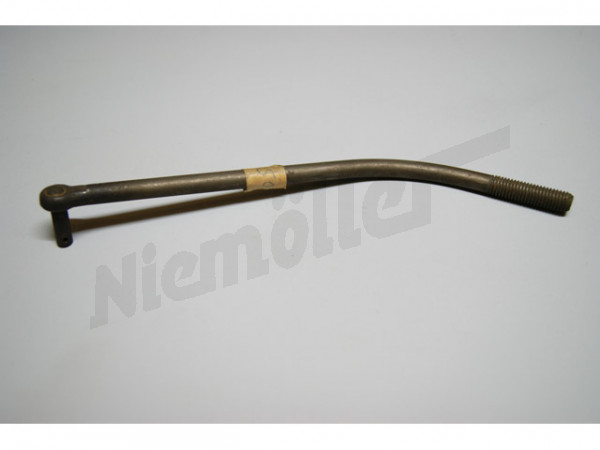

Image number 746		D 26 378	Selector rod 111 260 50 33 oder 1112605033		on request	Choose the suitable product variant
Image number 746	Image number 746		D 26 382	R.L. selector rod 111 260 35 33 oder 1112603533		Choose the suitable product variant	on request
Image number 757		C 26 299 C 26 299	Ball socket Ball socket 000 991 38 22 oder 0009913822		€6.30 €6.30
Image number		A 42 031 A 42 031	Spacer washer 0,75 Spacer washer 0,75 183 990 42 40 oder 1839904240		€34.19 €34.19
Image number 763		C 26 310 C 26 310	Washer outside D 35 mm Washer outside D 35 mm 110 990 18 40 oder 1109901840		€7.06 €7.06
Image number		G 42 127 G 42 127	Cotter pin Cotter pin 000 094 002 059 oder 000094002059		€0.72 €0.72

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Left-hand-drive;

014 FROM TRANSMISSION 126213;021/023 FROM TRANSMISSION 003391

D 26 241 €225.00

Right-hand-drive;

014 FROM TRANSMISSION 126213;021/023 FROM TRANSMISSION 003391

C 26 113

C 26 114 €11.50

C 26 127 €61.65

G 22 073 €0.32

G 30 102 €0.72

C 07 425 €0.40

C 26 130

C 26 132

C 26 133 €23.00

C 26 134 €2.61

C 26 135 €5.00

C 26 136 €0.80

D 26 253 €112.65

C 26 139 €4.30

Left-hand-drive

C 26 140

Right-hand-drive

C 26 142 €48.00

Up to transmission: 093132
NO LONGER AVAILABLE

C 26 144 €6.83

Ab Getriebe: 093133

C 26 145 €9.68

G 22 020 €0.30

C 07 425 €0.40

Up to transmission: 126212

C 26 147

As of transmission: 126213

C 26 148 €75.00

Left-hand-drive

C 26 174

Right-hand-drive

D 26 259

Up to transmission: 093132
NO LONGER AVAILABLE

C 26 144 €6.83

Ab Getriebe: 093133

C 26 145 €9.68

G 22 020 €0.30

C 07 425 €0.40

014 UP TO TRANSMISSION 126212;021/023 UP TO TRANSMISSION 003390

C 26 176 €3.99

014 FROM TRANSMISSION 126213;021/023 FROM TRANSMISSION 003391

C 26 177 €6.30

ON SPECIAL REQUEST,FLOOR SHIFT

D 26 261 €12.50

014 FROM TRANSMISSION 126213;021/023 FROM TRANSMISSION 003391

D 26 262

D 26 265

C 54 137 €0.70

Up to Ident-Nr.: 011849

D 26 308

Left-hand-drive;

As of Ident-Nr.: 011450

D 26 300

Right-hand-drive;

As of Ident-Nr.: 011450

D 26 310

As of Ident-Nr.: 000253

D 26 313 €97.00

C 26 204 €5.50

Up to Ident-Nr.: 000252

A 42 030 €34.19

As of Ident-Nr.: 000253

D 26 316 €4.65

Up to Ident-Nr.: 000252

C 07 359

As of Ident-Nr.: 000253

C 26 206 €13.65

C 26 208 €17.31

C 26 209 €10.56

C 26 211 €16.28

C 26 213 €418.47

C 26 223 €3.95

C 26 225

D 27 172 €91.16

C 26 230 €25.00

Right-hand-drive;

As of Ident-Nr.: 006614
UP TO CHASSIS 028572 INSTALLED ON,SEE FOOTN.36

D 26 329

Left-hand-drive;

As of Ident-Nr.: 006614

D 26 327 €250.00

C 26 275 €12.00

UP TO CHASSIS 028572 INSTALLED ON,SEE FOOTN.36

D 26 333

D 26 334 €75.00

D 26 338 €34.26

As of Ident-Nr.: 006614

D 26 339 €12.32

G 30 102 €0.72

C 07 425 €0.40

Up to transmission: 126212

D 26 340 €9.00

Up to transmission: 126212

Left-hand-drive

D 26 343

Right-hand-drive

D 26 345

Left-hand-drive

D 26 348

Right-hand-drive

D 26 350

C 26 275 €12.00

C 26 277

C 26 252 €7.54

G 88 109 €0.80

D 26 234 €1.44

C 32 027 €0.54

C 26 278

G 22 073 €0.32

G 22 020 €0.30

Left-hand-drive

C 26 267

Right-hand-drive

D 26 355 €75.00

C 26 277

G 88 109 €0.80

Left-hand-drive

C 26 263 €105.64

Right-hand-drive

D 26 358 €75.00

C 32 027 €0.54

D 26 359

As of ident. no. 003144

D 26 361

Left-hand-drive

D 26 369 €85.00

Right-hand-drive

D 26 371

C 26 299 €6.30

Left-hand-drive

D 26 378

Right-hand-drive

D 26 382

C 26 299 €6.30

Up to transmission: 093132

A 42 031 €34.19

Ab Getriebe: 093133

C 26 310 €7.06

G 42 127 €0.72
