78 Sliding Roof for MB 190c, 200 W110.010 Mercedes-Benz
190c, 200 W110.010

Chosen model:

Chassis: 110.010
Engine: 121.924
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

[{"type":"poly","coords":[25,88,161,180,458,100,301,6],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B010\/51\/d78001-roof-cladding-with-reinforcementra","cssSelector":".product-group-1","info":"{\"ids\":\"D 78 001\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[399,376,408,374,425,357,315,285,253,301,110,342,226,411,284,394,237,345,244,333,270,329,328,380,387,365],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B010\/51\/d78008-bottom-frame","cssSelector":".product-group-2","info":"{\"ids\":\"D 78 008\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[334,270,337,286,355,282,358,267],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B010\/51\/c68011-rubber-buffer","cssSelector":".product-group-3","info":"{\"ids\":\"C 68 011\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[312,391,318,407,346,400,344,385],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B010\/51\/d78011-underlay-2mm-thick","cssSelector":".product-group-4","info":"{\"ids\":\"D 78 011\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[60,229,162,305,373,245,258,176],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B010\/51\/d78012-rubber-seal","cssSelector":".product-group-5","info":"{\"ids\":\"D 78 012\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[81,358,77,373,57,375,56,361],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B010\/51\/d78016-grommet","cssSelector":".product-group-7","info":"{\"ids\":\"D 78 016\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[26,231,146,309,127,315,23,251],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B010\/51\/d78049-front-cover-rail","cssSelector":".product-group-45","info":"{\"ids\":\"D 78 049\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[253,439,276,459,350,427,348,414],"href":"\/en\/w110\/w110\/B010\/51\/46","cssSelector":".product-group-46","info":"{\"ids\":\"D 78 050, D 78 051, D 78 052\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[360,433,378,451,481,415,475,401],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B010\/51\/d78053-slide-rail-right","cssSelector":".product-group-47","info":"{\"ids\":\"D 78 053\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(255, 180, 94)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(255, 180, 94,0.4)","strokeStyle":"black"},{"type":"poly","coords":[130,422,112,446,130,446,146,428],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B010\/51\/d78058-filler-for-reinforcing-frame","cssSelector":".product-group-48","info":"{\"ids\":\"D 78 058\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[444,245,475,287,531,285,493,195],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B010\/51\/d78061-sky-w-sky-frame","cssSelector":".product-group-55","info":"{\"ids\":\"D 78 061\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[274,159,430,264,493,239,537,244,654,201,704,246,739,226,668,152,551,88],"href":"\/en\/w110\/w110\/B010\/51\/56","cssSelector":".product-group-56","info":"{\"ids\":\"D 69 019, D 69 019a, D 69 019b, D 78 065, D 78 065b\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[490,313,586,375,704,340,607,278],"href":"\/en\/w110\/w110\/B010\/51\/57","cssSelector":".product-group-57","info":"{\"ids\":\"D 78 068, D 78 069, D 78 069a\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[514,365,531,366,556,380,564,375,478,317,464,323],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B010\/51\/d78070-rubber-profile-795-mm-long","cssSelector":".product-group-58","info":"{\"ids\":\"D 78 070\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"D 68 611\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[554,41,701,141,710,116,567,29],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B010\/51\/d78071-clamping-bow-1-from-behind","cssSelector":".product-group-59","info":"{\"ids\":\"D 78 071\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"},{"type":"poly","coords":[538,37,688,138,674,153,522,55],"href":"https:\/\/www.niemoeller.de\/en\/w110\/w110\/B010\/51\/d78077-clamping-bow-2-from-behind","cssSelector":".product-group-60","info":"{\"ids\":\"D 78 077\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(100, 100, 100,0.5)","strokeStyle":"black"}]

in stock
low stock level
currently not in stock, but available for order
no longer available

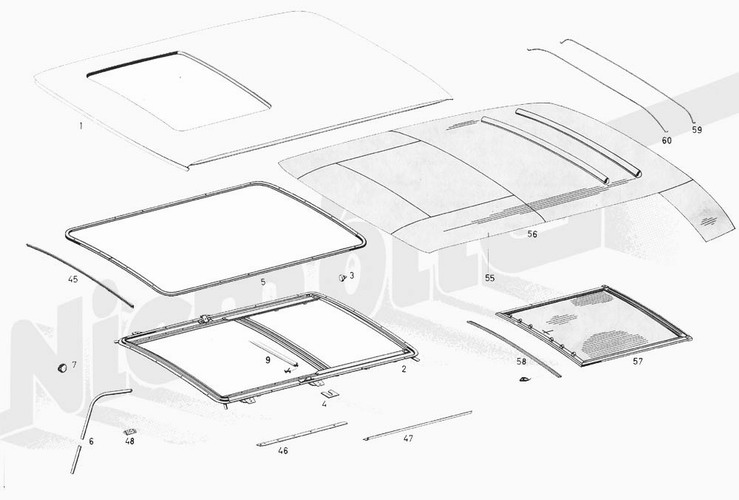

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 1		D 78 001 D 78 001	Roof cladding with reinforcementra. Roof cladding with reinforcementra. 110 650 02 70 or 1106500270		on request on request
Image number 2		D 78 008 D 78 008	Bottom frame Bottom frame 110 780 05 29 or 1107800529		on request on request
Image number 3		C 68 011 C 68 011	Rubber buffer Rubber buffer 000 987 96 40 or 0009879640		€0.99 €0.99
Image number 4		D 78 011 D 78 011	Underlay, 2mm thick Underlay, 2mm thick 000 983 30 87 or 0009833087		on request on request
Image number 0		G 82 429 G 42 088	Hexagon head screw 6x15 DIN 933 Screw, ground connection 000 933 006 026 or 000933006026		on request €2.55
	G 42 088	Replacement: Hexagon head screw 6x15 DIN 933		€2.55
Image number 0		C 07 108 G 22 020	Lock washer Spring ring for carburetor cover 000 127 006 203 or 000127006203		on request €0.30
	G 22 020	Replacement: Lock washer		€0.30
Image number 5		D 78 012 D 78 012	Rubber seal Rubber seal 100 782 03 07 or 1007820307		€112.10 €112.10
Image number 0		D 78 013 D 78 013	Sealing between reinforcing frame bottom Sealing between reinforcing frame bottom 000 987 58 41 or 0009875841		on request on request
Image number 7		D 78 016 D 78 016	Grommet Grommet 110 782 00 19 or 1107820019		€7.18 €7.18
Image number 0		D 78 017 D 78 017	Fastening clip Fastening clip 900 285 008 100 or 900285008100		on request on request
Image number 0		D 78 018 D 78 018	Terostatic cord Terostatic cord 001 989 46 85 or 0019894685		on request on request
Image number 0		D 78 019 C 78 061	Foam rubber, sold per meter, 1 meter wide Rubber pad, 800mm long 000 987 12 60 or 0009871260		on request €44.04
	C 78 061	Replacement: Foam rubber, sold per meter, 1 meter wide		€44.04
Image number 45		D 78 049 D 78 049	Front cover rail Front cover rail 110 782 01 13 or 1107820113		on request on request
Image number 0		G 72 221 G 72 221	Screw 2,9x9,5 DIN 7983 Screw 2,9x9,5 DIN 7983 007 983 002 203 or 007983002203		€3.66 €3.66
Image number 46		D 78 050	Slide rail, front left 110 782 07 26 or 1107820726	on request		Select variant	on request
Image number 46		D 78 051	Slide rail, front right 110 782 08 26 or 1107820826	€55.00			€55.00
Image number 46		D 78 052	Slide rail, left 110 782 13 26 or 1107821326	on request			on request
Image number 47		D 78 053 D 78 053	Slide rail right Slide rail right 110 782 14 26 or 1107821426		€153.70 €153.70
Image number 0		D 78 054 D 78 054	Countersunk-head tapping screw Countersunk-head tapping screw 140 990 04 36 or 1409900436		€20.00 €20.00
Image number 0		D 78 055 D 78 055	Underlay jute felt 40x10x520mm Underlay jute felt 40x10x520mm 110 682 02 51 or 1106820251		on request on request
Image number 0		C 78 061 C 78 061	Foam rubber, sold per meter, 1 meter wide Foam rubber, sold per meter, 1 meter wide 000 983 06 98 or 0009830698		€44.04 €44.04
Image number 48		D 78 058 D 78 058	Filler for reinforcing frame Filler for reinforcing frame 110 782 00 39 or 1107820039		on request on request
Image number 55		D 78 061 D 78 061	Sky w. sky frame Sky w. sky frame 110 690 99 50 or 1106909950		on request on request
Image number 56		D 69 019	Canopy, artificial leather perforated, ready sewn, replica, cream, without sunroof W110/111/112 Limousine 110 690 09 50 or 1106900950	€220.00		Select variant	€220.00
Image number 56		D 69 019a	Perforated sky - yard ware 110 690 09 50, 110 690 00 50 or 1106900950,1106900050	€65.00			€65.00
Image number 56		D 69 019b	Canopy, artificial leather perforated, ready sewn, reproduction light grey, without sunroof W110/111/112 Sedan 110 690 09 50 or 1106900950	€220.00			€220.00
Image number 56		D 78 065	Himmel W110/111/112 Sedan with sunroof, replica, creme 111 690 03 52 or 1116900352	€255.00			€255.00
Image number 56		D 78 065b	Himmel W110/111/112 Sedan with sliding roof, replica, light grey 111 690 03 52 or 1116900352	€255.00			€255.00
Image number 57		D 78 068	Sky frame with ceiling cloth 111 780 51 09 or 1117805109	on request		Select variant	on request
Image number 57		D 78 069	Canopy frame with perforated leatherette - 7020 - light gray 110 780 02 09 or 1107800209	€245.00			€245.00
Image number 57		D 78 069a	Canopy frame with perforated leatherette - 8036 - cream 110 780 02 09 or 1107800209	€565.32			€565.32
Image number 58		D 78 070 D 68 611	Seal Rubber profile, 795 mm long 000 987 79 52 or 0009877952		on request €43.76
	D 68 611	Replacement: Seal		€43.76
Image number 59		D 78 071 D 78 071	Clamping bow 1. from behind Clamping bow 1. from behind 110 696 03 01 or 1106960301		on request on request
Image number 60		D 78 077 D 78 077	Clamping bow, 2. from behind Clamping bow, 2. from behind 110 696 04 01 or 1106960401		on request on request

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Roof cladding with reinforcementra.

D 78 001

Bottom frame

D 78 008

Rubber buffer

C 68 011 €0.99

Underlay, 2mm thick

D 78 011

Screw, ground connection

G 82 429

Replacement item available

Spring ring for carburetor cover

C 07 108

Replacement item available

Rubber seal

D 78 012 €112.10

Sealing between reinforcing frame bottom

D 78 013

Grommet

D 78 016 €7.18

Fastening clip

D 78 017

Terostatic cord

D 78 018

Rubber pad, 800mm long

D 78 019

Replacement item available

Front cover rail

D 78 049

Screw 2,9x9,5 DIN 7983

G 72 221 €3.66

Slide rail, front left

D 78 050

Slide rail, front right

D 78 051 €55.00

Slide rail, left

D 78 052

Slide rail right

D 78 053 €153.70

Countersunk-head tapping screw

D 78 054 €20.00

Underlay jute felt 40x10x520mm

D 78 055

Foam rubber, sold per meter, 1 meter wide

C 78 061 €44.04

Filler for reinforcing frame

D 78 058

Sky w. sky frame

D 78 061

Canopy, artificial leather perforated, ready sewn, replica, cream, without sunroof W110/111/112 Limousine

D 69 019 €220.00

Perforated sky - yard ware

D 69 019a €65.00

Canopy, artificial leather perforated, ready sewn, reproduction light grey, without sunroof W110/111/112 Sedan

D 69 019b €220.00

Himmel W110/111/112 Sedan with sunroof, replica, creme

D 78 065 €255.00

Himmel W110/111/112 Sedan with sliding roof, replica, light grey

D 78 065b €255.00

Sky frame with ceiling cloth

D 78 068

Canopy frame with perforated leatherette - 7020 - light gray

D 78 069 €245.00

Canopy frame with perforated leatherette - 8036 - cream

D 78 069a €565.32

Rubber profile, 795 mm long

D 78 070

Replacement item available

Clamping bow 1. from behind

D 78 071

Clamping bow, 2. from behind

D 78 077

From chassis 155808

Sealing between reinforcing frame bottom

D 78 013

From chassis 059212 (gasoline vehicles)
from chassis 090776 (Diesel vehicles)

Slide rail, left

D 78 052

From chassis 059212 (gasoline vehicles)
from chassis 090776 (Diesel vehicles)

Slide rail right

D 78 053 €153.70

From chassis 022627 (gasoline vehicles),
from chassis 031398 (Diesel vehicles)

Filler for reinforcing frame

D 78 058

From chassis 066626, trimming in grey, for vehicles not equipped with sliding roof
from chassis 070904, trimming in beige, for vehicles not equipped with sliding roof
from chassis 066837, trimming in beige, for all export vehicles

Canopy, artificial leather perforated, ready sewn, replica, cream, without sunroof W110/111/112 Limousine

D 69 019 €220.00

From chassis 066416 (gasoline vehicles)
from chassis 103374 (Diesel vehicles)

Himmel W110/111/112 Sedan with sunroof, replica, creme

D 78 065 €255.00

Up to chassis 066415 (gasoline vehicles)
up to chassis 103373 (Diesel vehicles)

Sky frame with ceiling cloth

D 78 068

From chassis 066416 (gasoline vehicles)
from chassis 103374 (Diesel vehicles)

Canopy frame with perforated leatherette - 7020 - light gray

D 78 069 €245.00
